Arteor Advance - Shaver socket 120V to 230V with earth connector matt black - IP20 flush-mounted thermoplastic - Safety shutters

Arteor Advance Legrand

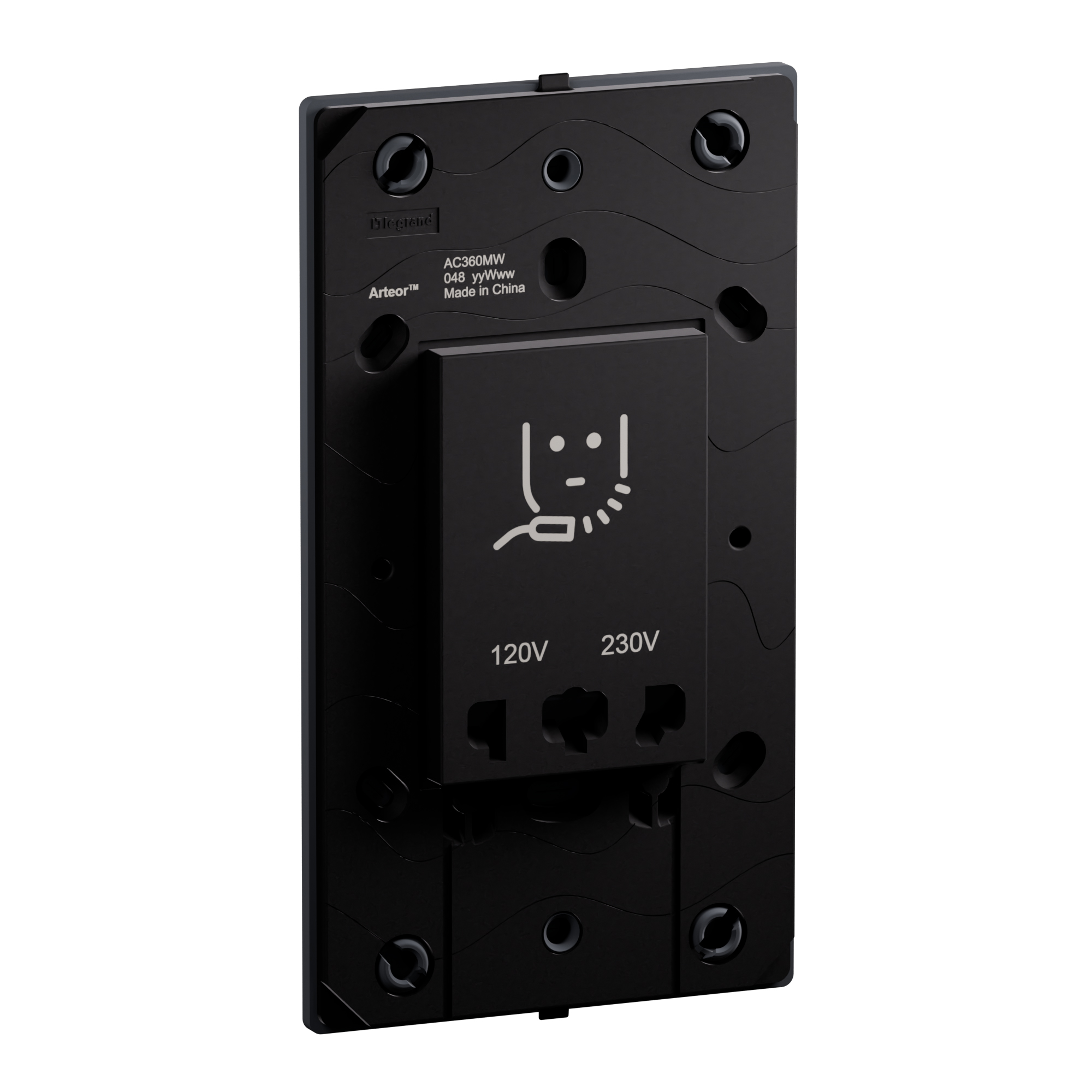

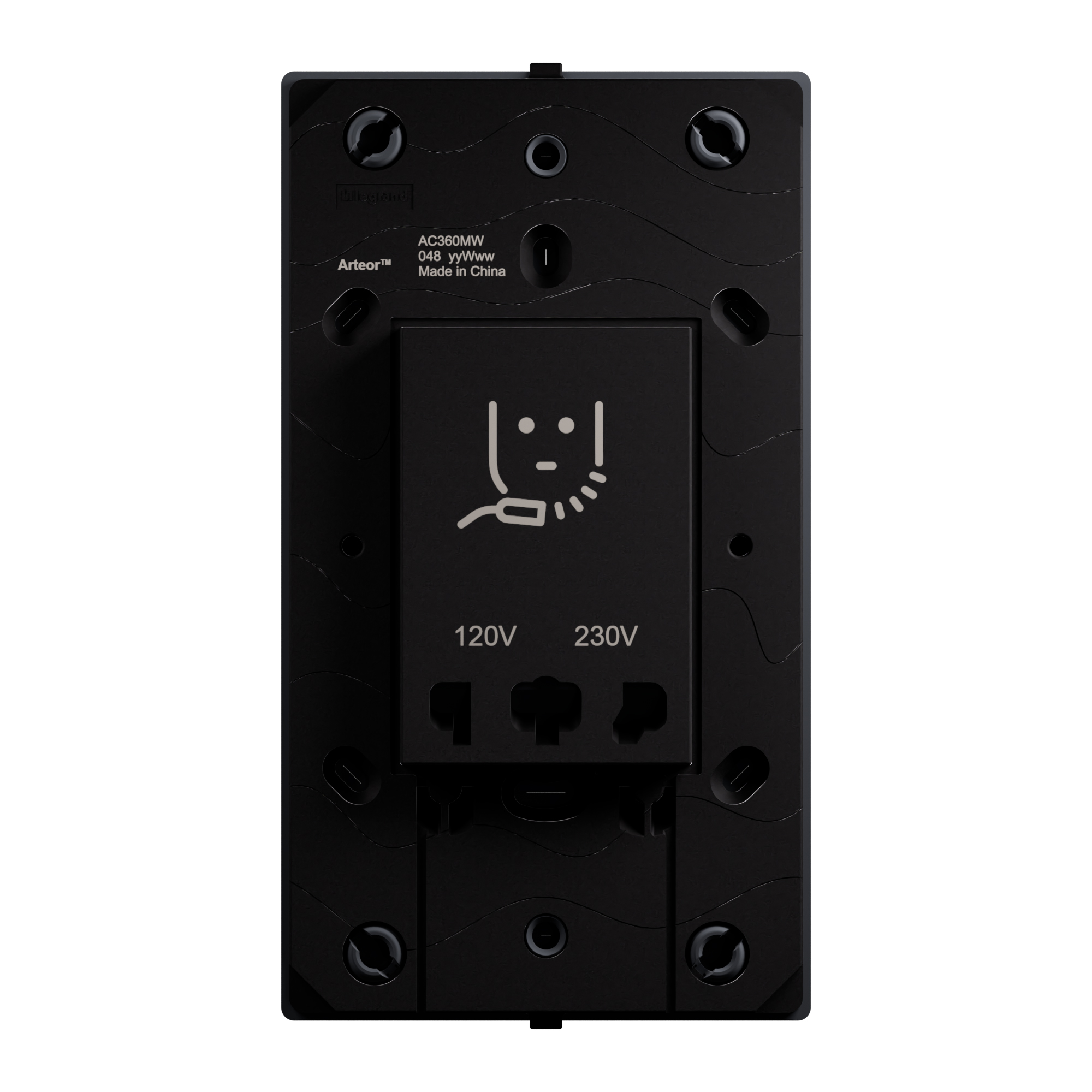

Arteor Advance - Shaver socket 120V to 230V with earth connector matt black - IP20 flush-mounted thermoplastic - Safety shutters

REF. AC361MB EAN. 3414972761499
Provides power for shavers with dual 230V/120-230V supply and earth connection. Matt black thermoplastic finish with IP20, IK04 ratings ensures robust, flush-mounted installation for bathroom and washroom applications.
Download product sheet
Finition :
You can only compare 4 products, you must remove 1 to add this one

Description

Provides power for shavers with dual 230V/120-230V supply and earth connection. Matt black thermoplastic finish with IP20, IK04 ratings ensures robust, flush-mounted installation for bathroom and washroom applications.

Product characteristics
  • Shaver socket outlet for 230V/120-230V AC supply, rated 20VA, dedicated to powering electric shavers.
  • Matt black thermoplastic front with lacquered, smooth matt finish for a deep black, premium appearance.
  • Integrated earth connection for enhanced user protection when supplying shavers in bathroom environments.
  • Clearly marked screwed terminals (1.5mm² to 2.5mm², flexible or rigid) for easy, secure wiring and identification.
  • Accepts common two-pin shaver plugs, with IP20 flush-mounted design sized 82x149.6x52.5mm for standard indoor installations.
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Installation
  • Has screw-type terminals for easy and secure wire installation.
Usage
  • Fitted with safety shutters to maximise protection
Avantages
  • IP24 product suited to bathroom humid environment
  • Deep black with a smooth matt aspect

Technical characteristics

Assembly arrangement Basic element with central cover plate
Mounting method Flush-mounted
With hinged lid No
Voltage reversible No
Nominal voltage low value 207 V
Nominal voltage high value 253 V
Rated output 20 VA
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Surface protection Lacquered
Surface finishing Matt
Colour Black
Transparent No
Device width 82 mm
Device height 149.6 mm
Device depth 52.5 mm
With built-in installation box No
Min. depth of built-in installation box 50 mm
Built-in depth 40.9 mm
degree of impact strength (IK) IK04
Degree of protection (IP) IP20
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
Voltage type AC
Frequency (Min-Max) 50-60 Hz
Terminal marking indication Yes
Antimicrobial treatment No
Connection type Screwed terminal
Terminals capacity (Min-Max) 1.5-2.5 mm²
Cable nature for connection Flexible or rigid
Label space/information surface Yes
