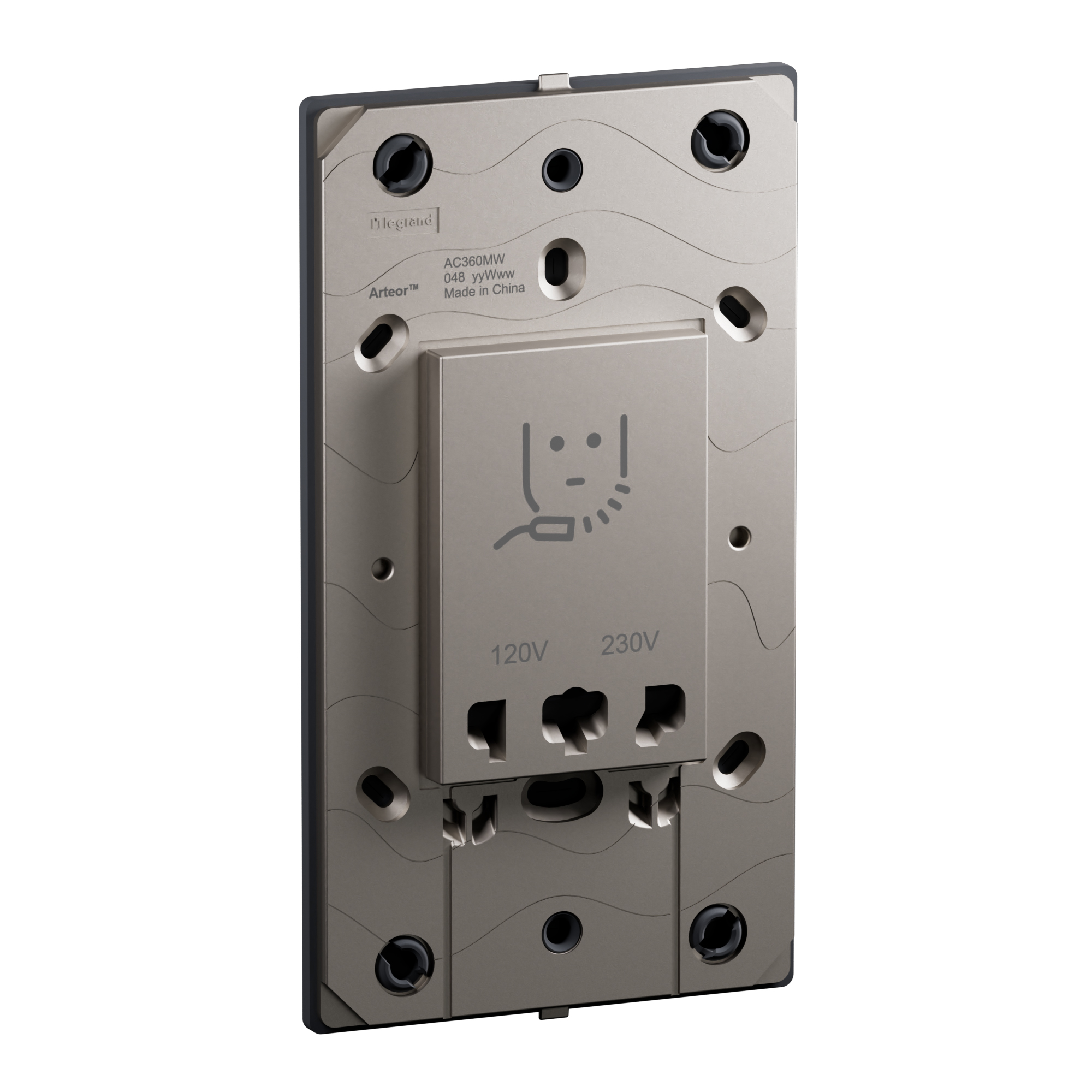

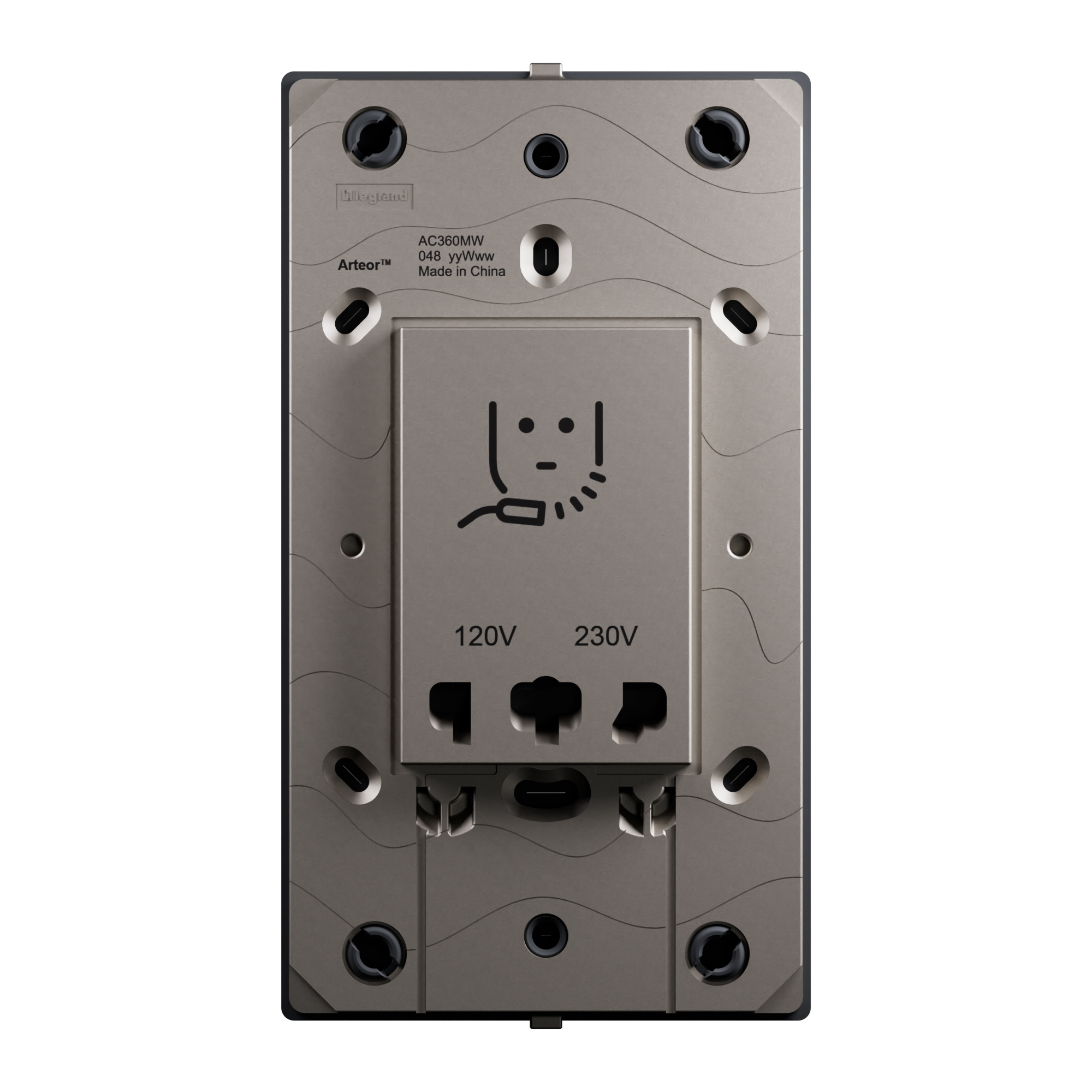

Arteor Advance - Shaver socket 120-230V with earth connector - Flush-mounted razor outlet IP20 - Matt titanium thermoplastic housing

Arteor Advance Legrand

Arteor Advance - Shaver socket 120-230V with earth connector - Flush-mounted razor outlet IP20 - Matt titanium thermoplastic housing

REF. AC361MT EAN. 3414972761536
Provides power for shavers with dual 230V/120-230V supply and earth connection. Matt titanium thermoplastic front offers durable, halogen-free performance. Marked screw terminals and 1.5mm² to 2.5mm² capacity simplify wiring.
Download product sheet
Finition :
You can only compare 4 products, you must remove 1 to add this one

Description

Provides power for shavers with dual 230V/120-230V supply and earth connection. Matt titanium thermoplastic front offers durable, halogen-free performance. Marked screw terminals and 1.5mm² to 2.5mm² capacity simplify wiring.

Product characteristics
  • Shaver socket outlet for 230V/120 to 230V AC supply, rated 20VA for dedicated shaver loads
  • Matt titanium thermoplastic front with lacquered finish for a robust, premium aesthetic
  • Integrated earth connection for enhanced user protection in compliant bathroom installations
  • Clearly marked screwed terminals (1.5mm² to 2.5mm², flexible or rigid) for fast, error-free wiring
  • Accepts common two-pin shaver plugs, with IP20 flush-mounted design optimized for indoor use
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Installation
  • Has screw-type terminals for easy and secure wire installation.
Usage
  • Fitted with safety shutters to maximise protection
Avantages
  • IP24 product suited to bathroom humid environment
  • Titanium with a smooth matt aspect

Technical characteristics

Assembly arrangement Basic element with central cover plate
Mounting method Flush-mounted
With hinged lid No
Voltage reversible No
Nominal voltage low value 207 V
Nominal voltage high value 253 V
Rated output 20 VA
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Surface protection Lacquered
Surface finishing Matt
Colour Titanium
Transparent No
Device width 82 mm
Device height 149.6 mm
Device depth 52.5 mm
With built-in installation box No
Min. depth of built-in installation box 50 mm
Built-in depth 40.9 mm
degree of impact strength (IK) IK04
Degree of protection (IP) IP20
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
Voltage type AC
Frequency (Min-Max) 50-60 Hz
Terminal marking indication Yes
Antimicrobial treatment No
Connection type Screwed terminal
Terminals capacity (Min-Max) 1.5-2.5 mm²
Cable nature for connection Flexible or rigid
Label space/information surface Yes
