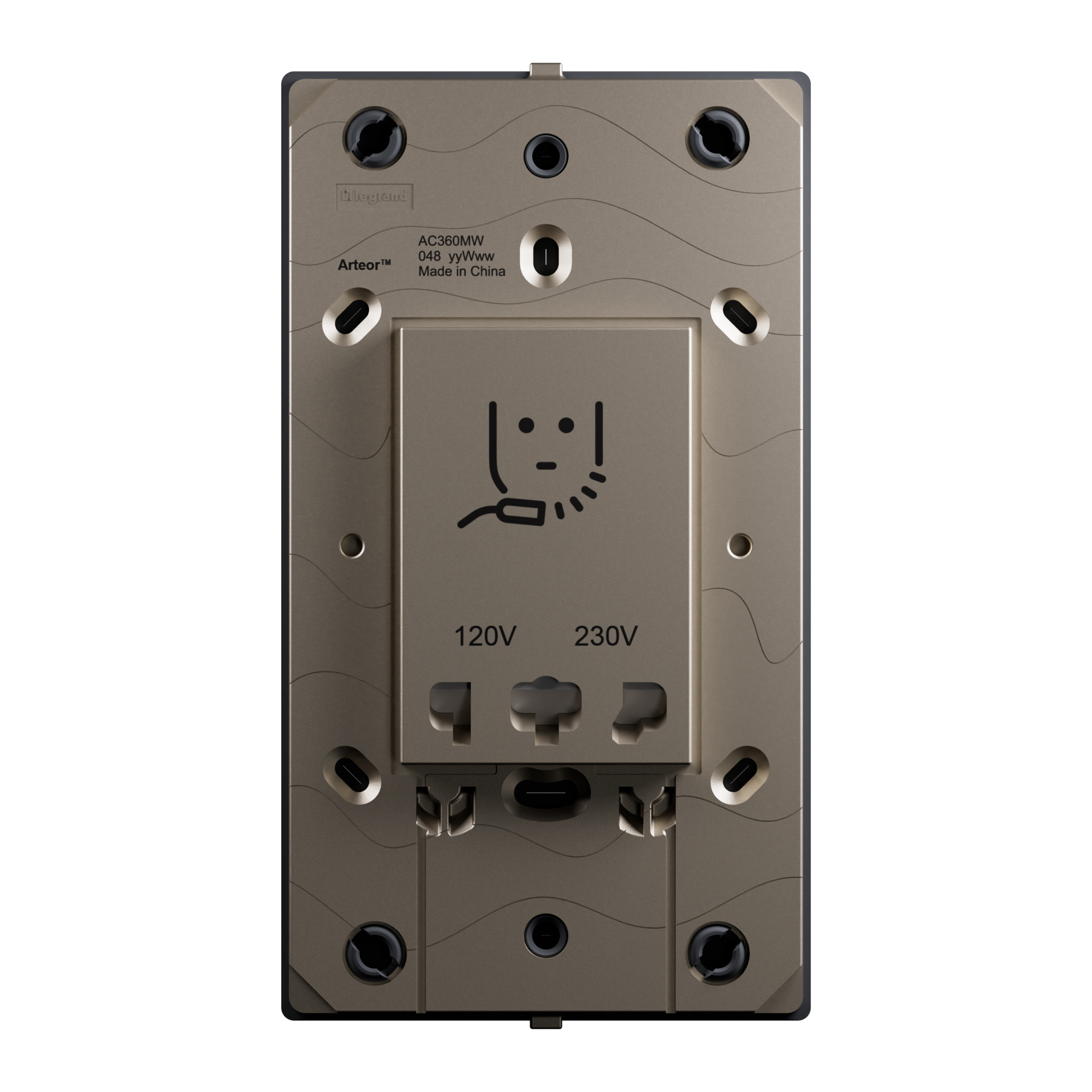

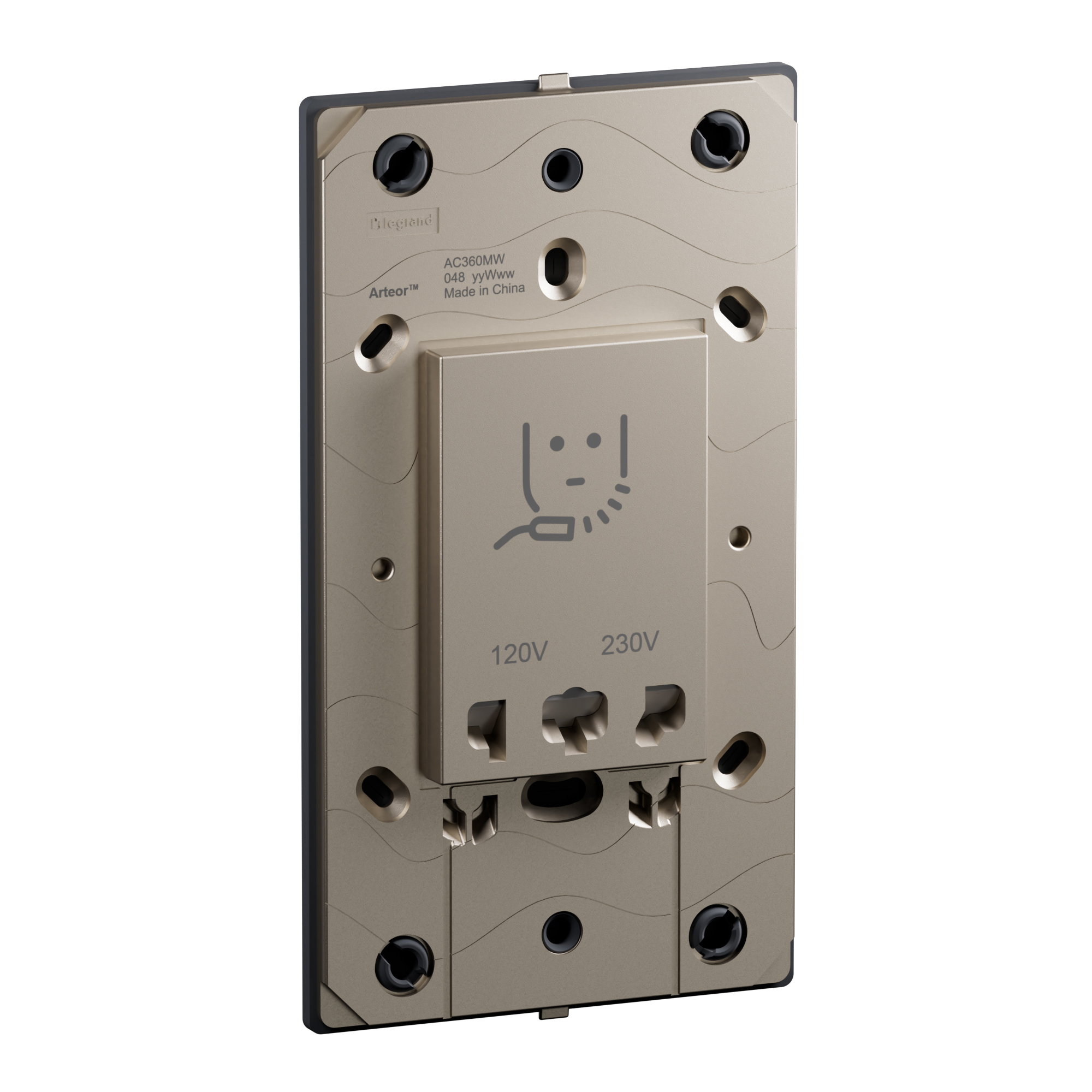

Arteor Advance - Shaver 230V/120-230V without earth connector champagne - Flush-mounted razor socket outlet IP20

Arteor Advance Legrand

Arteor Advance - Shaver 230V/120-230V without earth connector champagne - Flush-mounted razor socket outlet IP20

REF. AC360CH EAN. 3414972926812
Provides power for shavers with dual 230V/120-230V AC supply and 20VA output. Flush-mounted thermoplastic unit with IP20, IK04 and safety shutters for indoor bathroom use. Champagne matt finish matches Arteor Advance.
Download product sheet
Finition :
You can only compare 4 products, you must remove 1 to add this one

Description

Provides power for shavers with dual 230V/120-230V AC supply and 20VA output. Flush-mounted thermoplastic unit with IP20, IK04 and safety shutters for indoor bathroom use. Champagne matt finish matches Arteor Advance.

Product characteristics
  • Shaver socket for 230V/120-230V AC supply, rated 20VA, dedicated to razor applications
  • Champagne (gold) matt lacquered thermoplastic finish matching Arteor Advance aesthetic
  • Clearly marked screw terminals (1.5mm² to 2.5mm², flexible or rigid) for easy and secure circuit identification and wiring
  • Shaver outlet accepts common two-pin plugs, ensuring compatibility with standard shaver connectors
  • Flush-mounted 3-module basic element with central cover plate, IP20, IK04, for indoor use in bathroom zones as per local regulations
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Installation
  • Has screw-type terminals for easy and secure wire installation.
Usage
  • Fitted with safety shutters to maximise protection
Avantages
  • IP24 product suited to bathroom humid environment
  • Warm gray finish infused with ivory hues highlights silky elegance

Technical characteristics

Assembly arrangement Basic element with central cover plate
Mounting method Flush-mounted
With hinged lid No
Voltage reversible No
Nominal voltage low value 207 V
Nominal voltage high value 253 V
Rated output 20 VA
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Surface protection Lacquered
Surface finishing Matt
Colour Gold
Transparent No
Device width 82 mm
Device height 149.6 mm
Device depth 52.5 mm
With built-in installation box No
Min. depth of built-in installation box 50 mm
Built-in depth 40.9 mm
degree of impact strength (IK) IK04
Degree of protection (IP) IP20
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
Voltage type AC
Frequency (Min-Max) 50-60 Hz
Terminal marking indication Yes
Antimicrobial treatment No
Connection type Screwed terminal
Terminals capacity (Min-Max) 1.5-2.5 mm²
Cable nature for connection Flexible or rigid
Label space/information surface Yes
