Arteor Advance - Red led for switches with indicator 230V - 220V to 230V led indication module - 0.2W low-power lamp

Arteor Advance Legrand

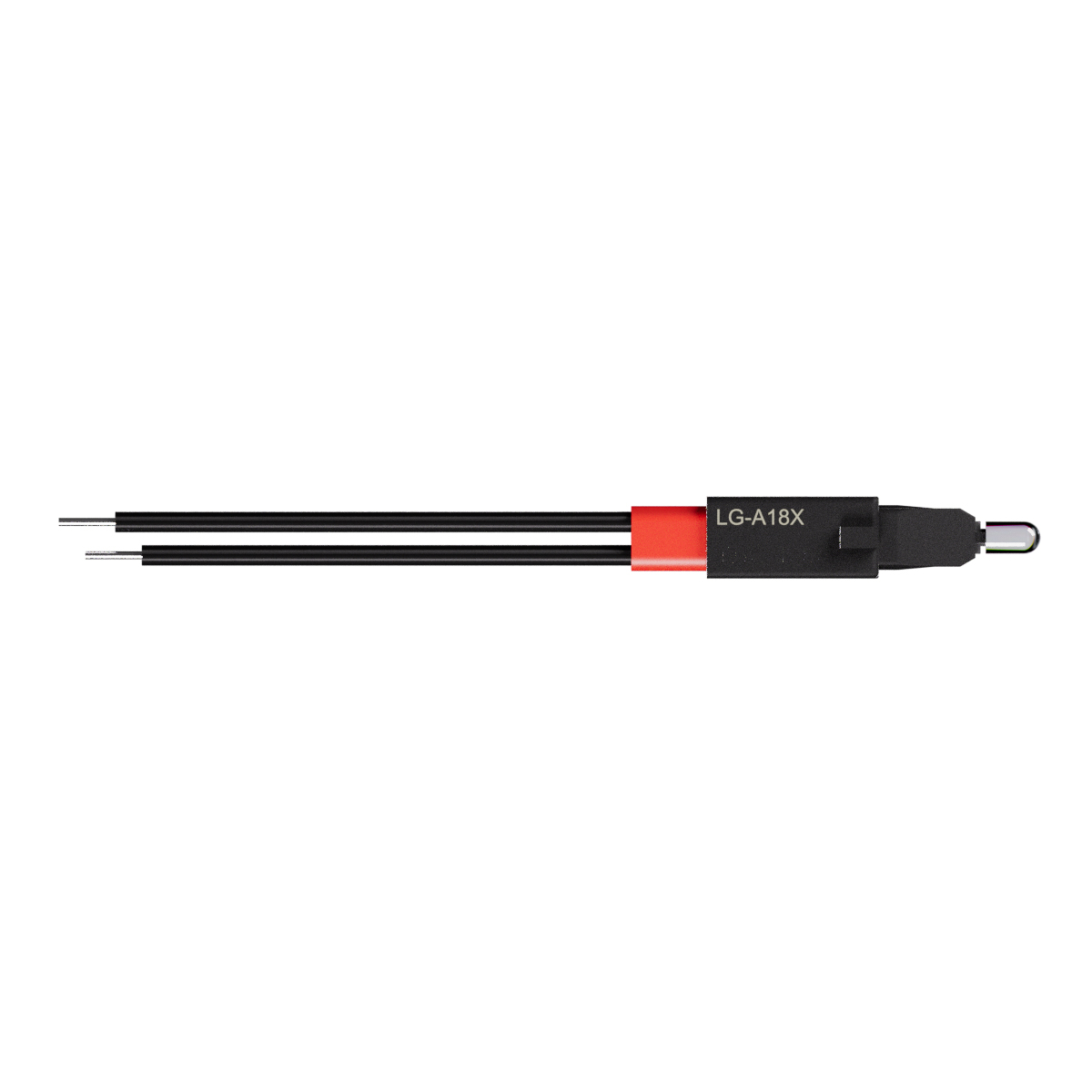

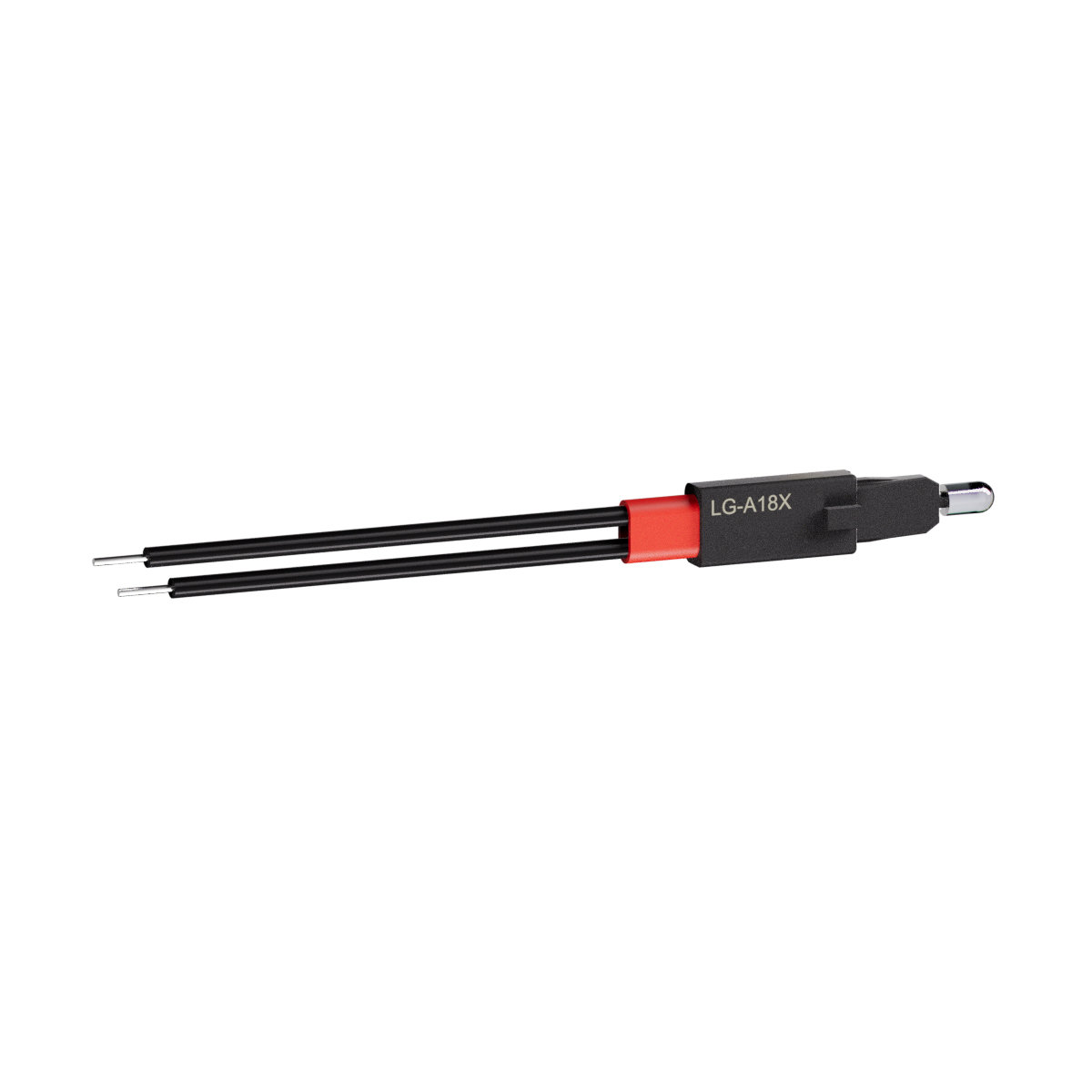

Arteor Advance - Red led for switches with indicator 230V - 220V to 230V led indication module - 0.2W low-power lamp

REF. A180 EAN. 3414972697255
LED for switches that allows visual indication that the product is live, using a red 220V to 230V LED indicator. Its 0.2W to 0.3W power and 0.9mA nominal current ensure minimal energy consumption.
Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

LED for switches that allows visual indication that the product is live, using a red 220V to 230V LED indicator. Its 0.2W to 0.3W power and 0.9mA nominal current ensure minimal energy consumption.

Product characteristics
  • Rated for 220-230V AC operation, suitable for standard mains indicator circuits
  • Low-power LED technology with 0.2W to 0.3W lamp power and 0.9mA nominal current for energy-efficient signaling
  • Designed as an indicator module for switches to provide clear visual status of live circuits
  • Red indication with lens-shaped 3mm light point for high visibility in Arteor Advance devices
  • Compact form factor with 7.6mm width and 137.3mm depth, suitable for integration in space-constrained switch mechanisms

Technical characteristics

Antimicrobial treatment No
Lamp power (Min-Max) 0.2-0.3 W
Lamp voltage (Min-Max) 220-230 V
Depth 137.3 mm
Width 7.6 mm
Technology LED
Lamp shape Lens-shape
Halogen No
Krypton No
Xenon No
Colour Colourless
Diameter 3 mm
Suitable for torches No
Suitable for pointer Yes
Suitable for round flashing luminaire No
Nominal current 0.9 mA
Frequency (Min-Max) 40-50 Hz

Documentation

2 documents
RoHS DIRECTIVE
REACH DECLARATION
