Arteor Advance - Prise TV/R/SAT blindée champagne - Faible atténuation 1,5dB - Compatible UHD, protégée LTE 4G

Arteor Advance Legrand

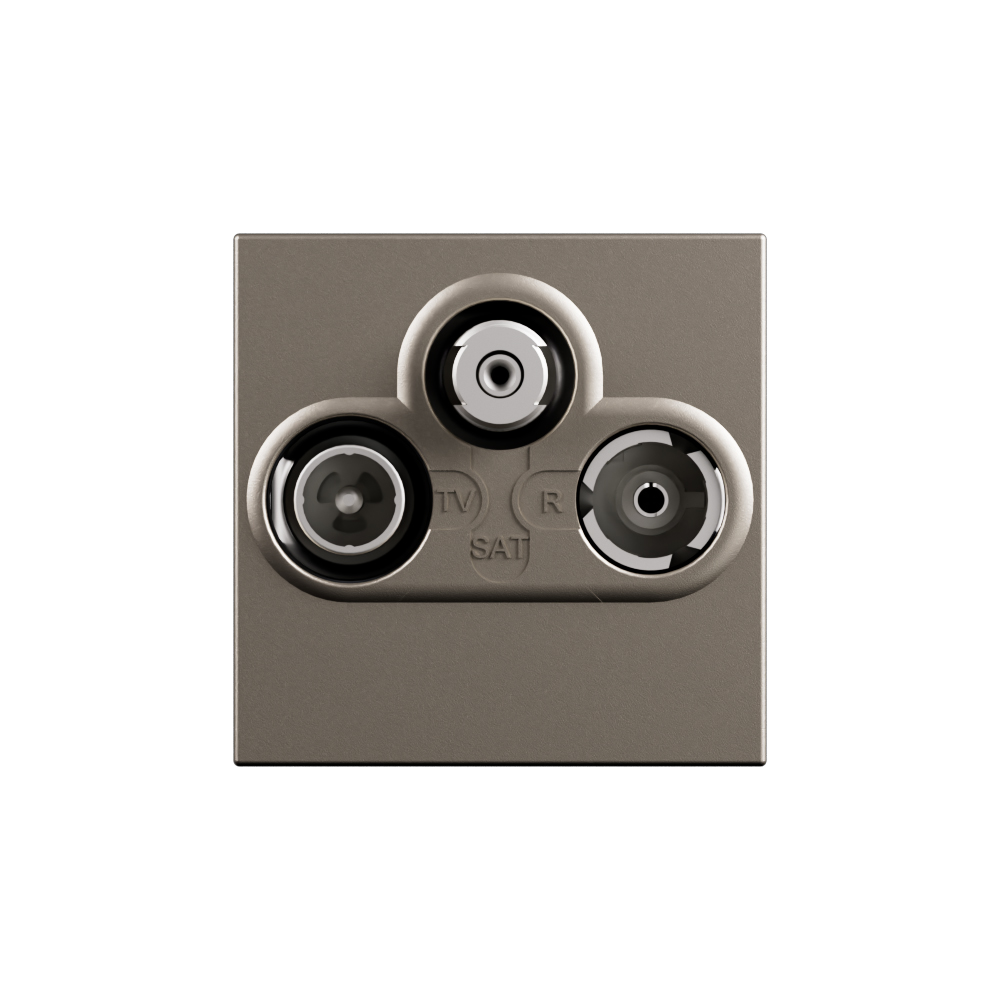

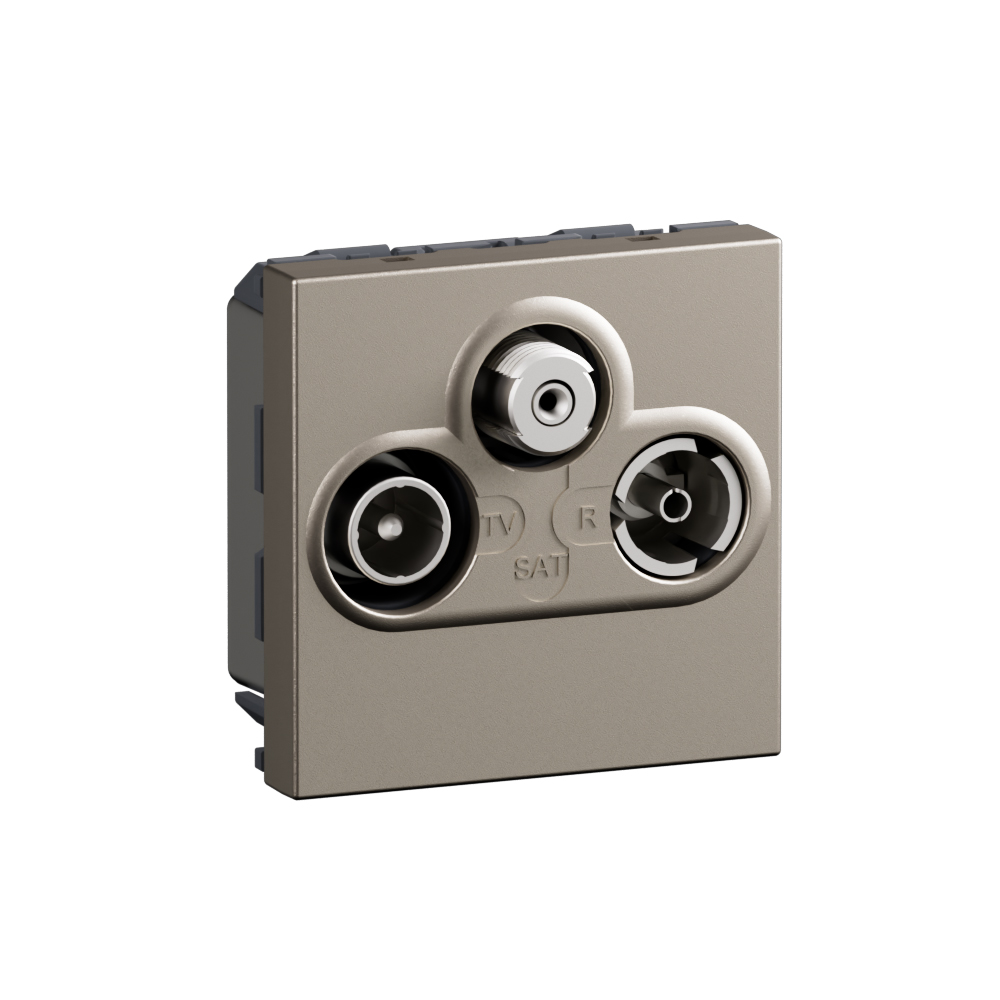

Arteor Advance - Prise TV/R/SAT blindée champagne - Faible atténuation 1,5dB - Compatible UHD, protégée LTE 4G

REF. AC4106CH EAN. 3414972927116
TV/R/SAT socket for receiving TV, radio and satellite signals with low attenuation (1.5dB at 860MHz, 2dB at 2150MHz). UHD compatible, DAB+ ready, Class A shielded, LTE Ready, TV 320-862MHz, radio 87.5-240MHz, SAT 950-2400MHz.
Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

TV/R/SAT socket for receiving TV, radio and satellite signals with low attenuation (1.5dB at 860MHz, 2dB at 2150MHz). UHD compatible, DAB+ ready, Class A shielded, LTE Ready, TV 320-862MHz, radio 87.5-240MHz, SAT 950-2400MHz.

Product characteristics
  • Class A shielded TV/R/SAT end socket for television, radio, and satellite signal distribution
  • Champagne gold, matt lacquered thermoplastic finish matching the Arteor Advance range
  • Low tap loss of 1.5dB at 860MHz and 2dB at 2150MHz for minimal signal attenuation
  • Module frame mounting, 2-module basic element with central cover plate and 3 separate outlets
  • Frequency bands: TV 5-68MHz/120-862MHz, Radio 87.5MHz to 108MHz (DAB+ compatible), SAT 950-2400MHz, LTE Ready (4G protected)
Recommendation / Restriction
  • Recommended coaxial cable 17/19 vatc

The product's benefits

Usage
  • Fits perfectly in your environment. Designed in harmony with the large Arteor advance range
Avantages
  • Warm gray finish infused with ivory hues highlights silky elegance

Technical characteristics

Model End socket
Type of socket outlet TV/RD/SAT
DAB+ Yes
Mounting method Module frame
Number of modules (module system) 2
Assembly arrangement Basic element with central cover plate
Tap loss at 860 MHz 1.5 dB
Tap loss at 2150 MHz 2 dB
Number of outlets 3
Suitable for cable modem No
TV frequency band (Min-Max) 320-862 MHz
Suitable for remote power supply Yes
Radio frequency band (Min-Max) 87.5-240 MHz
SAT frequency band (Min-Max) 950-2400 MHz
Colour Gold
Surface protection Lacquered
Surface finishing Matt
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Antimicrobial treatment No
Degree of protection (IP) IP21
degree of impact strength (IK) IK03
Device width 45 mm
Device height 45 mm
Device depth 39.5 mm
Min. depth of built-in installation box 40 mm
Built-in depth 28 mm
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
