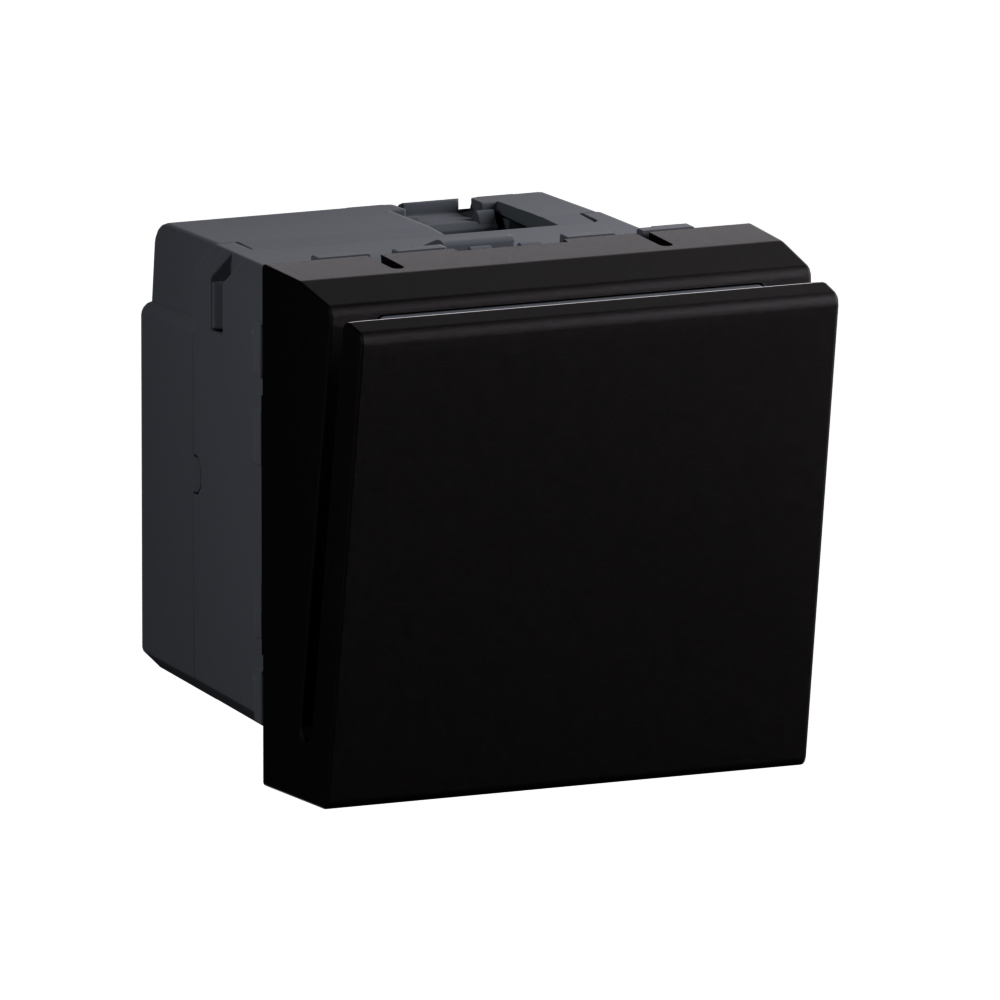

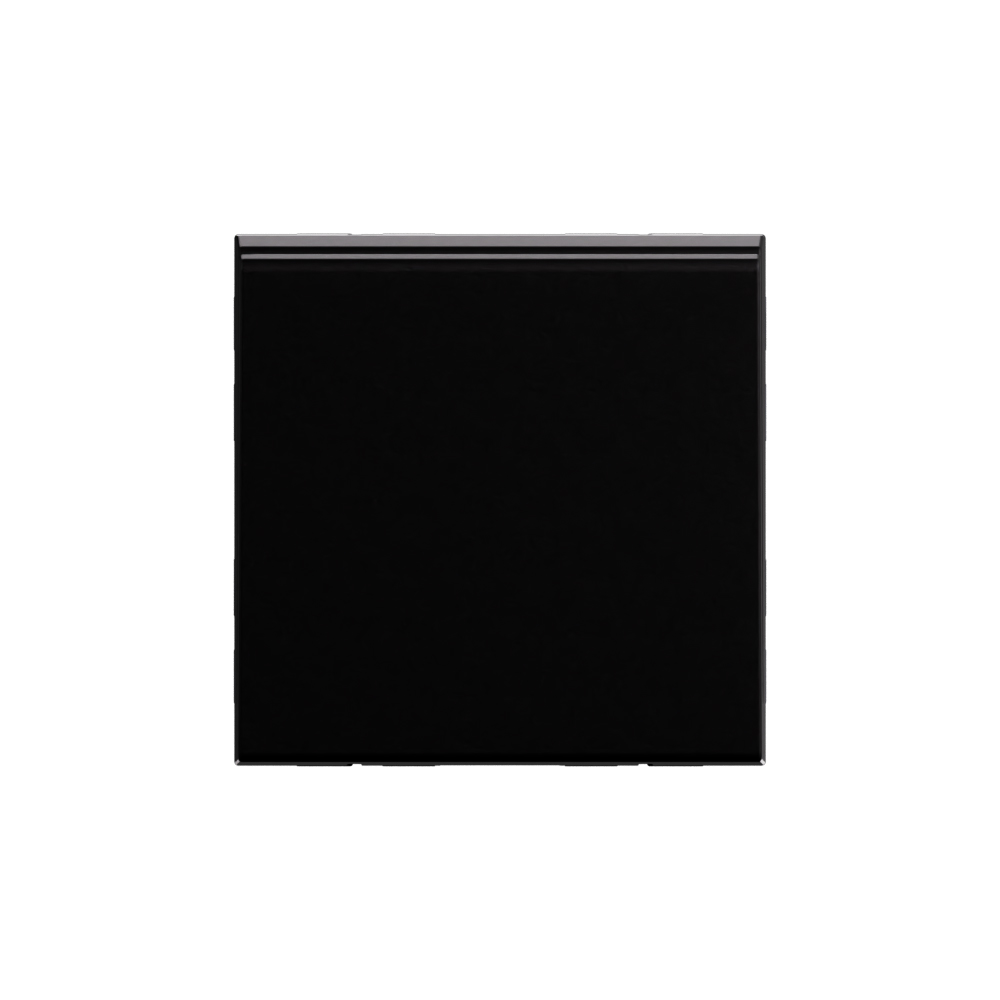

Arteor Advance - Mechanical keycard switch BUS 2 modules matt black Altair - LED backlit slot - Programmable switch-off delay

Arteor Advance Legrand

Arteor Advance - Mechanical keycard switch BUS 2 modules matt black Altair - LED backlit slot - Programmable switch-off delay

REF. AC5221MB EAN. 3414972794688
Mechanical keycard switch BUS/SCS - 2 modules - Matt black with LED backlit slot. Accepts ISO keycards from 45mm to 54mm and supports configurable automatic switch-off delay. Ideal for hotel guest rooms and indoor energy management.
Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

Mechanical keycard switch BUS/SCS - 2 modules - Matt black with LED backlit slot. Accepts ISO keycards from 45mm to 54mm and supports configurable automatic switch-off delay. Ideal for hotel guest rooms and indoor energy management.

Product characteristics
  • Accepts ISO keycards with widths from 45mm to 54mm, ensuring compatibility with standard hotel access cards
  • Integrated BUS/SCS operating method for seamless connection to Legrand hotel management and room control systems
  • 2-module mechanical keycard switch format for easy integration into modular frames and multi-gang installations
  • LED backlit card slot allows quick location and card insertion in dark hotel rooms, enhancing user comfort and safety
  • Programmable via configurator with adjustable automatic switch-off delay, enabling tailored energy management in guest rooms
Recommendation / Restriction
  • Hotel guest rooms- Indoor usage only

The product's benefits

Avantages
  • Thanks to the LED backlit slot, the device can be found in the dark
  • An automatic switch off delay can also be set

Technical characteristics

Bus system KNX No
Bus system KNX-RF (Radio Frequency) No
Bus system radio frequency No
Bus system LON No
Bus system Powernet No
Other bus systems Other
Radio frequency bidirectional No
Mounting method Module frame
With anti-theft/dismantling protection No
With bus connection Yes
Number of actuation points 1
Number of buttons 1
With LED indication Yes
With label area No
With display No
Material Plastic
Material quality Thermoplastic
Transparent No
With room temperature controller No
With IR sensor No
Degree of protection (IP) Other
degree of impact strength (IK) Other
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
Frequency (Min-Max) 0-0 Hz
Standby consumption 5 mA
Terminal marking indication No
Halogen free No
Antimicrobial treatment No
Terminals capacity (Min-Max) 0.34-2.5 mm²
Cable nature for connection Flexible or rigid
Addressable Yes
Contains Batteries No
Connected object No
Operating method SCS
Programming way Configurator
Programmable Yes
