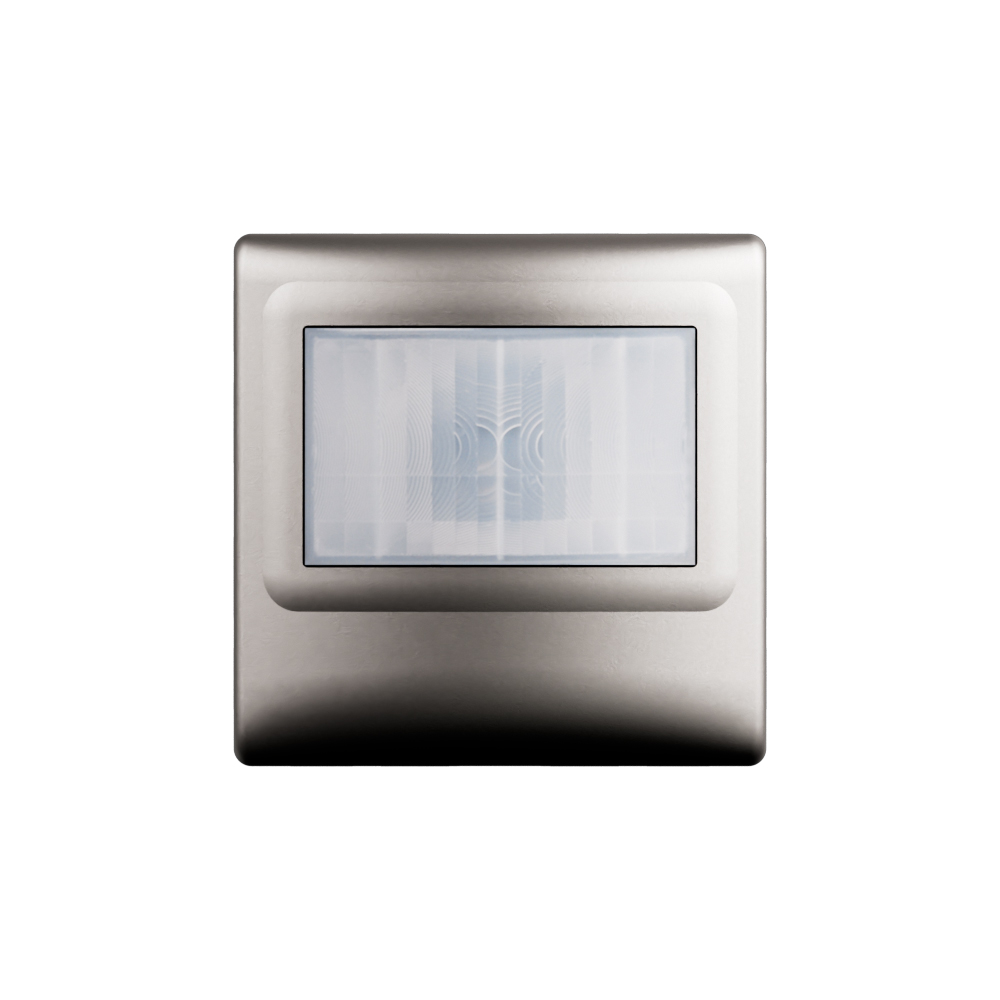

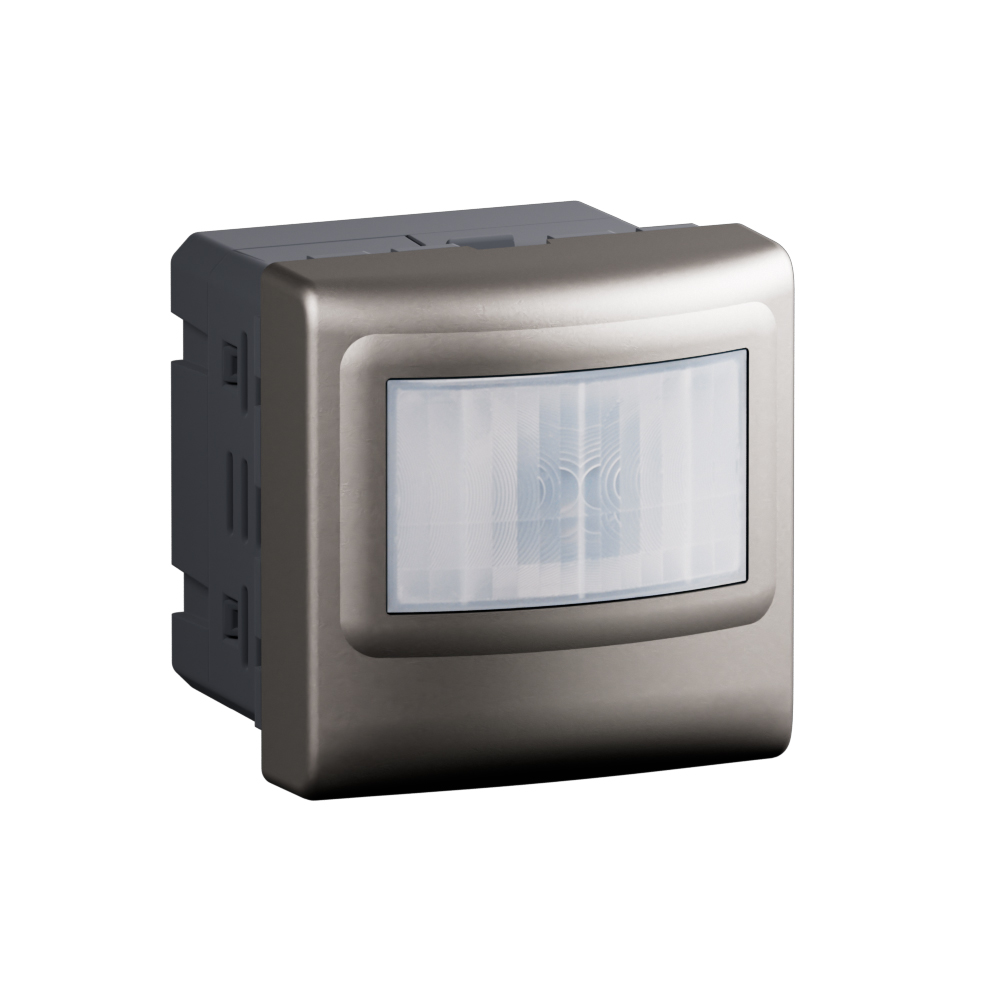

Arteor Advance - Infrared motion detector without neutral 250VA LED matt titanium - Passive infrared flush-mounted sensor IP20

Arteor Advance Legrand

Arteor Advance - Infrared motion detector without neutral 250VA LED matt titanium - Passive infrared flush-mounted sensor IP20

REF. AC25103MT EAN. 3414972753425
Uses infrared technology to detect motion and switch on the light, providing automatic lighting control up to 150W/250VA LED. Flush-mounted and modular, with adjustable luminosity response. Matt titanium finish with screw terminals.
Download product sheet
Finition :
You can only compare 4 products, you must remove 1 to add this one

Description

Uses infrared technology to detect motion and switch on the light, providing automatic lighting control up to 150W/250VA LED. Flush-mounted and modular, with adjustable luminosity response. Matt titanium finish with screw terminals.

Product characteristics
  • Two-module infrared movement detector for 230to250V AC circuits, rated 250VA/150W LED load for staircase and general lighting control
  • Matt titanium thermoplastic front with lacquered surface finish for a premium, low-glare appearance matching Arteor Advance aesthetics
  • Passive infrared sensor with 120° detection angle, 8m frontal and 6m lateral reach, and adjustable luminosity threshold from 5 to 1275lx for precise presence-based switching
  • Improves energy efficiency via automatic switching (auto ON/OFF) based on motion and ambient light, reducing unnecessary lighting runtime
  • Modular, flush-mounted device (45x45x43mm, 25.5mm built-in depth) with screw terminals (1.5mm² to 2.5mm²) for easy integration into modular wiring devices
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Installation
  • Has screw-type terminals for easy and secure wire installation.
Avantages
  • Titanium with a smooth matte aspect
  • The square format enables modularity

Technical characteristics

Model Movement sensor
Movement sensor/presence detector technology Passive infrared
Constant light control No
HVAC-control No
Forced switch off No
Animal zone No
Creep-under protection No
Background monitoring No
Networkable No
Optimum mounting height 1.2 m
Staircase light controller Yes
Bridging switch No
Max. reach sideways 6 m
Max. reach frontally 8 m
Diameter reach on floor 6 m
Suitable for wireless transmission No
Remote operation No
Supplied remote control No
Response value sensitivity adjustable No
Response value luminosity adjustable Yes
With signal unit No
Teach-function for response value luminosity No
Dim function with dimmer basic element No
Mounting method Flush-mounted
Connection type Screwed terminal
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Surface protection Lacquered
Surface finishing Matt
Antimicrobial treatment No
Colour Titanium
Transparent No
Degree of protection (IP) IP20
degree of impact strength (IK) IK04
Voltage type AC
Frequency (Min-Max) 50-60 Hz
Nominal voltage (Min-Max) 230-250 V
Min. switch-on time 10 s
Max. duty cycle 10 min
Detection angle horizontal (Min-Max) 120-120 °
Response value luminosity (Min-Max) 5-1275 lx
Max. switching power 150 W
Suitable for C-load Yes
Number of switching zones 1
Substation input No
With alarm function No
With acoustic sensor No
Ambient temperature (Min-Max) -5-45 °C
Width 45 mm
Height 45 mm
Depth 43 mm
Built-in depth 25.5 mm
Min. depth of built-in installation box 30 mm
With connection cable No
Compatible with Apple HomeKit No
Compatible with Google Assistant No
Compatible with Amazon Alexa No
IFTTT support available No
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
Terminals capacity (Min-Max) 1.5-2.5 mm²
Auto switch Yes
