Arteor Advance - French/Belgium-Schuko-British standard weatherproof cover plate matt white - Matt thermoplastic IP20

Arteor Advance Legrand

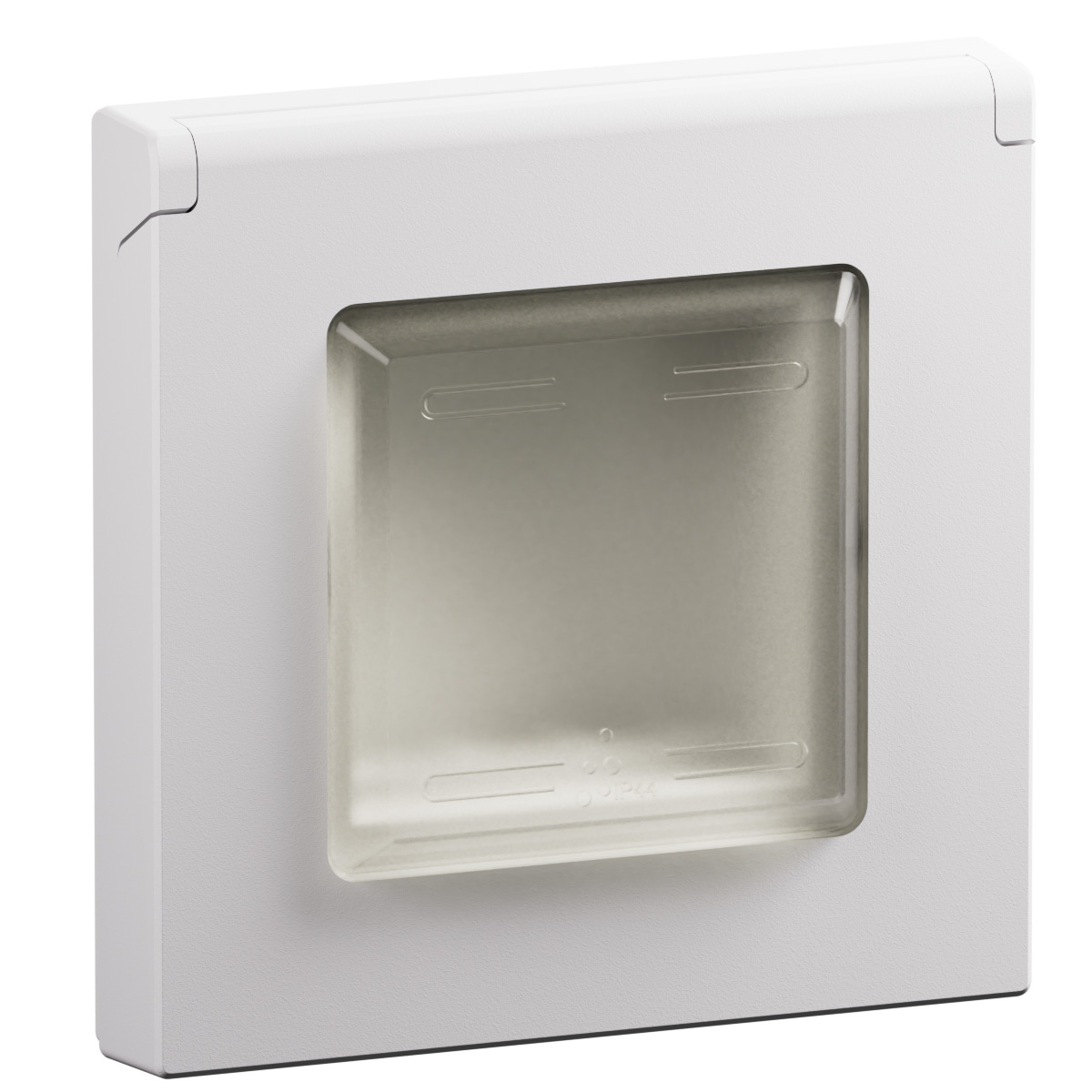

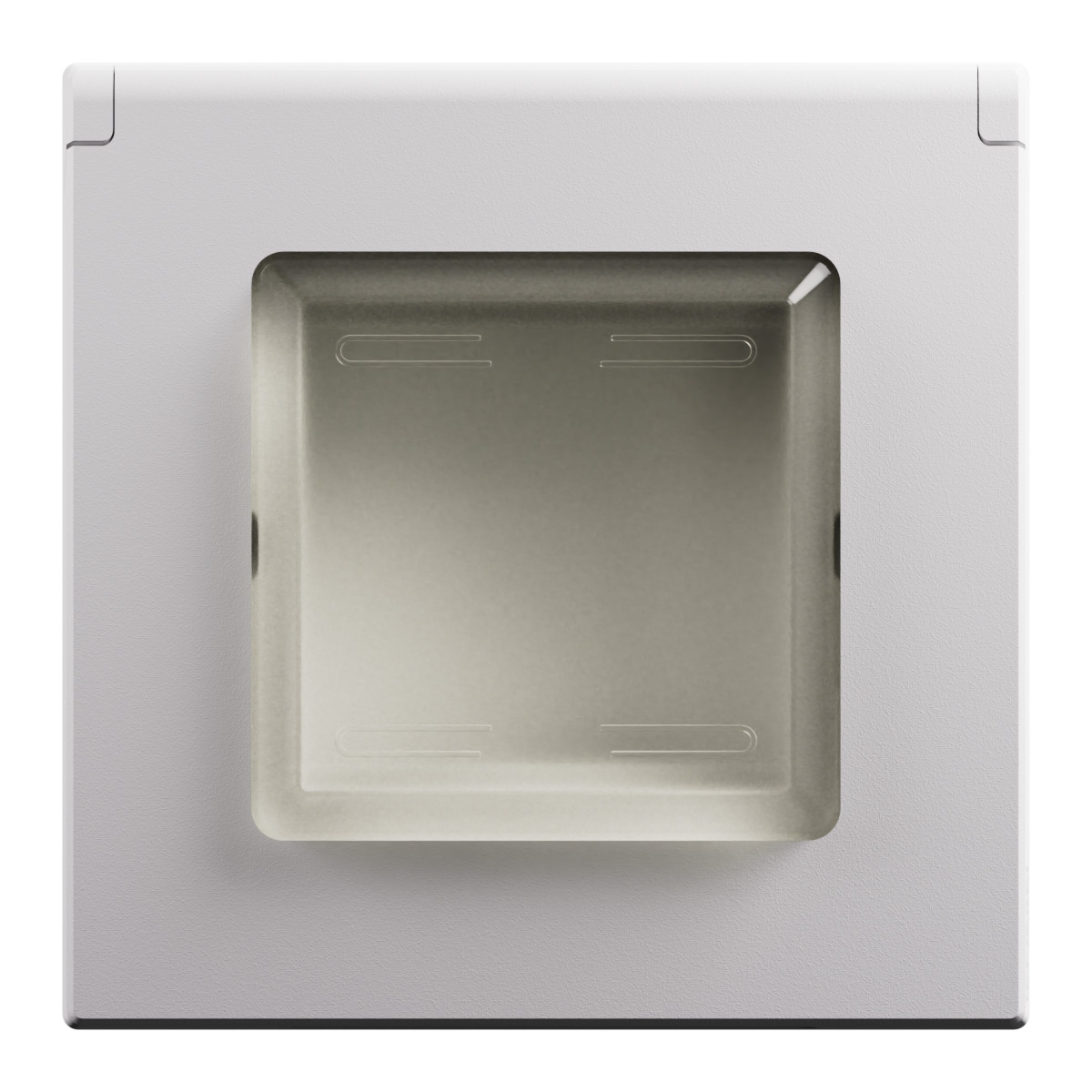

Arteor Advance - French/Belgium-Schuko-British standard weatherproof cover plate matt white - Matt thermoplastic IP20

REF. AC1124MW EAN. 3414973070378
This matt white weatherproof cover plate combines French/Belgium, Schuko, and British Standard compatibility in a modular square format. Its thermoplastic, halogen-free construction and IP20 rating ensure safe indoor use.
Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

This matt white weatherproof cover plate combines French/Belgium, Schuko, and British Standard compatibility in a modular square format. Its thermoplastic, halogen-free construction and IP20 rating ensure safe indoor use.

Product characteristics
  • Matt white thermoplastic cover frame for French/Belgium, Schuko, and British Standard mechanisms, designed for weatherproof applications in the Arteor Advance range
  • Powdery matt white finish (similar to RAL 9003) delivers a minimalist aesthetic and long-term color stability against daily wear and sunlight exposure
  • Plates are made of halogen-free polycarbonate thermoplastic, ensuring high mechanical strength and safety for professional electrical installations
  • Square format cover plate enables modularity and flexible configuration of domestic switching devices in wall and duct systems
  • Flush-mounted, snap-on IP20 cover frame with label space, suitable for wall duct and subfloor duct box installation; recommended for indoor use only
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Installation
  • The plate contains an adjuster that ensures perfect installation on the wall
Usage
  • Ensures long-term aesthetic against daily wear and sunlight exposure.
Avantages
  • Powdery white with a smooth matte aspect
  • Minimalist design
  • Square format allows modularity and flexible configuration

Technical characteristics

Number of units 1
Mounting direction Horizontal
Number of units horizontal 1
Number of units vertical 1
Number of modules horizontal (module system) 2
Number of modules vertical (module system) 1
With mounting grid No
Flush-mounted installation Yes
Suitable for subfloor installation duct box Yes
Suitable for wall duct Yes
Suitable for built-in installation No
Label space/information surface Yes
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Antimicrobial treatment No
Surface protection Untreated
Surface finishing Matt
Colour White
RAL-number (similar) 9003
Transparent No
With hinged lid No
Degree of protection (IP) IP20
degree of impact strength (IK) IK04
Type of fastening Engage (snap)
Width 90 mm
Height 90 mm
Depth 26.9 mm
Built-in height 6.9 mm
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
Latin wood species Not applicable
Certification of wood (list) Not applicable
Wood Climate area Not applicable
