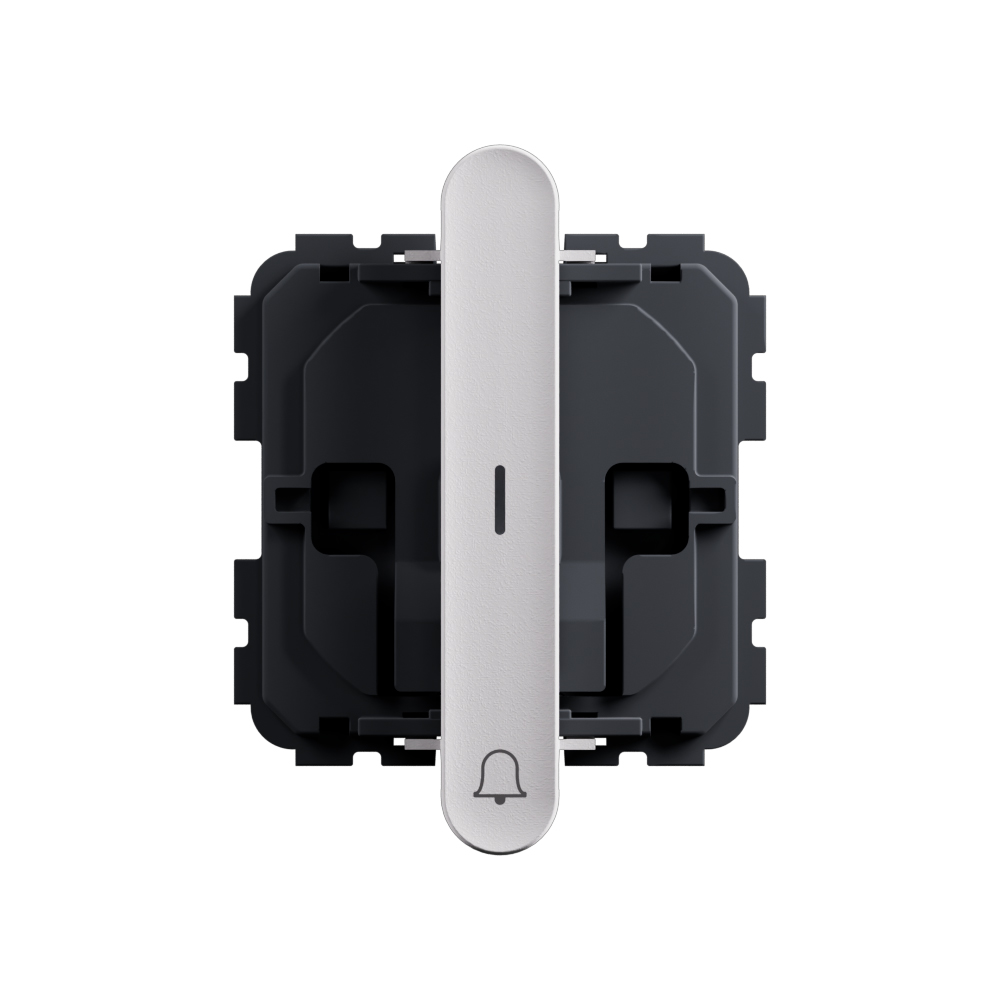

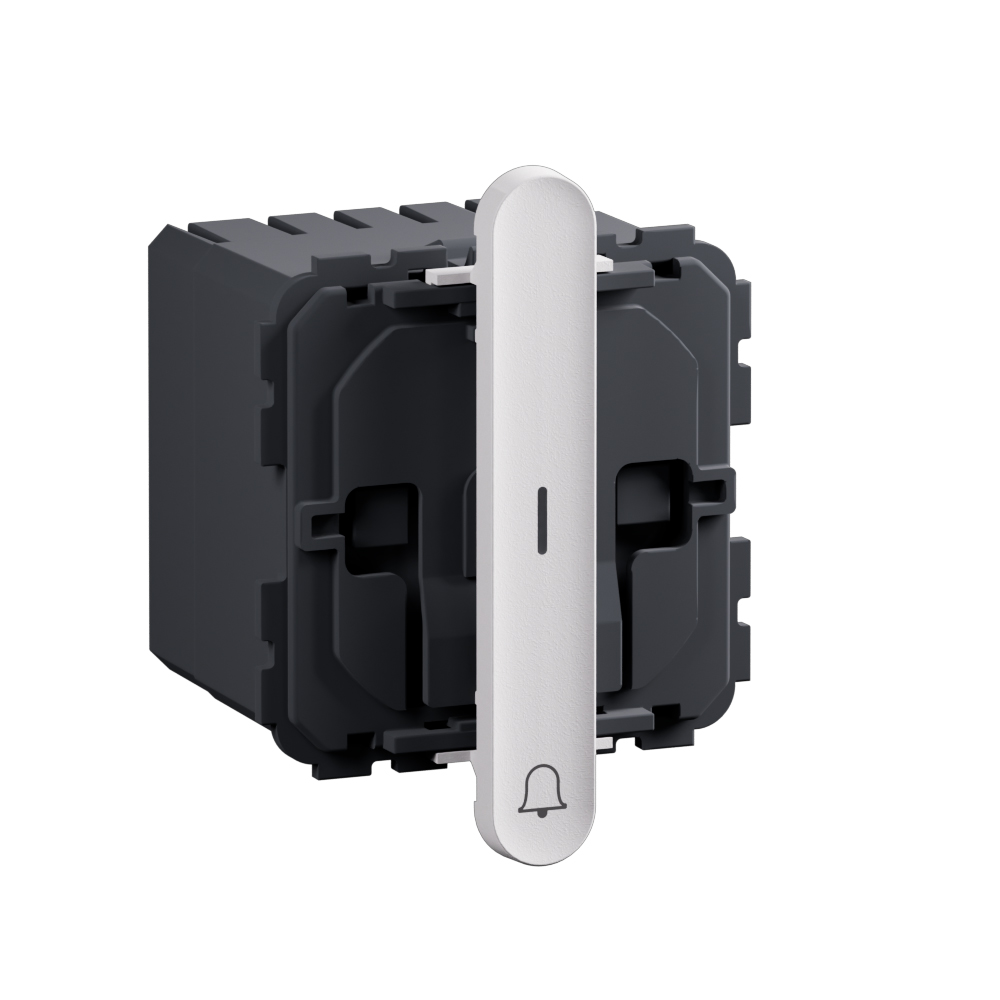

Arteor Advance - Do not disturb/make up room/bell push w/ LED 230V corridor slender matt white - 230V AC push button with LED indicator

Arteor Advance Legrand

Arteor Advance - Do not disturb/make up room/bell push w/ LED 230V corridor slender matt white - 230V AC push button with LED indicator

REF. AA27108MW EAN. 3414972730310
Allows guests to signal room status with "Do Not Disturb" or "Make Up Room" options. The slender matt white 230V LED push button ensures clear corridor indication. Screw terminals and durable electronic operation.
Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

Allows guests to signal room status with "Do Not Disturb" or "Make Up Room" options. The slender matt white 230V LED push button ensures clear corridor indication. Screw terminals and durable electronic operation.

Product characteristics
  • Nominal operating voltage 230V AC, 50-60Hz, rated current 3A for corridor signaling applications
  • Slender matt white finish (RAL 9003) in duroplast for robust, halogen-free modular installations
  • Integrated LED indicator, supplied with light source, for clear dnd/mur/bell status visibility
  • Two electronic push-buttons with two lenses in rockers, single NO contact, screw terminals 1mm² to 4mm²
  • IP20, IK04, module frame mounting with screw fastening, 2-module width (45x45x40.2mm), indoor use -5° C to 35° C
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Installation
  • Has screw-type terminals for easy and secure wire installation.
Usage
  • The switch is rated for up to 40,000 operation cycles, exceeding the standard requirements for exceptional durability.
Avantages
  • Powdery white with a smooth matte finish
  • The slender format offers unique ergonomics with a low angle of 3.5° for optimal and elegant integration into the environment

Technical characteristics

Assembly arrangement Modular device for domestic switching devices
Model Single push button
Method of operation Push button
Operating principle Electronic
Number of contacts as normally open contact 1
Contactless type No
Number of rockers 1
Number of modules (module system) 2
Nominal voltage 230 V
Rated current 3 A
With lighting Yes
With light source Yes
With complemantary luminous signal No
Monitoring contact No
Connection type Screwed terminal
Mounting method Module frame
Type of fastening Screw mounting
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Antimicrobial treatment No
Surface protection Untreated
Surface finishing Matt
Colour White
RAL-number (similar) 9003
Transparent No
Label space/information surface Yes
Imprint Symbol "bell"
Suitable for degree of protection (IP) IP20
degree of impact strength (IK) IK04
Device width 45 mm
Device height 45 mm
Device depth 40.2 mm
Min. depth of built-in installation box 35 mm
Compatible with Apple HomeKit No
Compatible with Google Assistant No
Compatible with Amazon Alexa No
IFTTT support available No
Built-in depth 31.7 mm
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
Voltage type AC
Frequency (Min-Max) 50-60 Hz
Mandatory neutral Yes
Terminal marking indication Yes
Terminals capacity (Min-Max) 1-4 mm²
Cable nature for connection Flexible or rigid
Cable section (Min-Max) 1-4 mm²
