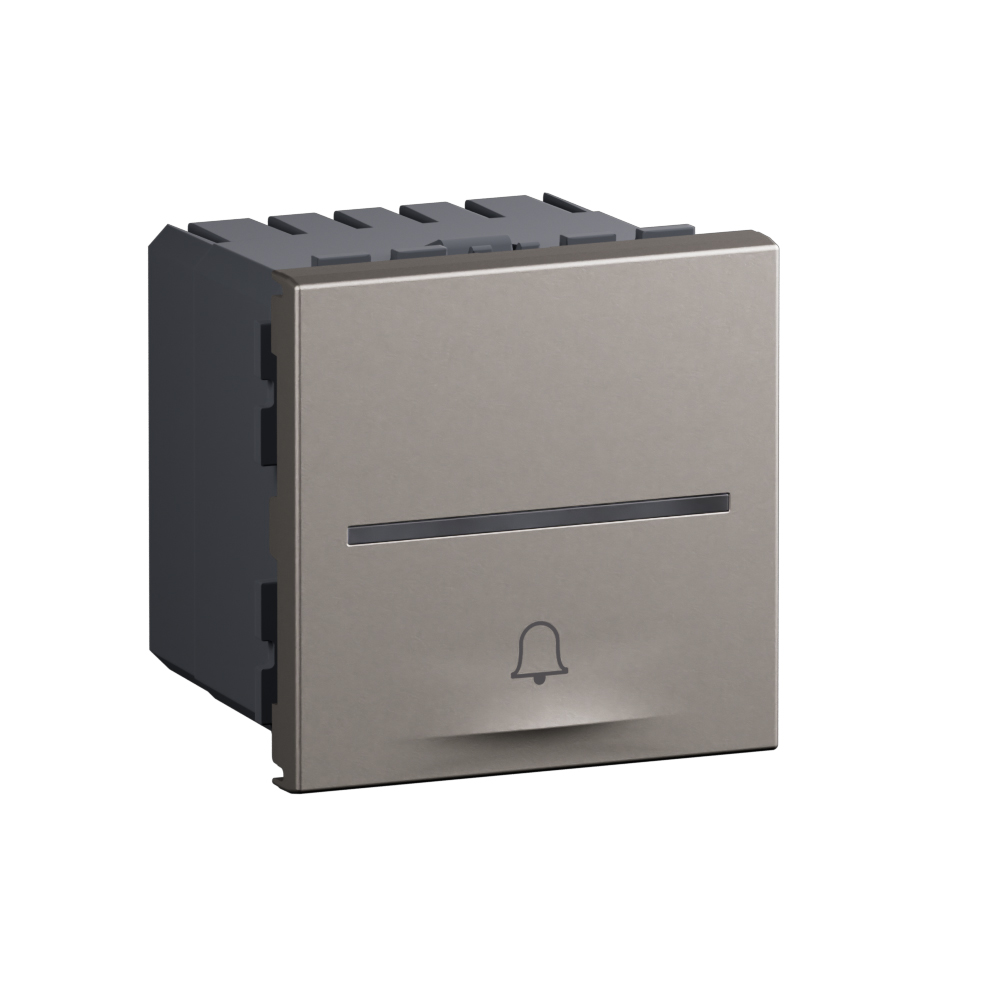

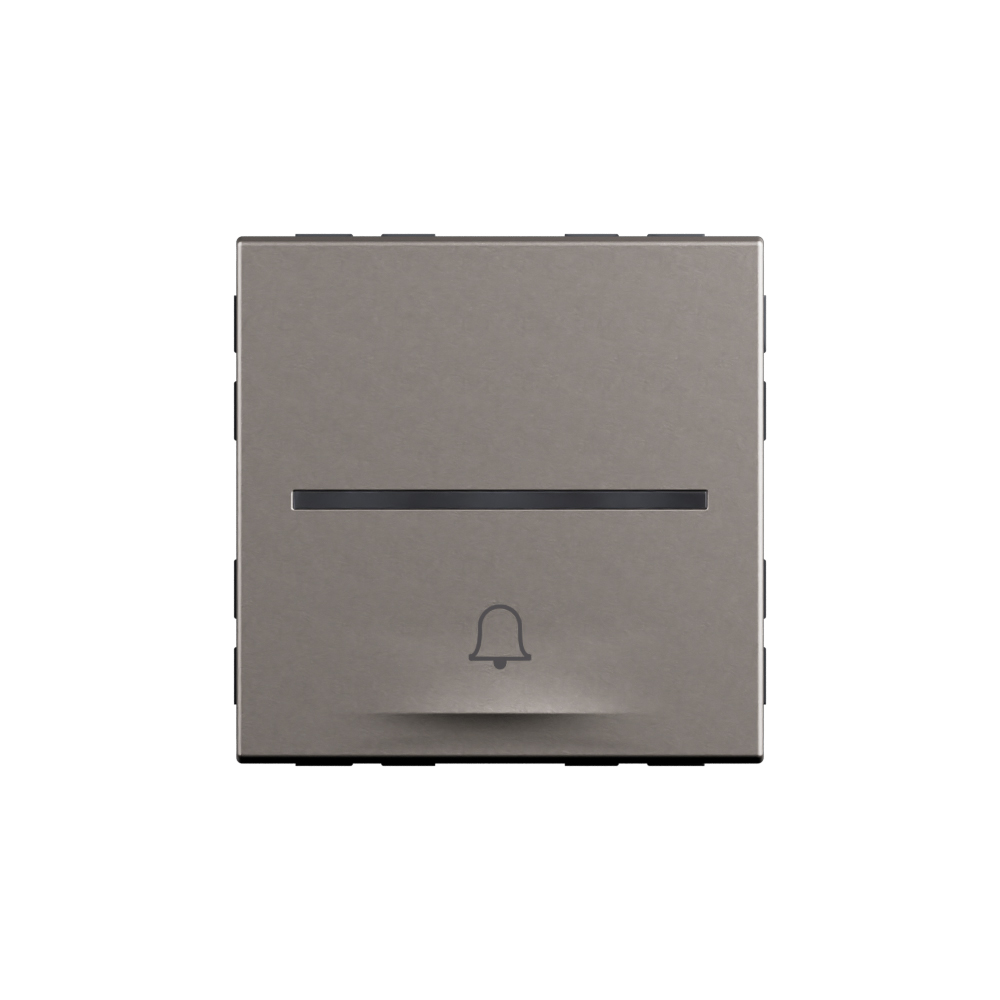

Arteor Advance - DO NOT disturb/make UP room/bell push W/ LED 230V corridor control - 230V AC push button - Matt titanium finish

Arteor Advance Legrand

Arteor Advance - DO NOT disturb/make UP room/bell push W/ LED 230V corridor control - 230V AC push button - Matt titanium finish

REF. AC27108MT EAN. 3414972756853
Allows guests to indicate room status with "Do Not Disturb" or "Make Up Room" options, integrating a 230V LED bell push. Its matt titanium finish, square modular format, and screw terminals ensure easy installation.
Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

Allows guests to indicate room status with "Do Not Disturb" or "Make Up Room" options, integrating a 230V LED bell push. Its matt titanium finish, square modular format, and screw terminals ensure easy installation.

Product characteristics
  • Nominal operating voltage 230V AC, 50 to 60Hz, for standard corridor control applications.
  • Matt titanium lacquered finish on duroplast front for a robust, scratch-resistant, premium appearance.
  • Integrated LED illumination supplied as standard for clear DND/MUR/bell status indication in low-light corridors.
  • Two electronic push-buttons with two separate lenses integrated into a 2-module rocker for distinct room-status signaling.
  • Screw-type terminals for flexible or rigid conductors 1mm² to 4mm², ensuring secure wiring and reliable 3A operation at 230V.
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Installation
  • Has screw-type terminals for easy and secure wire installation.
Usage
  • The switch is rated for up to 40,000 operation cycles, exceeding the standard requirements for exceptional durability.
Avantages
  • Subtle touch & sound
  • Titanium with a smooth matt aspect
  • The square format enables modularity

Technical characteristics

Assembly arrangement Modular device for domestic switching devices
Model Single push button
Method of operation Push button
Operating principle Electronic
Number of contacts as normally open contact 1
Contactless type No
Number of rockers 1
Number of modules (module system) 2
Nominal voltage 230 V
Rated current 3 A
With lighting Yes
With light source Yes
With complemantary luminous signal No
Monitoring contact No
Connection type Screwed terminal
Mounting method Module frame
Type of fastening Screw mounting
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Antimicrobial treatment No
Surface protection Untreated
Surface finishing Matt
Colour Titanium
RAL-number (similar) 9003
Transparent No
Label space/information surface Yes
Imprint Symbol "bell"
Suitable for degree of protection (IP) IP20
degree of impact strength (IK) IK04
Device width 45 mm
Device height 45 mm
Device depth 40.2 mm
Min. depth of built-in installation box 35 mm
Compatible with Apple HomeKit No
Compatible with Google Assistant No
Compatible with Amazon Alexa No
IFTTT support available No
Built-in depth 31.7 mm
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
Voltage type AC
Frequency (Min-Max) 50-60 Hz
Mandatory neutral Yes
Terminal marking indication Yes
Terminals capacity (Min-Max) 1-4 mm²
Cable nature for connection Flexible or rigid
Cable section (Min-Max) 1-4 mm²
