Arteor Advance - DO NOT disturb/make UP room switch with LED 230V champagne - 2 rockers modular push button - 250V AC 10A IP20

Arteor Advance Legrand

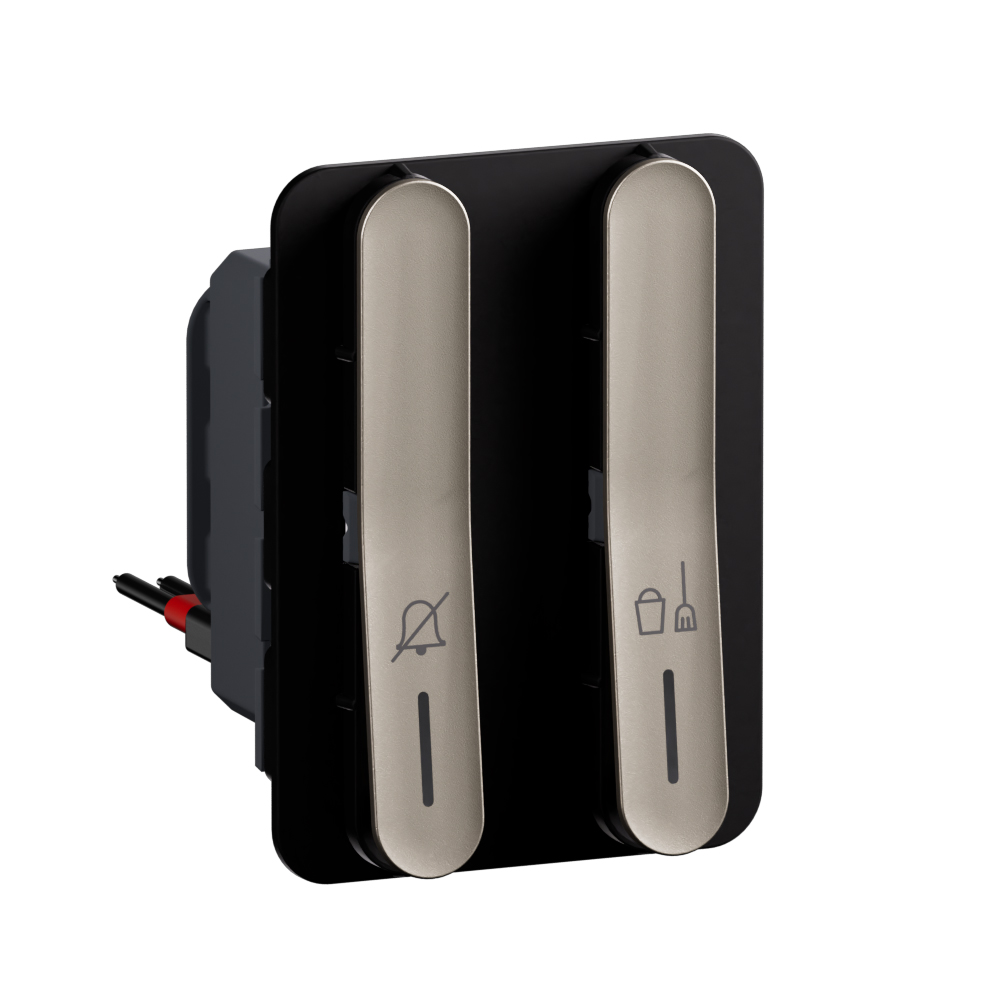

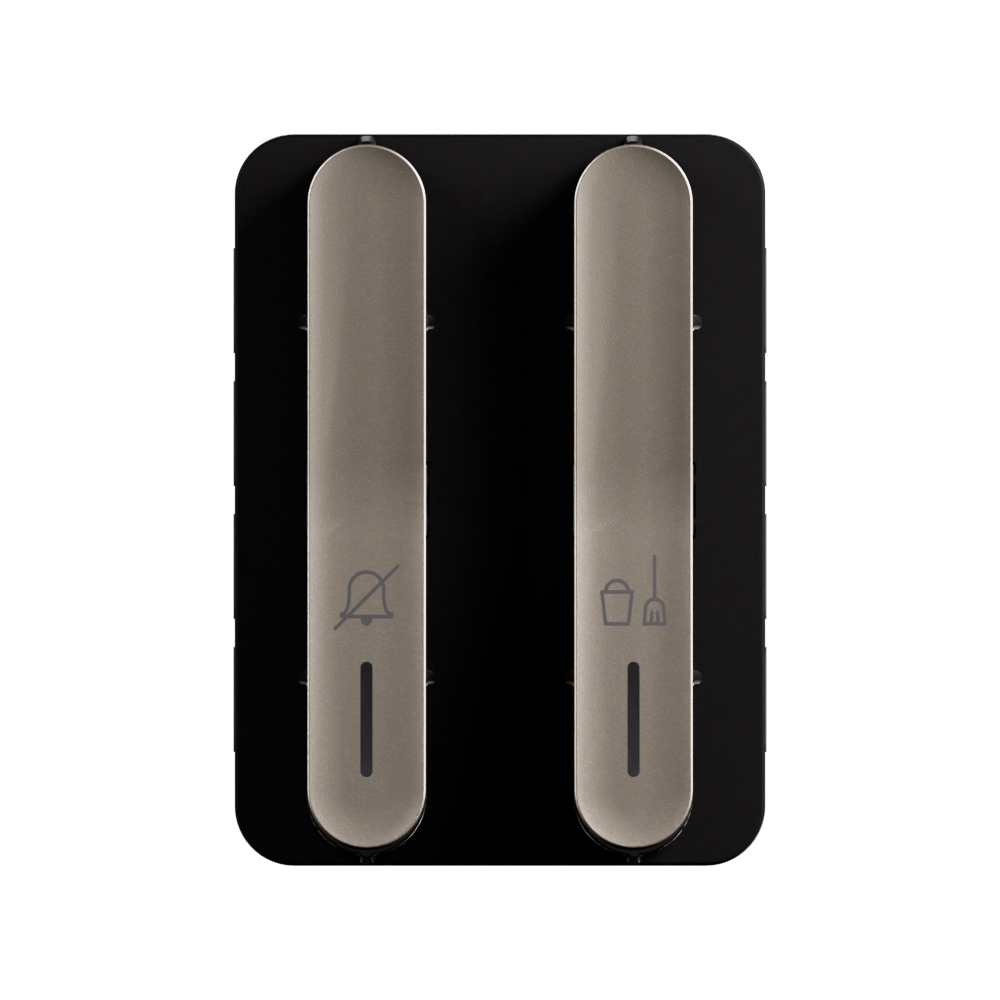

Arteor Advance - DO NOT disturb/make UP room switch with LED 230V champagne - 2 rockers modular push button - 250V AC 10A IP20

REF. AA27107CH EAN. 3414972919739
Allows guests to signal room status with "Do Not Disturb" or "Make Up Room" via 2 push rockers with LED indication. The 250V AC, 10A modular switch features screw terminals, matt champagne finish, and durable thermoplastic construction.
Download product sheet
Colour :
You can only compare 4 products, you must remove 1 to add this one

Description

Allows guests to signal room status with "Do Not Disturb" or "Make Up Room" via 2 push rockers with LED indication. The 250V AC, 10A modular switch features screw terminals, matt champagne finish, and durable thermoplastic construction.

Product characteristics
  • Nominal 230V AC, 50 to 60Hz DND/MUR internal control switch for hotel room status signaling
  • Champagne (gold) lacquered matt thermoplastic front for premium aesthetic integration with Arteor Advance
  • Integrated LED indicators for clear Do Not Disturb / Make Up Room status visibility
  • Two 2-module push-buttons with 2 lenses in rockers, 10A rated, IP20, IK02, for modular domestic installations
  • Screw-type terminals (0.75mm² to 1.5mm² flexible or rigid) with snap-in mounting, operating temperature -5° C to 35° C for reliable indoor use
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Installation
  • Has screw-type terminals for easy and secure wire installation.
Usage
  • The switch is rated for up to 40,000 operation cycles, exceeding the standard requirements for exceptional durability.
Avantages
  • Warm gray finish infused with ivory hues highlights silky elegance
  • The slender format offers a unique ergonomy with a low angle of 3.5° for optimal and elegant integration in the environment

Technical characteristics

Assembly arrangement Modular device for domestic switching devices
Model Single push button
Method of operation Push button
Operating principle Electromechanical
Number of contacts as normally closed contact 1
Number of contacts as normally open contact 1
Number of contacts as change-over contact 0
Number of revolving contacts 0
Contactless type No
Number of rockers 2
Number of modules (module system) 2
Number of poles 1
Nominal voltage 250 V
Rated current 10 A
With lighting Yes
With light source Yes
With complemantary luminous signal Yes
Monitoring contact No
Connection type Screwed terminal
Mounting method Module frame
Type of fastening Engage (snap)
Material Plastic
Material quality Thermoplastic
Halogen free No
Antimicrobial treatment No
Surface protection Lacquered
Surface finishing Matt
Colour Gold
Transparent No
Label space/information surface No
Imprint None
Suitable for degree of protection (IP) IP20
Device width 22.5 mm
Device height 62 mm
Device depth 42 mm
Min. depth of built-in installation box 30 mm
Compatible with Apple HomeKit No
Compatible with Google Assistant No
Compatible with Amazon Alexa No
IFTTT support available No
Built-in depth 35 mm
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -5-70 °C
Voltage type AC
Mandatory neutral No
Terminal marking indication Yes
Terminals capacity (Min-Max) 0.75-1.5 mm²
Cable nature for connection Flexible or rigid
