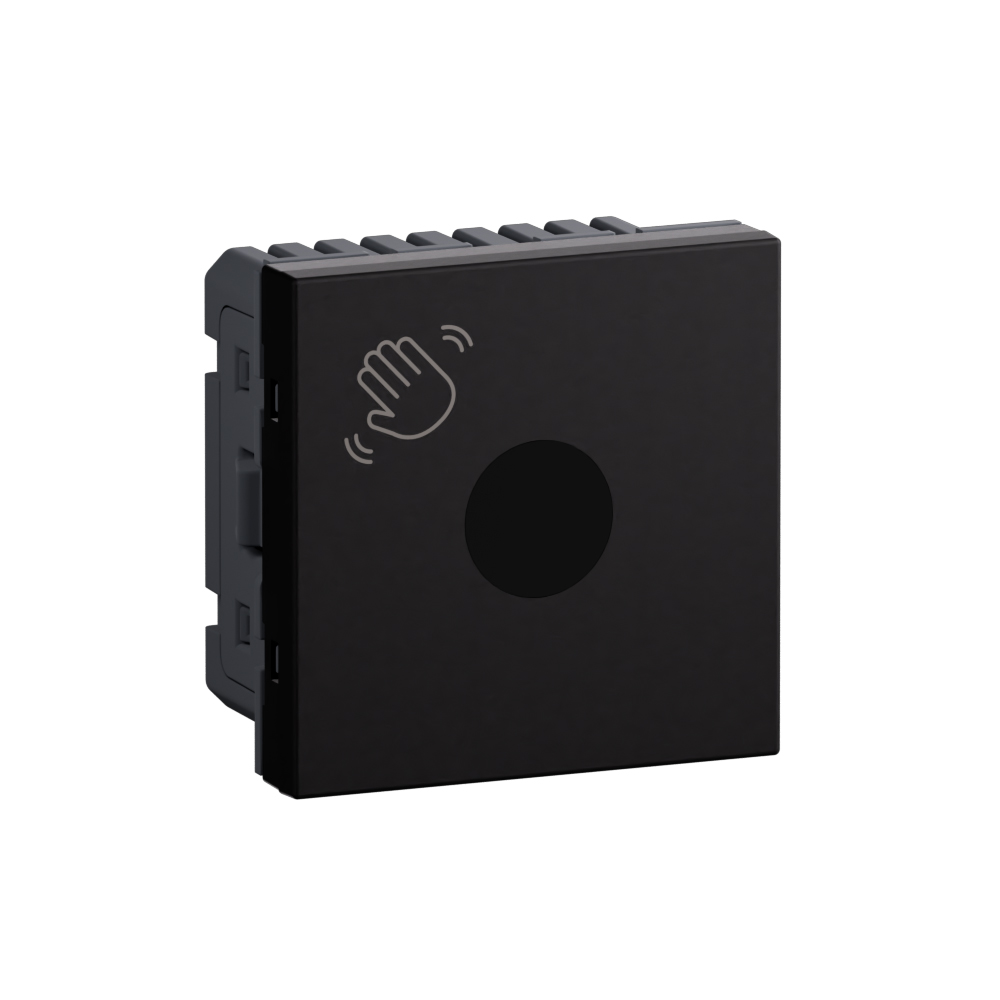

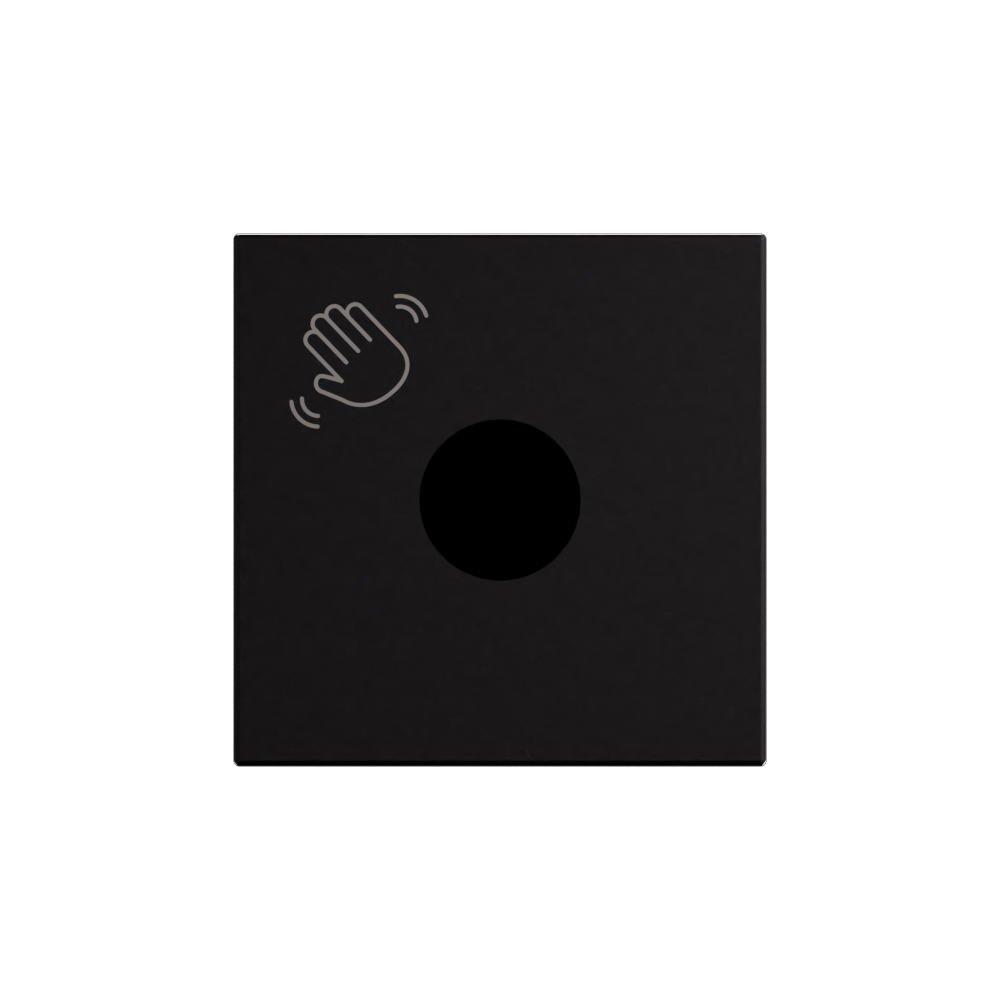

Arteor Advance - Contactless door switch 12/48V DC matt black - Flush-mounted touch-free door control - 12/48V DC relay output IP20

Arteor Advance Legrand

Arteor Advance - Contactless door switch 12/48V DC matt black - Flush-mounted touch-free door control - 12/48V DC relay output IP20

REF. AC28102MB EAN. 3414972757119
Uses sensors to turn lights on and off without physical contact, ensuring hygienic, touch-free operation. Designed for 12V/48V DC door entry systems, matt black, flush-mounted with screw terminals for robust indoor integration.
Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

Uses sensors to turn lights on and off without physical contact, ensuring hygienic, touch-free operation. Designed for 12V/48V DC door entry systems, matt black, flush-mounted with screw terminals for robust indoor integration.

Product characteristics
  • Dual low-voltage operation at 12V and 48V DC for flexible integration in door entry and access control systems
  • Matt black thermoplastic front with lacquered, smooth finish for a deep, non-reflective architectural look
  • Contactless electronic door switch using sensors for effortless, hygienic user actuation without physical touch
  • Improves energy efficiency with 0 to 24W switching capacity, low 3mA standby consumption, and optimized lighting control
  • Flush-mounted IP20 electronic relay module (45x45x26mm, 17.5mm built-in depth) with screw terminals (1.5mm² to 2.5mm²) for secure indoor installation
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Installation
  • Has screw-type terminals for easy and secure wire installation.
Usage
  • The switch is rated for up to 40,000 operation cycles, exceeding the standard requirements for exceptional durability.
Avantages
  • Avoid touch, ideal for sanitary measures
  • Deep black with a smooth matte aspect

Technical characteristics

Assembly arrangement Basic element with central cover plate
Model Relay
Type of load Other
Substation input No
Light value memory No
Applicable with button No
Applicable with movement sensor No
Applicable with presence indicator No
Applicable with time switch/timer No
Applicable with transmission button No
Applicable with infrared button No
Mounting method Flush-mounted
Material Plastic
Material quality Thermoplastic
Surface protection Lacquered
Surface finishing Matt
Colour Black
Transparent No
Nominal voltage 12 V
Frequency (Min-Max) 50-60 Hz
Switch capacity (Min-Max) 0-24 W
Switch capacity HVAC (Min-Max) 0-24 W
Type of fastening Mounting with screw
Min. depth of built-in installation box 35 mm
Compatible with Apple HomeKit No
Compatible with Google Assistant No
Compatible with Amazon Alexa No
IFTTT support available No
Width 45 mm
Height 45 mm
Depth 26 mm
Built-in depth 17.5 mm
degree of impact strength (IK) IK04
Degree of protection (IP) IP20
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
Standby consumption 3 mA
Mandatory neutral No
Terminal marking indication Yes
Stress test conformity (1000V) No
Halogen free Yes
Antimicrobial treatment No
Connection type Screwed terminal
Number of terminals 4
Terminals capacity (Min-Max) 1.5-2.5 mm²
Cable section (Min-Max) 1.5-2.5 mm²
Label space/information surface No
Contains Batteries No
Connected object No
Programming way Not applicable
With voice command No
Programmable No
Interoperable connection Protocol No
Connectable by Internet box No
Product use function Door entry systems
