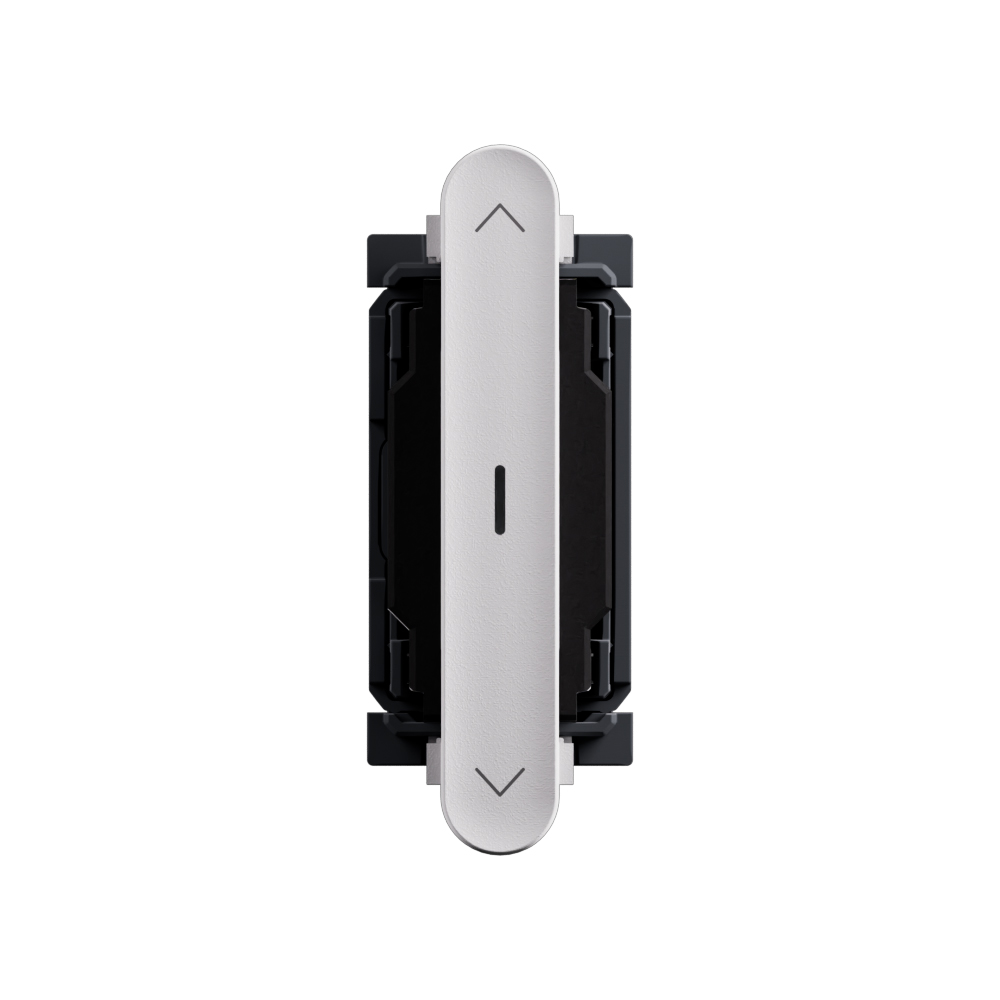

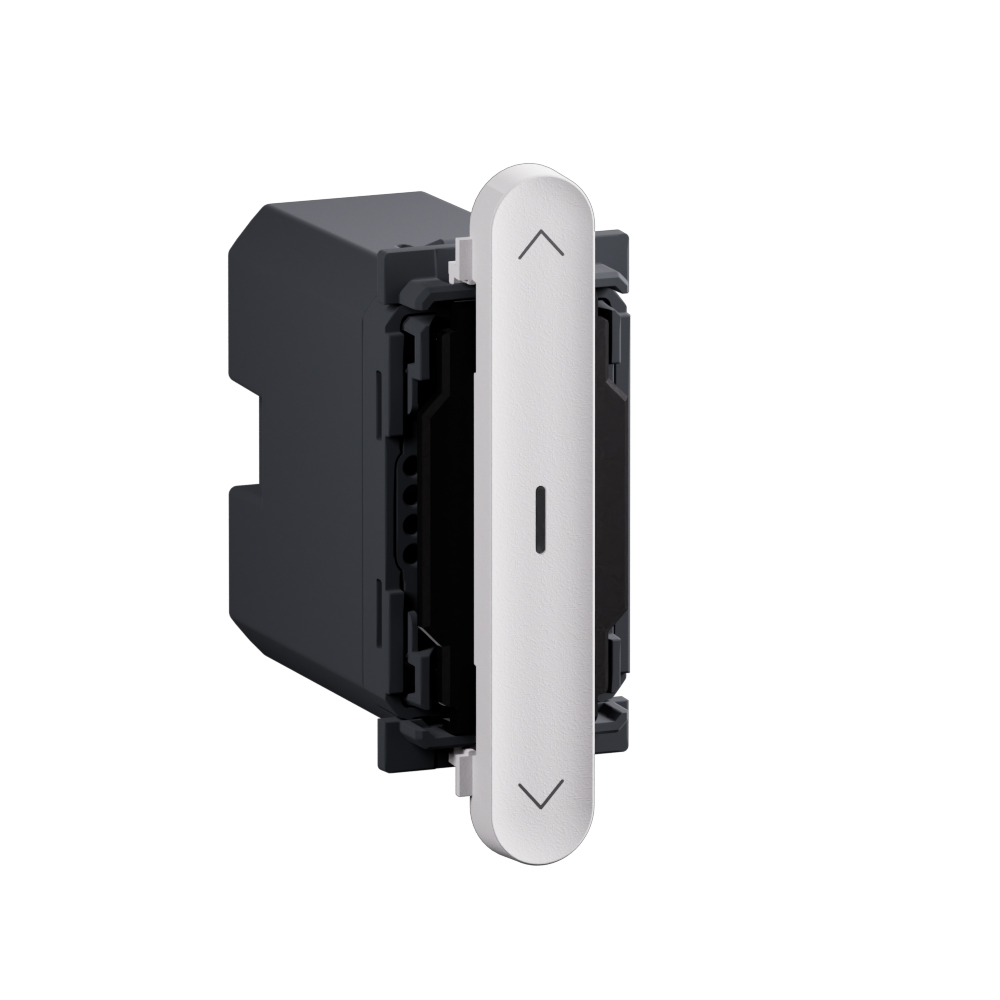

Name: Arteor Advance - Arteor smart wireless curtain/roller blind switch 1 module matt white - Zigbee shutter control
SKU: AA5300MW

Arteor Advance - Arteor smart wireless curtain/roller blind switch 1 module matt white - Zigbee shutter control

REF. AA5300MW EAN. 3414972704328

The roller shutter wireless in-wall switch lets you control roller shutters via the Home+Control app, voice assistants, or local up/down/stop commands. Its Zigbee connectivity, 185m radio range, and low-consumption battery enable wire-free

Compare You can only compare 4 products, you must remove 1 to add this one

Description

Product characteristics

Up/down/stop control for curtain and roller shutter management via integrated radio transmitter
LED status indicator with dedicated low-battery warning for preventive maintenance
Supplied with a replaceable CR2032 lithium battery (included) offering up to 8 years of service life
Flush-mounted 1-module matt white design (22.5x45x43mm, built-in depth 35mm), IP21, IK02, halogen-free for in-wall installation
Zigbee wireless connected device (2400MHz, 128-bit rolling code, range up to 185m) programmable via Home + Control app with voice control through Amazon Alexa, Apple Siri, and Google Assistant

Recommendation / Restriction

To pair your roller shutter wireless switch, you first need to purchase and install a Arteor with Netatmo connected starter pack, as well as one or more Arteor with Netatmo connected roller shutter switches

The product's benefits

Installation

The roller shutter wireless switch can be screwed onto a flush-mounting box

Usage

Pair as many connected roller shutter switches as you wish and control them all with a single press on your wireless switch

Technical characteristics

Radio frequency	2400 MHz
Rolling code system	Yes
Code length (Bit)	128
Range	185 m
Number of commands	2
With manual radio transmitter	Yes
Flush-mounted radio transmitter	Yes
Surface mounted radio transmitter	No
With radio coding device	Yes
Degree of protection (IP)	IP21
Keyboard protection cover	No
Current supply	Battery
Width	22.5 mm
Height	45 mm
Depth	43 mm
Built-in depth	35 mm
degree of impact strength (IK)	IK02
Operating / setting temperature (Min-Max)	-5-35 °C
Storage temperature (Min-Max)	0-45 °C
Standby consumption	0 mA
Mandatory neutral	No
Stress test conformity (1000V)	No
Colour	White
RAL-number	9003

Halogen free	Yes
Antimicrobial treatment	No
Mounting method	Flush-mounted
Contains Batteries	Yes
Number of batteries (Type 1)	1
IEC code (Type 1)	CR2032
Battery ou Accumulator (Type 1)	Battery (not rechargeable)
Battery Composition (Type 1)	Lithium (battery or accumulator)
Battery Location (Type 1)	Product includes a battery
Regulation Type (Type 1)	P : Portable (Standard format)
Connected object	Yes
Operating method	Zigbee
Application store for download	App Store , Google Play Store
With voice command	Yes
Programmable	Yes
Interoperable connection Protocol	Yes
Connectable by Internet box	Yes
Compatible voice assistants	Google Assistant , Amazon Alexa , Apple Siri
Product use function	Shutter management
Application name	Home + Control
Programming way	Smartphone apps
Battery weight (g) for Type 1	3 g
Number of Single Element (Pack1)	1
