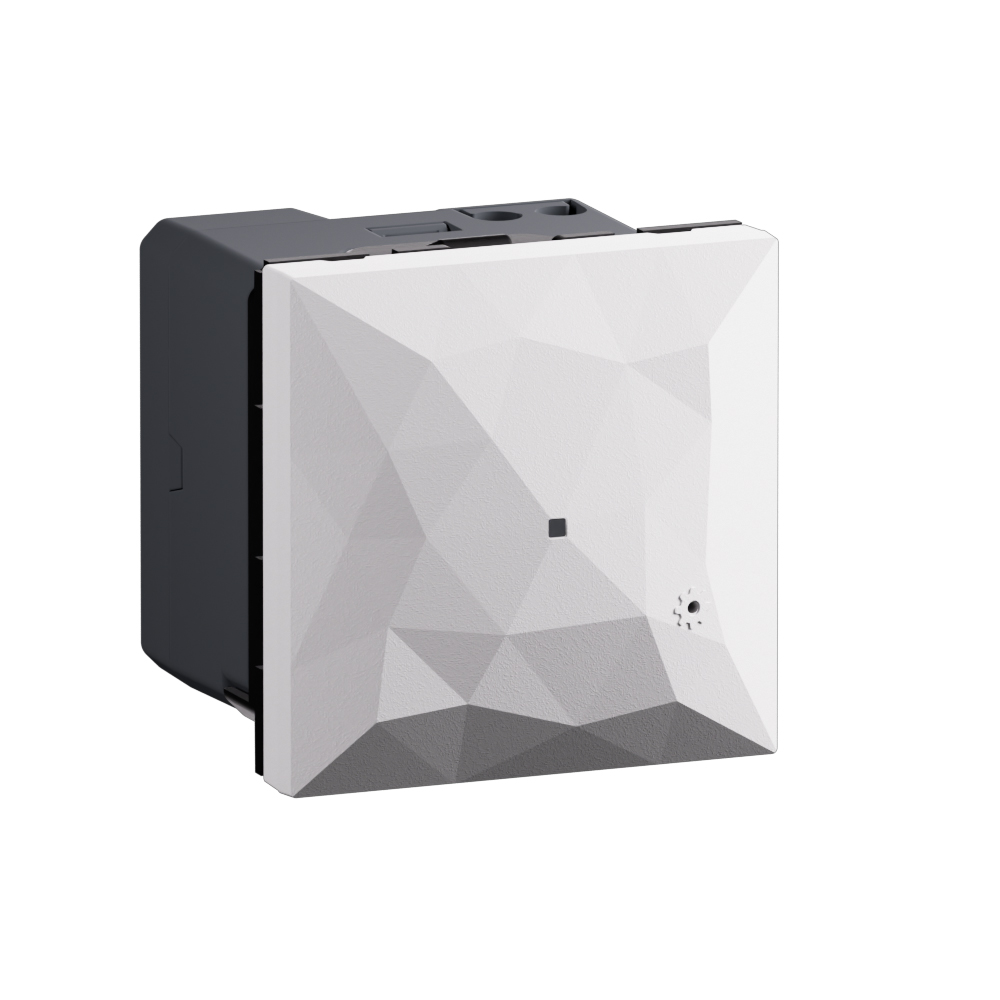

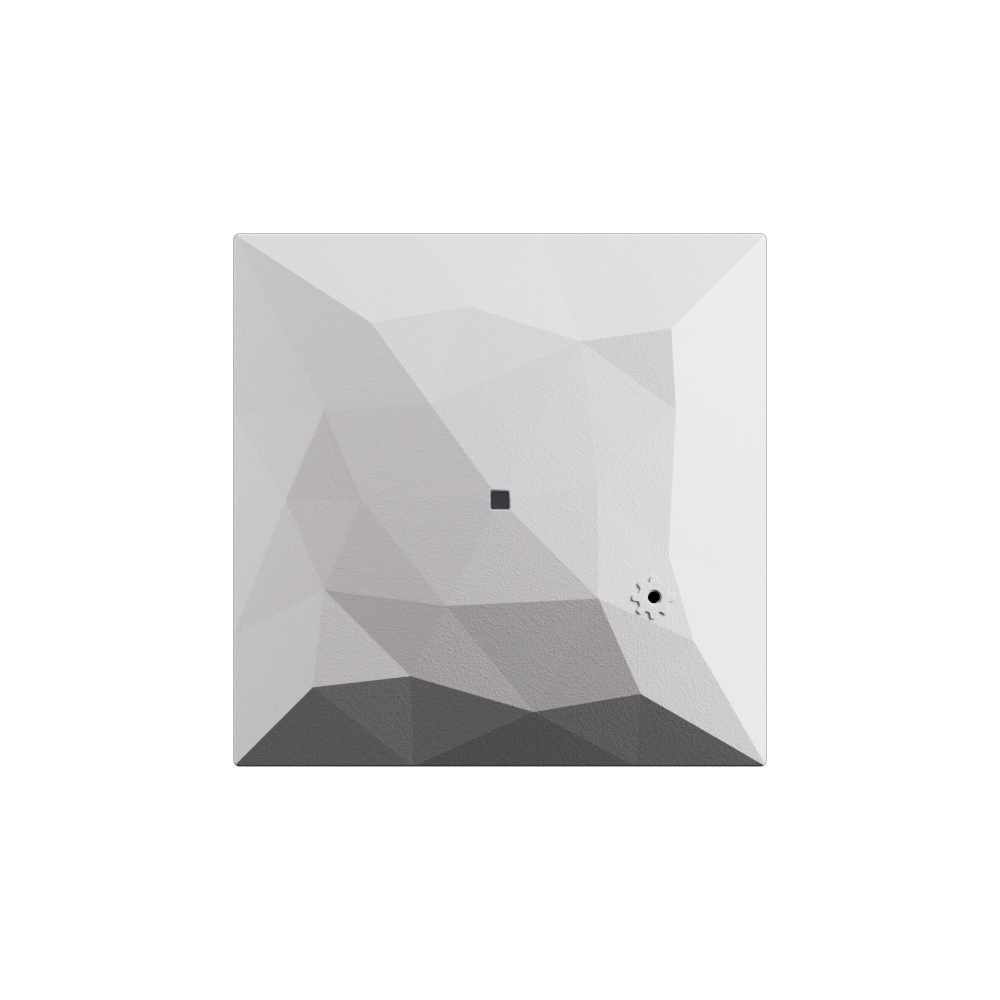

Arteor Advance - Arteor smart gateway wifi / Zigbee 2 modules matt white - Flush-mounted IP40 interface - Wi-Fi 2.4G and Zigbee control

Arteor Advance Legrand

Arteor Advance - Arteor smart gateway wifi / Zigbee 2 modules matt white - Flush-mounted IP40 interface - Wi-Fi 2.4G and Zigbee control

REF. AC5110MW EAN. 3414972882453
Pack Control for a connected installation allows you to control lighting, roller shutters, and electrical appliances remotely via the Home + Control app or voice assistants. It integrates WiFi2.4G and Zigbee, supports up to 100 devices.
Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

Pack Control for a connected installation allows you to control lighting, roller shutters, and electrical appliances remotely via the Home + Control app or voice assistants. It integrates WiFi2.4G and Zigbee, supports up to 100 devices.

Product characteristics
  • Gateway enables seamless commissioning with Home + Pro and daily remote control of your connected installation via the Home + Control app over 2.4G Wi-Fi and Zigbee.
  • Use the Gateway to expand your Legrand ecosystem by adding up to 100 Zigbee-compatible devices, configuring schedules, and automating lighting, shutters, and loads for advanced scenarios.
  • Built-in configuration button allows simple, app-free initial setup with automatic network creation and easy product pairing, while smartphone apps on App Store and Google Play optimize ongoing management.
  • Flush-mounted 2-module Arteor Advance design fits a standard 40mm outlet box with screw or claw fixing, ensuring a discreet IP40, IK04 interface in existing installations.
  • Matt white, halogen-free finish matches Arteor with Netatmo wiring devices for a consistent, modern aesthetic across connected interfaces.
Recommendation / Restriction
  • No Wi-Fi needed for setup. Wi-Fi and internet connection required for full Home + Control app experience.

The product's benefits

Installation
  • The Arteor with Netatmo gateway power outlet is easily installed in place of an existing standard power outlet and needs a standard-depth flush-mounting box (40mm). Claw or screw fixing possible.
Usage
  • Enjoy the full benefits of the connected offer with Netatmo: Improve your comfort by automating roller shutter management with personalized schedules. Optimize your lighting with life scenarios like "arrival mode", "movie night" and control your Zigbee-compatible LED lights, bulbs and strips to add style and atmosphere to your home. Secure your absence with presence simulation scenarios. Monitor your energy consumption effortlessly through the Home + Control app.
Avantages
  • The installation of a Arteor with Netatmo is identical as a traditionnal electrical installation. It does not need any additional wire and is placed in a standard one gang box of 40mm depth with or without claws.
  • Effortless control with Voice Assistant. Manage your home hands-free with Arteor with Netatmo products, using Apple Siri, Google Home or Amazon Alexa. Just say “I’m leaving” or “Good night” to turn off selected lights, appliances, and close your shutters—all with a simple voice command.
  • When installed on the wall, the Gateway and socket perfectly match the sleek aesthetic of all Arteor with Netatmo products, blending effortlessly into your home’s decor when installed on the wall.

Technical characteristics

Standby consumption 5.4
Bus system KNX No
Bus system KNX-RF (Radio Frequency) No
Bus system radio frequency Yes
Bus system LON No
Bus system Powernet No
Other bus systems Zigbee
Radio frequency bidirectional Yes
Model Multiple interface
Mounting method Flush-mounted
Max. number of devices per channel 100
Demounting protection No
With LED indication No
Updateable Yes
Operating voltage (Min-Max) 110-230 V
Voltage type AC
Protocol TCP/IP
Provider dependent No
Visualization Yes
Web-Server No
Radio interface Yes
IR interface No
Degree of protection (IP) IP40
Width 45 mm
Height 46 mm
Depth 45 mm
degree of impact strength (IK) IK04
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) 0-45 °C
Terminal marking indication Yes
Type of load Not applicable
Halogen free Yes
Connection type Screwed terminal , Cable
Number of distribution blocks 2
Label space/information surface No
Fitted with USB plug No
Contains Batteries No
Addressable No
Connected object Yes
Operating method Wifi network 2.4G , Zigbee
Application store for download App Store , Google Play Store
With voice command Yes
Programmable Yes
Interoperable connection Protocol Yes
Connectable by Internet box Yes
Compatible voice assistants Google Assistant , Amazon Alexa , Apple Siri
Product use function Connected devices interface
Application name Home + Control
Programming way Smartphone apps
