Arteor Advance - Arteor rotary dimmer 2-module matt white - 220-230V AC - 200W max LED compatible - Screw terminals IP20 indoor

Arteor Advance Legrand

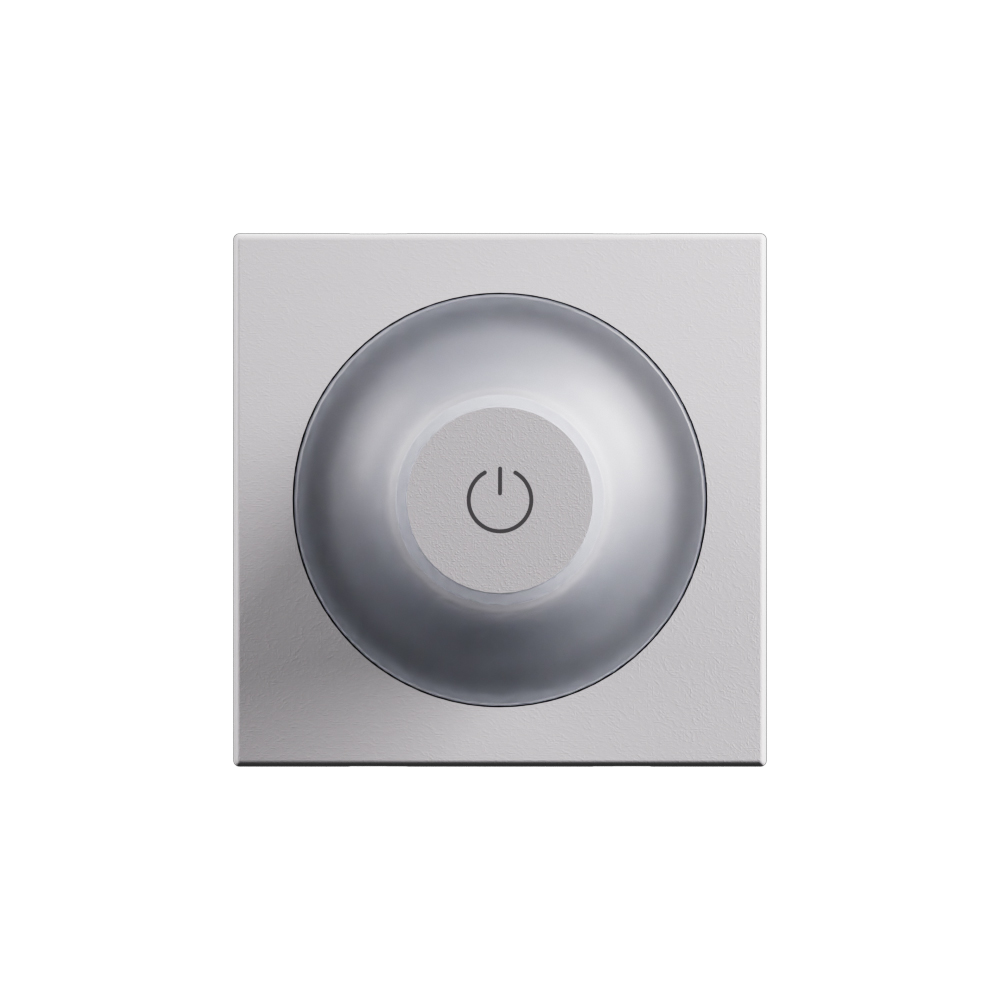

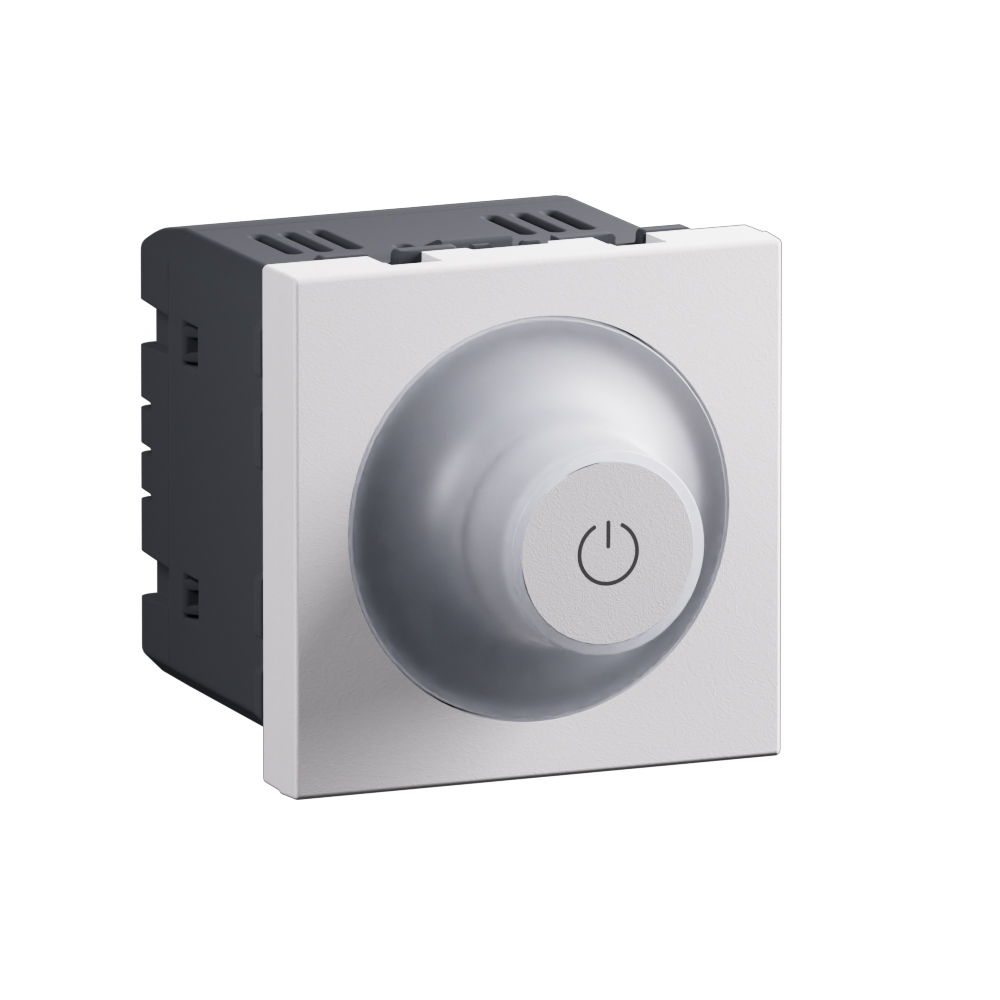

Arteor Advance - Arteor rotary dimmer 2-module matt white - 220-230V AC - 200W max LED compatible - Screw terminals IP20 indoor

REF. AC24107MW EAN. 3414973029376
Allows adjustment of light output with precise rotary control of dimmable LED, halogen, and compact fluorescent loads up to 200W. The matt white 2-module design fits 40mm boxes and uses screw terminals for 220-230V AC operation.
Download product sheet
Finition :
You can only compare 4 products, you must remove 1 to add this one

Description

Allows adjustment of light output with precise rotary control of dimmable LED, halogen, and compact fluorescent loads up to 200W. The matt white 2-module design fits 40mm boxes and uses screw terminals for 220-230V AC operation.

Product characteristics
  • Two-module rotary dimmer, 200W, for modular domestic switching installations
  • Matt white thermoplastic finish (similar to RAL 9003) for seamless integration with Arteor Advance
  • Controls most dimmable loads on the market (LED, halogen, compact fluorescent) with light level memory and minimum brightness adjustment
  • Rated power 200W max at 220-230V AC, with screw terminals for flexible or rigid cables 1.5mm² to 2.5mm²
  • Compact 2M device (45x45x57mm) compatible with 40mm box depth and minimum built-in box depth of 35mm
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Installation
  • Has screw-type terminals for easy and secure wire installation.
Usage
  • Upper and lower light adjustment
Avantages
  • Compatibility with the new generation of LED
  • Powdery white with a smooth matt aspect

Technical characteristics

Assembly arrangement Modular device for domestic switching devices
Method of operation Turn button
Number of modules (module system) 2
Number of units 1
App control via Bluetooth No
Serial dimmer No
Type of load Resistive load
Substation input No
Light value memory Yes
Applicable with movement sensor No
Applicable with presence indicator No
Applicable with time switch/timer No
Applicable with transmission button No
Applicable with infrared button No
Min. brightness controllable Yes
Mounting method Module frame
Type of fastening Mounting with screw
Material Plastic
Material quality Thermoplastic
Halogen free No
Surface protection Untreated
Surface finishing Matt
Colour White
RAL-number (similar) 9003
Transparent No
Suitable for degree of protection (IP) IP20
degree of impact strength (IK) IK02
Nominal voltage (Min-Max) 220-230 V
Connection type Screwed terminal
Cable section (Min-Max) 2.5-4 mm²
Device width 45 mm
Device height 45 mm
Device depth 57 mm
Min. depth of built-in installation box 35 mm
Compatible with Apple HomeKit No
Compatible with Google Assistant No
Compatible with Amazon Alexa No
IFTTT support available No
Operating / setting temperature (Min-Max) 5-35 °C
Storage temperature (Min-Max) -5-70 °C
Voltage type AC
Mandatory neutral No
Terminal marking indication Yes
Stress test conformity (1000V) Yes
Antimicrobial treatment No
Terminals capacity (Min-Max) 1.5-2.5 mm²
Cable nature for connection Flexible or rigid
