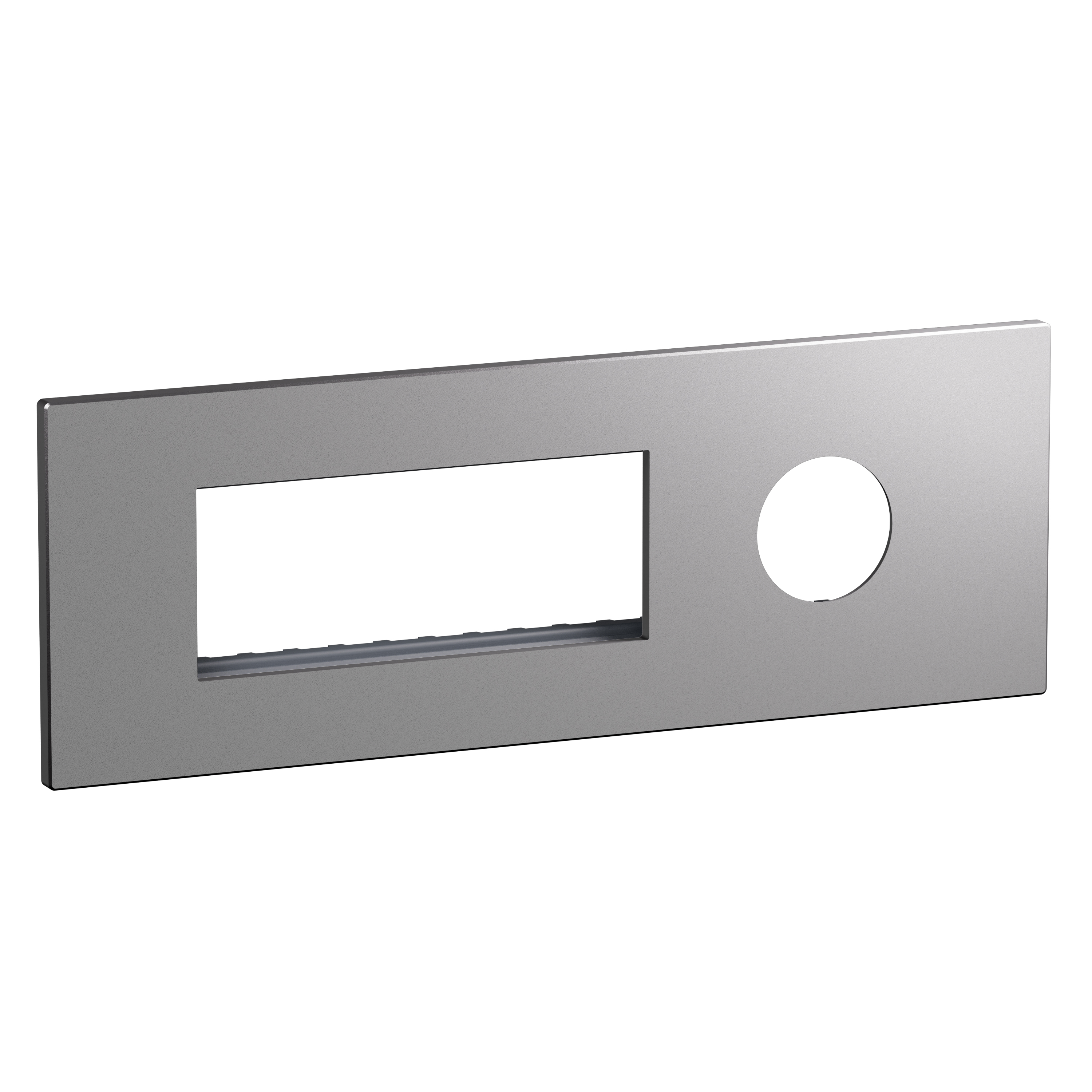

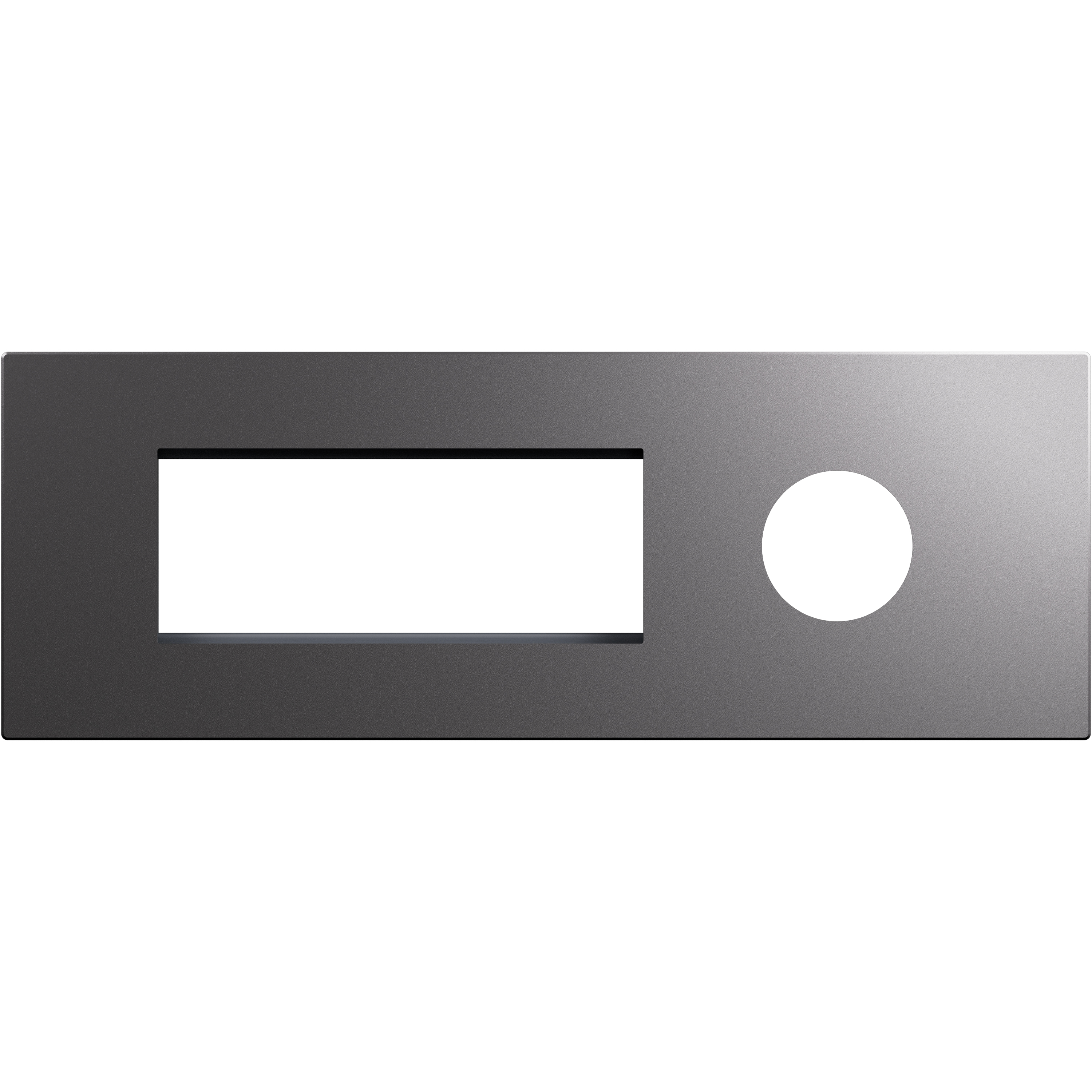

Arteor Advance - 8M hybrid plate+frame 5 modules + 1 dimmer 2 modules solid aluminium - Matt lacquered metal - Horizontal mounting

Arteor Advance Legrand

Arteor Advance - 8M hybrid plate+frame 5 modules + 1 dimmer 2 modules solid aluminium - Matt lacquered metal - Horizontal mounting

REF. AB1207SA EAN. 3414972733434
This 8M hybrid plate and frame in solid aluminum delivers refined design, muted reflection, and a cool metal feel. Its hybrid layout supports 5 modules plus 1 dimmer in 2 modules, with snap-on brass structure for precise installation.
Download product sheet
Finition :
You can only compare 4 products, you must remove 1 to add this one

Description

This 8M hybrid plate and frame in solid aluminum delivers refined design, muted reflection, and a cool metal feel. Its hybrid layout supports 5 modules plus 1 dimmer in 2 modules, with snap-on brass structure for precise installation.

Product characteristics
  • Solid aluminum construction for the plate and frame ensures high mechanical robustness and a cool metallic touch suitable for demanding residential and commercial applications.
  • Plates are made of real plain aluminum with lacquered matt surface finishing, delivering muted reflection and a refined, minimalist aesthetic.
  • Hybrid 8M plate+frame configuration provides 5 standard modules plus 1 dimmer function on 2 modules space, optimizing functional density on a single cover frame.
  • Horizontal flush-mounted cover frame, 252.5mm wide and 8.5mm deep, designed for 2 units (7 horizontal modules) with snap fastening for precise, secure installation.
  • Halogen-free metal/brass body with operating temperature range from -5° C to 35° C and storage from -10° C to 70° C, recommended for indoor use only.
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Usage
  • The plate contains an adjuster that ensures perfect installation on the wall
Avantages
  • Aluminium with muted reflection and cool sensation of metal
  • Refined design
  • Hybrid design integrates modular functions with refined minimalism, achieving a perfect balance of form and utility

Technical characteristics

Number of units 2
Mounting direction Horizontal
Number of units horizontal 2
Number of units vertical 1
Number of modules horizontal (module system) 7
Number of modules vertical (module system) 1
With mounting grid Yes
Flush-mounted installation Yes
Suitable for subfloor installation duct box No
Suitable for wall duct No
Label space/information surface No
Material Metal
Material quality Aluminium
Halogen free Yes
Antimicrobial treatment No
Surface protection Lacquered
Surface finishing Matt
Colour Aluminium
Transparent No
With hinged lid No
Type of fastening Engage (snap)
Width 252.5 mm
Height 90 mm
Depth 8.5 mm
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
Latin wood species Not applicable
Certification of wood (list) Not applicable
Wood Climate area Not applicable
