Arteor Advance - 8M hybrid plate + frame for 5 modules + 1 dimmer - Dark aluminum matt finish - Real brushed aluminum - Hybrid design

Arteor Advance Legrand

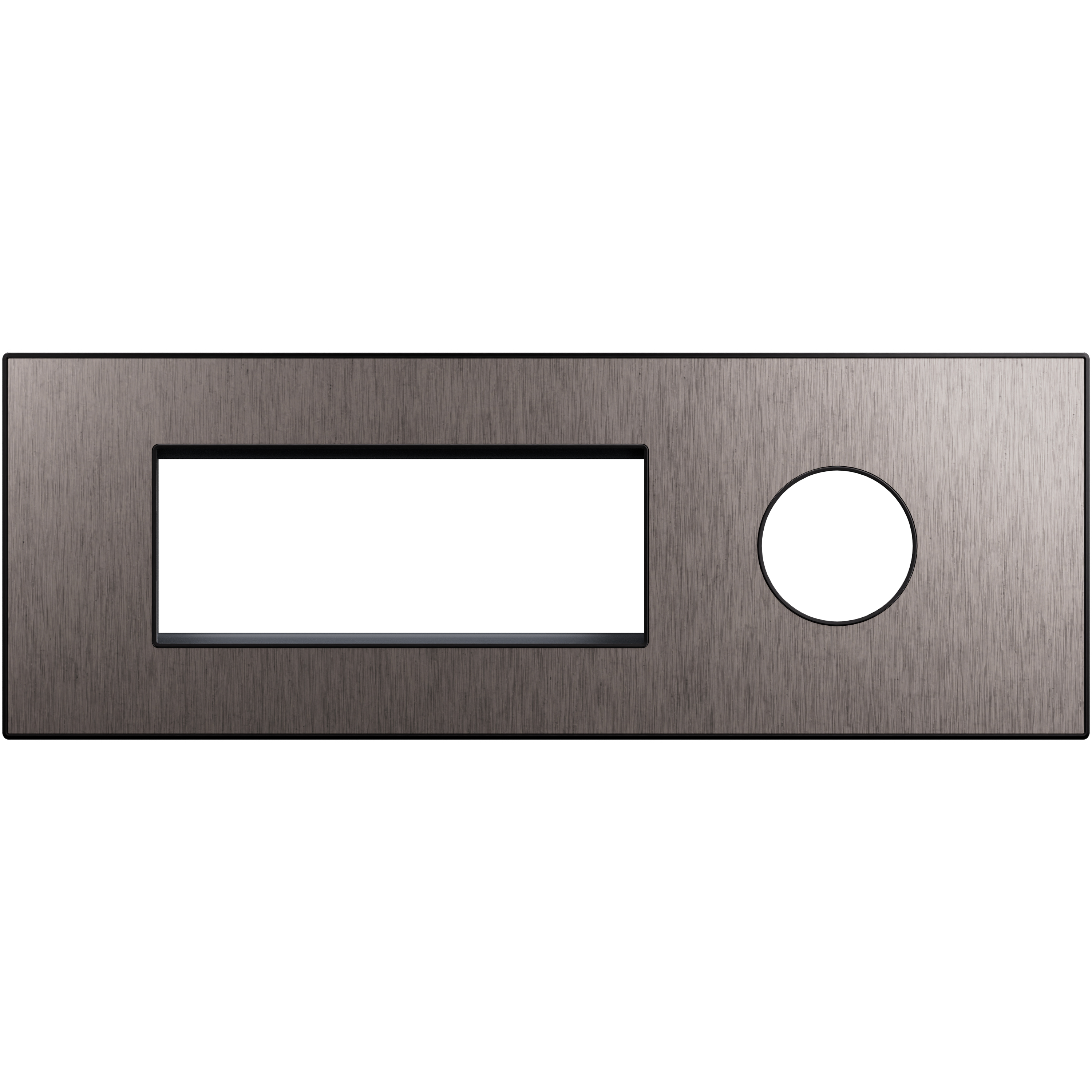

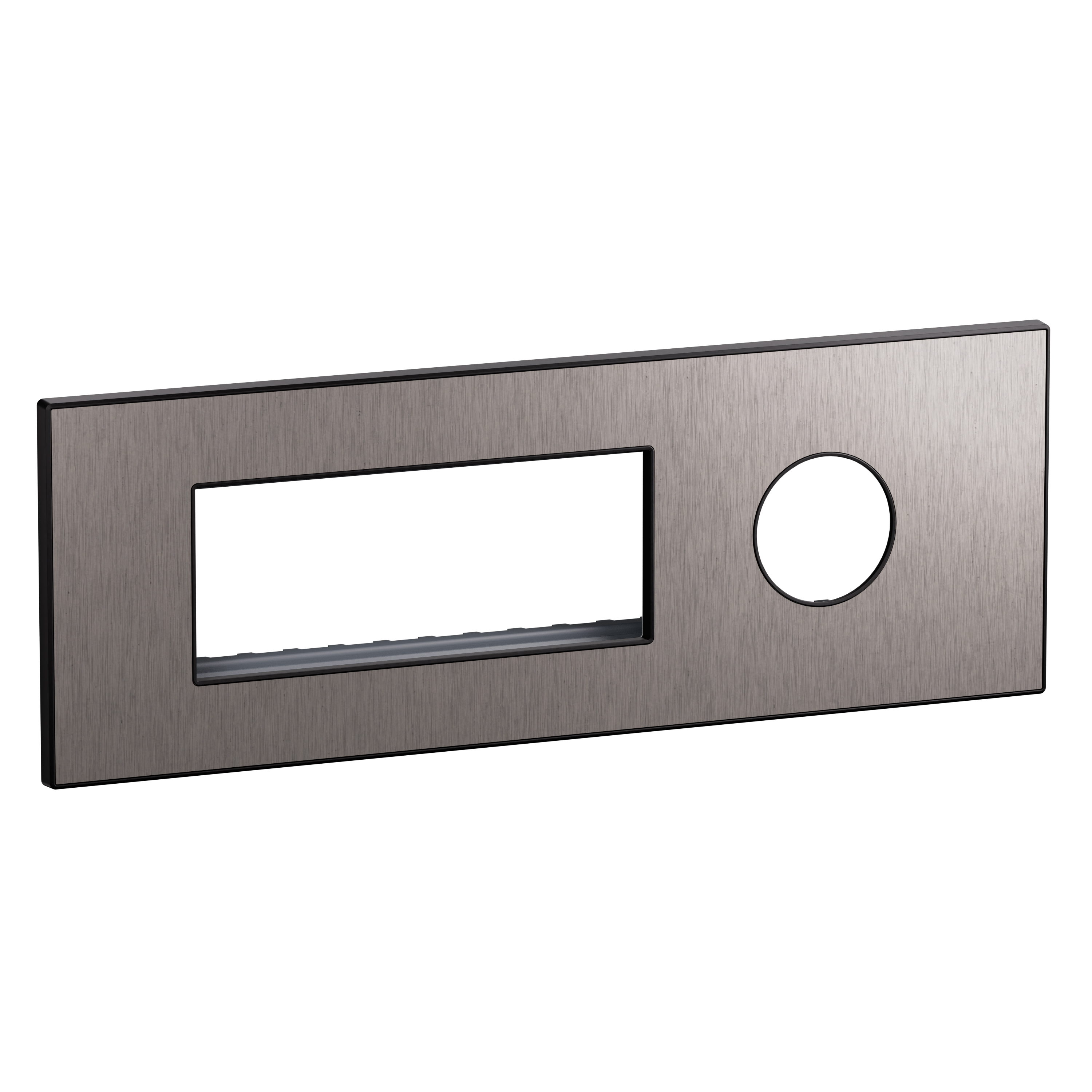

Arteor Advance - 8M hybrid plate + frame for 5 modules + 1 dimmer - Dark aluminum matt finish - Real brushed aluminum - Hybrid design

REF. AB1207DA EAN. 3414972733359
This 8M hybrid plate+frame for 5 modules plus 1 dimmer on 2 modules combines real brushed dark aluminum with a refined, minimal design. Its snap fastening ensures precise flush-mounted installation. Matt warm gray reflection.
Download product sheet
Finition :
You can only compare 4 products, you must remove 1 to add this one

Description

This 8M hybrid plate+frame for 5 modules plus 1 dimmer on 2 modules combines real brushed dark aluminum with a refined, minimal design. Its snap fastening ensures precise flush-mounted installation. Matt warm gray reflection.

Product characteristics
  • Dark aluminum finish coordinates with Arteor Advance devices, providing a refined, technical aesthetic for premium domestic switching installations.
  • Real brushed aluminum plate with matt warm gray reflection delivers a robust, high-quality surface with professional-grade visual consistency.
  • Hybrid plate+frame design supports 5 standard modules plus 1 dimmer in a 2 modules space, optimizing functional density in an 8M horizontal configuration.
  • Engage (snap) fastening with integrated adjuster ensures precise, flush-mounted installation on the wall, minimizing alignment tolerances and rework.
  • Halogen-free construction with -5° C to 35° C operating temperature range and compact 252.5x90x8.5mm dimensions supports safe, space-efficient indoor applications.
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Usage
  • The plate contains an adjuster that ensures perfect installation on the wall
Avantages
  • Real brushed aluminium set in a cradle, with a matt warm grey reflection
  • Refined design
  • Hybrid design integrates modular functions with refined minimalism, achieving a perfect balance of form and utility

Technical characteristics

Number of units 2
Mounting direction Horizontal
Number of units horizontal 2
Number of units vertical 1
Number of modules horizontal (module system) 7
Number of modules vertical (module system) 1
With mounting grid Yes
Flush-mounted installation Yes
Suitable for subfloor installation duct box No
Suitable for wall duct No
Label space/information surface No
Material Other
Material quality Other
Halogen free Yes
Antimicrobial treatment No
Surface protection Untreated
Surface finishing Matt
Colour Grey
Transparent No
With hinged lid No
Type of fastening Engage (snap)
Width 252.5 mm
Height 90 mm
Depth 8.5 mm
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
Latin wood species Not applicable
Certification of wood (list) Not applicable
Wood Climate area Not applicable
