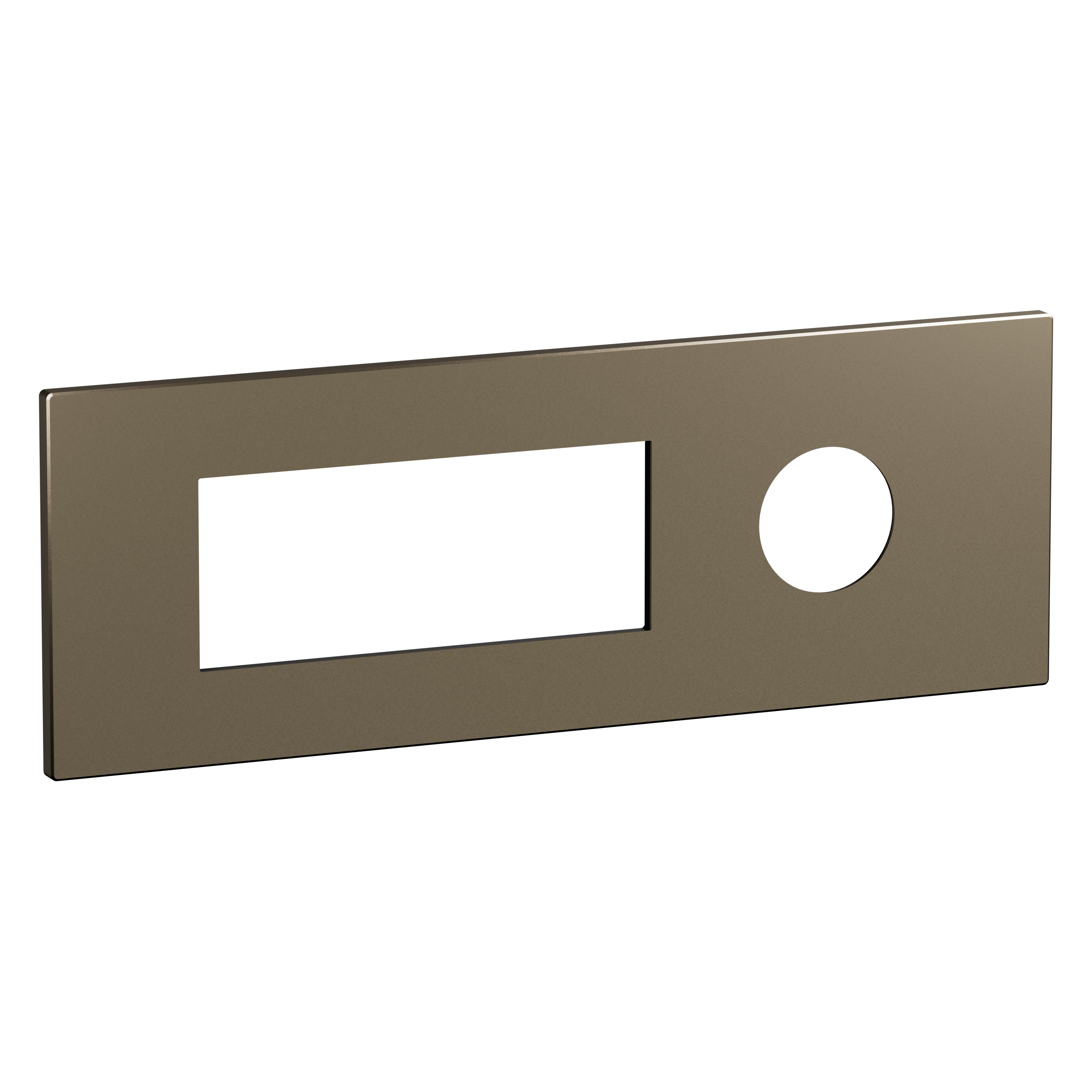

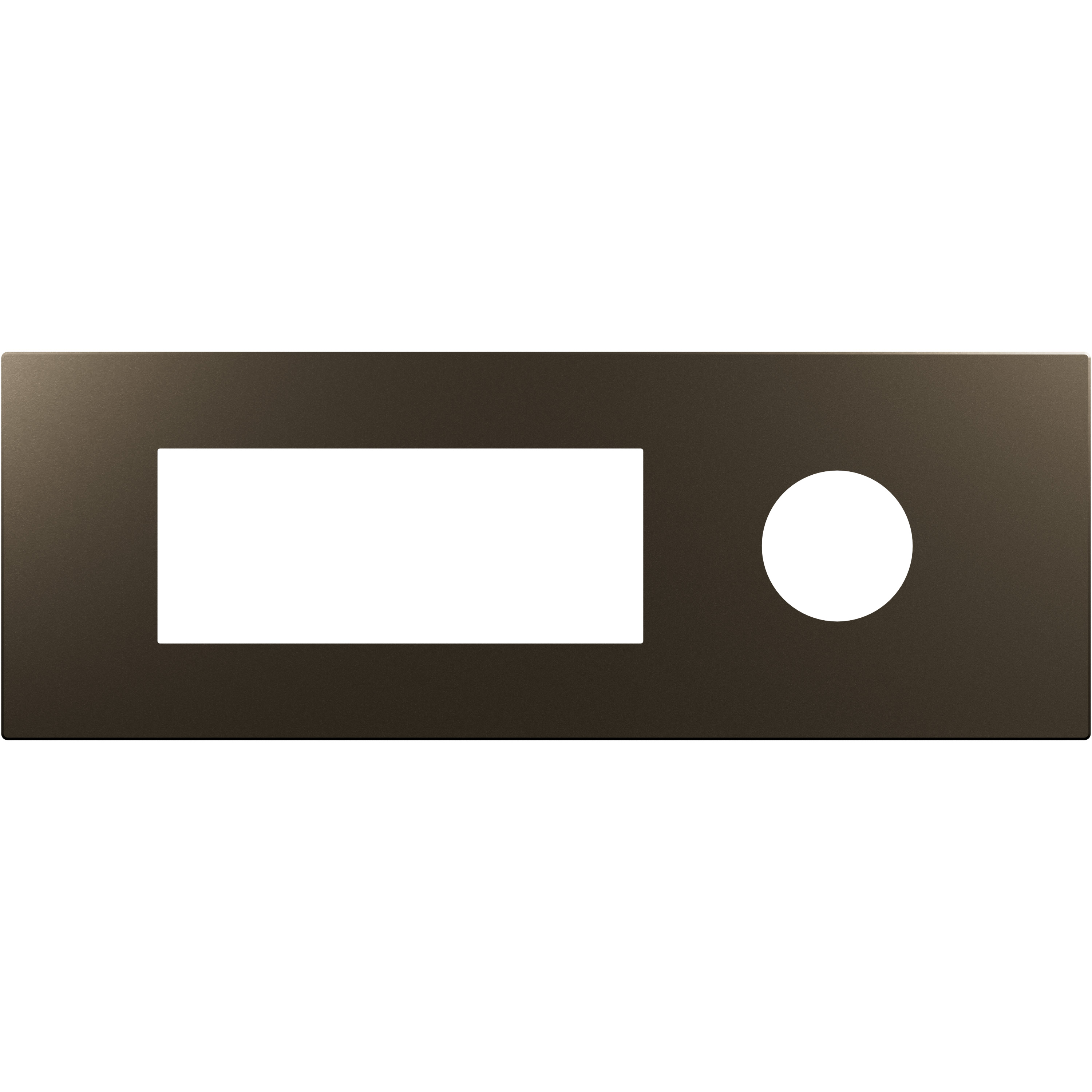

Arteor Advance - 8M hybrid plate for 5 modules + 1 dimmer on 2 modules space solid dark bronze - Matt lacquered aluminum

Arteor Advance Legrand

Arteor Advance - 8M hybrid plate for 5 modules + 1 dimmer on 2 modules space solid dark bronze - Matt lacquered aluminum

REF. AB1206SZ EAN. 3414972976077
This 8M hybrid plate for 5 modules plus 1 dimmer on 2 modules combines refined Arteor Advance design with a dark bronze matt lacquered metal finish. Its snap fastening, flush mounting, and integrated adjuster ensure precise wall alignment.
Download product sheet
Finition :
You can only compare 4 products, you must remove 1 to add this one

Description

This 8M hybrid plate for 5 modules plus 1 dimmer on 2 modules combines refined Arteor Advance design with a dark bronze matt lacquered metal finish. Its snap fastening, flush mounting, and integrated adjuster ensure precise wall alignment.

Product characteristics
  • 8 modules hybrid cover frame plate for 5 standard modules plus 1 dimmer in 2 modules space, optimized for Arteor Advance modular configurations
  • Solid dark bronze, matt lacquered aluminum front providing a deep, metallic finish that evokes a classic ambiance with a cool metal touch
  • Front plate made of crystal polycarbonate for high surface clarity and durability, combined with metal structure for enhanced mechanical robustness (IK02)
  • Hybrid design integrating modular functions with refined minimalism, ensuring a perfect balance of form, utility, and premium aesthetics in horizontal 2-unit layouts
  • Engage (snap) fastening and integrated adjuster ensure precise flush-mounted installation on the wall; halogen-free construction, 252.5mm width, 8.5mm depth, for indoor use from -5° C to 35° C
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Usage
  • The plate contains an adjuster that ensures perfect installation on the wall
Avantages
  • Deep bronze finish evoking classic ambiance with cool sensation of metal
  • Refined design
  • Hybrid design integrates modular functions with refined minimalism, achieving a perfect balance of form and utility

Technical characteristics

Number of units 2
Mounting direction Horizontal
Number of units horizontal 2
Number of units vertical 1
Number of modules horizontal (module system) 7
Number of modules vertical (module system) 1
With mounting grid Yes
Flush-mounted installation Yes
Suitable for subfloor installation duct box No
Suitable for wall duct No
Label space/information surface No
Material Metal
Material quality Aluminium
Halogen free Yes
Antimicrobial treatment No
Surface protection Lacquered
Surface finishing Matt
Colour Bronze
Transparent No
With hinged lid No
degree of impact strength (IK) IK02
Type of fastening Engage (snap)
Width 252.5 mm
Height 90 mm
Depth 8.5 mm
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
Latin wood species Not applicable
Certification of wood (list) Not applicable
Wood Climate area Not applicable
