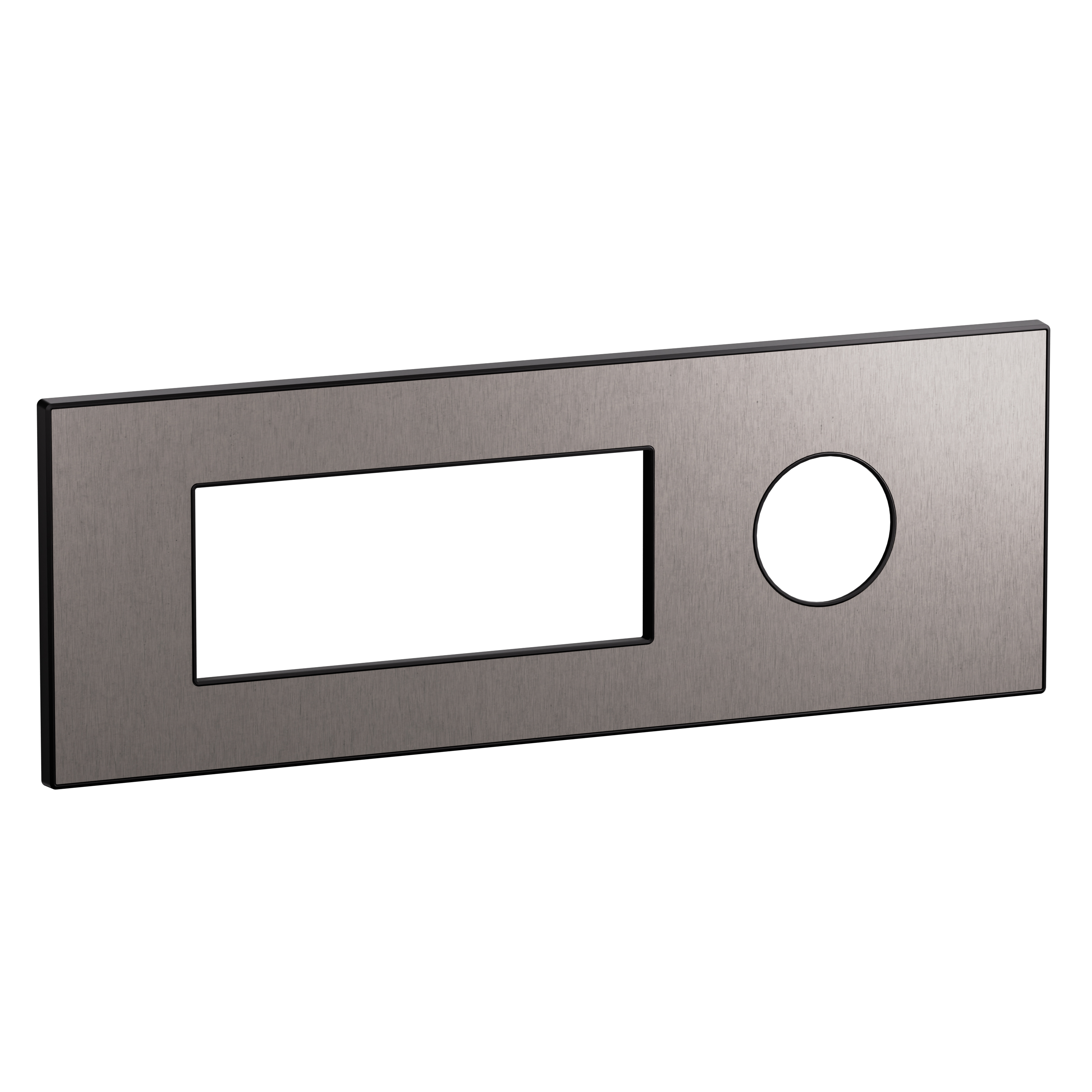

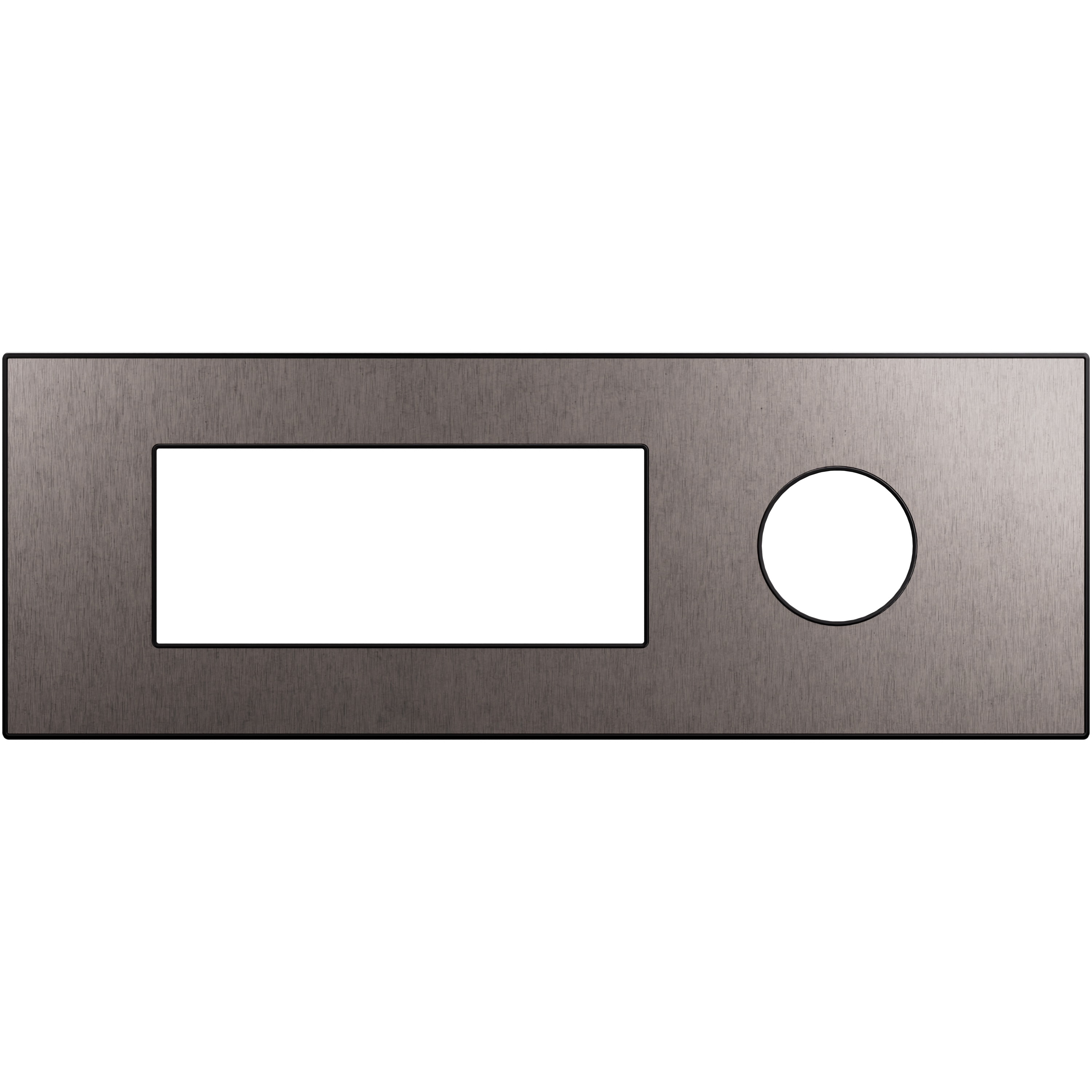

Arteor Advance - 8M hybrid plate for 5 modules + 1 dimmer - Dark brushed aluminum - Matt warm grey finish - Snap-fit flush mount frame

Arteor Advance Legrand

Arteor Advance - 8M hybrid plate for 5 modules + 1 dimmer - Dark brushed aluminum - Matt warm grey finish - Snap-fit flush mount frame

REF. AB1206DA EAN. 3414972733205
The 8M hybrid plate for 5 modules+1 dimmer on 2 modules space dark aluminium combines real brushed aluminum with a refined hybrid design. Its snap fastening and integrated adjuster ensure precise flush-mounted installation.
Download product sheet
Finition :
You can only compare 4 products, you must remove 1 to add this one

Description

The 8M hybrid plate for 5 modules+1 dimmer on 2 modules space dark aluminium combines real brushed aluminum with a refined hybrid design. Its snap fastening and integrated adjuster ensure precise flush-mounted installation.

Product characteristics
  • Dark aluminum hybrid cover frame designed for Arteor Advance domestic switching devices
  • Dark aluminum finish with matt warm gray reflection for a refined, contemporary aesthetic
  • Plates are made of real brushed aluminum set in a cradle for premium look and mechanical robustness
  • Hybrid 8M plate configuration for 5 standard modules plus 1 dimmer on 2 modules space, integrating modular functions with minimalistic design
  • Horizontal flush-mounted frame, 252.5mmx90mmx8.5mm, halogen free with snap fastening and IK02 impact resistance for precise, durable wall installation
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Usage
  • The plate contains an adjuster that ensures perfect installation on the wall
Avantages
  • Real brushed aluminium set in a cradle, with a matt warm grey reflection
  • Refined design
  • Hybrid design integrates modular functions with refined minimalism, achieving a perfect balance of form and utility

Technical characteristics

Number of units 2
Mounting direction Horizontal
Number of units horizontal 2
Number of units vertical 1
Number of modules horizontal (module system) 7
Number of modules vertical (module system) 1
With mounting grid Yes
Flush-mounted installation Yes
Suitable for subfloor installation duct box No
Suitable for wall duct No
Label space/information surface No
Material Other
Material quality Other
Halogen free Yes
Antimicrobial treatment No
Surface protection Untreated
Surface finishing Matt
Colour Grey
Transparent No
With hinged lid No
degree of impact strength (IK) IK02
Type of fastening Engage (snap)
Width 252.5 mm
Height 90 mm
Depth 8.5 mm
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
Latin wood species Not applicable
Certification of wood (list) Not applicable
Wood Climate area Not applicable

Documentation

1 document
Technical Sheet
F04495EN-00.pdf pdf (0.52 Mo)
