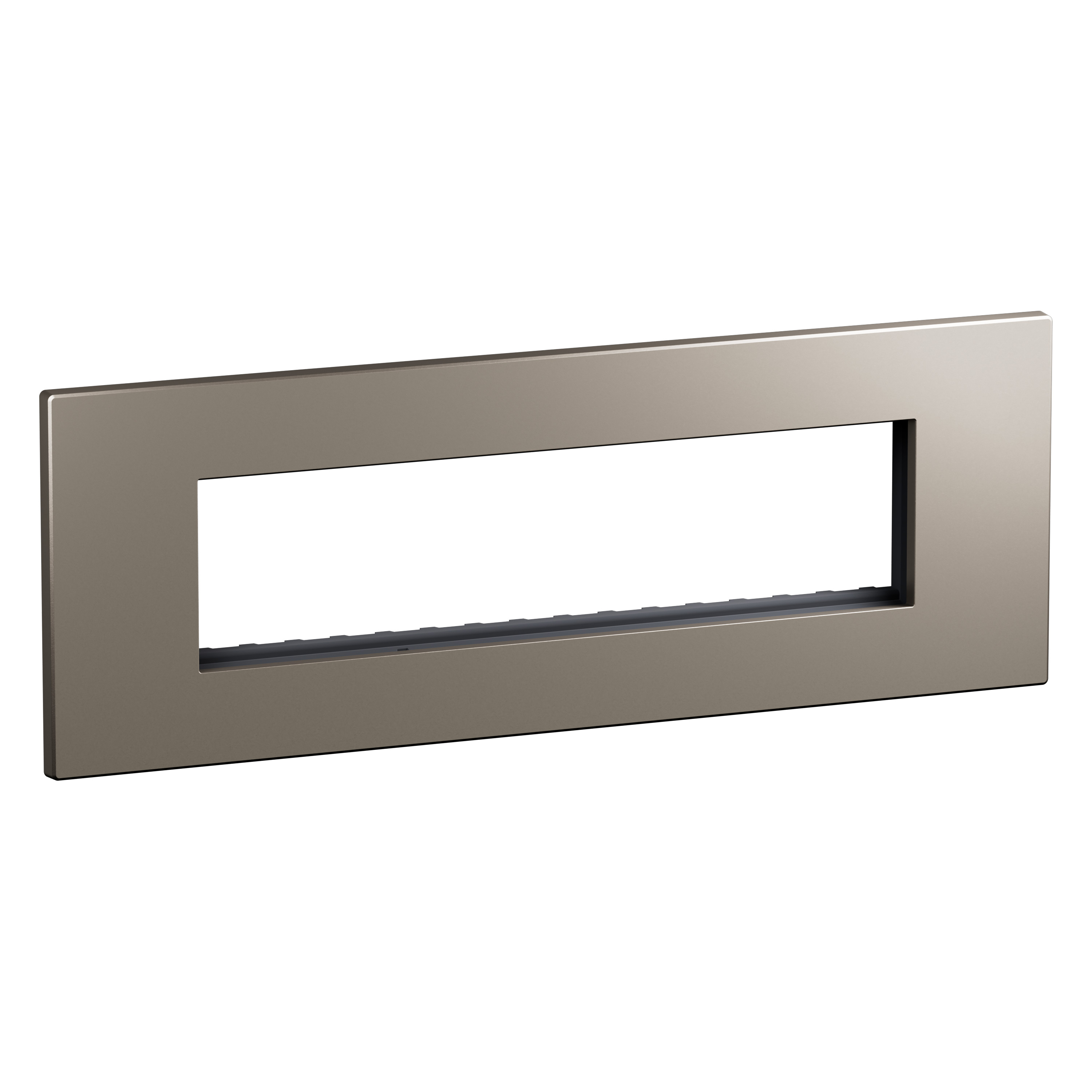

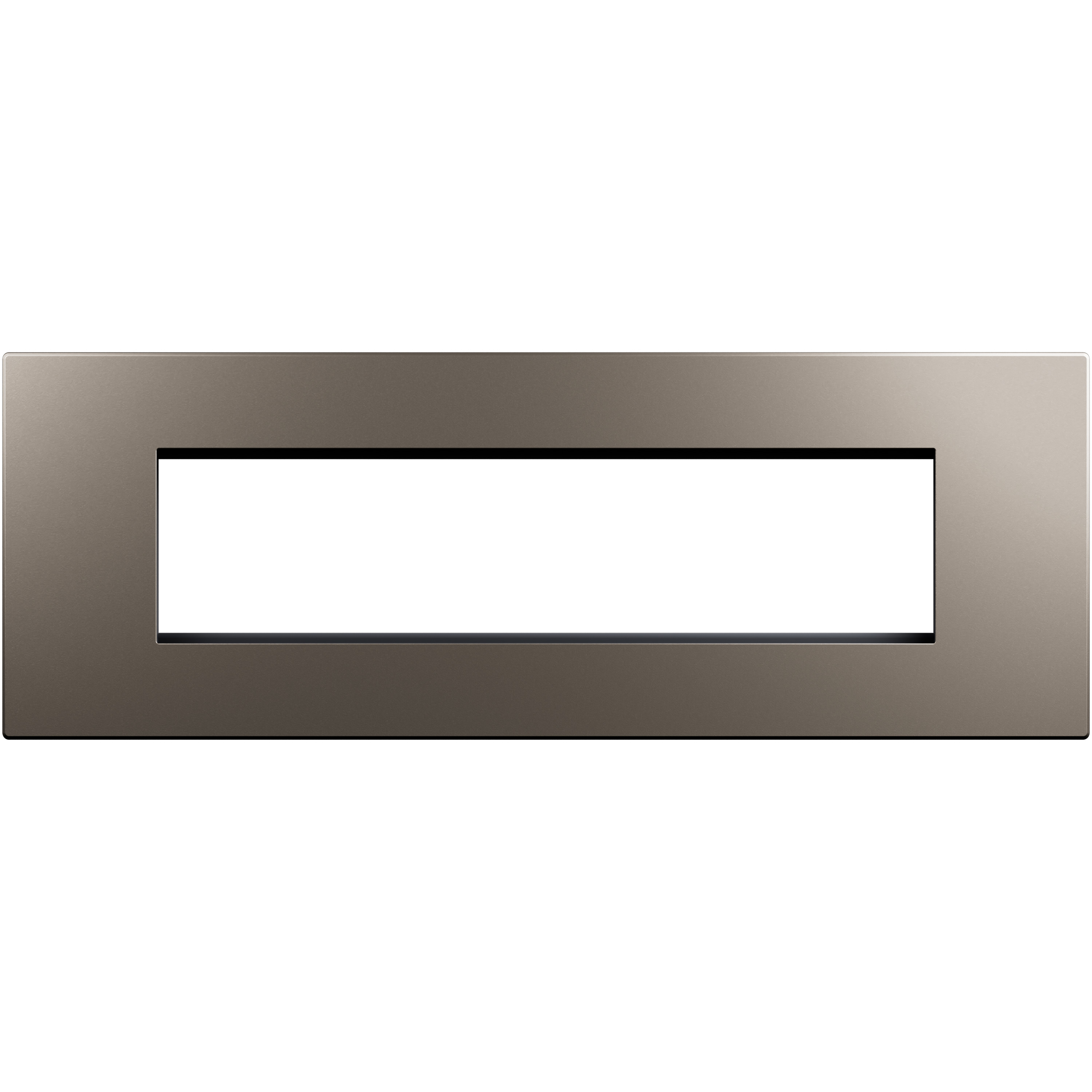

Arteor Advance - 8 modules plate+frame solid champagne - 8-module horizontal cover frame - Matt lacquered aluminum, gold finish

Arteor Advance Legrand

Arteor Advance - 8 modules plate+frame solid champagne - 8-module horizontal cover frame - Matt lacquered aluminum, gold finish

REF. AC1206SC EAN. 3414972977869
This 8 modules plate+frame solid champagne offers minimalist square design for flexible flush-mounted horizontal installations. Its lacquered matt metal finish in warm gold ensures IK02 impact resistance and precise wall alignment.
Download product sheet
Finition :
Number of modules horizontal (module system) :
Number of modules vertical (module system) :
You can only compare 4 products, you must remove 1 to add this one

Description

This 8 modules plate+frame solid champagne offers minimalist square design for flexible flush-mounted horizontal installations. Its lacquered matt metal finish in warm gold ensures IK02 impact resistance and precise wall alignment.

Product characteristics
  • 8-module horizontal cover frame for domestic switching devices, providing a single 8-gang modular interface (8x1 modules) for flush-mounted installations
  • Solid champagne, warm gray-gold matt lacquered finish with ivory hues for a refined metallic aesthetic matching Arteor Advance devices
  • Plate and frame assembly with metal, lacquered aluminum construction, halogen-free for enhanced durability and compliance in residential and commercial environments
  • Square, minimalist design with compact 252.5x90x8.5mm dimensions and snap-on fastening for precise alignment and clean wall integration
  • Integrated adjuster ensures perfect wall installation; operating temperature range -5° C to 35° C and storage temperature range -10° C to 70° C, recommended for indoor use only
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Usage
  • The plate contains an adjuster that ensures perfect installation on the wall
Avantages
  • Warm gray finish infused with ivory hues highlights silky elegance with cool sensation of metal
  • Minimalist design
  • Square design allows modularity and flexibility in a compact configuration

Technical characteristics

Number of units 1
Mounting direction Horizontal
Number of units horizontal 1
Number of units vertical 1
Number of modules horizontal (module system) 8
Number of modules vertical (module system) 1
With mounting grid Yes
Flush-mounted installation Yes
Suitable for subfloor installation duct box No
Suitable for wall duct No
Label space/information surface No
Material Metal
Material quality Aluminium
Halogen free Yes
Antimicrobial treatment No
Surface protection Lacquered
Surface finishing Matt
Colour Gold
Transparent No
With hinged lid No
degree of impact strength (IK) IK02
Type of fastening Engage (snap)
Width 252.5 mm
Height 90 mm
Depth 8.5 mm
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
Latin wood species Not applicable
Certification of wood (list) Not applicable
Wood Climate area Not applicable

Documentation

1 document
Technical Sheet
F04496EN-00.pdf pdf (0.52 Mo)
