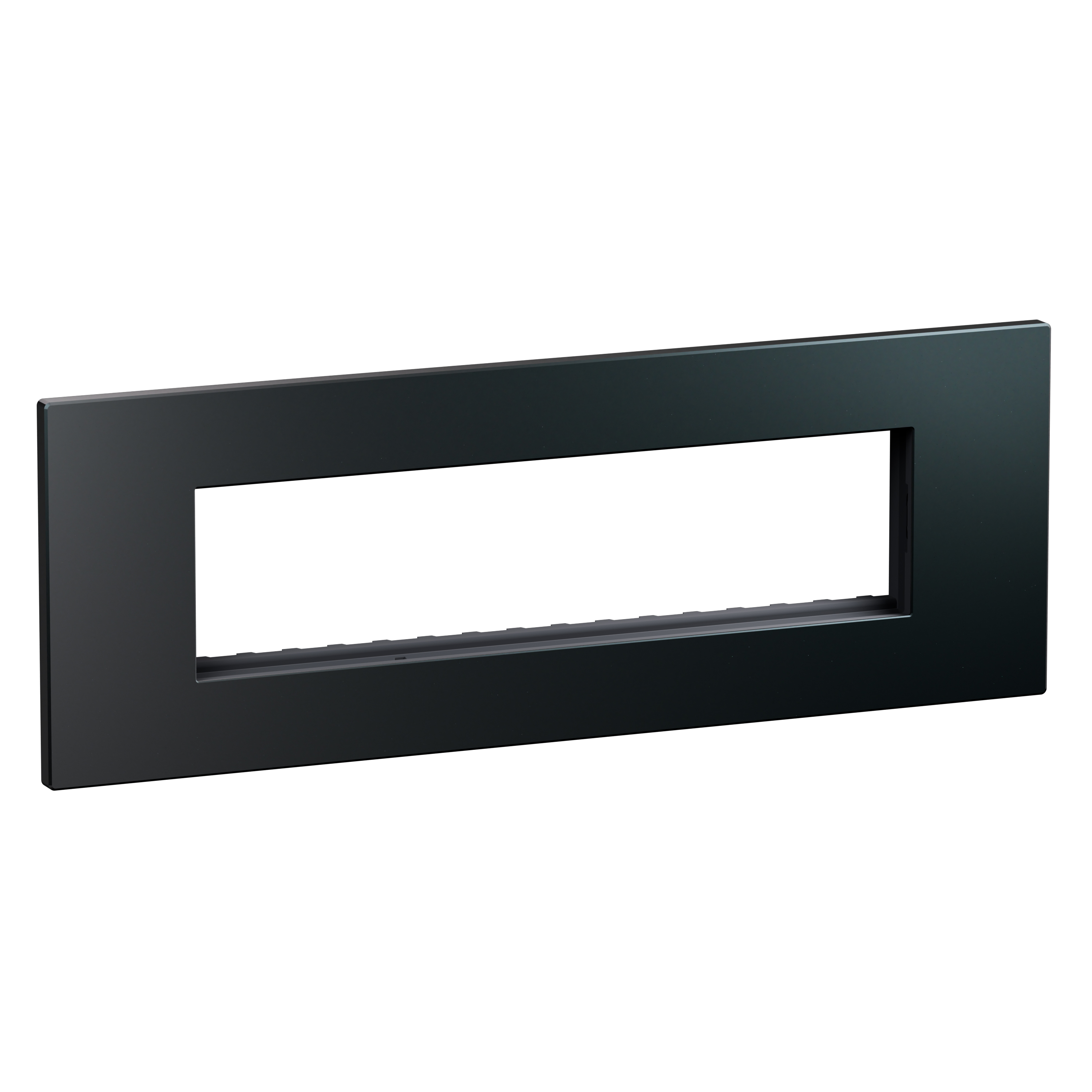

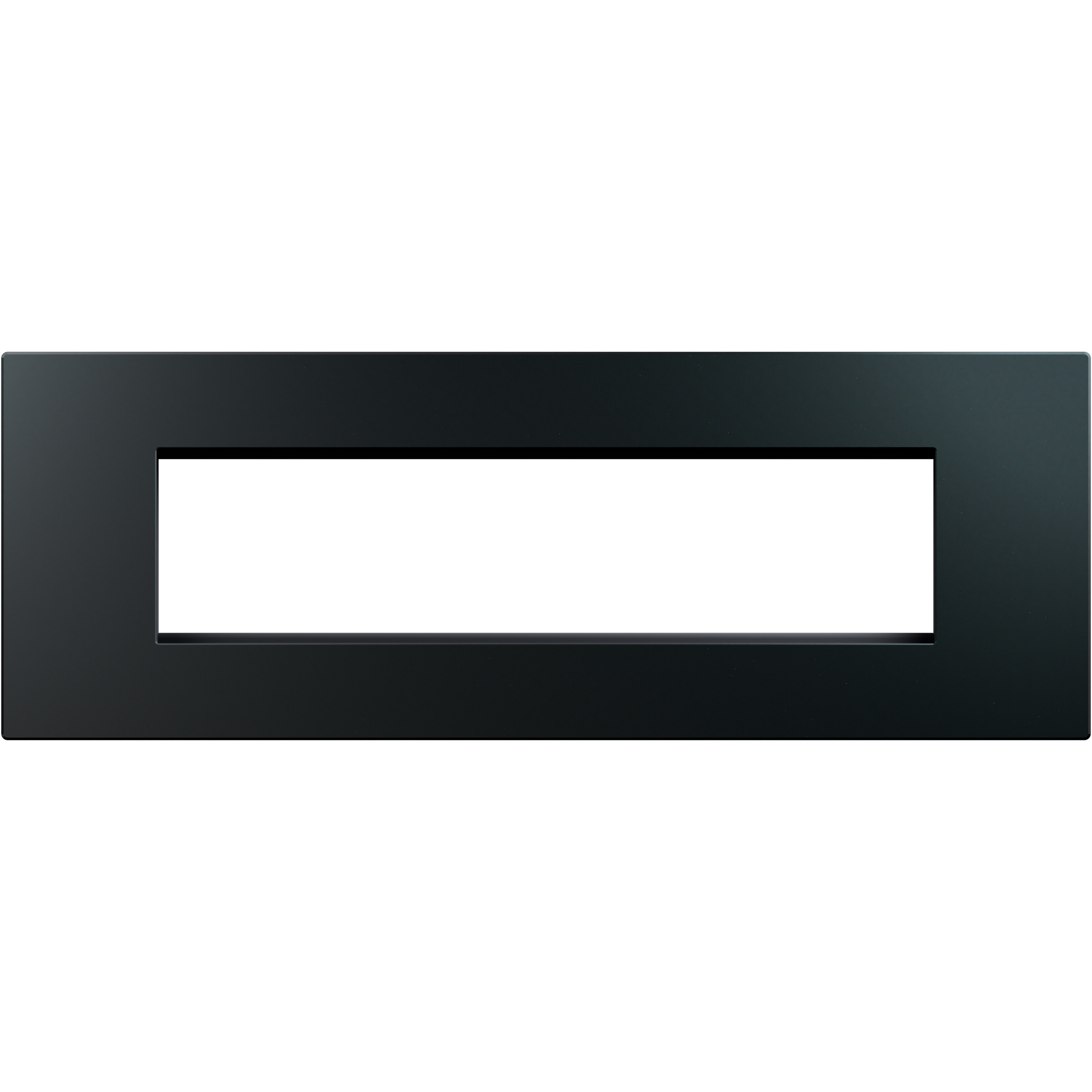

Arteor Advance - 8 modules plate+frame midnight blue - 8-module horizontal cover frame - Matt lacquered aluminum - Flush-mounted design

Arteor Advance Legrand

Arteor Advance - 8 modules plate+frame midnight blue - 8-module horizontal cover frame - Matt lacquered aluminum - Flush-mounted design

REF. AC1206NB EAN. 3414972738828
This 8 modules plate+frame midnight blue offers refined square design and real plain aluminum construction for robust, halogen-free installations. Its snap fastening and integrated adjuster ensure precise flush-mounted alignment.
Download product sheet
Finition :
Number of modules horizontal (module system) :
Number of modules vertical (module system) :
You can only compare 4 products, you must remove 1 to add this one

Description

This 8 modules plate+frame midnight blue offers refined square design and real plain aluminum construction for robust, halogen-free installations. Its snap fastening and integrated adjuster ensure precise flush-mounted alignment.

Product characteristics
  • Eight-module horizontal cover frame enabling high-density modular configurations in a single 8M row
  • Midnight blue lacquered matte finish providing a dark blue pearlescent appearance for refined aesthetics
  • Plate and frame manufactured from real plain aluminum for robust mechanical strength and premium metal feel
  • Square-format design ensuring modularity and flexible configuration within Arteor Advance installations
  • Flush-mounted, snap-on metal frame (252.5x8.5mm) with halogen-free construction for safe indoor use
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Installation
  • The plate contains an adjuster that ensures perfect installation on the wall
Usage
  • Ensures long-term aesthetic against daily wear and sunlight exposure.
Avantages
  • Dark blue with pearlescent gleam and cool sensation of metal
  • Refined design
  • Square format allows modularity and flexible configuration

Technical characteristics

Number of units 1
Mounting direction Horizontal
Number of units horizontal 1
Number of units vertical 1
Number of modules horizontal (module system) 8
Number of modules vertical (module system) 1
With mounting grid Yes
Flush-mounted installation Yes
Suitable for subfloor installation duct box No
Suitable for wall duct No
Label space/information surface No
Material Metal
Material quality Aluminium
Halogen free Yes
Antimicrobial treatment No
Surface protection Lacquered
Surface finishing Matt
Colour Blue
Transparent No
With hinged lid No
degree of impact strength (IK) IK02
Type of fastening Engage (snap)
Width 252.5 mm
Height 90 mm
Depth 8.5 mm
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
Latin wood species Not applicable
Certification of wood (list) Not applicable
Wood Climate area Not applicable

Documentation

1 document
Technical Sheet
F04496EN-00.pdf pdf (0.52 Mo)
