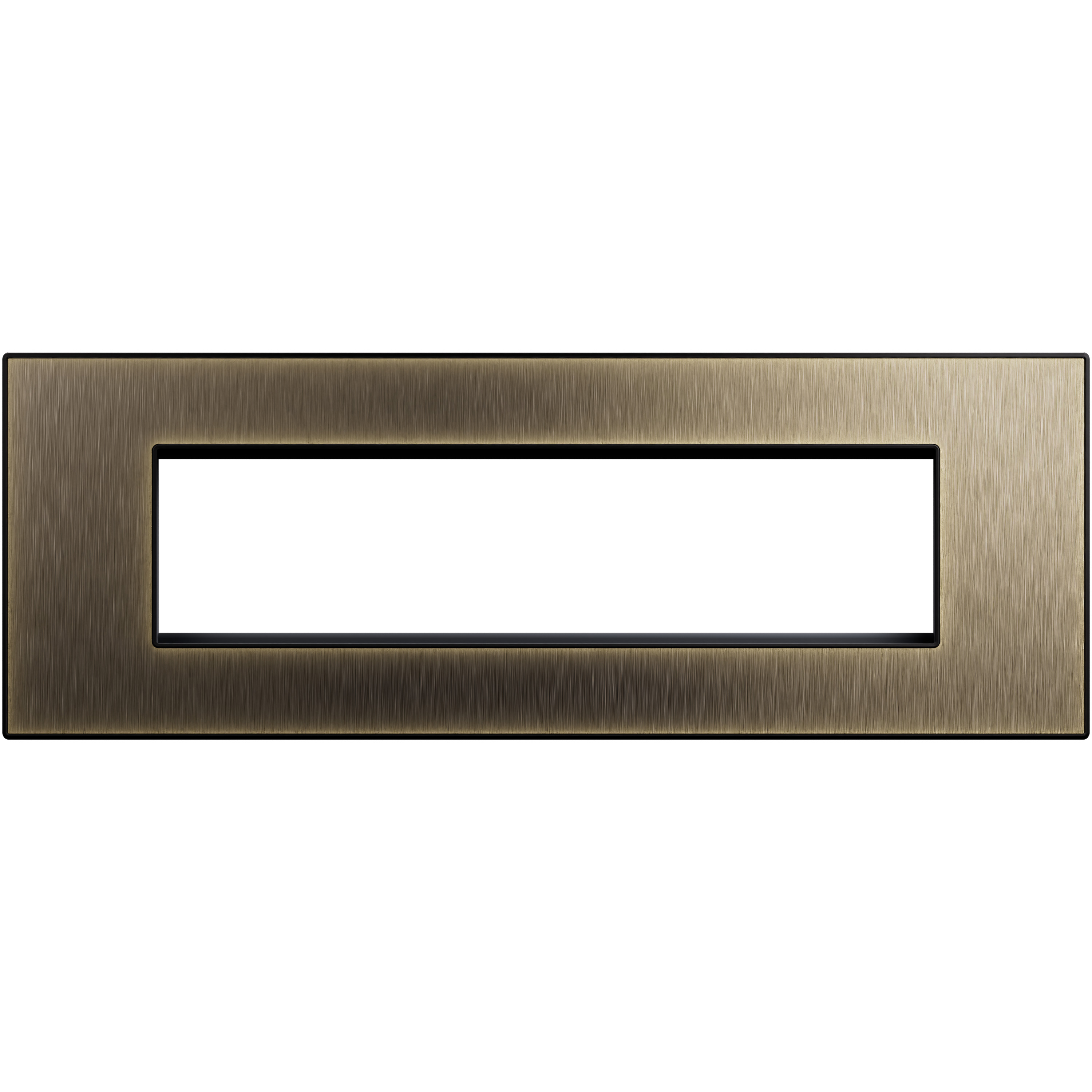

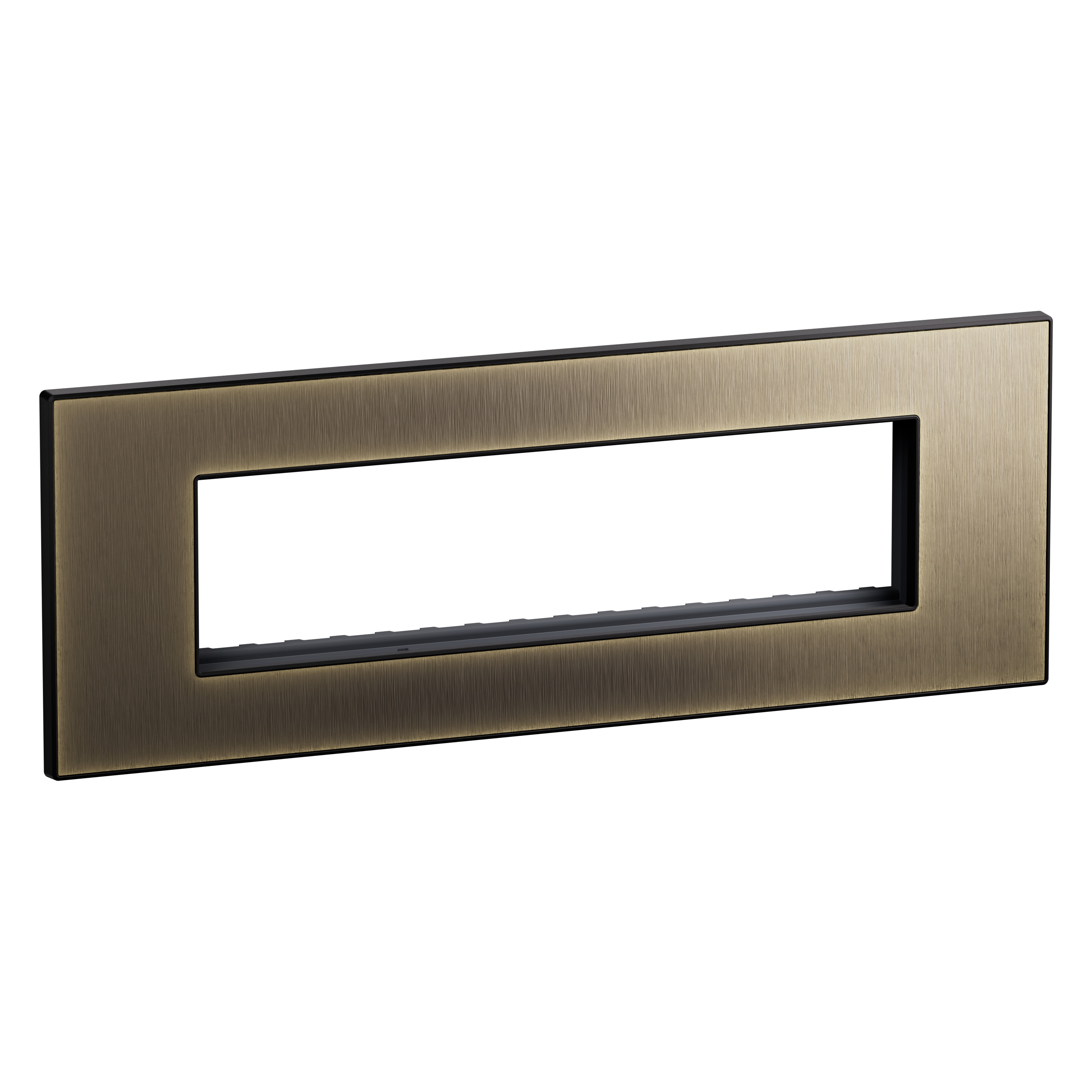

Arteor Advance - 8 modules plate+frame brushed antique brass - 8-module horizontal cover frame - Matt lacquered brass finish

Arteor Advance Legrand

Arteor Advance - 8 modules plate+frame brushed antique brass - 8-module horizontal cover frame - Matt lacquered brass finish

REF. AC1206AB EAN. 3414972977807
This 8 modules plate+frame brushed antique brass combines minimalist square design with modular flexibility for domestic switching devices. Its metal, lacquered matt brass construction ensures robust, halogen-free, flush-mounted install
Download product sheet
Finition :
Number of modules horizontal (module system) :
Number of modules vertical (module system) :
You can only compare 4 products, you must remove 1 to add this one

Description

This 8 modules plate+frame brushed antique brass combines minimalist square design with modular flexibility for domestic switching devices. Its metal, lacquered matt brass construction ensures robust, halogen-free, flush-mounted install

Product characteristics
  • Eight-module horizontal cover frame for domestic switching devices, providing high-density modular capacity in a single 8M plate+frame configuration
  • Brushed antique brass, matt lacquered finish for a vintage aesthetic with soft golden highlights and durable surface protection
  • Plate made of polycarbonate combined with a brass metal frame, halogen free for enhanced safety in residential and commercial installations
  • Square, minimalist design enabling modularity and flexibility in a compact configuration for flush-mounted installations
  • Snap-on fastening with integrated adjuster ensures precise, flush wall alignment; dimensions 252.5x90x8.5mm, operating temperature -5 to 35° C
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Usage
  • The plate contains an adjuster that ensures perfect installation on the wall
Avantages
  • The antique brass finish with the brushed effect, blends darkened shades with soft golden highlights for a vintage character
  • Minimalist design
  • Square design allows modularity and flexibility in a compact configuration

Technical characteristics

Number of units 1
Mounting direction Horizontal
Number of units horizontal 1
Number of units vertical 1
Number of modules horizontal (module system) 8
Number of modules vertical (module system) 1
With mounting grid Yes
Flush-mounted installation Yes
Suitable for subfloor installation duct box No
Suitable for wall duct No
Label space/information surface No
Material Metal
Material quality Brass
Halogen free Yes
Antimicrobial treatment No
Surface protection Lacquered
Surface finishing Matt
Colour Brass
Transparent No
With hinged lid No
degree of impact strength (IK) IK02
Type of fastening Engage (snap)
Width 252.5 mm
Height 90 mm
Depth 8.5 mm
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
Latin wood species Not applicable
Certification of wood (list) Not applicable
Wood Climate area Not applicable

Documentation

1 document
Technical Sheet
F04494EN-00.pdf pdf (0.51 Mo)
