Arteor Advance - 8 modules hybrid plate for 5 modules + 1 dimmer in 2 modules space solid black - Matt lacquered aluminum

Arteor Advance Legrand

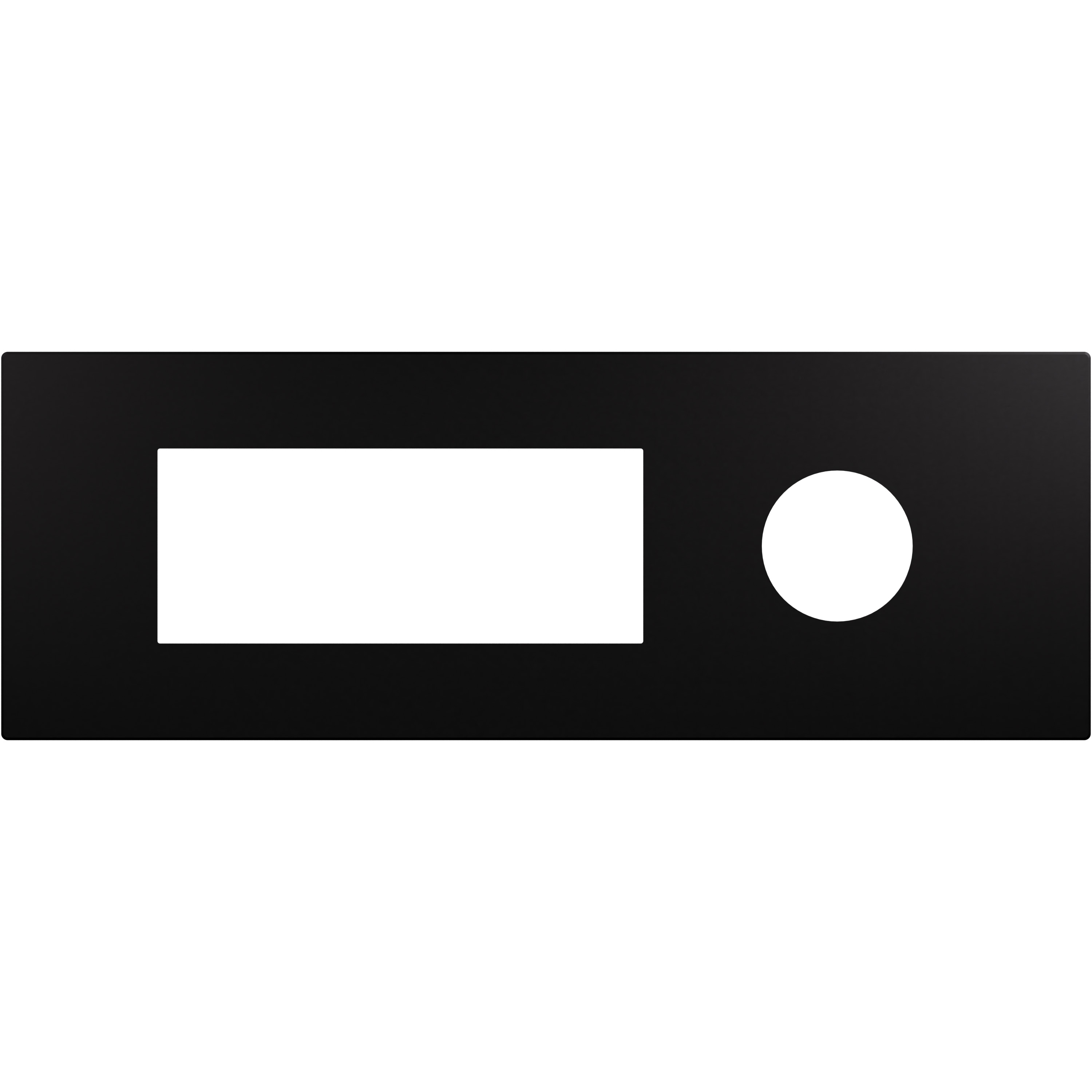

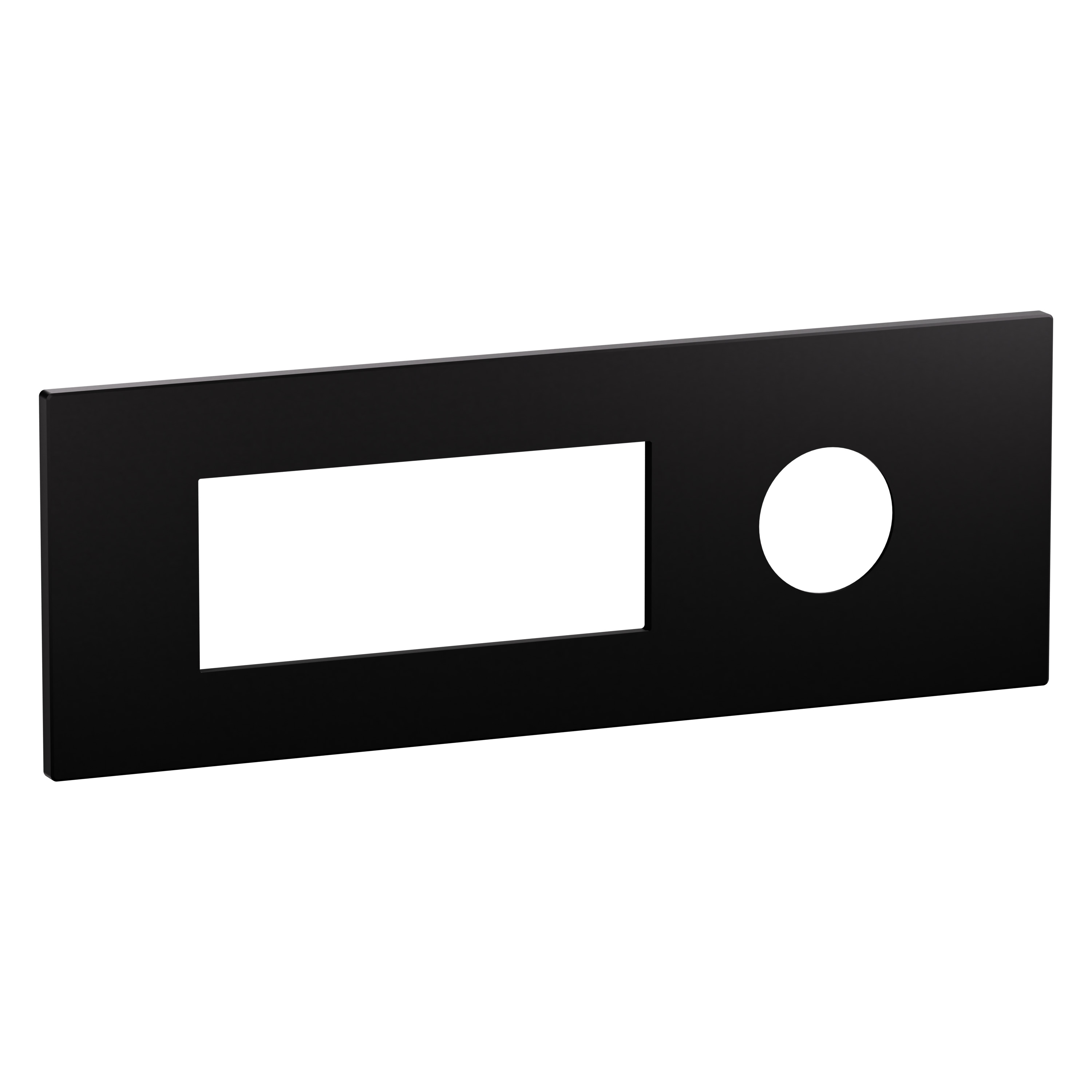

Arteor Advance - 8 modules hybrid plate for 5 modules + 1 dimmer in 2 modules space solid black - Matt lacquered aluminum

REF. AB1206SB EAN. 3414972975957
This 8 modules hybrid plate in solid black combines a refined, deep matt finish with the cool sensation of metal. It accommodates 5 modules plus 1 dimmer on 2 modules space and includes an adjuster for precise flush-mounted installation.
Download product sheet
Finition :
You can only compare 4 products, you must remove 1 to add this one

Description

This 8 modules hybrid plate in solid black combines a refined, deep matt finish with the cool sensation of metal. It accommodates 5 modules plus 1 dimmer on 2 modules space and includes an adjuster for precise flush-mounted installation.

Product characteristics
  • Cover frame for domestic switching devices in solid black finish, matching Arteor Advance aesthetic for coordinated installations
  • Deep solid black color with smooth matt lacquered surface for a refined, contemporary appearance
  • Front plate made of crystal polycarbonate combined with aluminum body for enhanced rigidity and premium material quality
  • Hybrid 8 modules plate providing 5 modules plus 1 dimmer on 2 modules space, integrating modular functions with minimalistic design
  • Horizontal flush-mounted plate with snap fastening and integrated adjuster for precise wall alignment; dimensions 252.5x90x8.5mm, operating from -5° C to 35° C
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Usage
  • The plate contains an adjuster that ensures perfect installation on the wall
Avantages
  • Deep black with a smooth matt aspect and cool sensation of metal
  • Refined design
  • Hybrid design integrates modular functions with refined minimalism, achieving a perfect balance of form and utility

Technical characteristics

Number of units 2
Mounting direction Horizontal
Number of units horizontal 2
Number of units vertical 1
Number of modules horizontal (module system) 7
Number of modules vertical (module system) 1
With mounting grid Yes
Flush-mounted installation Yes
Suitable for subfloor installation duct box No
Suitable for wall duct No
Label space/information surface No
Material Metal
Material quality Aluminium
Halogen free Yes
Antimicrobial treatment No
Surface protection Lacquered
Surface finishing Matt
Colour Black
Transparent No
With hinged lid No
degree of impact strength (IK) IK02
Type of fastening Engage (snap)
Width 252.5 mm
Height 90 mm
Depth 8.5 mm
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
Latin wood species Not applicable
Certification of wood (list) Not applicable
Wood Climate area Not applicable

Documentation

1 document
Technical Sheet
F04497EN-00.pdf pdf (0.52 Mo)
