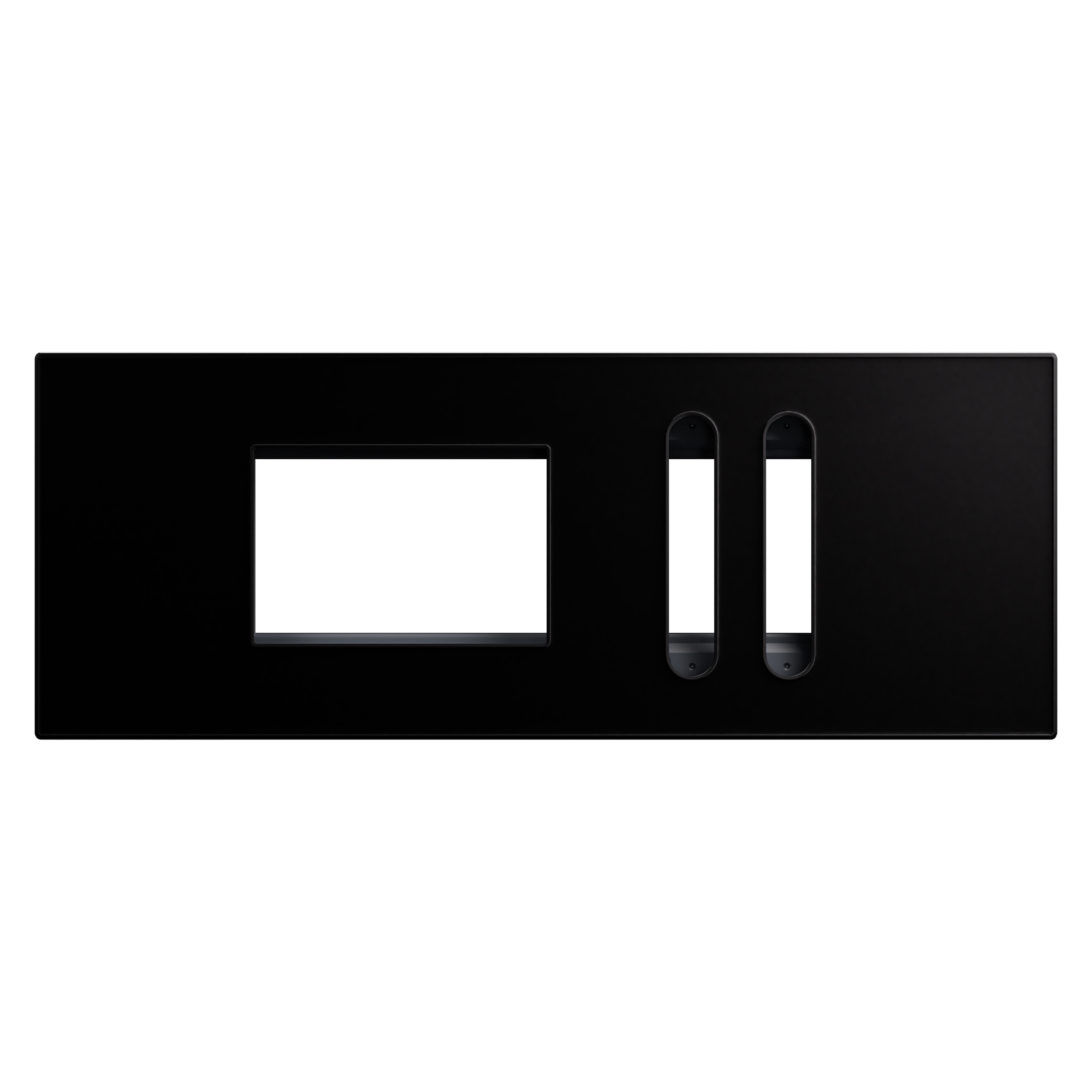

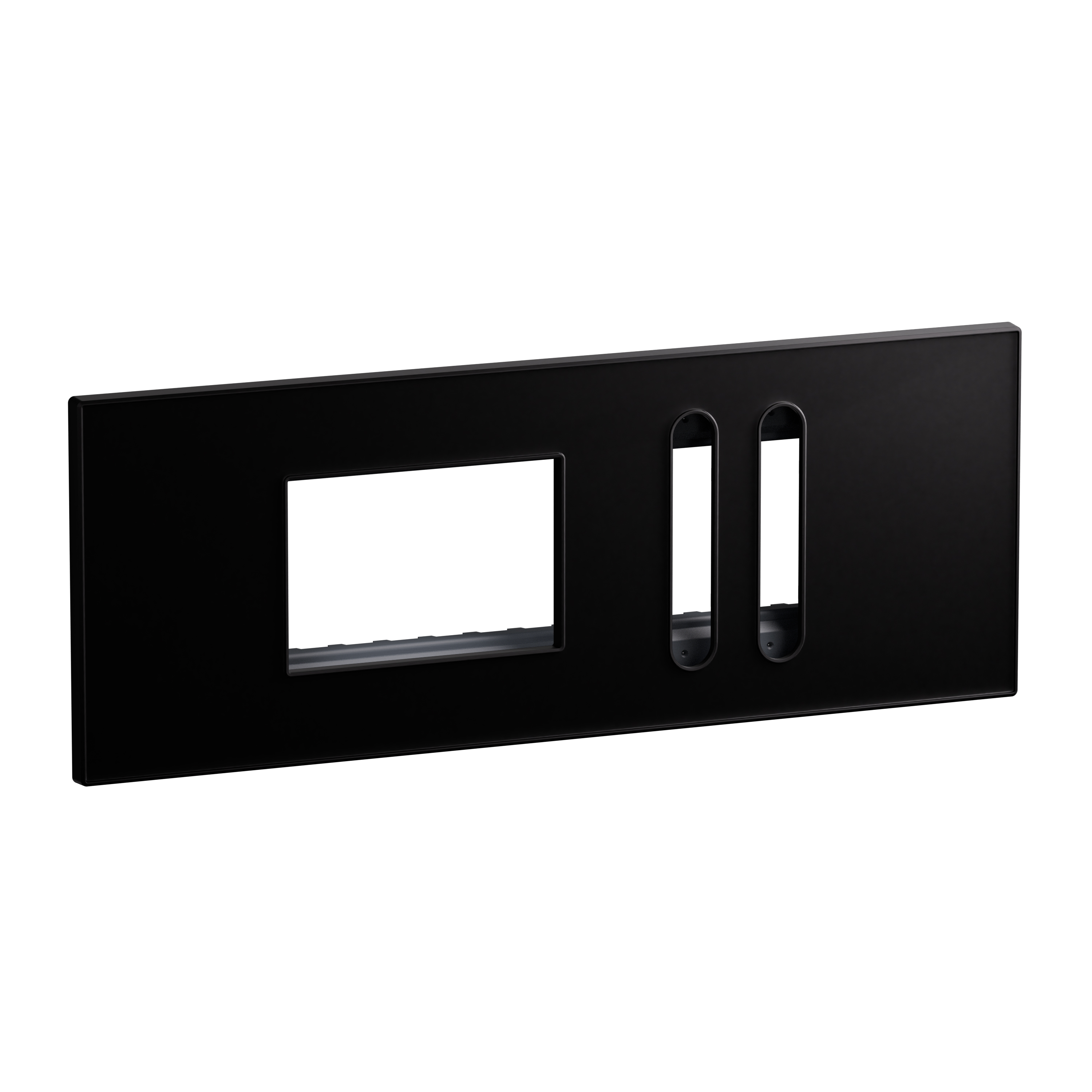

Arteor Advance - 6M hybrid plate+frame for 3 modules + 2x1 modules slender switches frosted black - Crystal polycarbonate finish

Arteor Advance Legrand

Arteor Advance - 6M hybrid plate+frame for 3 modules + 2x1 modules slender switches frosted black - Crystal polycarbonate finish

REF. AB1203FB EAN. 3414972732819
This 6M hybrid plate+frame for 3 modules+2x1 modules slender switches in frosted black offers crystal polycarbonate construction, refined hybrid design, velvet-touch black opacity, and an integrated adjuster for precise flush-mounted
Download product sheet
Finition :
You can only compare 4 products, you must remove 1 to add this one

Description

This 6M hybrid plate+frame for 3 modules+2x1 modules slender switches in frosted black offers crystal polycarbonate construction, refined hybrid design, velvet-touch black opacity, and an integrated adjuster for precise flush-mounted

Product characteristics
  • Cover frame for domestic switching devices, 6 modules horizontal hybrid plate and frame for 3 modules + 2x1 slender switch modules, flush-mounted installation, engage (snap) fastening
  • Frosted black matte finish providing refined, minimalist aesthetics with black opacity for contemporary interior projects
  • Plates are made of crystal polycarbonate (crystal PC) set in a cradle, delivering high mechanical strength with a velvet-touch surface
  • Hybrid design integrating modular functions with refined minimalism, enabling mixed 3M + 2x1M configurations in a single 6M plate
  • Horizontal 4-gang, 237.5x90x8.5mm thermoplastic, halogen-free plate, operating temperature -5° C to 35° C, recommended for indoor use only
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Usage
  • The plate contains an adjuster that ensures perfect installation on the wall
Avantages
  • Crystal PC, set in a cradle, providing both velvet touch and black opacity
  • Refined design
  • Hybrid design integrates modular functions with refined minimalism, achieving a perfect balance of form and utility

Technical characteristics

Number of units 3
Mounting direction Horizontal
Number of units horizontal 3
Number of units vertical 1
Number of modules horizontal (module system) 5
Number of modules vertical (module system) 1
With mounting grid Yes
Flush-mounted installation Yes
Suitable for subfloor installation duct box No
Suitable for wall duct No
Label space/information surface No
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Antimicrobial treatment No
Surface protection Untreated
Surface finishing Matt
Colour Black
Transparent No
With hinged lid No
Type of fastening Engage (snap)
Width 237.5 mm
Height 90 mm
Depth 8.5 mm
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
Latin wood species Not applicable
Certification of wood (list) Not applicable
Wood Climate area Not applicable
