Arteor Advance - 6M hybrid plate + frame for 4 modules + 1M slender switch - Real brushed stainless steel - Flush-mounted

Arteor Advance Legrand

Arteor Advance - 6M hybrid plate + frame for 4 modules + 1M slender switch - Real brushed stainless steel - Flush-mounted

REF. AB1205BS EAN. 3414972733052

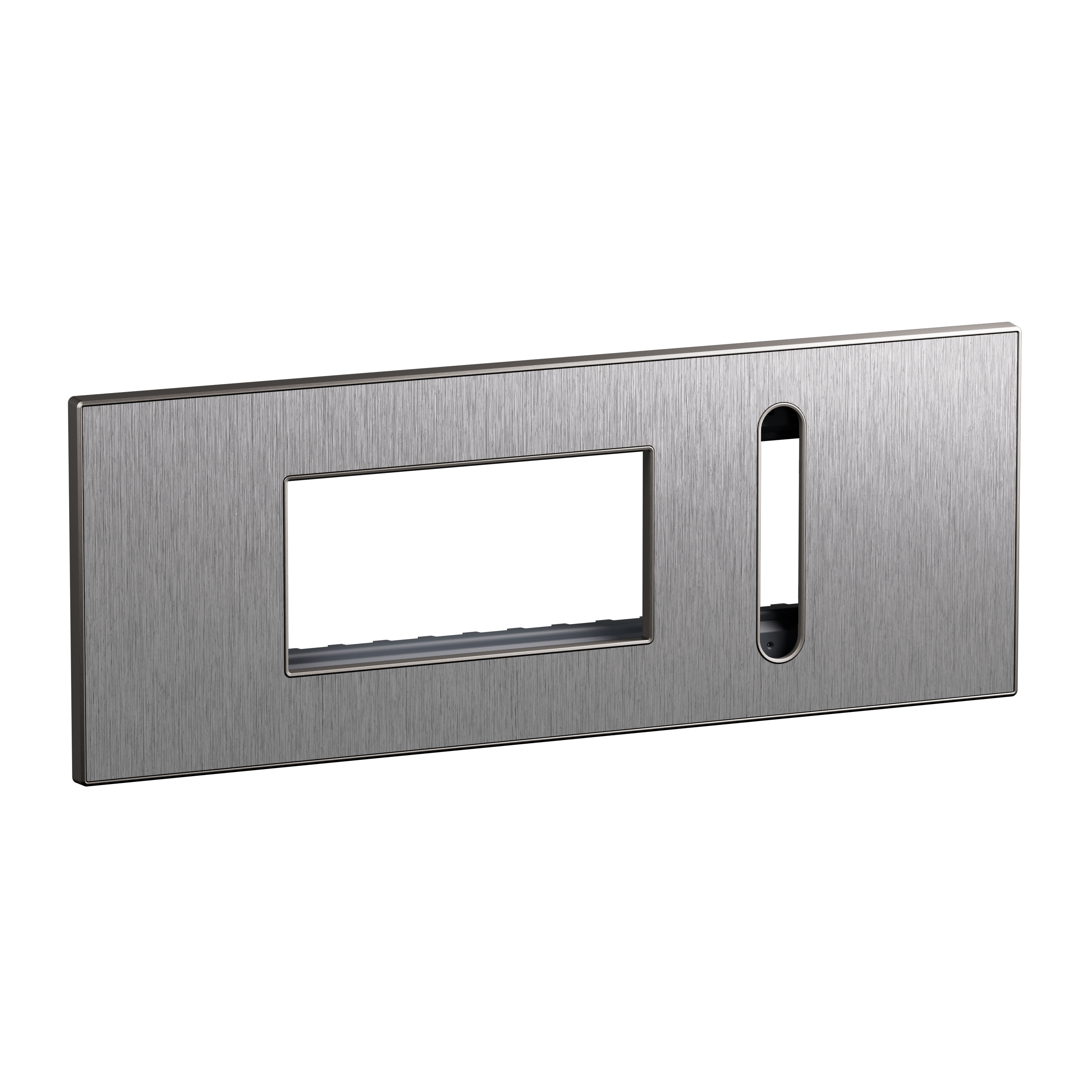

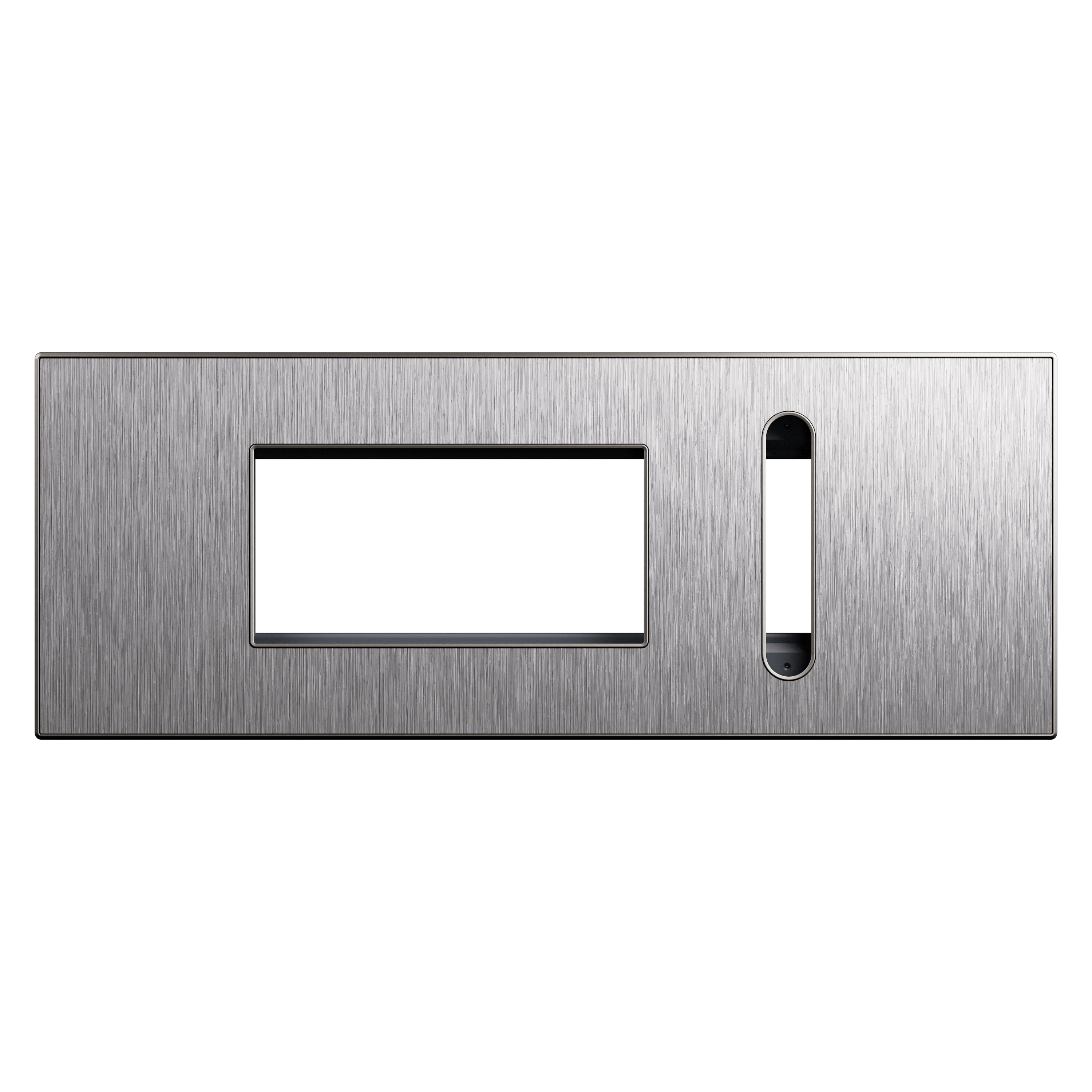

This 6M hybrid plate and frame in brushed stainless steel combines real brushed metal with a minimalist design. Its hybrid architecture supports 4 modules plus 1M slender switch for precise, flush-mounted horizontal installation.
Download product sheet
Finition :
You can only compare 4 products, you must remove 1 to add this one

Description

This 6M hybrid plate and frame in brushed stainless steel combines real brushed metal with a minimalist design. Its hybrid architecture supports 4 modules plus 1M slender switch for precise, flush-mounted horizontal installation.

Product characteristics
  • Hybrid 6 modules cover frame plate designed for 4 standard modules plus 1 slender switch, enabling mixed modular configurations in a single horizontal assembly.
  • Brushed stainless steel finish provides high surface durability, scratch resistance, and a premium technical aesthetic for demanding residential and commercial interiors.
  • Plates are made of real brushed stainless steel metal, ensuring material authenticity, corrosion resistance, and long-term dimensional stability.
  • Hybrid design integrates modular functions with refined minimalism, balancing functional density with a slim 8.5mm profile for flush-mounted installations.
  • Snap-on mounting frame for flush-mounted boxes with integrated adjuster ensures precise wall alignment and clean installation within the specified -5 to 35° C operating temperature range.
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Usage
  • The plate contains an adjuster that ensures perfect installation on the wall
Avantages
  • Real brushed stainless steel, set in a cradle, with a slight ethereal effect
  • Refined design
  • Hybrid design integrates modular functions with refined minimalism, achieving a perfect balance of form and utility

Technical characteristics

Number of units 2
Mounting direction Horizontal
Number of units horizontal 2
Number of units vertical 1
Number of modules horizontal (module system) 5
Number of modules vertical (module system) 1
With mounting grid Yes
Flush-mounted installation Yes
Suitable for subfloor installation duct box No
Suitable for wall duct No
Label space/information surface No
Material Metal
Material quality Stainless steel
Halogen free Yes
Antimicrobial treatment No
Surface protection Brushed
Surface finishing Matt
Colour Stainless steel
Transparent No
With hinged lid No
Type of fastening Engage (snap)
Width 237.5 mm
Height 90 mm
Depth 8.5 mm
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
Latin wood species Not applicable
Certification of wood (list) Not applicable
Wood Climate area Not applicable
