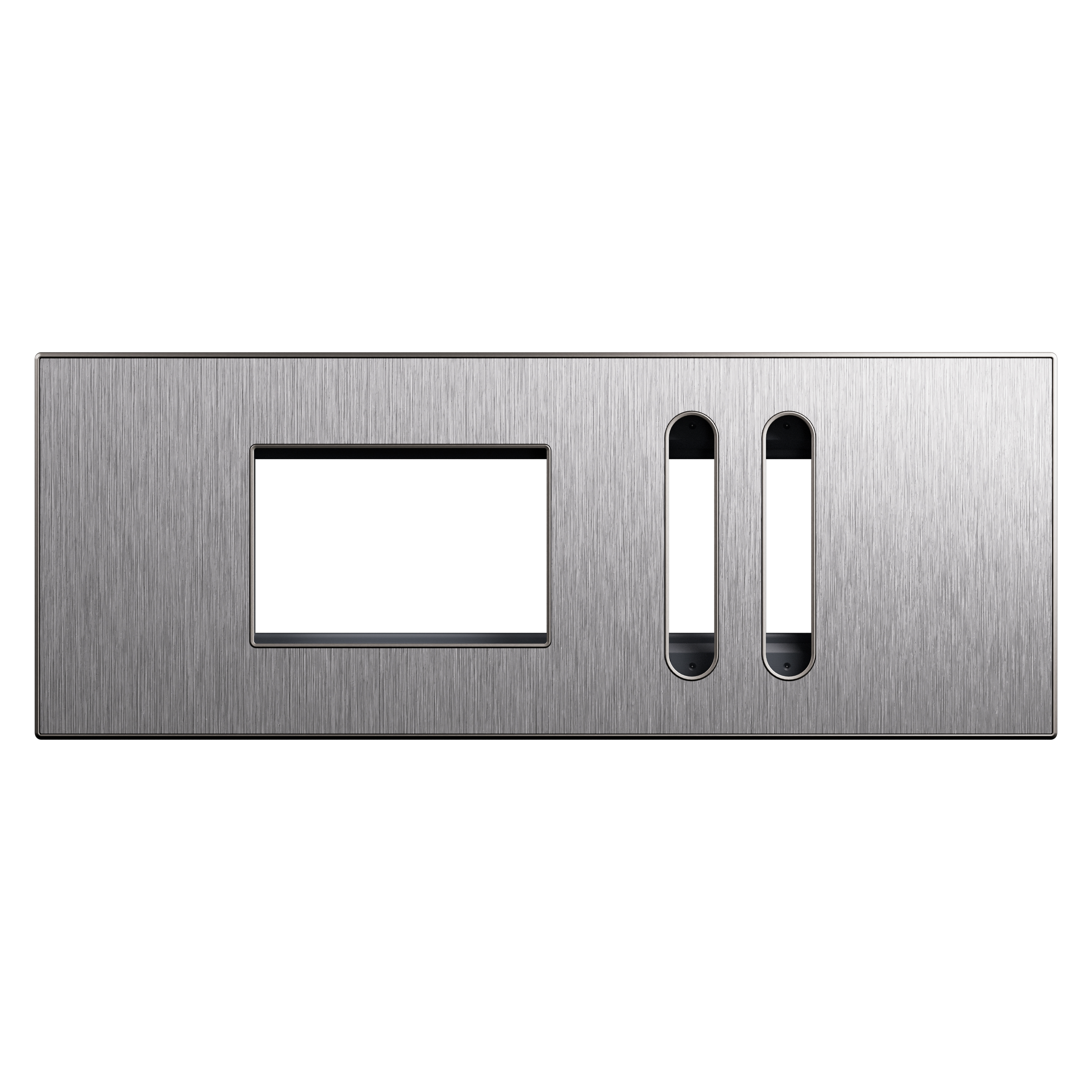

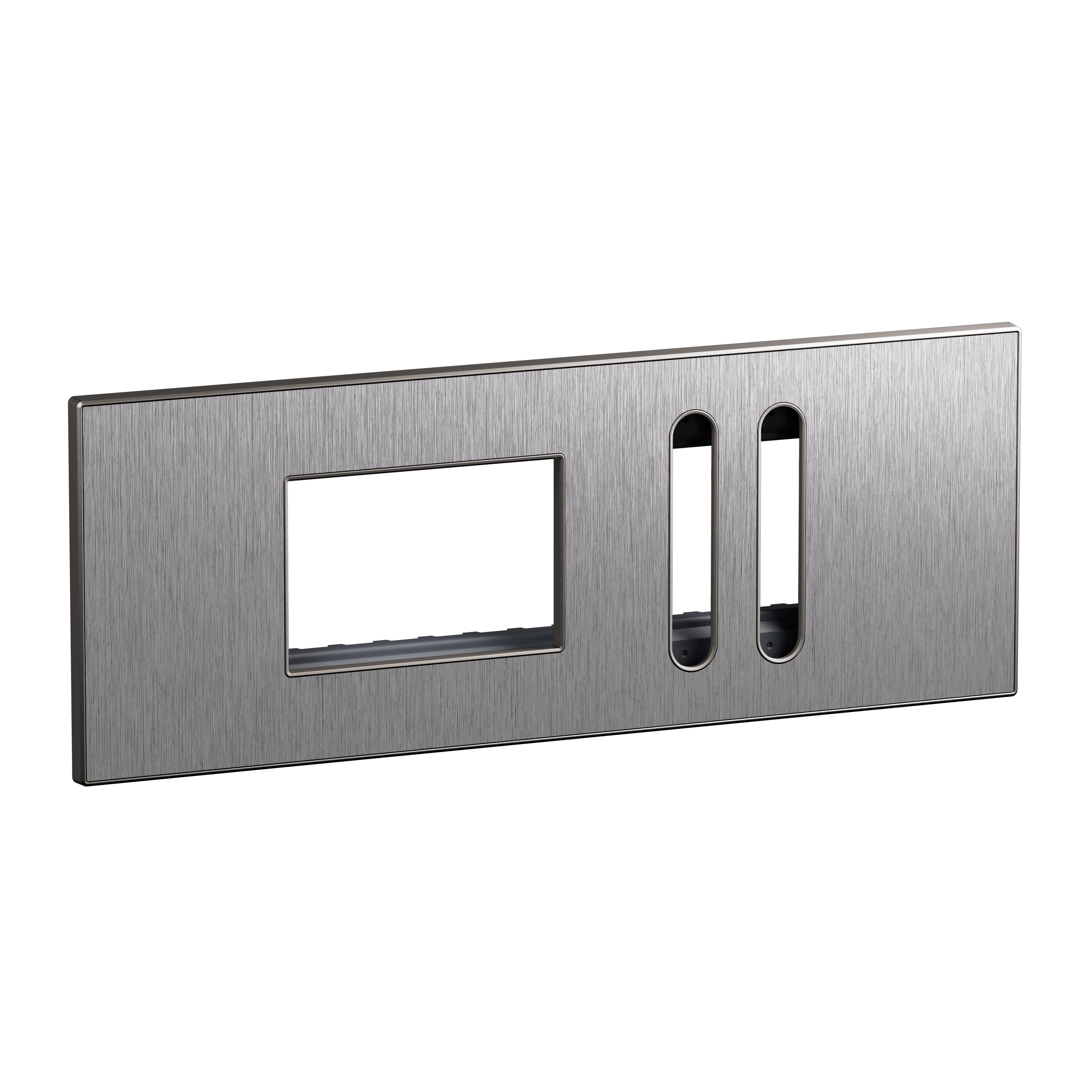

Arteor Advance - 6M hybrid plate + frame for 3M + 2x1M slender switches - Real brushed stainless steel - Flush-mounted horizontal

Arteor Advance Legrand

Arteor Advance - 6M hybrid plate + frame for 3M + 2x1M slender switches - Real brushed stainless steel - Flush-mounted horizontal

REF. AB1203BS EAN. 3414972732772
This 6M hybrid plate and frame in real brushed stainless steel combines refined minimalism with robust metal construction. Its integrated adjuster ensures perfectly flush installation for 3M+2x1M slender switches.
Download product sheet
Finition :
You can only compare 4 products, you must remove 1 to add this one

Description

This 6M hybrid plate and frame in real brushed stainless steel combines refined minimalism with robust metal construction. Its integrated adjuster ensures perfectly flush installation for 3M+2x1M slender switches.

Product characteristics
  • Hybrid 6 modules cover frame plate for 3M + 2x1M slender switches, optimized for Arteor Advance domestic switching applications
  • Brushed stainless steel front with glossy finish provides high mechanical robustness and premium surface aesthetics
  • Plates are made of real brushed stainless steel, halogen free, ensuring durability and compliance in demanding residential and commercial environments
  • Hybrid design integrates modular functions with refined minimalism, combining 4 horizontal units in a single 6M frame for efficient layout
  • Engage (snap) fastening and integrated adjuster ensure precise flush-mounted horizontal installation (237.5x90x8.5mm) within -5° C to 35° C operating temperature range
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Usage
  • The plate contains an adjuster that ensures perfect installation on the wall
Avantages
  • Real brushed stainless steel, set in a cradle, with a slight ethereal effect
  • Refined design
  • Hybrid design integrates modular functions with refined minimalism, achieving a perfect balance of form and utility

Technical characteristics

Number of units 3
Mounting direction Horizontal
Number of units horizontal 3
Number of units vertical 1
Number of modules horizontal (module system) 5
Number of modules vertical (module system) 1
With mounting grid Yes
Flush-mounted installation Yes
Suitable for subfloor installation duct box No
Suitable for wall duct No
Label space/information surface No
Material Metal
Material quality Stainless steel
Halogen free Yes
Antimicrobial treatment No
Surface protection Brushed
Surface finishing Matt
Colour Stainless steel
Transparent No
With hinged lid No
Type of fastening Engage (snap)
Width 237.5 mm
Height 90 mm
Depth 8.5 mm
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
Latin wood species Not applicable
Certification of wood (list) Not applicable
Wood Climate area Not applicable
