Arteor Advance - 6M hybrid plate + frame for 3 modules + 2x1 slender switch modules frosted white

Arteor Advance Legrand

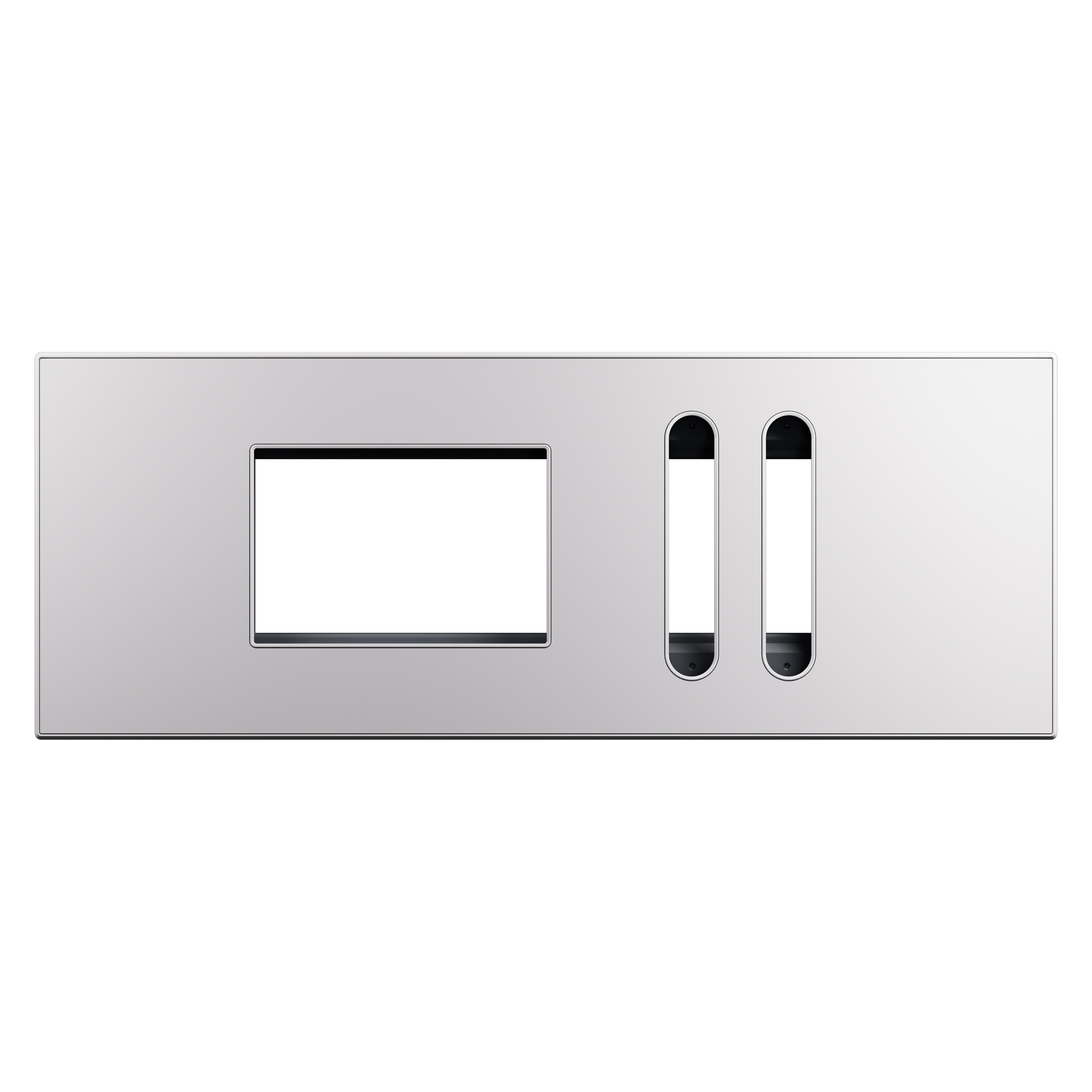

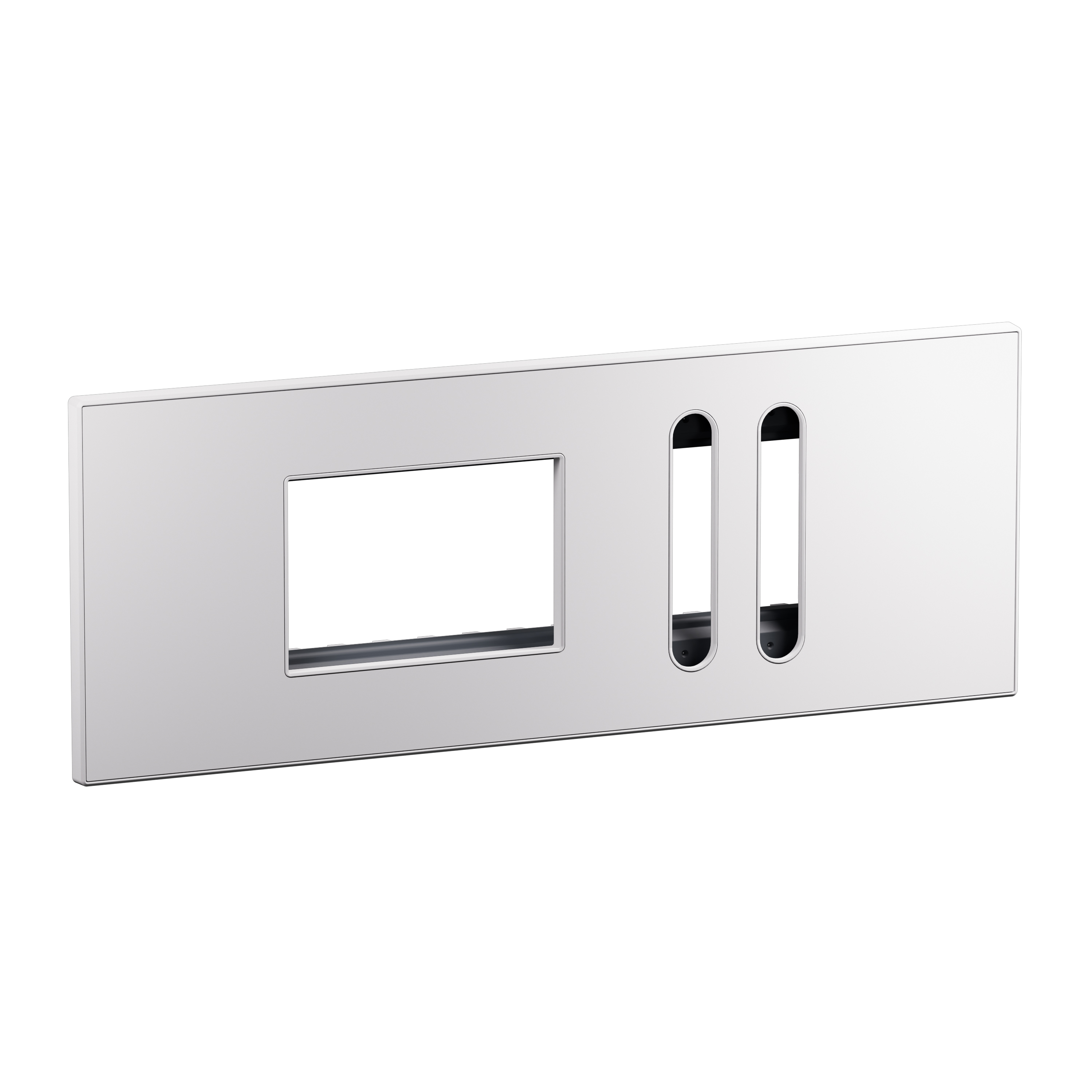

Arteor Advance - 6M hybrid plate + frame for 3 modules + 2x1 slender switch modules frosted white

REF. AB1203FW EAN. 3414972732833
This 6M hybrid plate and frame in frosted white combines crystal polycarbonate with a refined, minimalist design. It supports 3 modules plus 2x1 slender switches in horizontal flush-mounted installations, with integrated adjuster.
Download product sheet
Finition :
You can only compare 4 products, you must remove 1 to add this one

Description

This 6M hybrid plate and frame in frosted white combines crystal polycarbonate with a refined, minimalist design. It supports 3 modules plus 2x1 slender switches in horizontal flush-mounted installations, with integrated adjuster.

Product characteristics
  • Frosted white finish delivers a refined, translucent aesthetic that coordinates with Arteor Advance slender switches.
  • Crystal polycarbonate plate set in a cradle provides high mechanical strength with a velvet-touch, white-translucent surface.
  • Hybrid 6 modules architecture combines 3 modules and 2x1-module slender switch positions, optimizing modular functionality in a single cover frame.
  • Lacquered matt brass construction, halogen free and flush-mounted, ensures robust, durable performance for domestic switching devices.
  • Horizontal 6M cover frame (237.5x90x8.5mm) with snap fastening and integrated adjuster enables precise, flush wall installation for indoor use.
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Usage
  • The plate contains an adjuster that ensures perfect installation on the wall
Avantages
  • Crystal PC, set in a cradle, providing both velvet touch and white translucence
  • Refined design
  • Hybrid design integrates modular functions with refined minimalism, achieving a perfect balance of form and utility

Technical characteristics

Number of units 3
Mounting direction Horizontal
Number of units horizontal 3
Number of units vertical 1
Number of modules horizontal (module system) 5
Number of modules vertical (module system) 1
With mounting grid Yes
Flush-mounted installation Yes
Suitable for subfloor installation duct box No
Suitable for wall duct No
Label space/information surface No
Material Metal
Material quality Thermoplastic
Halogen free Yes
Antimicrobial treatment No
Surface protection Lacquered
Surface finishing Matt
Colour White
Transparent No
With hinged lid No
Type of fastening Engage (snap)
Width 237.5 mm
Height 90 mm
Depth 8.5 mm
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
Latin wood species Not applicable
Certification of wood (list) Not applicable
Wood Climate area Not applicable
