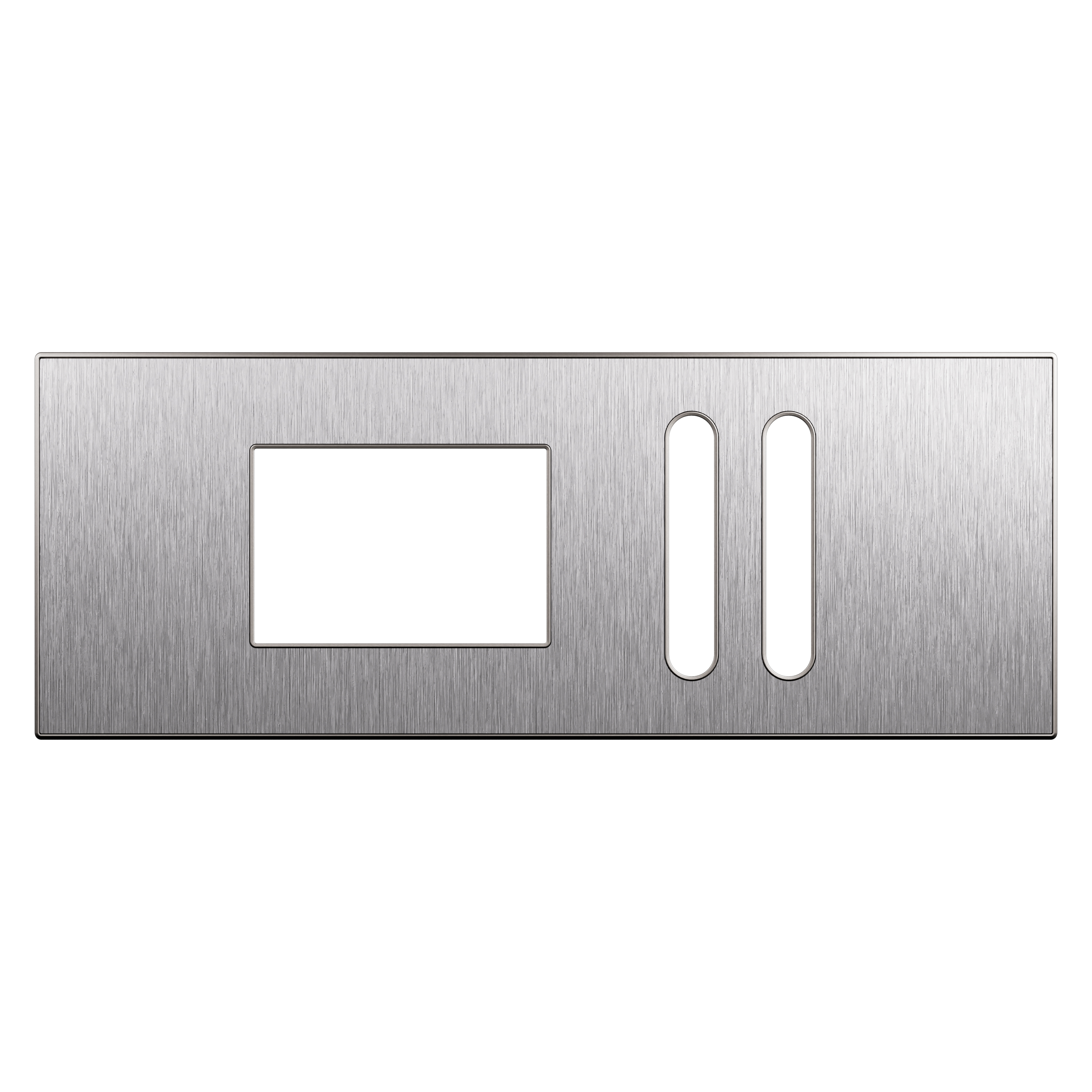

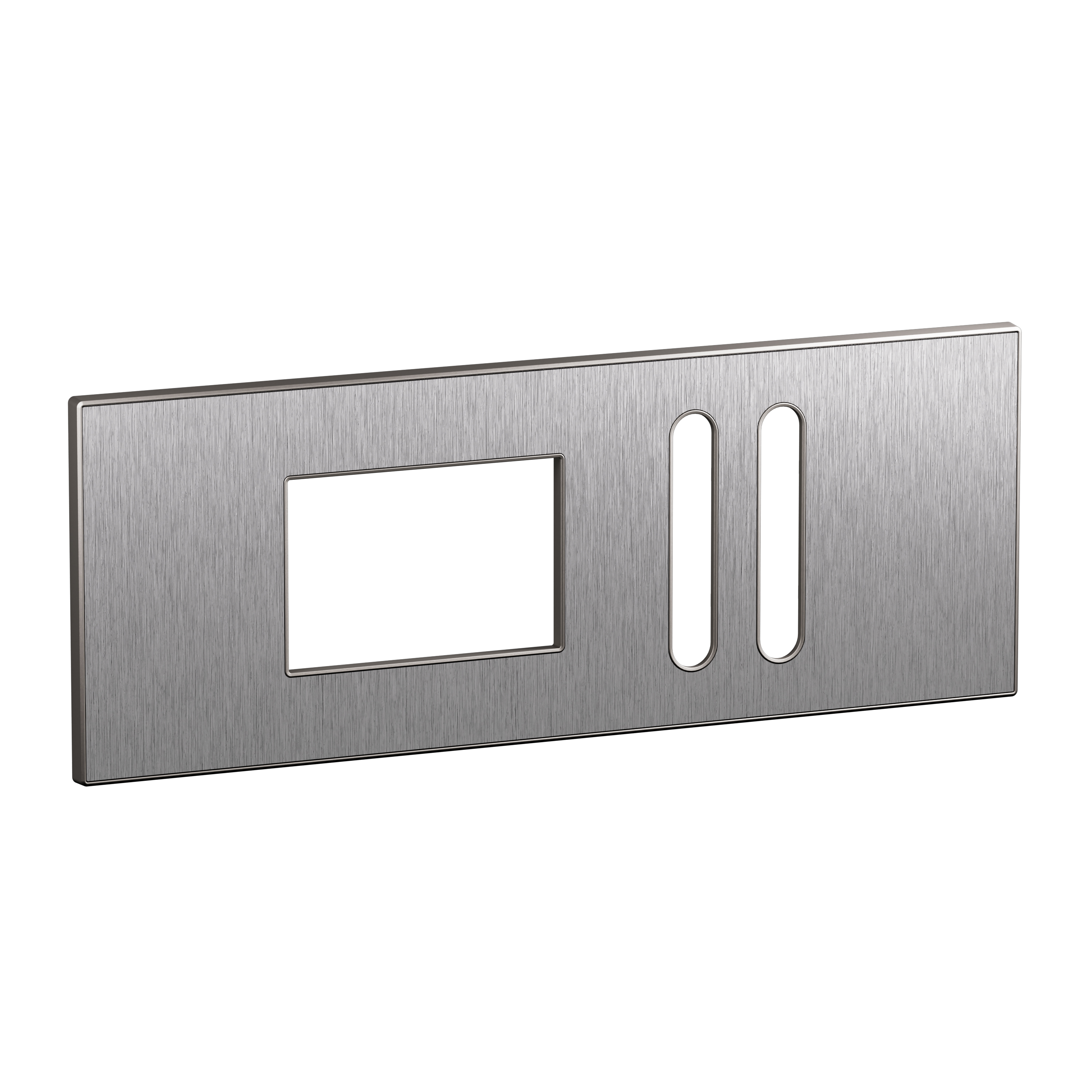

Arteor Advance - 6M hybrid plate for 3M + 2x1 slender switch modules - Brushed stainless steel - Horizontal flush-mount frame

Arteor Advance Legrand

Arteor Advance - 6M hybrid plate for 3M + 2x1 slender switch modules - Brushed stainless steel - Horizontal flush-mount frame

REF. AB1201BS EAN. 3414972732499
This 6M hybrid plate for 3M+2x1 modules in real brushed stainless steel with refined matt finish combines modular functions with minimalist aesthetics, while the integrated adjuster ensures precise flush-mounted installation.
Download product sheet
Finition :
You can only compare 4 products, you must remove 1 to add this one

Description

This 6M hybrid plate for 3M+2x1 modules in real brushed stainless steel with refined matt finish combines modular functions with minimalist aesthetics, while the integrated adjuster ensures precise flush-mounted installation.

Product characteristics
  • Hybrid 6 modules cover frame plate for 3M + 2x1 slender switch modules, enabling mixed modular configurations in a single 252.5x90x8.5mm assembly
  • Brushed stainless steel finish with matt surface for a refined, contemporary aesthetic and reduced glare in professional installations
  • Plates are made of real brushed stainless steel metal, ensuring high material quality, durability, and consistent visual appearance over time
  • Hybrid design integrates modular functions with refined minimalism, balancing form and utility within the Arteor Advance range
  • Snap-on mounting cover frame for flush-mounted horizontal installation, halogen free, IK02 impact resistance, operating from -5° C to 35° C for reliable indoor use
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Usage
  • The plate contains an adjuster that ensures perfect installation on the wall
Avantages
  • Real brushed stainless steel, set in a cradle, with a slight ethereal effect
  • Refined design
  • Hybrid design integrates modular functions with refined minimalism, achieving a perfect balance of form and utility

Technical characteristics

Number of units 3
Mounting direction Horizontal
Number of units horizontal 3
Number of units vertical 1
Number of modules horizontal (module system) 5
Number of modules vertical (module system) 1
With mounting grid Yes
Flush-mounted installation Yes
Suitable for subfloor installation duct box No
Suitable for wall duct No
Label space/information surface No
Material Metal
Material quality Stainless steel
Halogen free Yes
Antimicrobial treatment No
Surface protection Brushed
Surface finishing Matt
Colour Stainless steel
Transparent No
With hinged lid No
degree of impact strength (IK) IK02
Type of fastening Engage (snap)
Width 252.5 mm
Height 90 mm
Depth 8.5 mm
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
Latin wood species Not applicable
Certification of wood (list) Not applicable
Wood Climate area Not applicable

Documentation

1 document
Technical Sheet
F04495EN-00.pdf pdf (0.52 Mo)
