Arteor Advance - 6M hybrid plate for 3M + 2x1 slender switch modules brushed bronze - Horizontal frame - Matt brass

Arteor Advance Legrand

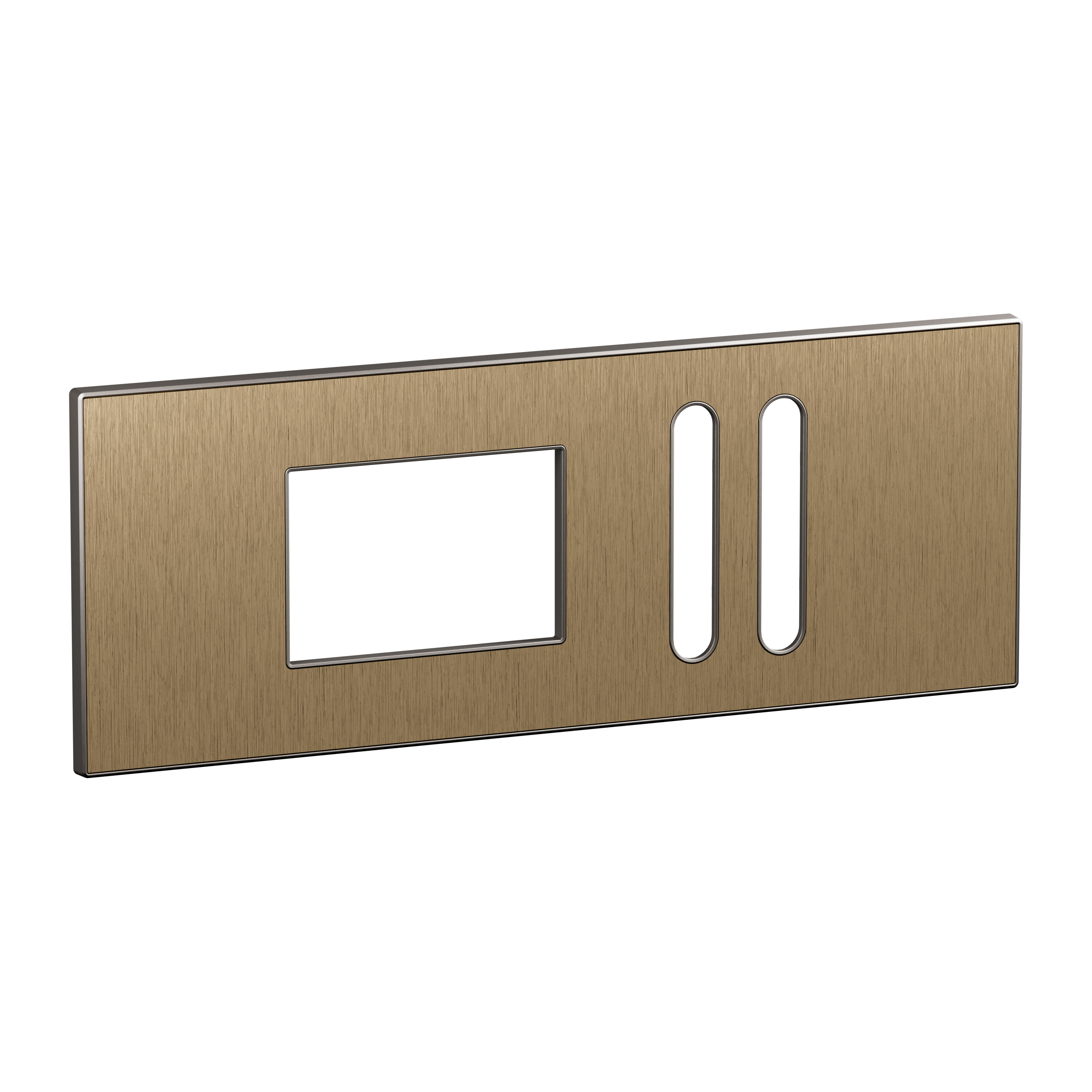

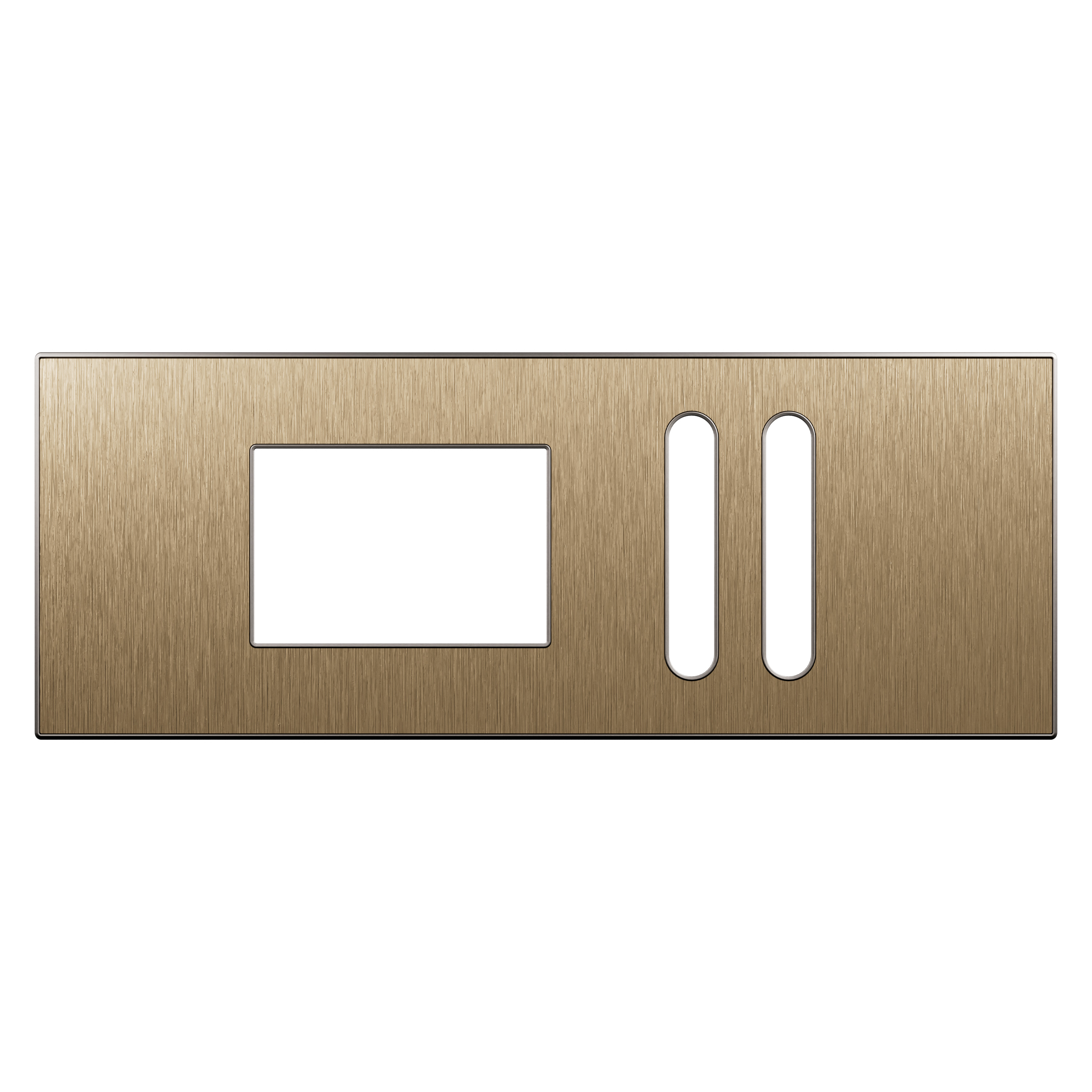

Arteor Advance - 6M hybrid plate for 3M + 2x1 slender switch modules brushed bronze - Horizontal frame - Matt brass

REF. AB1201BB EAN. 3414973009644
This 6M hybrid plate for 3M+2x1 modules combines refined design with a brushed bronze matt finish. Its metal brass construction ensures durability and perfect flush-mounted installation. Ideal for Arteor Advance slender switches.
Download product sheet
Finition :
You can only compare 4 products, you must remove 1 to add this one

Description

This 6M hybrid plate for 3M+2x1 modules combines refined design with a brushed bronze matt finish. Its metal brass construction ensures durability and perfect flush-mounted installation. Ideal for Arteor Advance slender switches.

Product characteristics
  • Brushed bronze finish with matt lacquered surface delivers a refined, classic aesthetic for premium interior installations.
  • Brass metal plate with brushed bronze surface protection offers high durability and impact resistance rated IK02.
  • Hybrid 6 modules cover frame (3M+2x1 slender switch modules) enables flexible modular configurations in Arteor Advance systems.
  • Crystal polycarbonate front plate combined with metal structure ensures dimensional stability and precise flush-mounted installation.
  • Integrated adjuster ensures perfect wall alignment in horizontal 4-unit configurations, optimized for indoor flush-mounted applications.
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Usage
  • The plate contains an adjuster that ensures perfect installation on the wall
Avantages
  • The bronze finish with the brushed effect highlights a classic character
  • Refined design
  • Hybrid design integrates modular functions with refined minimalism, achieving a perfect balance of form and utility

Technical characteristics

Number of units 3
Mounting direction Horizontal
Number of units horizontal 3
Number of units vertical 1
Number of modules horizontal (module system) 5
Number of modules vertical (module system) 1
With mounting grid Yes
Flush-mounted installation Yes
Suitable for subfloor installation duct box No
Suitable for wall duct No
Label space/information surface No
Material Metal
Material quality Brass
Halogen free Yes
Antimicrobial treatment No
Surface protection Lacquered
Surface finishing Matt
Colour Bronze
Transparent No
With hinged lid No
degree of impact strength (IK) IK02
Type of fastening Engage (snap)
Width 252.5 mm
Height 90 mm
Depth 8.5 mm
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
Latin wood species Not applicable
Certification of wood (list) Not applicable
Wood Climate area Not applicable

Documentation

1 document
Technical Sheet
F04495EN-00.pdf pdf (0.52 Mo)
