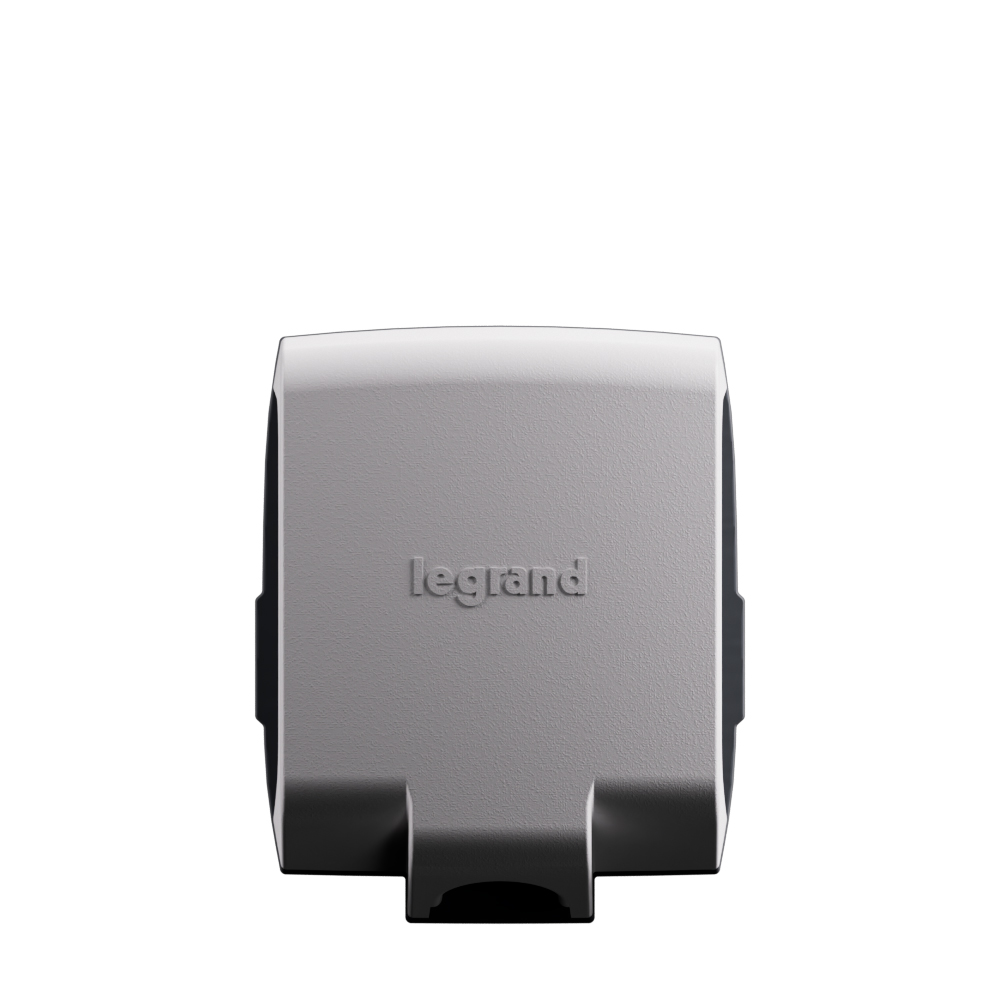

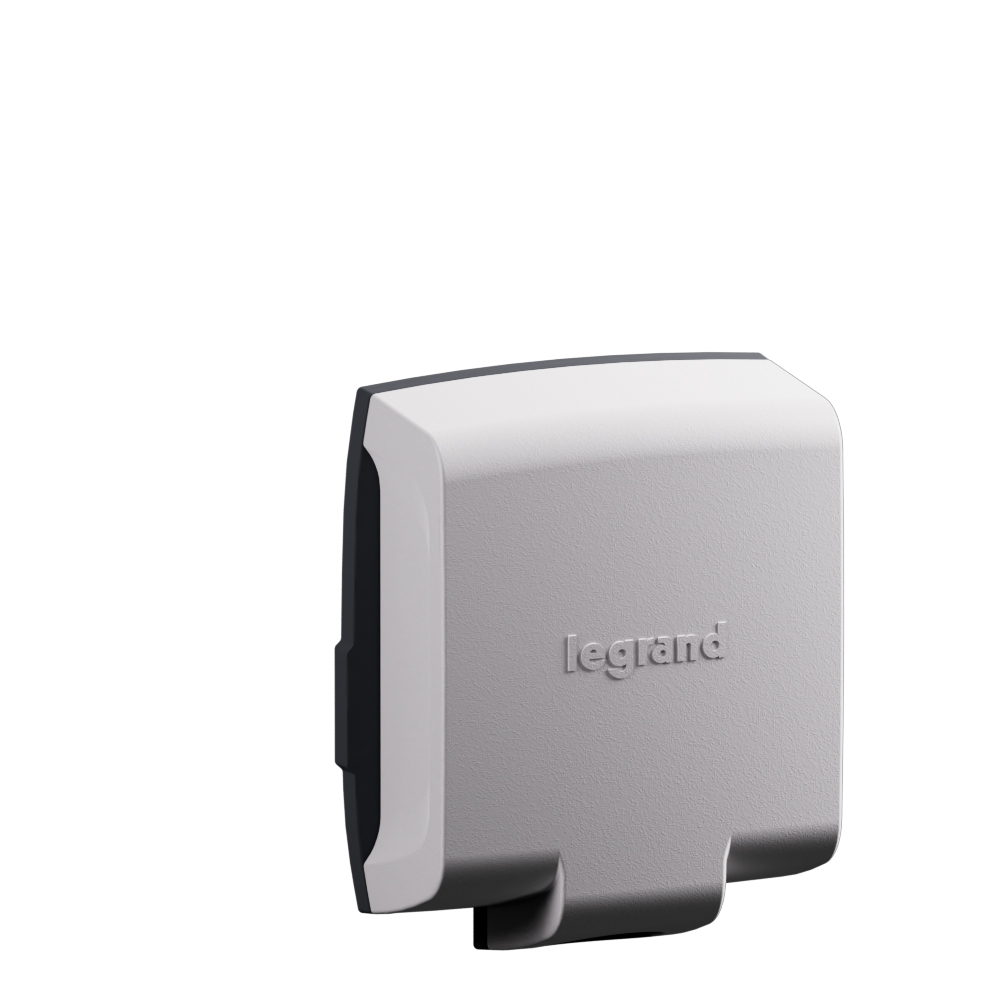

Arteor Advance - 6A plug matt white - 240V 3-pole straight plug - Screwed terminals for flexible or rigid cables - Thermoplastic IP20

Arteor Advance Legrand

Arteor Advance - 6A plug matt white - 240V 3-pole straight plug - Screwed terminals for flexible or rigid cables - Thermoplastic IP20

REF. AC100MW EAN. 3414972733618
The 6A plug matt white is a compact matt-finish socket plug offering reliable 240V connection with IP20 protection. Its thermoplastic body and solid brass contacts ensure safety and long life for cool indoor running.
Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

The 6A plug matt white is a compact matt-finish socket plug offering reliable 240V connection with IP20 protection. Its thermoplastic body and solid brass contacts ensure safety and long life for cool indoor running.

Product characteristics
  • 6A plug for 240V applications with 3-pole straight insert and mandatory neutral for secure connection
  • Matt white RAL 9003 finish with powdery, smooth surface for a discreet, modern aesthetic in interior installations
  • Thermoplastic polycarbonate housing (IP20) enhances electrical insulation and mechanical safety for indoor use
  • Optimized contact geometry and gripping force minimize watt loss for cool running and improved energy efficiency
  • Solid brass contacts with screwed terminals for flexible or rigid cables ensure durable performance and long service life
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Avantages
  • Powdery white with a smooth matte aspect

Technical characteristics

Model Other
Material Plastic
Material quality Thermoplastic
Degree of protection (IP) IP20
Insert direction Straight
Connection system Screwed terminal
Colour White
Number of poles 3
Nominal voltage 240 V
Width 40 mm
Height 50.3 mm
Depth 39.1 mm
Mandatory neutral Yes
Terminal marking indication Yes
RAL-number 9003
Antimicrobial treatment No
Connection type Screwed terminal
Number of terminals 3
Cable nature for connection Flexible or rigid
