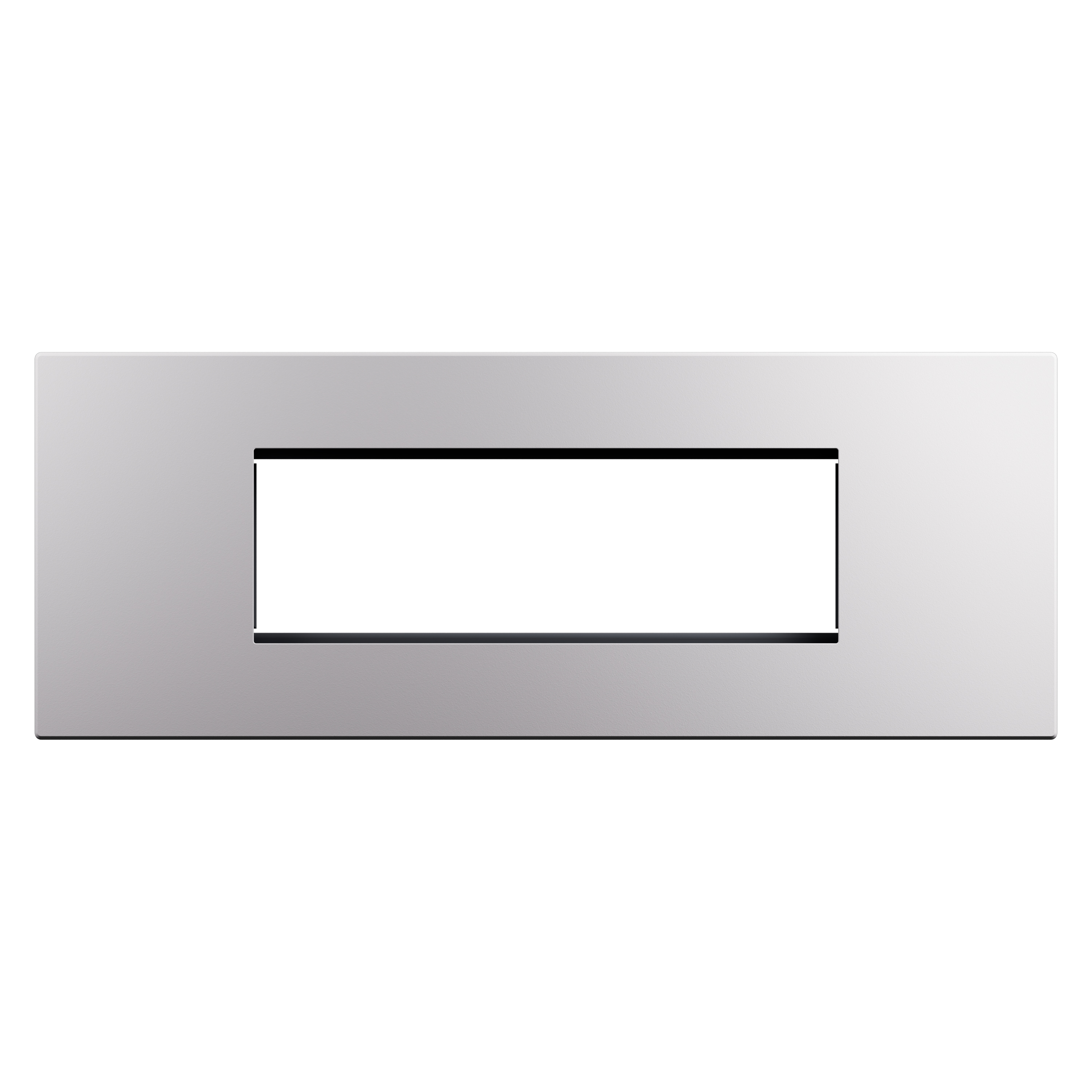

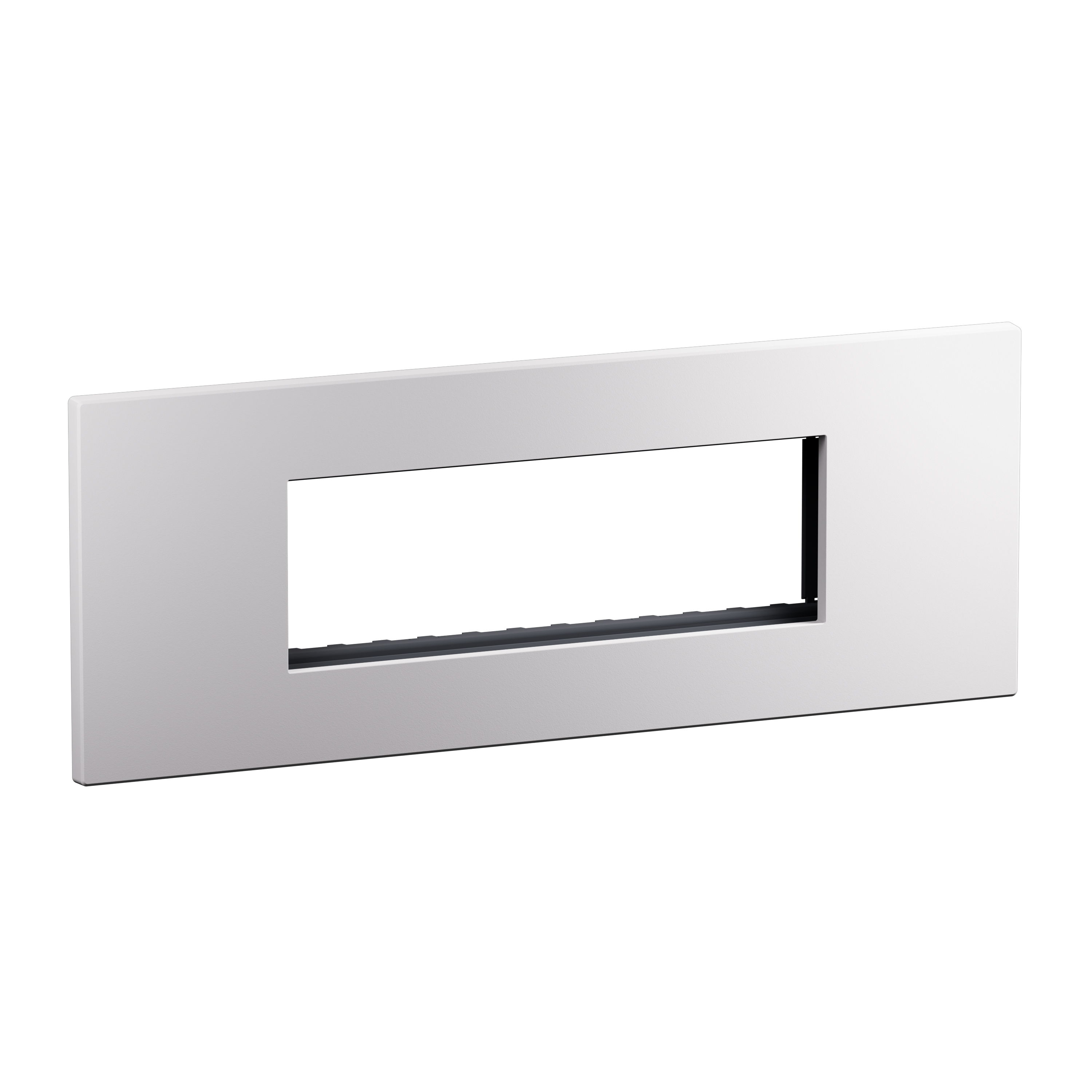

Arteor Advance - 6 modules plate+frame matt white - 6-module horizontal cover frame - Matt white halogen free thermoplastic

Arteor Advance Legrand

Arteor Advance - 6 modules plate+frame matt white - 6-module horizontal cover frame - Matt white halogen free thermoplastic

REF. AC1205MW EAN. 3414972738545
This 6 modules plate+frame matt white offers minimalist square design and modular flexibility. Its matt white thermoplastic construction is halogen free and flush-mounted. An integrated adjuster ensures precise horizontal installation.
Download product sheet
Finition :
Number of modules horizontal (module system) :
Number of modules vertical (module system) :
You can only compare 4 products, you must remove 1 to add this one

Description

This 6 modules plate+frame matt white offers minimalist square design and modular flexibility. Its matt white thermoplastic construction is halogen free and flush-mounted. An integrated adjuster ensures precise horizontal installation.

Product characteristics
  • Six modules horizontal cover frame for domestic switching devices, providing a single 6M aperture for modular wiring accessories
  • Matt white finish (similar to RAL 9003) with smooth, powdery aspect for a contemporary, low-glare appearance
  • Plate and frame manufactured from halogen-free thermoplastic polycarbonate for high mechanical strength and improved fire performance
  • Square, minimalist design enabling modularity and flexibility in a compact 237.5x90x8.5mm flush-mounted configuration
  • Snap-on fastening with integrated adjuster for precise flush-wall installation; operating temperature range -5 to 35° C, indoor use only
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Usage
  • The plate contains an adjuster that ensures perfect installation on the wall
Avantages
  • Powdery white with a smooth matte aspect
  • Minimalist design
  • Square design allows modularity and flexibility in a compact configuration

Technical characteristics

Number of units 1
Mounting direction Horizontal
Number of units horizontal 1
Number of units vertical 1
Number of modules horizontal (module system) 6
Number of modules vertical (module system) 1
With mounting grid Yes
Flush-mounted installation Yes
Suitable for subfloor installation duct box No
Suitable for wall duct No
Label space/information surface No
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Antimicrobial treatment No
Surface protection Untreated
Surface finishing Matt
Colour White
RAL-number (similar) 9003
Transparent No
With hinged lid No
Type of fastening Engage (snap)
Width 237.5 mm
Height 90 mm
Depth 8.5 mm
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
Latin wood species Not applicable
Certification of wood (list) Not applicable
Wood Climate area Not applicable
