Arteor Advance - 6 modules Italian/French/Schuko plate solid aluminium - 6 modules horizontal cover frame - Matt aluminium

Arteor Advance Legrand

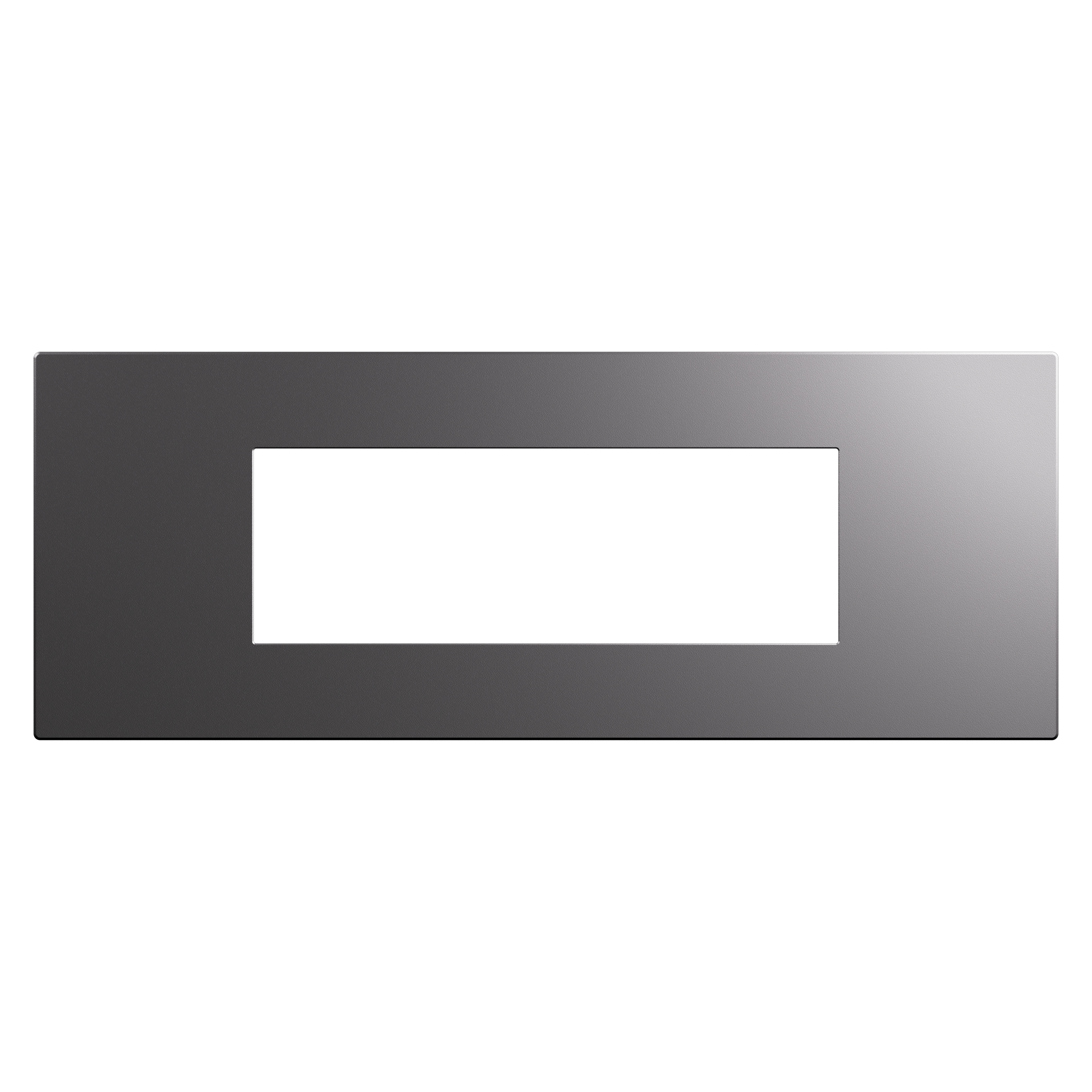

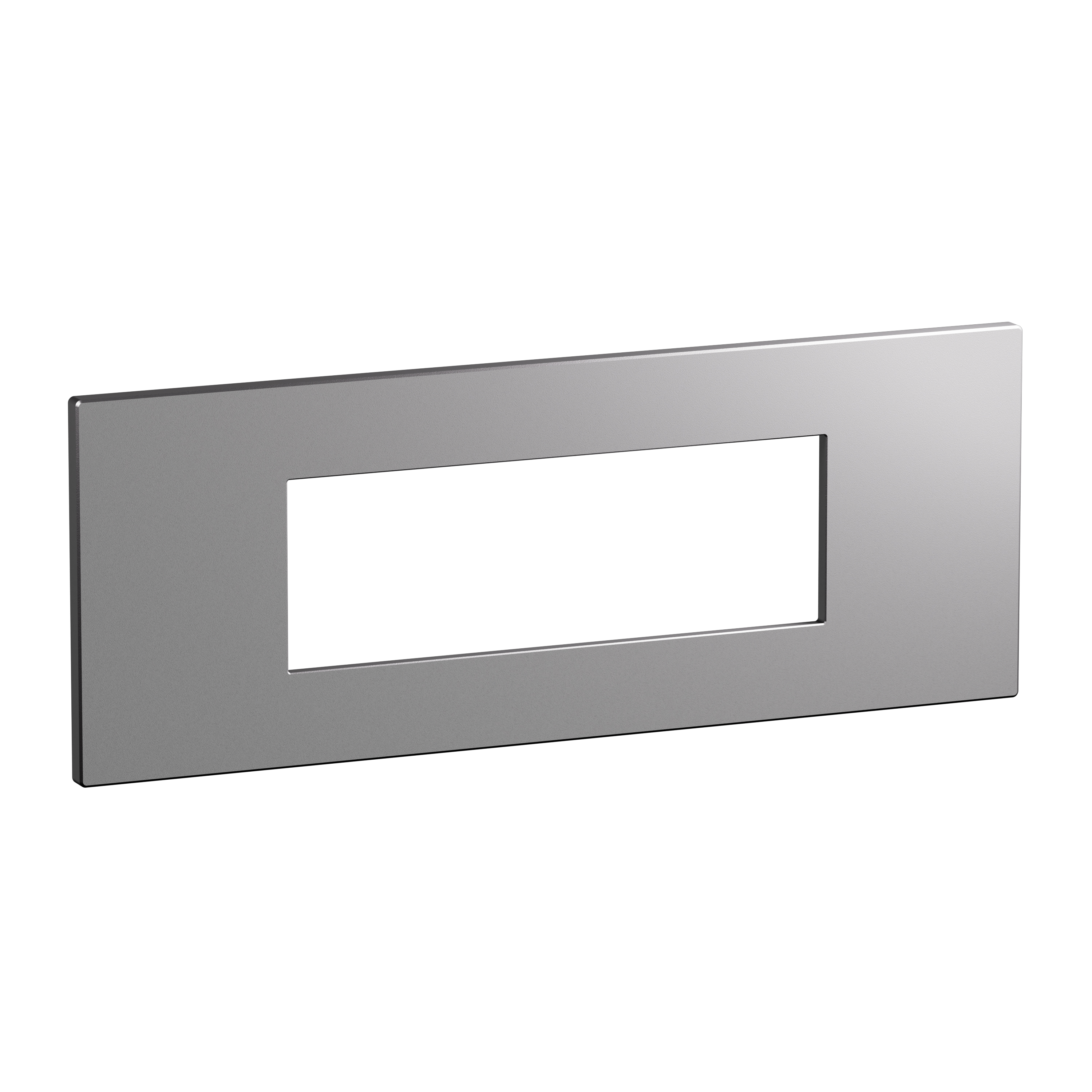

Arteor Advance - 6 modules Italian/French/Schuko plate solid aluminium - 6 modules horizontal cover frame - Matt aluminium

REF. AC1111SA EAN. 3414972736671
This 6 modules Italian/French/Schuko plate in solid aluminum offers robust flush-mounted installation and halogen-free safety. Its matt lacquered finish with muted reflection delivers a refined, square design.
Download product sheet
Finition :
Number of modules horizontal (module system) :
You can only compare 4 products, you must remove 1 to add this one

Description

This 6 modules Italian/French/Schuko plate in solid aluminum offers robust flush-mounted installation and halogen-free safety. Its matt lacquered finish with muted reflection delivers a refined, square design.

Product characteristics
  • 6 modules cover frame for Italian/French/Schuko mechanisms, optimized for horizontal flush-mounted installation
  • Solid aluminum construction with lacquered, matt surface for enhanced durability and muted reflection
  • Front plate made of real plain aluminum, halogen free and suitable for interior residential and commercial environments
  • Square, compact design (237.5x90x8.5mm) enabling modularity and flexibility in dense configurations
  • Snap-on fastening without mounting grid, with operating temperature range from -5° C to 35° C and storage from -10° C to 70° C
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Usage
  • The plate contains an adjuster that ensures perfect installation on the wall
Avantages
  • Aluminium with muted reflection and cool sensation of metal
  • Refined design
  • Square design allows modularity and flexibility in a compact configuration

Technical characteristics

Number of units 1
Mounting direction Horizontal
Number of units horizontal 1
Number of units vertical 1
Number of modules horizontal (module system) 6
Number of modules vertical (module system) 1
With mounting grid No
Flush-mounted installation Yes
Suitable for subfloor installation duct box No
Suitable for wall duct No
Label space/information surface No
Material Metal
Material quality Aluminium
Halogen free Yes
Antimicrobial treatment No
Surface protection Lacquered
Surface finishing Matt
Colour Aluminium
Transparent No
With hinged lid No
Type of fastening Engage (snap)
Width 237.5 mm
Height 90 mm
Depth 8.5 mm
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
Latin wood species Not applicable
Certification of wood (list) Not applicable
Wood Climate area Not applicable

Documentation

1 document
Technical Sheet
F04790EN-00.pdf pdf (0.5 Mo)
