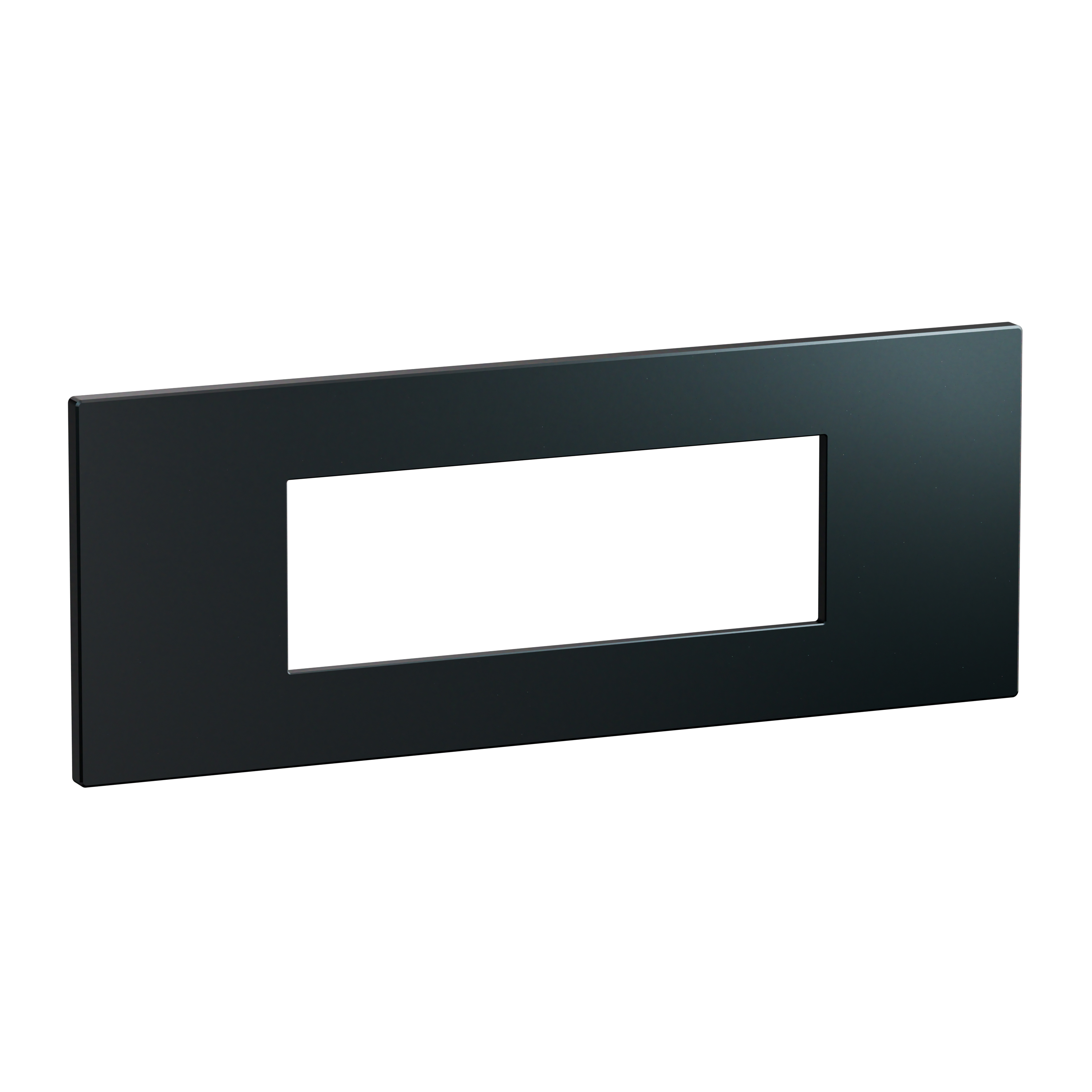

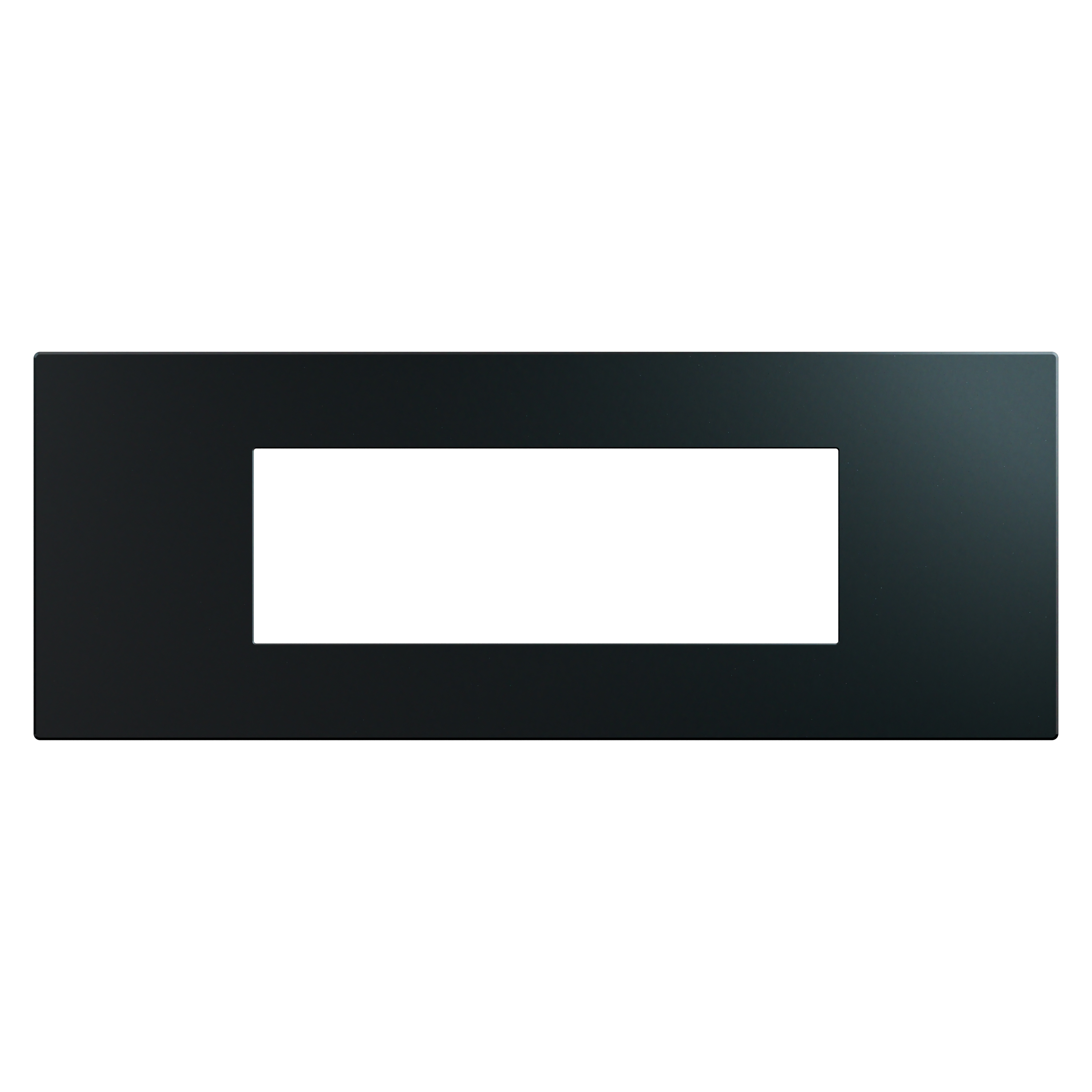

Arteor Advance - 6 modules Italian/French/Schuko plate midnight blue - 6 modules horizontal cover frame - Matt aluminum - Midnight blue

Arteor Advance Legrand

Arteor Advance - 6 modules Italian/French/Schuko plate midnight blue - 6 modules horizontal cover frame - Matt aluminum - Midnight blue

REF. AC1111NB EAN. 3414972736657
This 6 modules Italian/French/Schuko plate in midnight blue offers refined square design and real plain aluminum with matt lacquered finish. Its snap fastening ensures precise flush-mounted installation. Halogen-free material.
Download product sheet
Finition :
Number of modules horizontal (module system) :
You can only compare 4 products, you must remove 1 to add this one

Description

This 6 modules Italian/French/Schuko plate in midnight blue offers refined square design and real plain aluminum with matt lacquered finish. Its snap fastening ensures precise flush-mounted installation. Halogen-free material.

Product characteristics
  • Two modules cover frame providing 6 horizontal modules (Italian/French/Schuko) in a compact configuration
  • Midnight blue lacquered finish with dark blue pearlescent gleam for a refined, architectural appearance
  • Plate manufactured from matt-finished plain aluminum, halogen free, delivering a cool metallic touch and enhanced durability
  • Square design enabling modularity and flexibility while ensuring precise alignment with Arteor Advance mechanisms
  • Flush-mounted horizontal installation with snap fastening and integrated adjuster for perfect wall positioning in indoor applications
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Usage
  • The plate contains an adjuster that ensures perfect installation on the wall
Avantages
  • Dark blue with pearlescent gleam and cool sensation of metal
  • Refined design
  • Square design allows modularity and flexibility in a compact configuration

Technical characteristics

Number of units 1
Mounting direction Horizontal
Number of units horizontal 1
Number of units vertical 1
Number of modules horizontal (module system) 6
Number of modules vertical (module system) 1
With mounting grid No
Flush-mounted installation Yes
Suitable for subfloor installation duct box No
Suitable for wall duct No
Label space/information surface No
Material Metal
Material quality Aluminium
Halogen free Yes
Antimicrobial treatment No
Surface protection Lacquered
Surface finishing Matt
Colour Blue
Transparent No
With hinged lid No
Type of fastening Engage (snap)
Width 237.5 mm
Height 90 mm
Depth 8.5 mm
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
Latin wood species Not applicable
Certification of wood (list) Not applicable
Wood Climate area Not applicable

Documentation

1 document
Technical Sheet
F04790EN-00.pdf pdf (0.5 Mo)
