Arteor Advance - 6 modules hybrid plate for 3M + 2x1 modules slender switches dark aluminium - Brushed aluminium matt grey

Arteor Advance Legrand

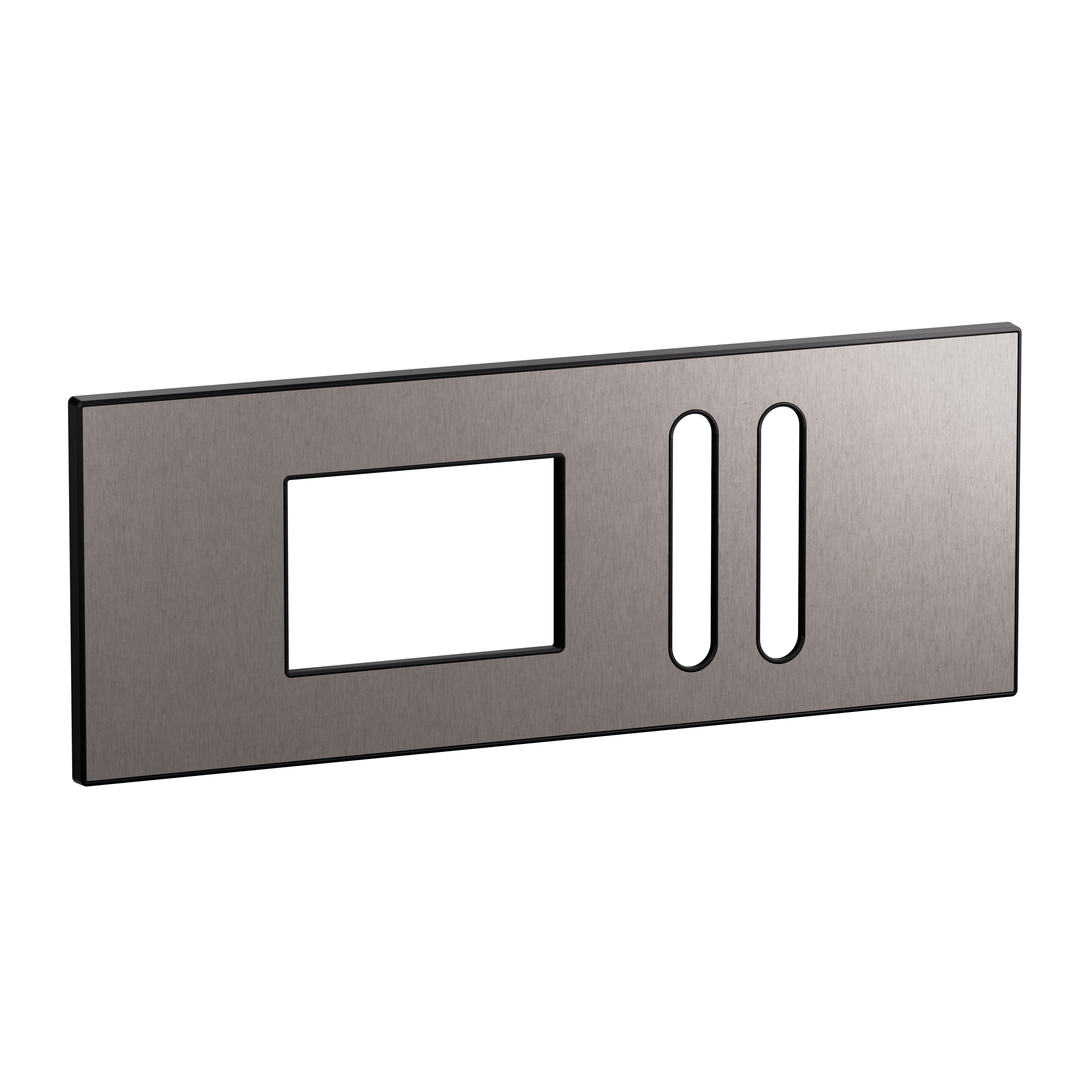

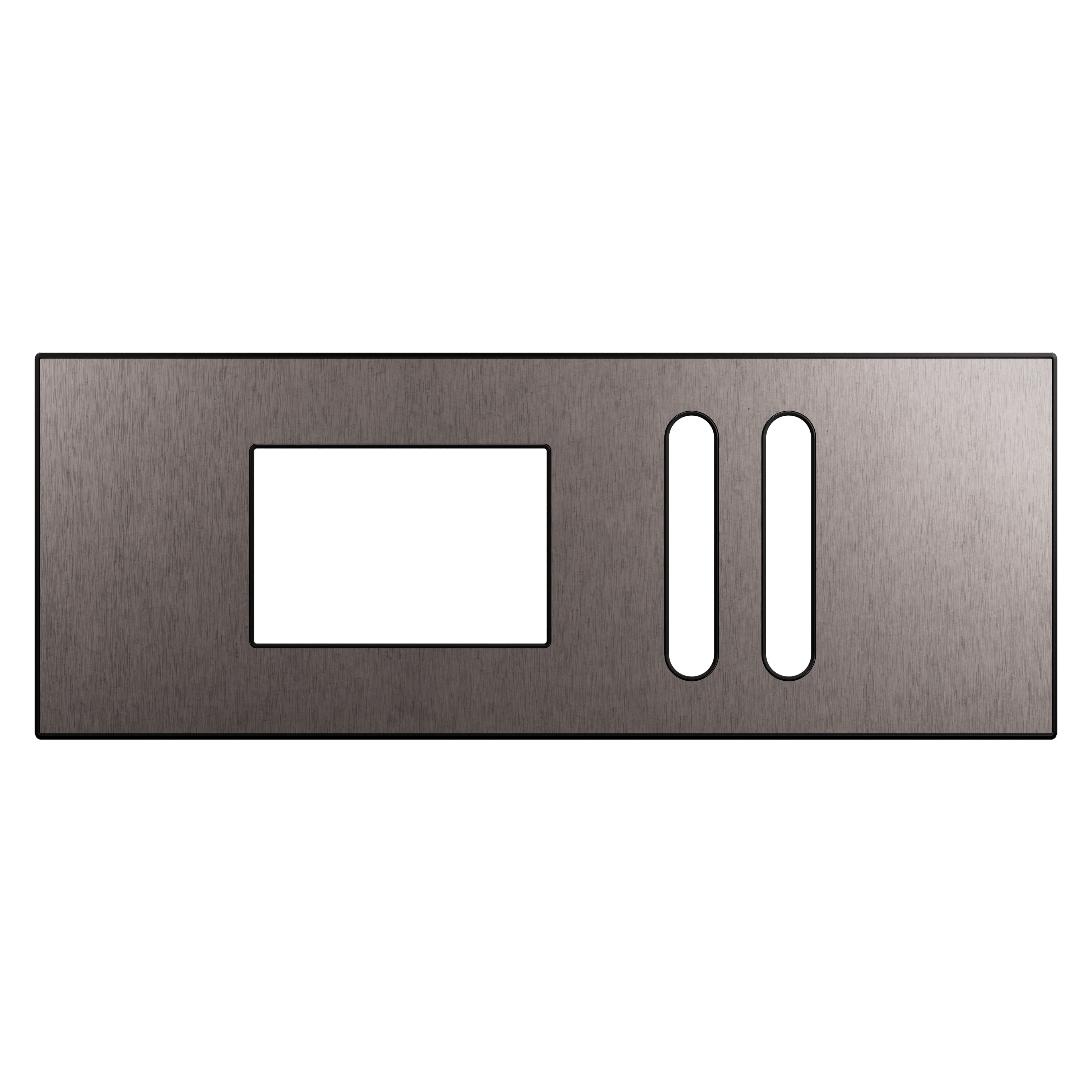

Arteor Advance - 6 modules hybrid plate for 3M + 2x1 modules slender switches dark aluminium - Brushed aluminium matt grey

REF. AB1201DA EAN. 3414972732529
This 6 modules hybrid plate in dark brushed aluminum combines refined minimalism with IK02 impact resistance. It supports 3M + 2x1 slender switches in a horizontal flush-mounted layout for precise wall alignment and a clean, high-end finish
Download product sheet
Finition :
You can only compare 4 products, you must remove 1 to add this one

Description

This 6 modules hybrid plate in dark brushed aluminum combines refined minimalism with IK02 impact resistance. It supports 3M + 2x1 slender switches in a horizontal flush-mounted layout for precise wall alignment and a clean, high-end finish

Product characteristics
  • Cover frame for domestic switching devices, 6 modules hybrid plate configured for 3M + 2x1 slender switch modules, horizontal 4-gang layout
  • Dark aluminum finish with matt warm gray reflection for a contemporary, technical aesthetic
  • Plates are made of real brushed aluminum set in a cradle, delivering a refined, high-quality surface appearance
  • Hybrid design integrates modular functions with refined minimalism, ensuring a balanced combination of form and utility
  • Snap-on mounting, flush-mounted installation, IK02 impact resistance, and 252.5x90x8.5mm dimensions for precise indoor wall integration within -5to35° C operating temperature
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Usage
  • The plate contains an adjuster that ensures perfect installation on the wall
Avantages
  • Real brushed aluminium set in a cradle, with a matt warm grey reflection
  • Refined design
  • Hybrid design integrates modular functions with refined minimalism, achieving a perfect balance of form and utility

Technical characteristics

Number of units 3
Mounting direction Horizontal
Number of units horizontal 3
Number of units vertical 1
Number of modules horizontal (module system) 5
Number of modules vertical (module system) 1
With mounting grid Yes
Flush-mounted installation Yes
Suitable for subfloor installation duct box No
Suitable for wall duct No
Label space/information surface No
Material Other
Material quality Other
Halogen free Yes
Antimicrobial treatment No
Surface protection Untreated
Surface finishing Matt
Colour Grey
Transparent No
With hinged lid No
degree of impact strength (IK) IK02
Type of fastening Engage (snap)
Width 252.5 mm
Height 90 mm
Depth 8.5 mm
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
Latin wood species Not applicable
Certification of wood (list) Not applicable
Wood Climate area Not applicable
