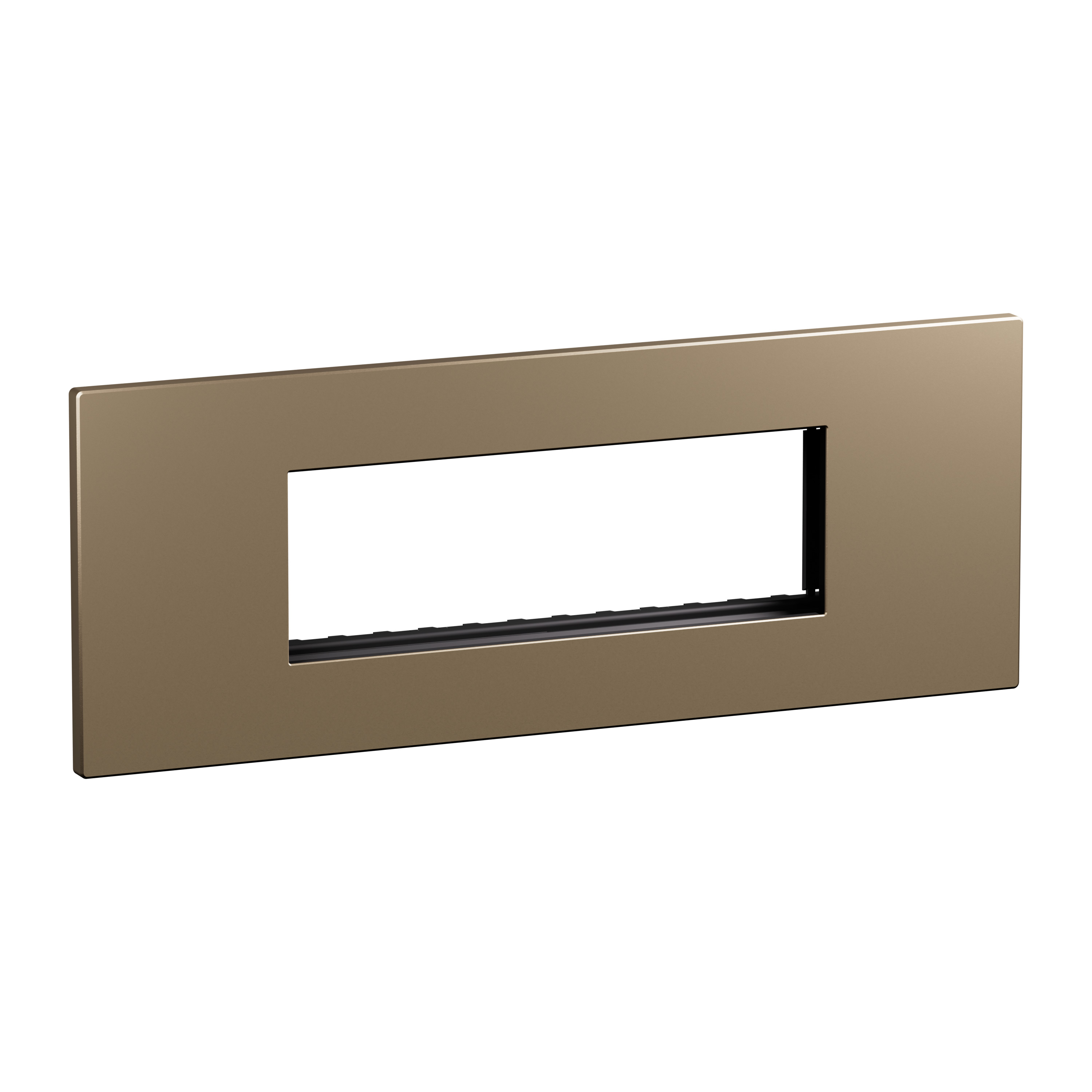

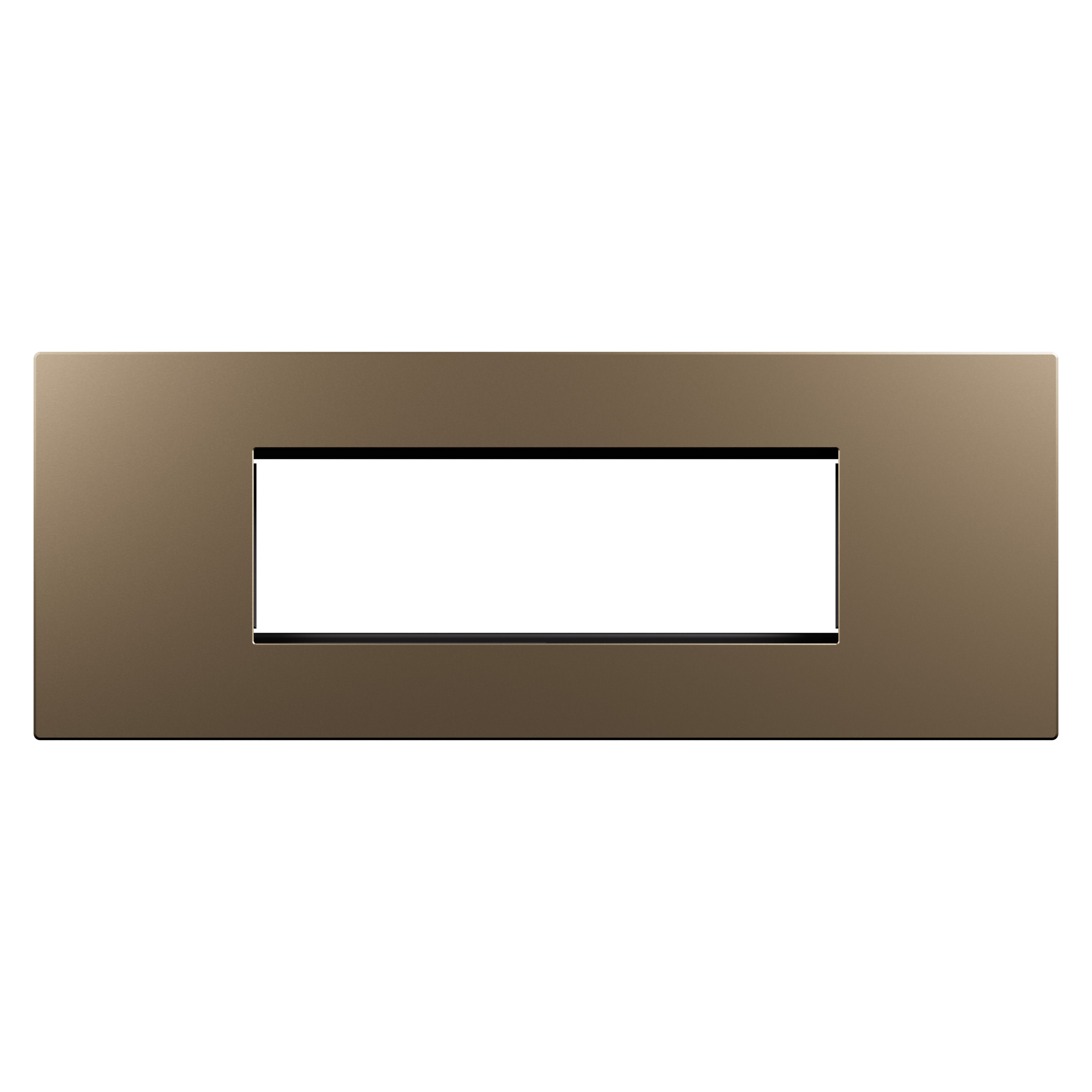

Arteor Advance - 6 modules British standard plate+frame solid sand - 6-module horizontal cover frame - Matt sandy gold finish

Arteor Advance Legrand

Arteor Advance - 6 modules British standard plate+frame solid sand - 6-module horizontal cover frame - Matt sandy gold finish

REF. AC1204SD EAN. 3414972977715
This 6 modules british standard plate+frame solid sand offers a minimalist square design for modular configurations. Its lacquered matt aluminum construction with snap fastening ensures robust flush-mounted installation. The sandy gold
Download product sheet
Finition :
Number of modules horizontal (module system) :
Number of modules vertical (module system) :
You can only compare 4 products, you must remove 1 to add this one

Description

This 6 modules british standard plate+frame solid sand offers a minimalist square design for modular configurations. Its lacquered matt aluminum construction with snap fastening ensures robust flush-mounted installation. The sandy gold

Product characteristics
  • Six-module British Standard plate and frame providing a 6x1 horizontal modular configuration for domestic switching devices.
  • Solid sand sandy-gold finish delivering a mineral-inspired aesthetic with the cool visual sensation of metal.
  • Plate and frame assembly with plates made of polycarbonate combined with a lacquered aluminum front for enhanced mechanical robustness.
  • Square, minimalist design enabling modularity and flexibility in a compact wall-mounted configuration.
  • Flush-mounted, halogen-free cover frame with snap fastening, matt beige surface, and operating temperature range from -5° C to 35° C for indoor use.
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Usage
  • The plate contains an adjuster that ensures perfect installation on the wall
Avantages
  • Sandy gold finish reminiscent of natural mineral elegance with cool sensation of metal
  • Minimalist design
  • Square design allows modularity and flexibility in a compact configuration

Technical characteristics

Number of units 1
Mounting direction Horizontal
Number of units horizontal 1
Number of units vertical 1
Number of modules horizontal (module system) 6
Number of modules vertical (module system) 1
With mounting grid Yes
Flush-mounted installation Yes
Suitable for subfloor installation duct box No
Suitable for wall duct No
Label space/information surface No
Material Metal
Material quality Aluminium
Halogen free Yes
Antimicrobial treatment No
Surface protection Lacquered
Surface finishing Matt
Colour Beige
Transparent No
With hinged lid No
degree of impact strength (IK) IK02
Type of fastening Engage (snap)
Width 237.5 mm
Height 90 mm
Depth 8.5 mm
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
Latin wood species Not applicable
Certification of wood (list) Not applicable
Wood Climate area Not applicable
