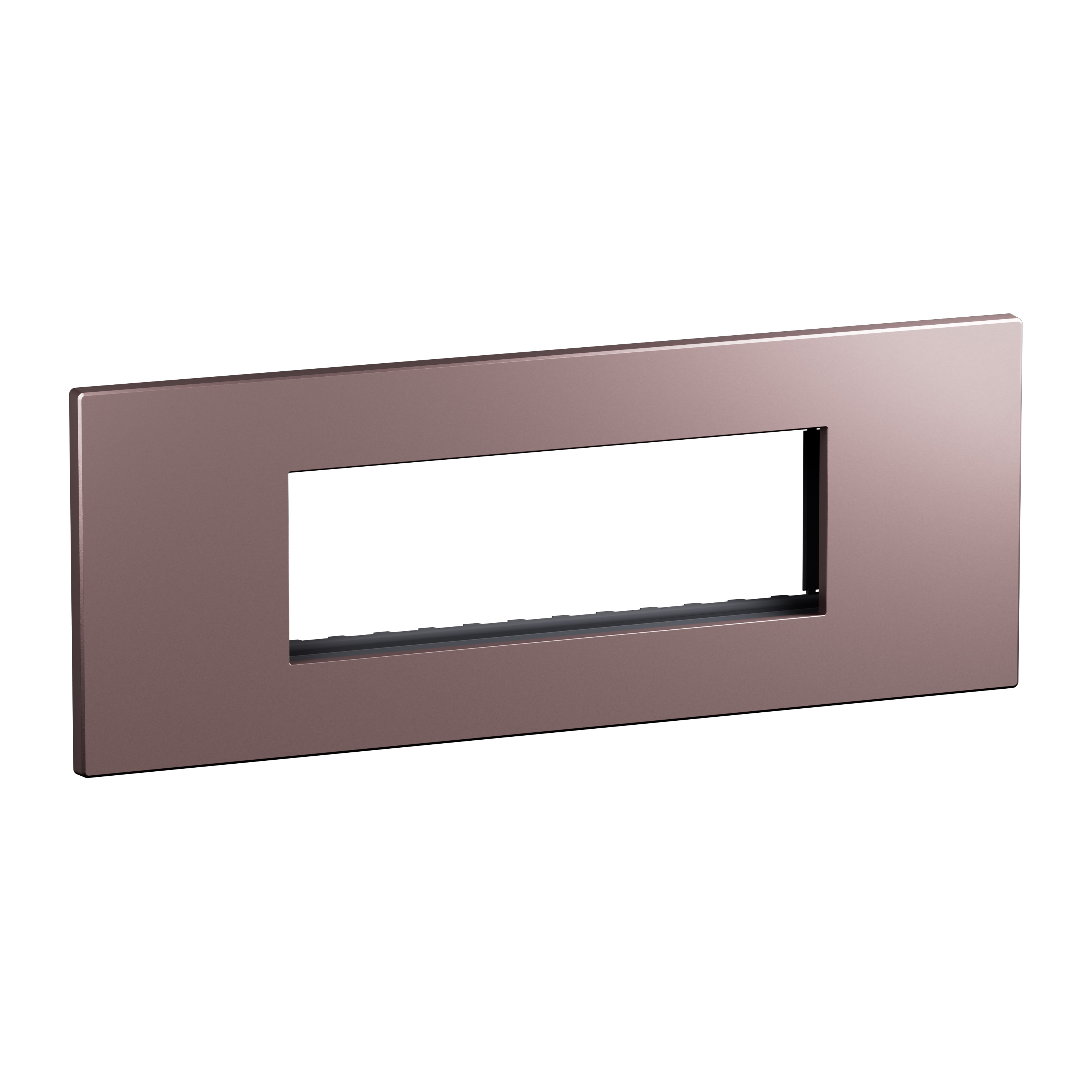

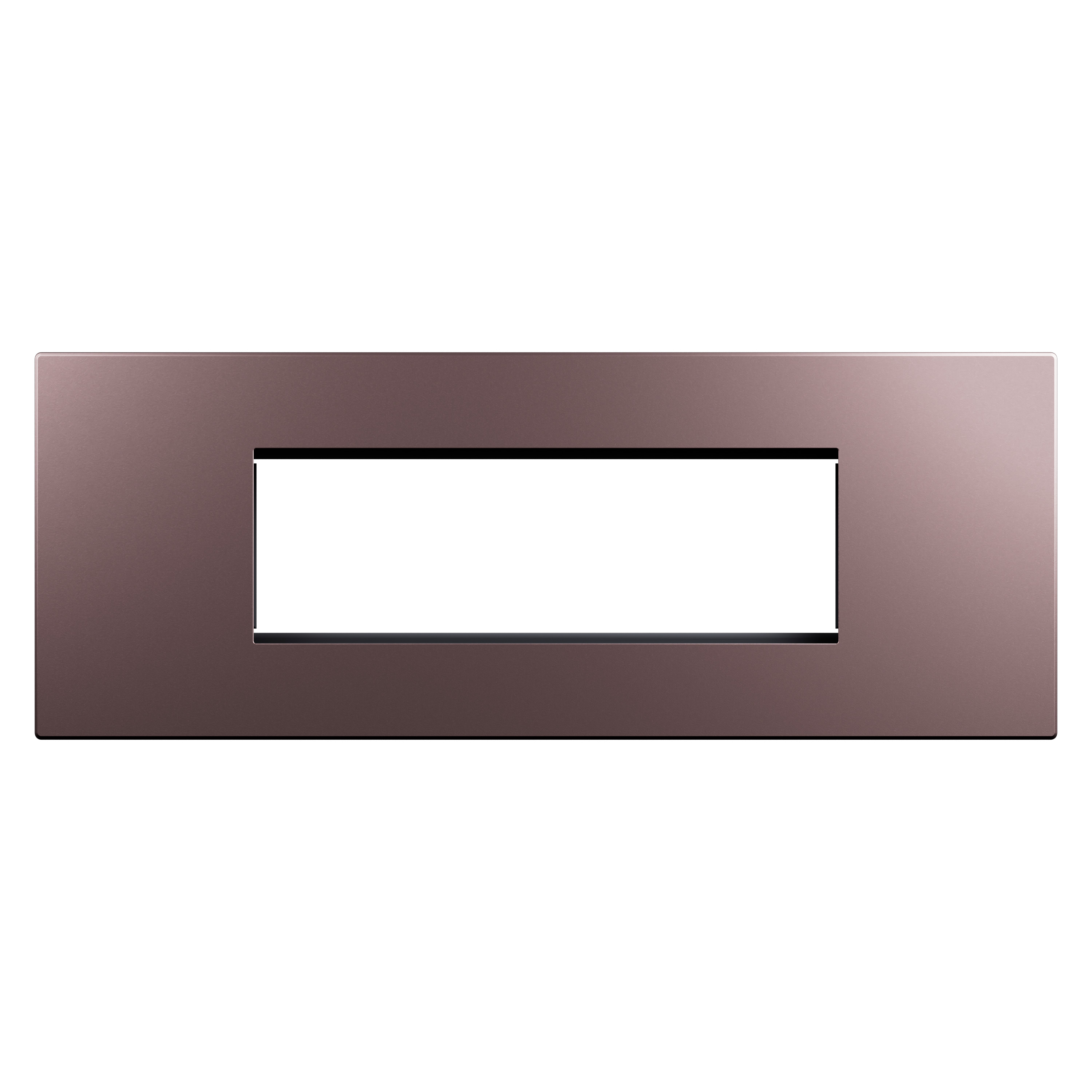

Arteor Advance - 6 modules British standard plate+frame solid rose - 6-module horizontal cover frame - Matt aluminum, pink finish

Arteor Advance Legrand

Arteor Advance - 6 modules British standard plate+frame solid rose - 6-module horizontal cover frame - Matt aluminum, pink finish

REF. AC1204SR EAN. 3414972977746
This 6 modules british standard plate+frame solid rose combines a minimalist square design with a pink matt lacquered aluminum finish. Its 6-module horizontal capacity and snap fastening enable flexible flush-mounted installation.
Download product sheet
Finition :
Number of modules horizontal (module system) :
Number of modules vertical (module system) :
You can only compare 4 products, you must remove 1 to add this one

Description

This 6 modules british standard plate+frame solid rose combines a minimalist square design with a pink matt lacquered aluminum finish. Its 6-module horizontal capacity and snap fastening enable flexible flush-mounted installation.

Product characteristics
  • Six-module British Standard plate and frame providing a 6x1 horizontal module configuration for high-density domestic switching layouts.
  • Solid rose pink, matt lacquered metal finish delivering a subtle blush aesthetic with the cool touch sensation of aluminum.
  • Front plate and frame assembly designed as a cover frame for domestic switching devices, with snap-on fastening for quick, tool-less installation.
  • Square, minimalist geometry enabling modularity and flexibility in a compact 237.5x90x8.5mm footprint.
  • Flush-mounted, halogen-free aluminum construction with IK02 impact resistance and -5 to 35° C operating temperature range, recommended for indoor use.
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Usage
  • The plate contains an adjuster that ensures perfect installation on the wall
Avantages
  • Pink finish evoking a subtle blush effect with cool sensation of metal
  • Minimalist design
  • Square design allows modularity and flexibility in a compact configuration

Technical characteristics

Number of units 1
Mounting direction Horizontal
Number of units horizontal 1
Number of units vertical 1
Number of modules horizontal (module system) 6
Number of modules vertical (module system) 1
With mounting grid Yes
Flush-mounted installation Yes
Suitable for subfloor installation duct box No
Suitable for wall duct No
Label space/information surface No
Material Metal
Material quality Aluminium
Halogen free Yes
Antimicrobial treatment No
Surface protection Lacquered
Surface finishing Matt
Colour Pink
Transparent No
With hinged lid No
degree of impact strength (IK) IK02
Type of fastening Engage (snap)
Width 237.5 mm
Height 90 mm
Depth 8.5 mm
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
Latin wood species Not applicable
Certification of wood (list) Not applicable
Wood Climate area Not applicable
