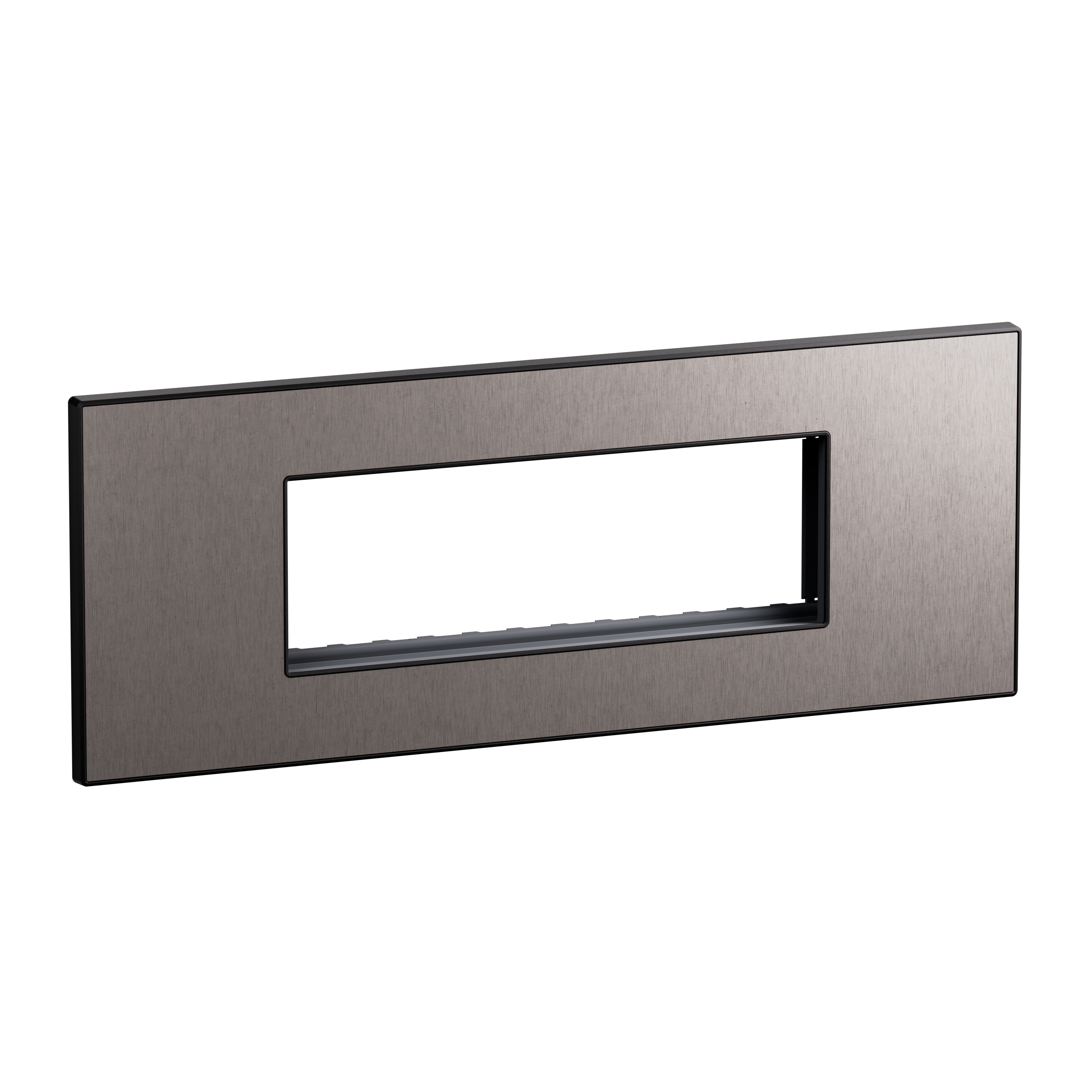

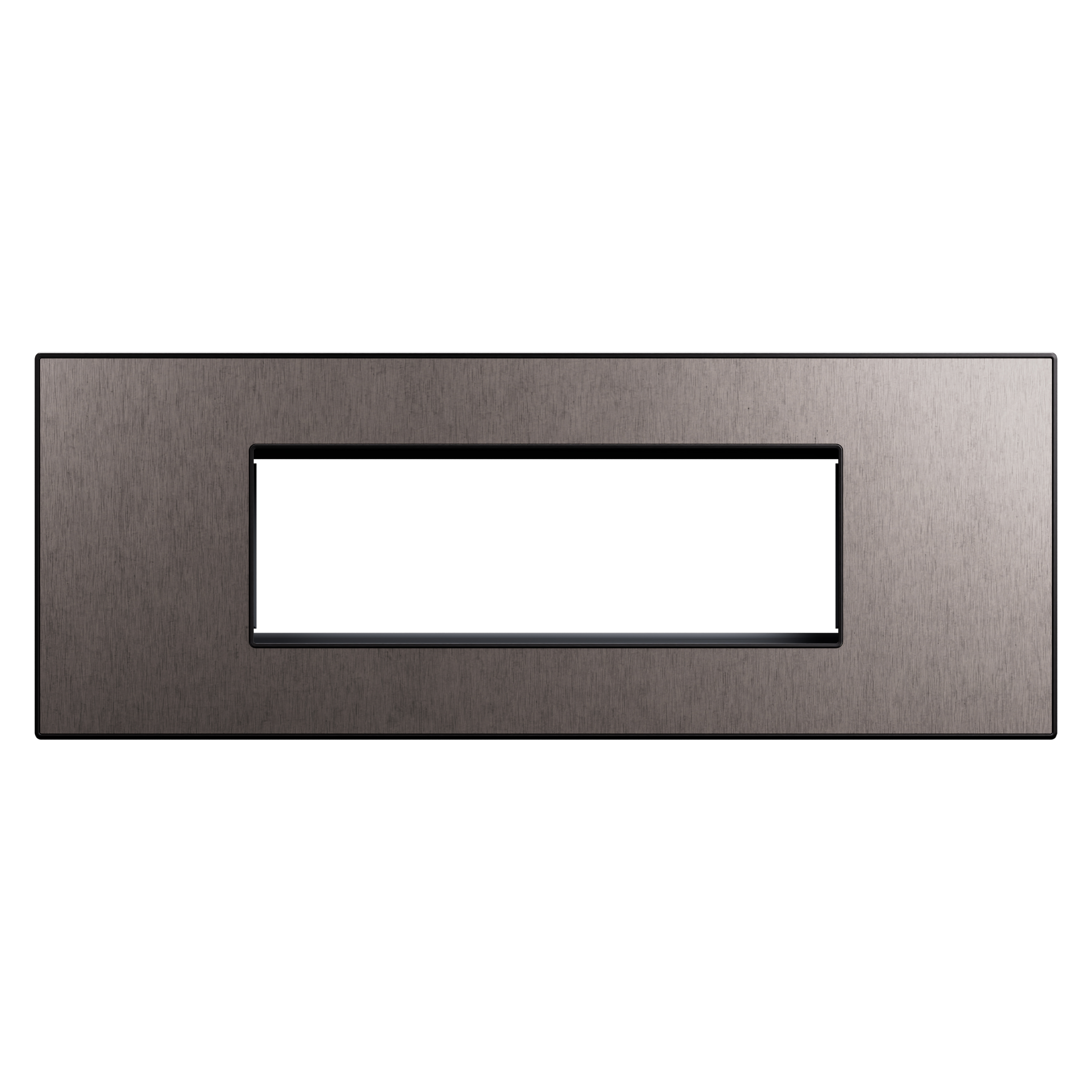

Arteor Advance - 6 modules British Standard plate+frame dark aluminum - Brushed matt grey aluminum - Horizontal flush-mounted

Arteor Advance Legrand

Arteor Advance - 6 modules British Standard plate+frame dark aluminum - Brushed matt grey aluminum - Horizontal flush-mounted

REF. AC1204DA EAN. 3414972738187
The 6 modules British standard plate+frame dark aluminium offers six-module capacity in a refined, square Arteor Advance design. Its real brushed dark aluminum plate with matt warm gray reflection ensures long-term aesthetics.
Download product sheet
Finition :
Number of modules horizontal (module system) :
Number of modules vertical (module system) :
You can only compare 4 products, you must remove 1 to add this one

Description

The 6 modules British standard plate+frame dark aluminium offers six-module capacity in a refined, square Arteor Advance design. Its real brushed dark aluminum plate with matt warm gray reflection ensures long-term aesthetics.

Product characteristics
  • Six-module British Standard plate and frame for multi-gang domestic switching configurations
  • Dark aluminum finish in warm matt gray for a contemporary, technical aesthetic
  • Front plates made of real brushed aluminum for premium look and enhanced resistance to daily wear and sunlight exposure
  • Square format enabling modularity and flexible configuration of Arteor Advance mechanisms
  • Snap-on cover frame for flush-mounted horizontal installation, 237.5x90x8.5mm, IK02 impact resistance, halogen free
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Installation
  • The plate contains an adjuster that ensures perfect installation on the wall
Usage
  • Ensures long-term aesthetic against daily wear and sunlight exposure.
Avantages
  • Real brushed aluminium set in a cradle, with a matt warm grey reflection
  • Refined design
  • Square format allows modularity and flexible configuration

Technical characteristics

Number of units 1
Mounting direction Horizontal
Number of units horizontal 1
Number of units vertical 1
Number of modules horizontal (module system) 6
Number of modules vertical (module system) 1
With mounting grid Yes
Flush-mounted installation Yes
Suitable for subfloor installation duct box No
Suitable for wall duct No
Label space/information surface No
Material Other
Material quality Other
Halogen free Yes
Antimicrobial treatment No
Surface protection Untreated
Surface finishing Matt
Colour Grey
Transparent No
With hinged lid No
degree of impact strength (IK) IK02
Type of fastening Engage (snap)
Width 237.5 mm
Height 90 mm
Depth 8.5 mm
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
Latin wood species Not applicable
Certification of wood (list) Not applicable
Wood Climate area Not applicable

Documentation

1 document
Technical Sheet
F04494EN-00.pdf pdf (0.51 Mo)
