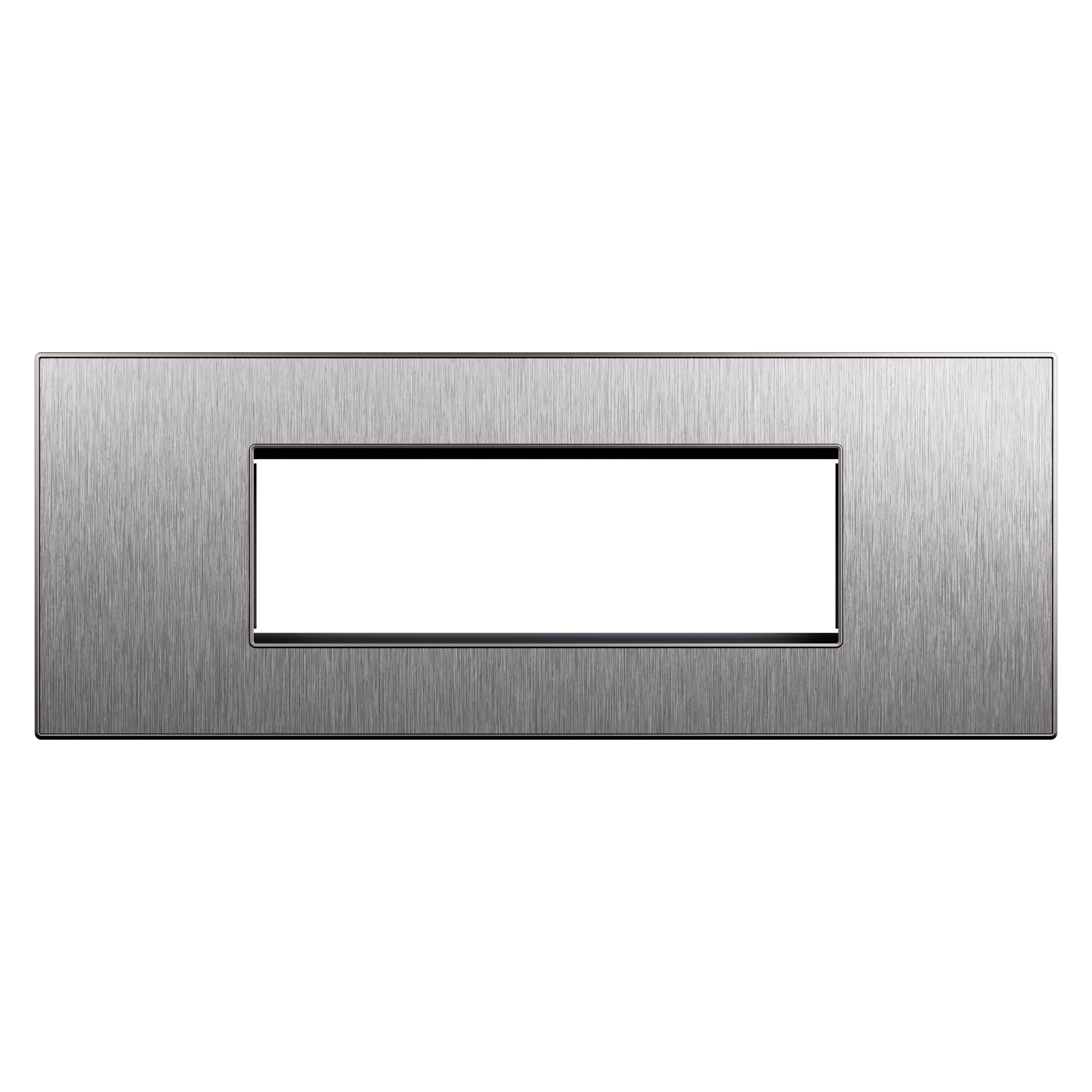

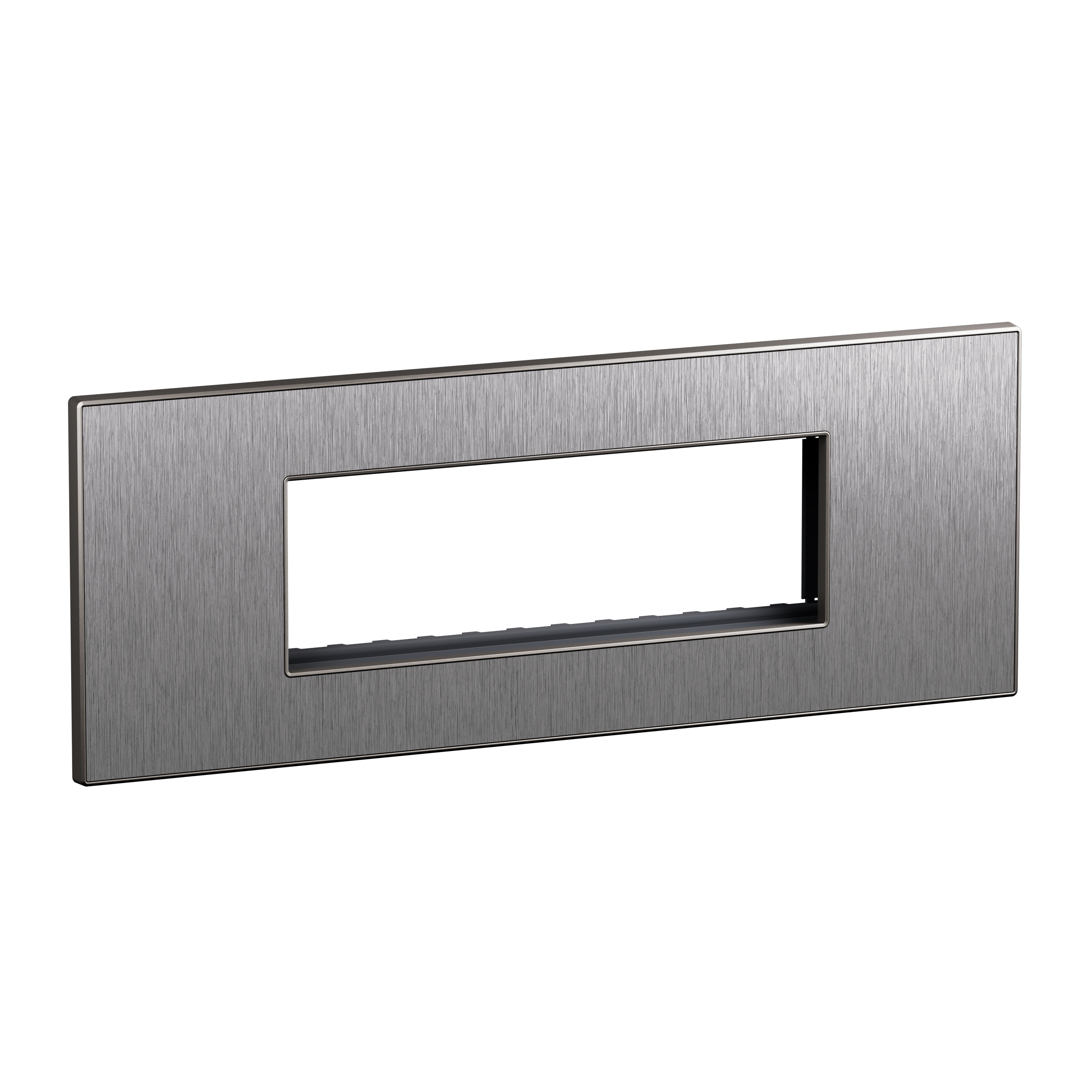

Arteor Advance - 6 modules British standard plate+frame brushed stainless steel - 6-module BS cover frame - Real brushed stainless

Arteor Advance Legrand

Arteor Advance - 6 modules British standard plate+frame brushed stainless steel - 6-module BS cover frame - Real brushed stainless

REF. AC1204BS EAN. 3414972738156
The 6 modules British standard plate+frame offers real brushed stainless steel construction and square-format design for modular configurations. Its snap fastening and integrated adjuster ensure precise flush-mounting
Download product sheet
Finition :
Number of modules horizontal (module system) :
Number of modules vertical (module system) :
You can only compare 4 products, you must remove 1 to add this one

Description

The 6 modules British standard plate+frame offers real brushed stainless steel construction and square-format design for modular configurations. Its snap fastening and integrated adjuster ensure precise flush-mounting

Product characteristics
  • Six-module British Standard plate and frame providing high-density configuration capacity for domestic switching devices
  • Brushed stainless steel finish with matt surface protection for enhanced durability and scratch resistance
  • Front plates manufactured from real brushed stainless steel for consistent material quality and long-term aesthetic stability
  • Square-format cover frame enabling modularity and flexible layout of 6 horizontal x1 vertical modules
  • Flush-mounted metal frame with snap fastening, 237.5mmx90-Drummm x8.5mm, halogen free and suitable for indoor operation from -5° C to 35° C
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Installation
  • The plate contains an adjuster that ensures perfect installation on the wall
Usage
  • Ensures long-term aesthetic against daily wear and sunlight exposure.
Avantages
  • Real brushed stainless steel, set in a cradle, with a slight ethereal effect
  • Refined design
  • Square format allows modularity and flexible configuration

Technical characteristics

Number of units 1
Mounting direction Horizontal
Number of units horizontal 1
Number of units vertical 1
Number of modules horizontal (module system) 6
Number of modules vertical (module system) 1
With mounting grid Yes
Flush-mounted installation Yes
Suitable for subfloor installation duct box No
Suitable for wall duct No
Label space/information surface No
Material Metal
Material quality Stainless steel
Halogen free Yes
Antimicrobial treatment No
Surface protection Brushed
Surface finishing Matt
Colour Stainless steel
Transparent No
With hinged lid No
degree of impact strength (IK) IK02
Type of fastening Engage (snap)
Width 237.5 mm
Height 90 mm
Depth 8.5 mm
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
Latin wood species Not applicable
Certification of wood (list) Not applicable
Wood Climate area Not applicable

Documentation

1 document
Technical Sheet
F04494EN-00.pdf pdf (0.51 Mo)
