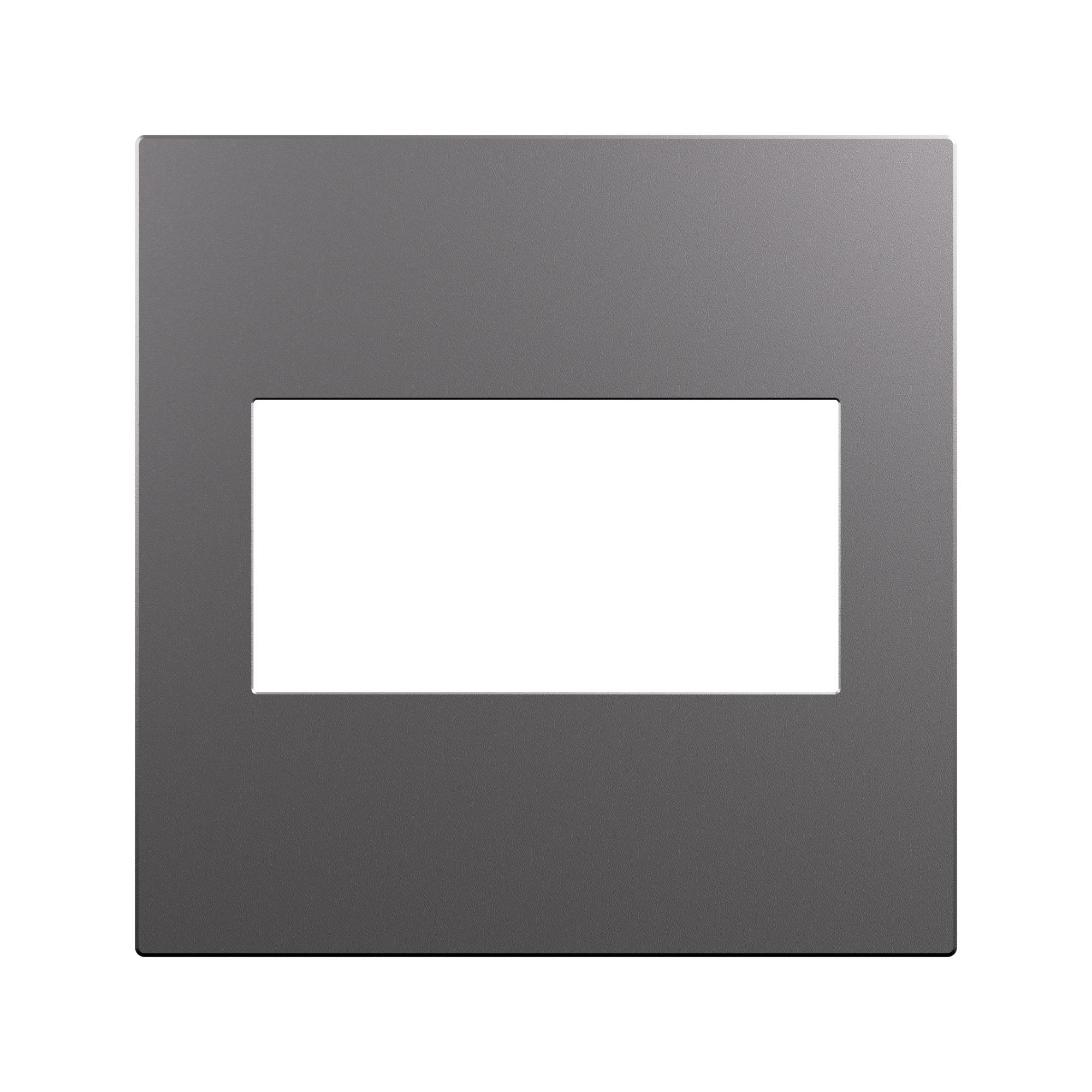

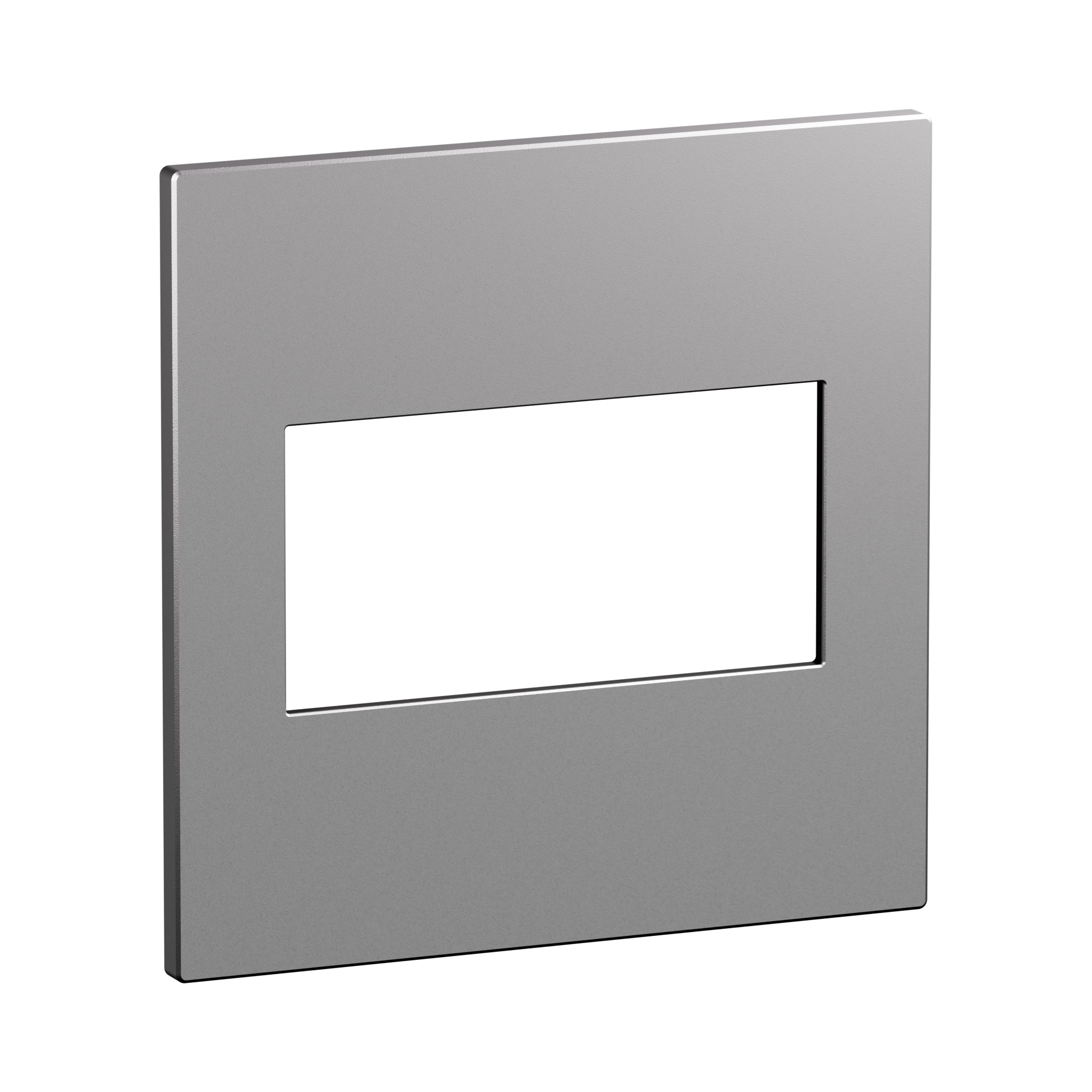

Arteor Advance - 4x4 US plate for 4 modules - Matt lacquered solid aluminum - 4 modules horizontal flush-mount frame - IP20 indoor use

Arteor Advance Legrand

Arteor Advance - 4x4 US plate for 4 modules - Matt lacquered solid aluminum - 4 modules horizontal flush-mount frame - IP20 indoor use

REF. AC1129SA EAN. 3414973071450
This 4x4 US plate for 4 modules in solid, matt lacquered aluminum offers robust, halogen-free construction and refined square design. Its snap fastening and adjuster ensure precise flush-mounted installation and long-term indoor aesthetics.
Download product sheet
Finition :
Number of modules horizontal (module system) :
Number of modules vertical (module system) :
You can only compare 4 products, you must remove 1 to add this one

Description

This 4x4 US plate for 4 modules in solid, matt lacquered aluminum offers robust, halogen-free construction and refined square design. Its snap fastening and adjuster ensure precise flush-mounted installation and long-term indoor aesthetics.

Product characteristics
  • 4x4 cover frame for four horizontal modules, optimized for Arteor Advance domestic switching devices
  • Solid aluminum metal construction for enhanced mechanical robustness and long-term dimensional stability
  • Plates made of real plain aluminum with lacquered matt finish for muted reflection and durable aesthetics
  • Square 127mmx127mm front format enabling modularity and flexible configuration in wall and duct installations
  • Flush-mounted IP20 plate, halogen free, with snap fastening and label space, suitable for subfloor installation duct box and wall duct
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Installation
  • The plate contains an adjuster that ensures perfect installation on the wall
Usage
  • Ensures long-term aesthetic against daily wear and sunlight exposure.
Avantages
  • Aluminium with muted reflection and cool sensation of metal
  • Refined design
  • Square format allows modularity and flexible configuration

Technical characteristics

Number of units 1
Mounting direction Horizontal
Number of units horizontal 1
Number of units vertical 1
Number of modules horizontal (module system) 4
Number of modules vertical (module system) 1
With mounting grid No
Flush-mounted installation Yes
Suitable for subfloor installation duct box Yes
Suitable for wall duct Yes
Suitable for built-in installation No
Label space/information surface Yes
Material Metal
Material quality Aluminium
Halogen free Yes
Antimicrobial treatment No
Surface protection Lacquered
Surface finishing Matt
Colour Aluminium
Transparent No
With hinged lid No
Degree of protection (IP) IP20
Type of fastening Engage (snap)
Width 127 mm
Height 127 mm
Depth 8.5 mm
Built-in width 90 mm
Built-in height 45 mm
Latin wood species Not applicable
Certification of wood (list) Not applicable
Wood Climate area Not applicable

Documentation

1 document
Technical Sheet
F04887EN-00.pdf pdf (0.51 Mo)
