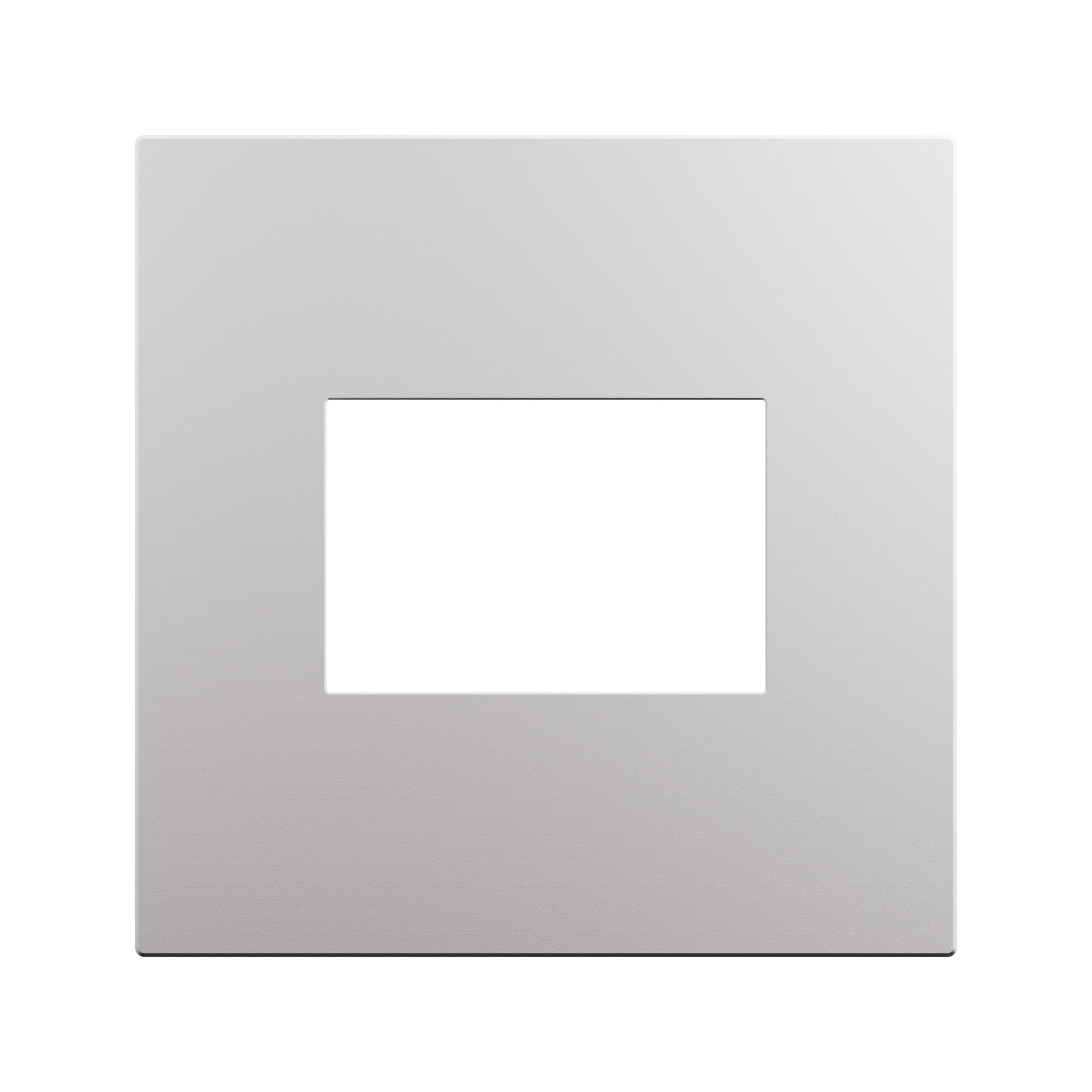

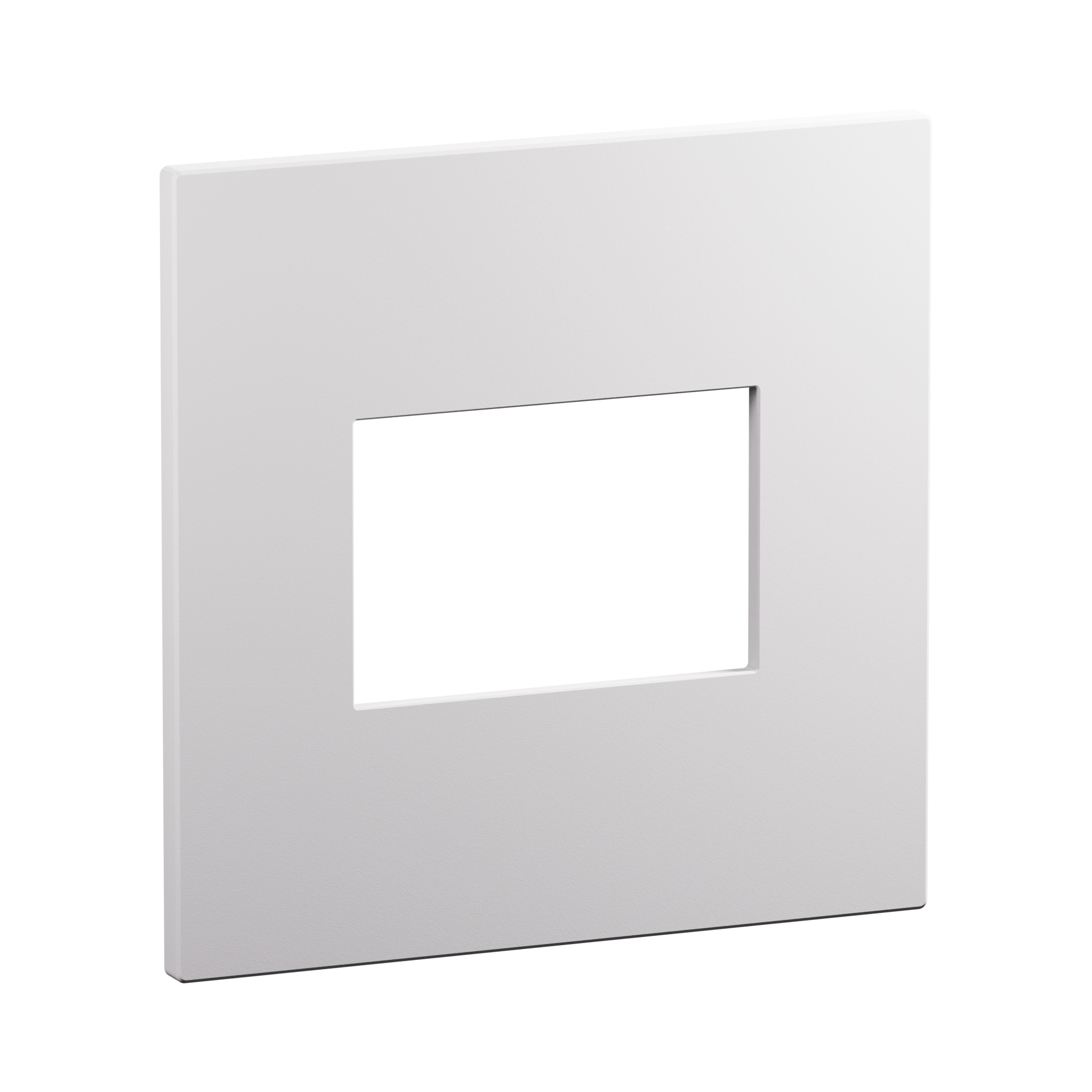

Arteor Advance - 4x4 US plate for 3 modules matt white - Square 4x4 format - Matt white thermoplastic IP20

Arteor Advance Legrand

Arteor Advance - 4x4 US plate for 3 modules matt white - Square 4x4 format - Matt white thermoplastic IP20

REF. AC1128MW EAN. 3414973071122
This 4x4 US plate for 3 modules in matt white offers a minimalist square design and modular horizontal configuration. Its thermoplastic, halogen-free construction and IP20 rating ensure safe indoor use. Snap fastening simplifies
Download product sheet
Finition :
Number of modules horizontal (module system) :
Number of modules vertical (module system) :
You can only compare 4 products, you must remove 1 to add this one

Description

This 4x4 US plate for 3 modules in matt white offers a minimalist square design and modular horizontal configuration. Its thermoplastic, halogen-free construction and IP20 rating ensure safe indoor use. Snap fastening simplifies

Product characteristics
  • 4x4 US cover frame for three horizontal modules, optimized for Arteor Advance domestic switching devices
  • Matt white finish (similar to RAL 9003) with smooth, powdery aspect for a minimalist architectural look
  • Plate made of halogen-free thermoplastic polycarbonate for enhanced mechanical strength and long-term aesthetic stability
  • Square 127mmx127mm profile with 8.5mm depth, IP20 rating, and snap-on fastening for precise flush-mounted installation
  • Includes label space and is suitable for flush-mounted, wall duct, and subfloor duct box installations for flexible configuration in indoor applications
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Installation
  • The plate contains an adjuster that ensures perfect installation on the wall
Usage
  • Ensures long-term aesthetic against daily wear and sunlight exposure.
Avantages
  • Powdery white with a smooth matte aspect
  • Minimalist design
  • Square format allows modularity and flexible configuration

Technical characteristics

Number of units 1
Mounting direction Horizontal
Number of units horizontal 1
Number of units vertical 1
Number of modules horizontal (module system) 3
Number of modules vertical (module system) 1
With mounting grid No
Flush-mounted installation Yes
Suitable for subfloor installation duct box Yes
Suitable for wall duct Yes
Suitable for built-in installation No
Label space/information surface Yes
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Antimicrobial treatment No
Surface protection Untreated
Surface finishing Matt
Colour White
RAL-number (similar) 9003
Transparent No
With hinged lid No
Degree of protection (IP) IP20
Type of fastening Engage (snap)
Width 127 mm
Height 127 mm
Depth 8.5 mm
Built-in width 67.5 mm
Built-in height 45 mm
Latin wood species Not applicable
Certification of wood (list) Not applicable
Wood Climate area Not applicable

Documentation

1 document
Technical Sheet
F04885EN-00.pdf pdf (0.5 Mo)
