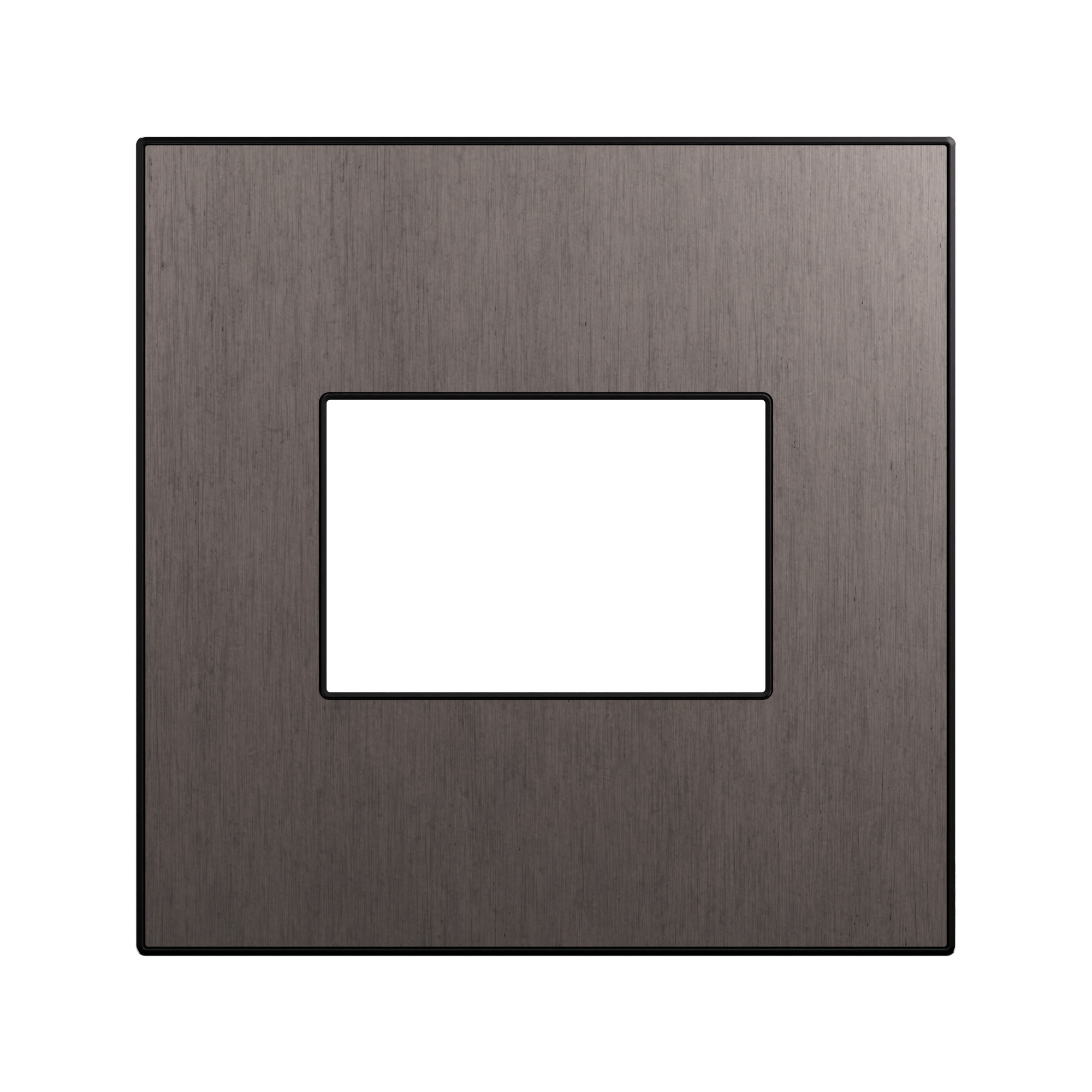

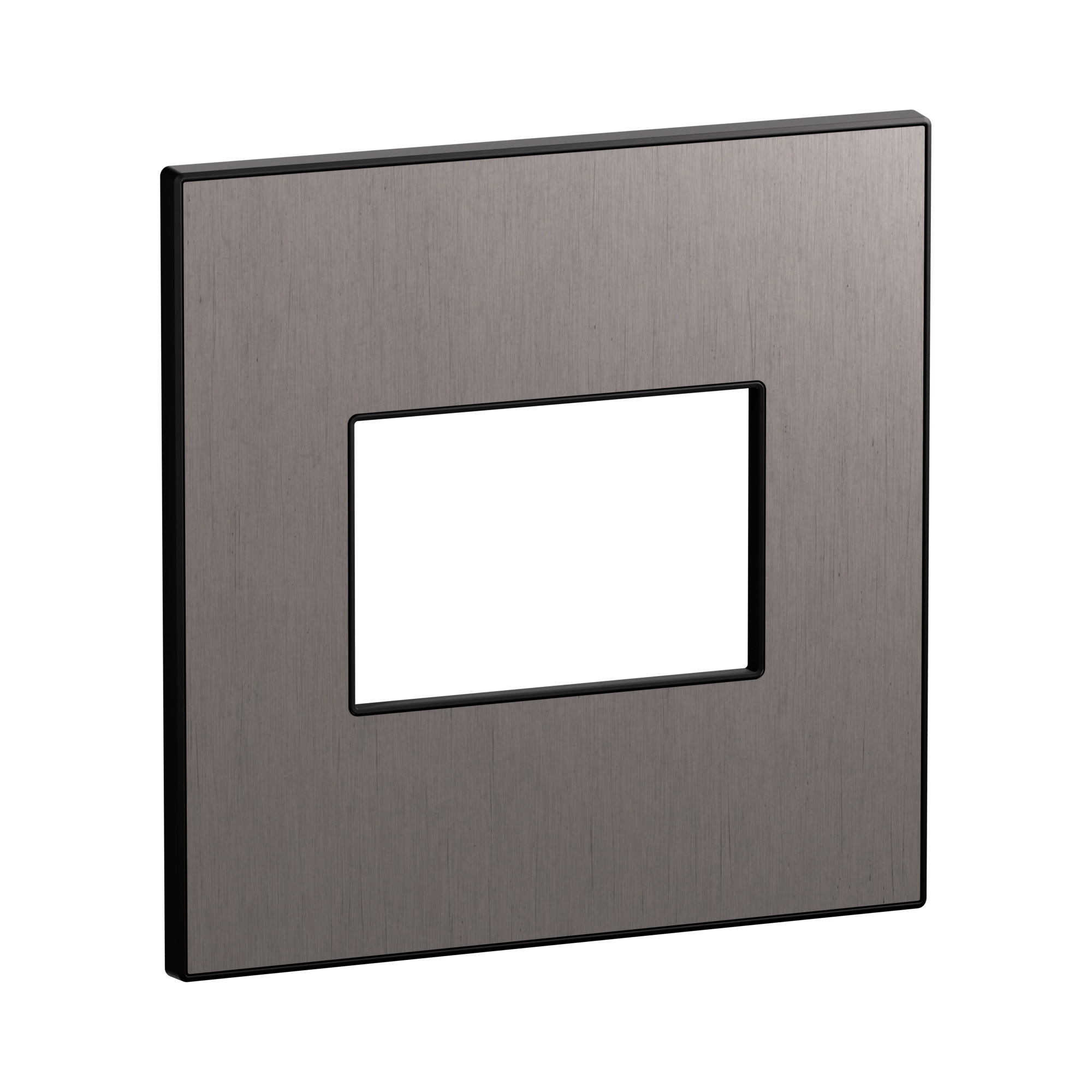

Arteor Advance - 4x4 US plate for 3 modules dark aluminum - Real brushed matt grey aluminum - Flush-mounted IP20 indoor use

Arteor Advance Legrand

Arteor Advance - 4x4 US plate for 3 modules dark aluminum - Real brushed matt grey aluminum - Flush-mounted IP20 indoor use

REF. AC1128DA EAN. 3414973070972
This 4x4 US plate for 3 modules in dark brushed aluminum offers refined square design and modular flexibility. Its matt warm gray finish ensures long-term aesthetics. Snap fastening enables precise, flush-mounted installation.
Download product sheet
Finition :
Number of modules horizontal (module system) :
Number of modules vertical (module system) :
You can only compare 4 products, you must remove 1 to add this one

Description

This 4x4 US plate for 3 modules in dark brushed aluminum offers refined square design and modular flexibility. Its matt warm gray finish ensures long-term aesthetics. Snap fastening enables precise, flush-mounted installation.

Product characteristics
  • 4x4 US cover frame for three horizontal modules, optimized for Arteor Advance domestic switching devices
  • Dark aluminum finish with matt warm gray reflection for a refined, contemporary aesthetic
  • Front plate in real brushed aluminum for enhanced durability and long-term visual stability against daily wear and sunlight exposure
  • Square 127mmx127mm format with 67.5mmx45mm built-in opening, enabling modularity and flexible configuration
  • Flush-mounted IP20 plate with snap fastening, halogen-free material, and label space, suitable for indoor wall duct and subfloor duct box installations
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Installation
  • The plate contains an adjuster that ensures perfect installation on the wall
Usage
  • Ensures long-term aesthetic against daily wear and sunlight exposure.
Avantages
  • Real brushed aluminium set in a cradle, with a matt warm grey reflection
  • Refined design
  • Square format allows modularity and flexible configuration

Technical characteristics

Number of units 1
Mounting direction Horizontal
Number of units horizontal 1
Number of units vertical 1
Number of modules horizontal (module system) 3
Number of modules vertical (module system) 1
With mounting grid No
Flush-mounted installation Yes
Suitable for subfloor installation duct box Yes
Suitable for wall duct Yes
Suitable for built-in installation No
Label space/information surface Yes
Material Other
Material quality Other
Halogen free Yes
Antimicrobial treatment No
Surface protection Untreated
Surface finishing Matt
Colour Grey
Transparent No
With hinged lid No
Degree of protection (IP) IP20
Type of fastening Engage (snap)
Width 127 mm
Height 127 mm
Depth 8.5 mm
Built-in width 67.5 mm
Built-in height 45 mm
Latin wood species Not applicable
Certification of wood (list) Not applicable
Wood Climate area Not applicable

Documentation

1 document
Technical Sheet
F04886EN-00.pdf pdf (0.51 Mo)
