Arteor Advance - 4x4 US plate for 2x3 modules dark aluminum - Brushed matt grey finish - Horizontal/vertical 6 modules frame IP20

Arteor Advance Legrand

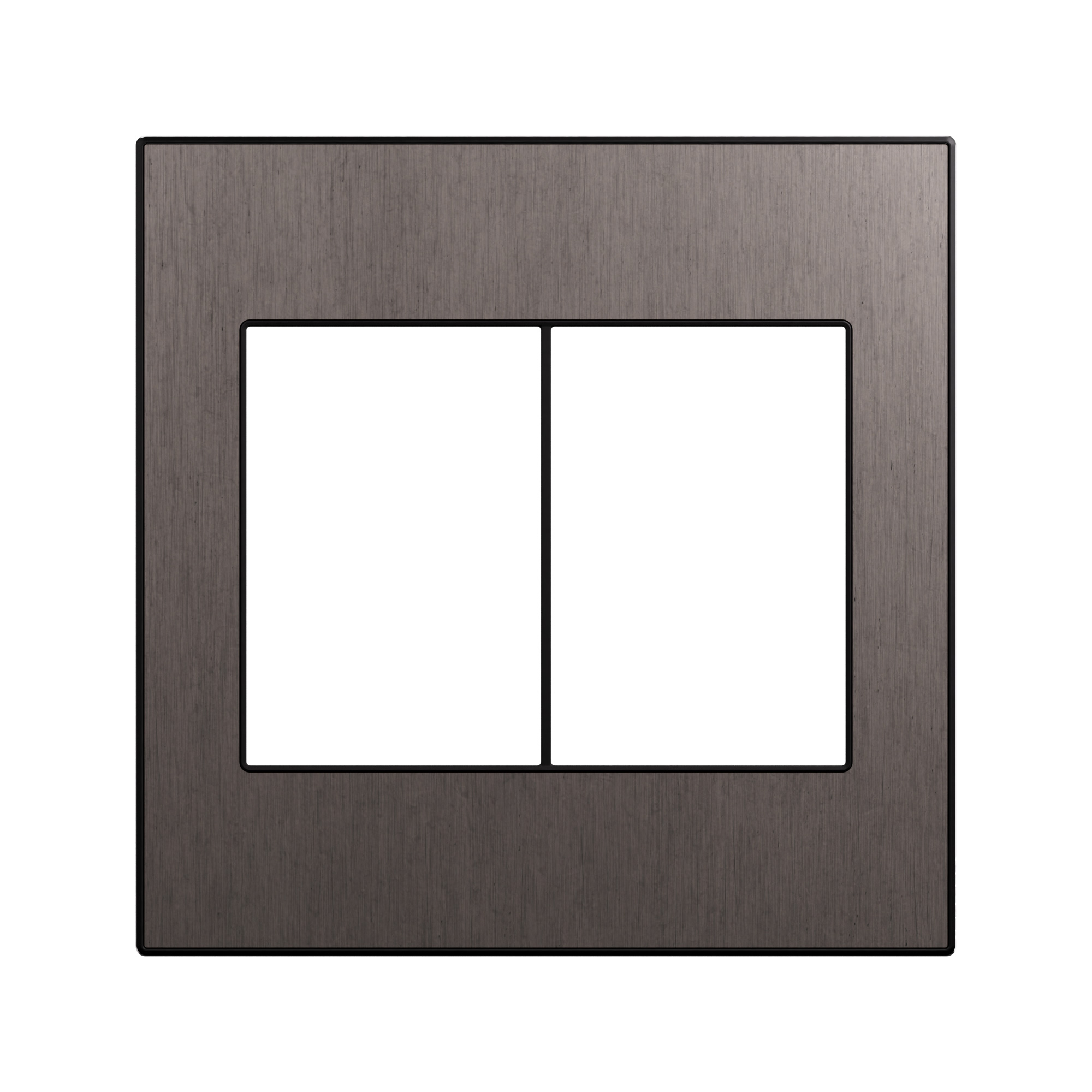

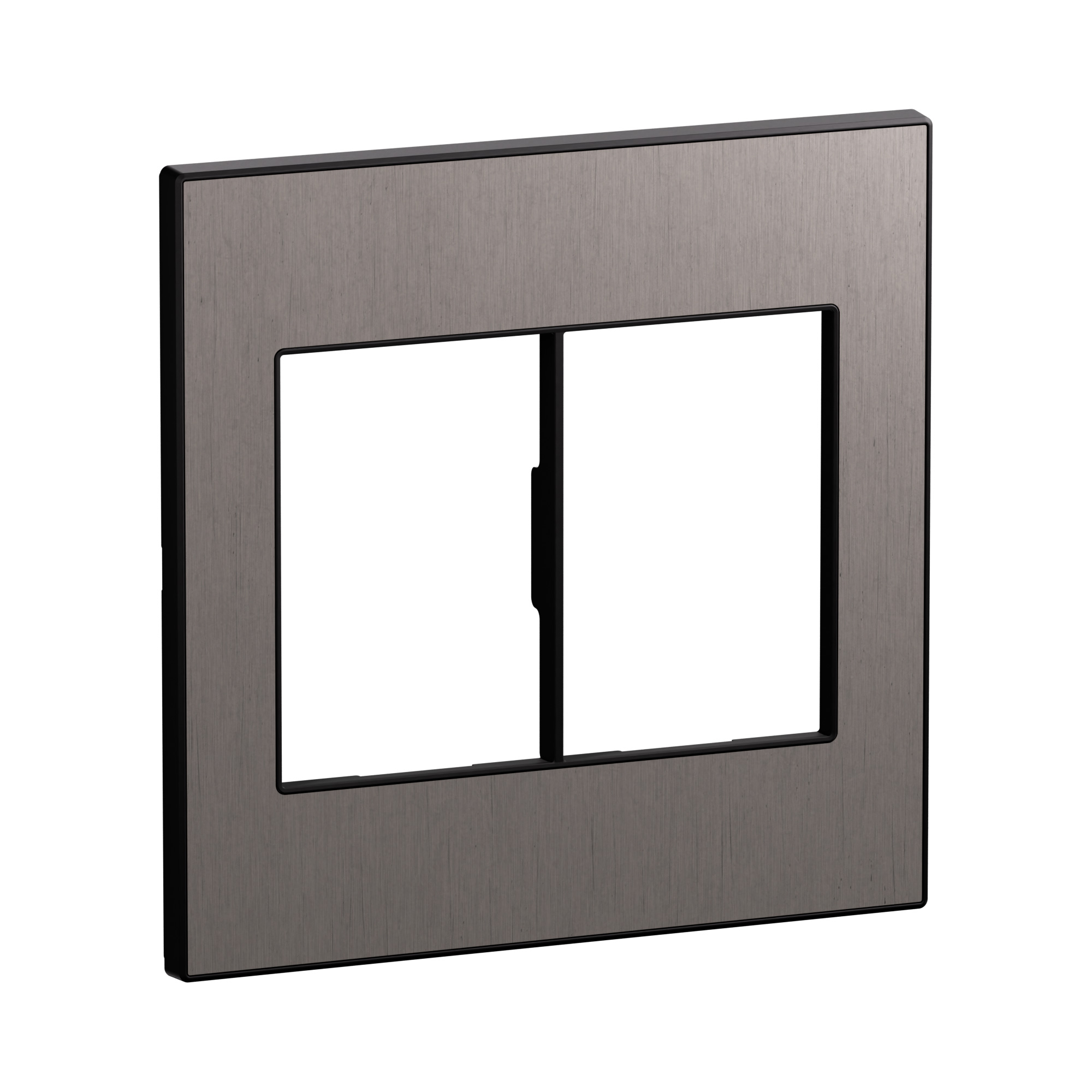

Arteor Advance - 4x4 US plate for 2x3 modules dark aluminum - Brushed matt grey finish - Horizontal/vertical 6 modules frame IP20

REF. AC1130DA EAN. 3414973071511
This 4x4 US plate for 2x3 modules in dark brushed aluminum offers refined square design and flexible horizontal/vertical modularity. Its matt warm gray finish ensures long-term aesthetics. Snap fastening enables precise, flush-mounted
Download product sheet
Finition :
Number of modules horizontal (module system) :
Number of modules vertical (module system) :
You can only compare 4 products, you must remove 1 to add this one

Description

This 4x4 US plate for 2x3 modules in dark brushed aluminum offers refined square design and flexible horizontal/vertical modularity. Its matt warm gray finish ensures long-term aesthetics. Snap fastening enables precise, flush-mounted

Product characteristics
  • 4x4 US cover frame for 2x3 modules, providing a 6-gang configuration for domestic switching devices
  • Dark aluminum finish in warm matt gray for a refined, contemporary aesthetic
  • Front plates made of real brushed aluminum for premium appearance and enhanced resistance to daily wear and sunlight exposure
  • Square 127mmx127mm format enabling modularity and flexible configuration in both horizontal and vertical orientations
  • Flush-mounted IP20 plate with snap fastening and label space, halogen free and optimized for indoor wall and subfloor duct installations
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Installation
  • The plate contains an adjuster that ensures perfect installation on the wall
Usage
  • Ensures long-term aesthetic against daily wear and sunlight exposure.
Avantages
  • Real brushed aluminium set in a cradle, with a matt warm grey reflection
  • Refined design
  • Square format allows modularity and flexible configuration

Technical characteristics

Number of units 2
Mounting direction Horizontal and vertical
Number of units horizontal 2
Number of units vertical 1
Number of modules horizontal (module system) 2
Number of modules vertical (module system) 3
With mounting grid No
Flush-mounted installation Yes
Suitable for subfloor installation duct box Yes
Suitable for wall duct Yes
Suitable for built-in installation No
Label space/information surface Yes
Material Other
Material quality Other
Halogen free Yes
Antimicrobial treatment No
Surface protection Untreated
Surface finishing Matt
Colour Grey
Transparent No
With hinged lid No
Degree of protection (IP) IP20
Type of fastening Engage (snap)
Width 127 mm
Height 127 mm
Depth 11 mm
Built-in width 45 mm
Built-in height 67.5 mm
Latin wood species Not applicable
Certification of wood (list) Not applicable
Wood Climate area Not applicable

Documentation

1 document
Technical Sheet
F04886EN-00.pdf pdf (0.51 Mo)
