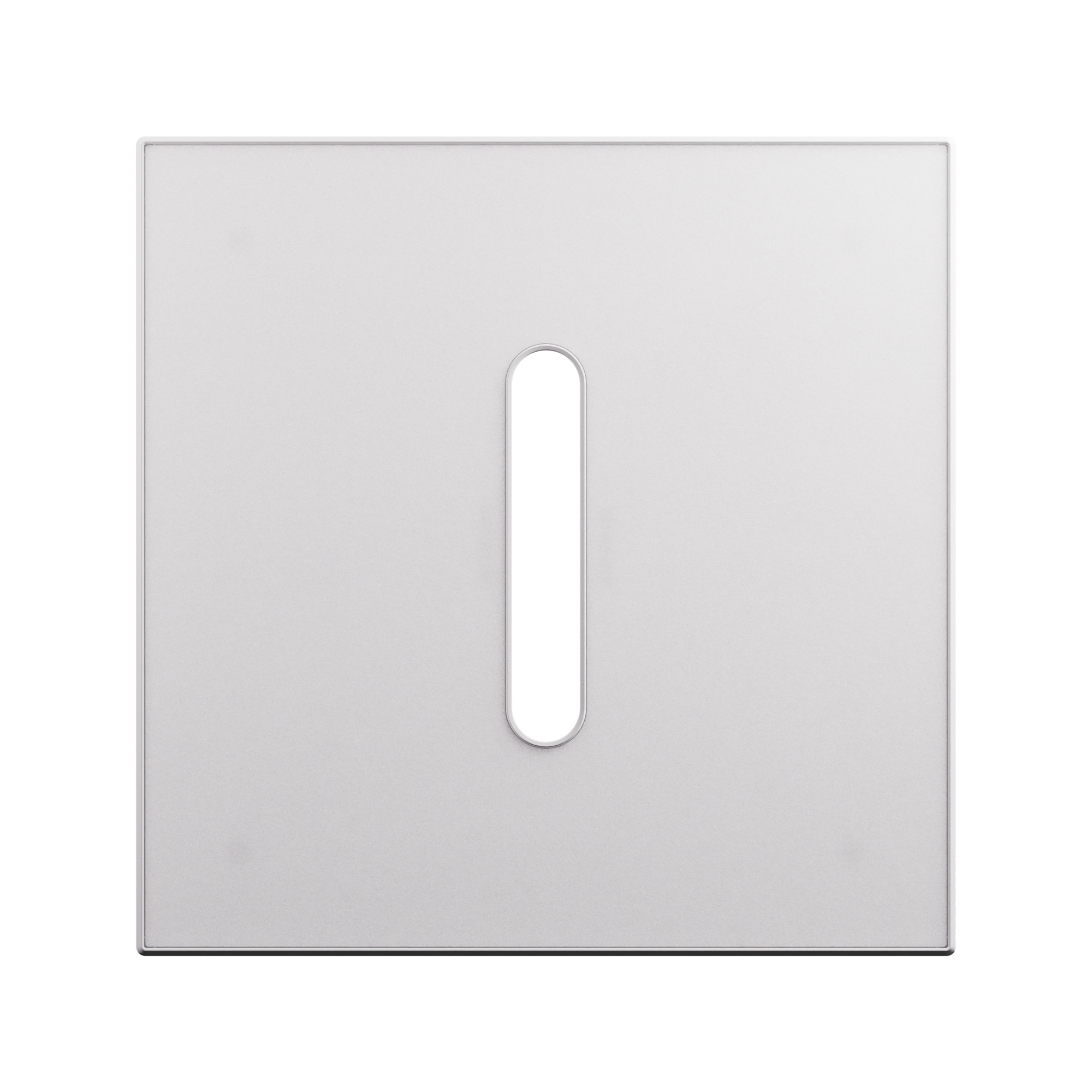

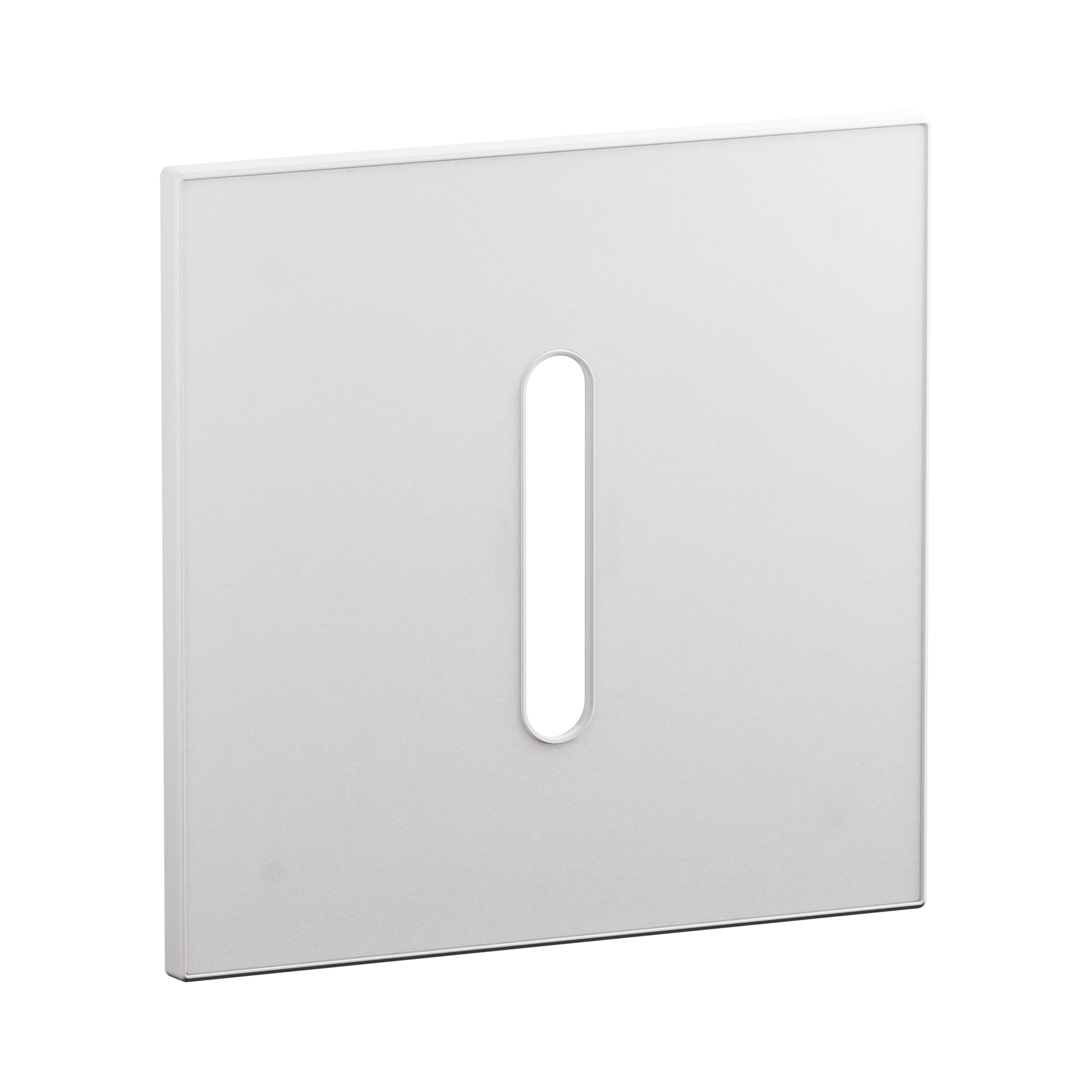

Arteor Advance - 4x4 US plate for 1 module slender switch frosted white - Crystal polycarbonate - Matt lacquered thermoplastic IP20

Arteor Advance Legrand

Arteor Advance - 4x4 US plate for 1 module slender switch frosted white - Crystal polycarbonate - Matt lacquered thermoplastic IP20

REF. AA1140FW EAN. 3414973068207
The 4x4 US plate for 1 module slender switch frosted white offers a refined, slender design with crystal polycarbonate construction. Its frosted white, matt lacquered finish ensures velvety touch, ideal for indoor flush-mounted.
Download product sheet
Finition :
Number of modules horizontal (module system) :
You can only compare 4 products, you must remove 1 to add this one

Description

The 4x4 US plate for 1 module slender switch frosted white offers a refined, slender design with crystal polycarbonate construction. Its frosted white, matt lacquered finish ensures velvety touch, ideal for indoor flush-mounted.

Product characteristics
  • 4x4 US cover plate for one 1-module switch, optimized for horizontal flush-mounted installation in Arteor Advance systems
  • Frosted white matte lacquered finish for reduced glare and consistent visual integration with contemporary interiors
  • Crystal polycarbonate thermoplastic plate, halogen free, offering high mechanical strength and long-term aesthetic stability
  • Ultra-slender 8.5mm profile with engage (snap) fastening for a refined, low-projection wall appearance
  • IP20 indoor-rated plate with 127mmx127mm external dimensions and integrated label space for circuit identification
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Usage
  • Ensures long-term aesthetic against daily wear and sunlight exposure.
Avantages
  • Crystal PC, set in a cradle, providing both velvety touch and white translucence
  • Refined design

Technical characteristics

Number of units 1
Mounting direction Horizontal
Number of units horizontal 1
Number of units vertical 1
Number of modules horizontal (module system) 1
Number of modules vertical (module system) 1
With mounting grid No
Flush-mounted installation Yes
Suitable for subfloor installation duct box Yes
Suitable for wall duct Yes
Suitable for built-in installation No
Label space/information surface Yes
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Antimicrobial treatment No
Surface protection Lacquered
Surface finishing Matt
Colour White
Transparent No
With hinged lid No
Degree of protection (IP) IP20
Type of fastening Engage (snap)
Width 127 mm
Height 127 mm
Depth 8.5 mm
Built-in width 10.5 mm
Built-in height 60.5 mm
Latin wood species Not applicable
Certification of wood (list) Not applicable
Wood Climate area Not applicable

Documentation

1 document
Technical Sheet
F04886EN-00.pdf pdf (0.51 Mo)
