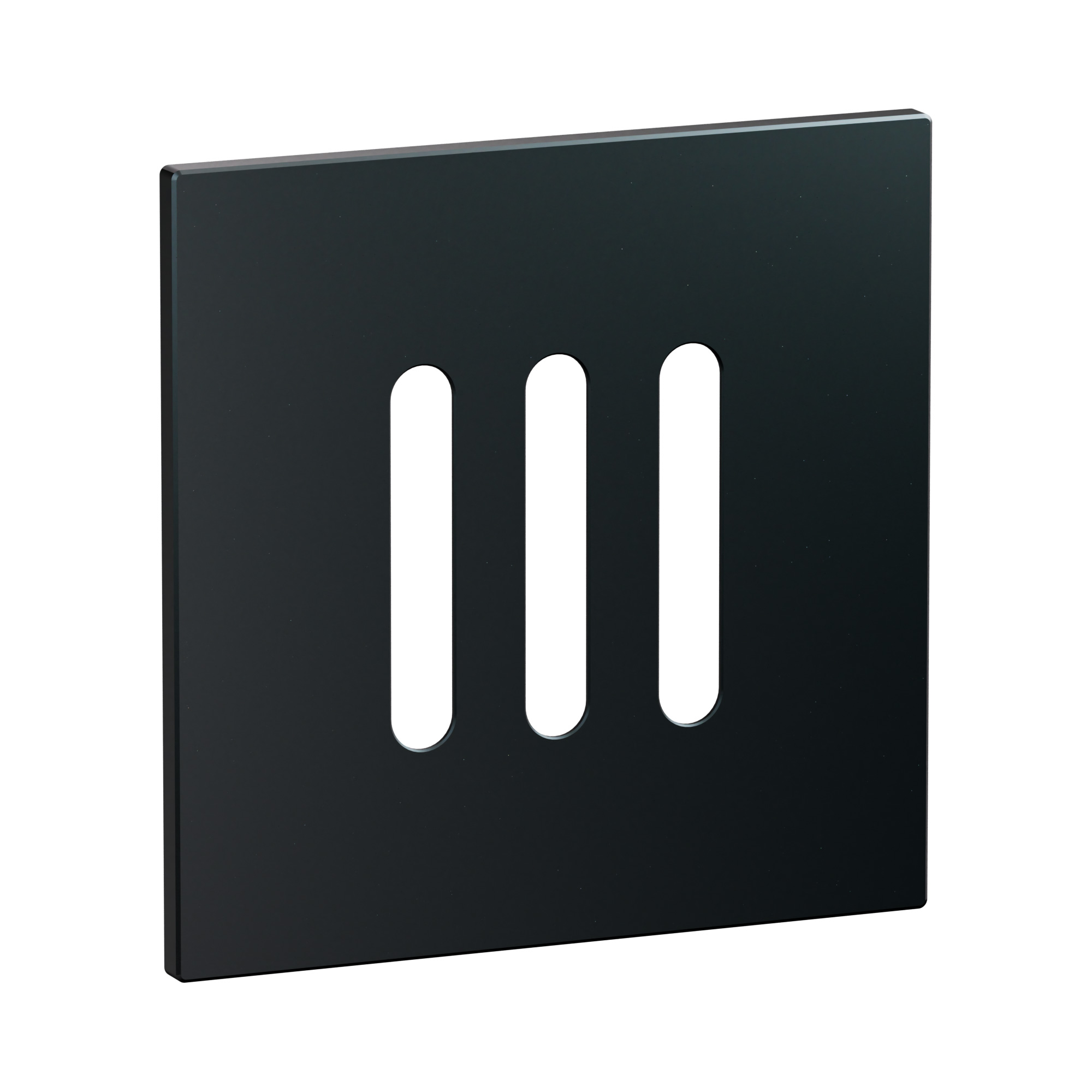

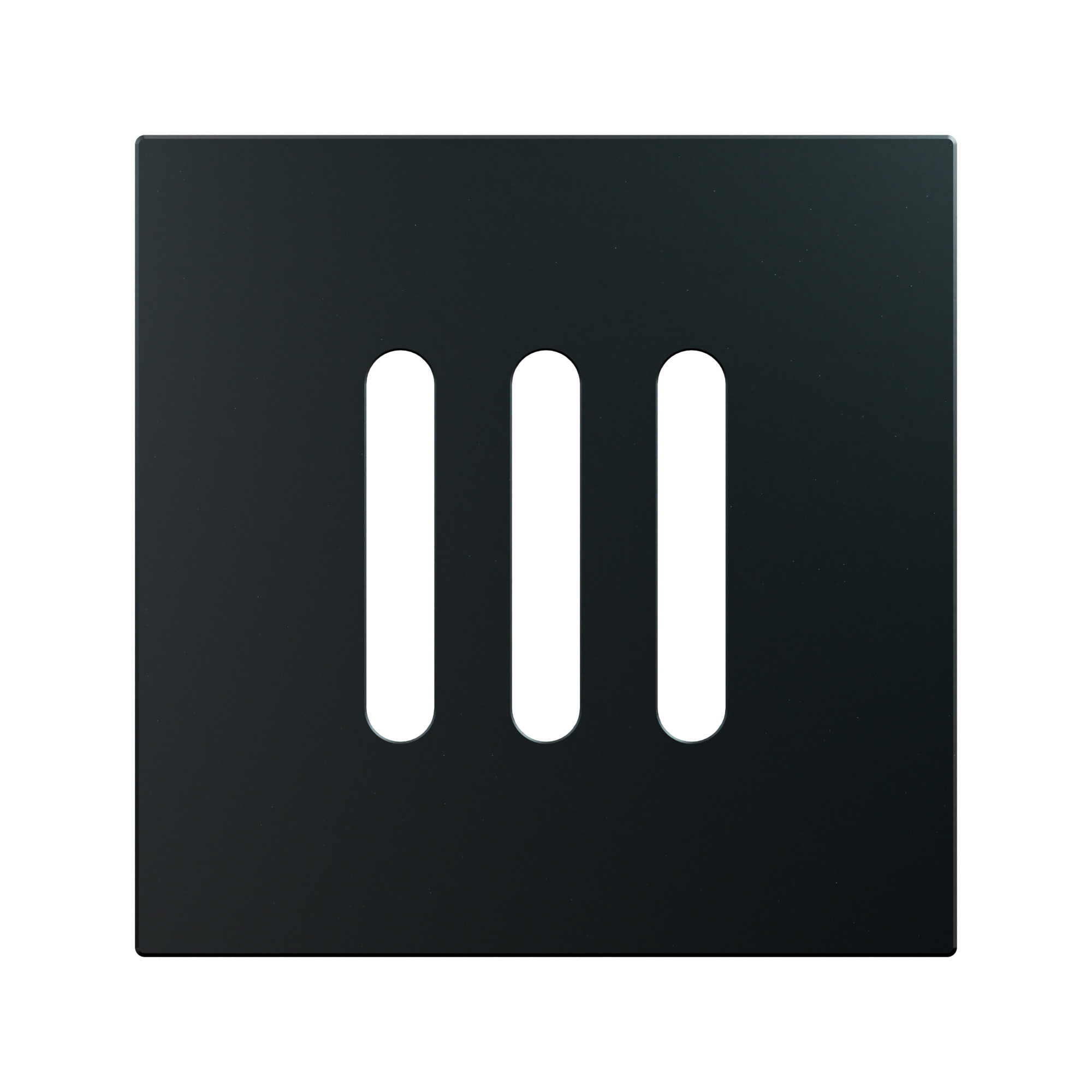

Arteor Advance - 4x4 plate for 3x1 module slender switches midnight blue - Matt lacquered aluminum - Horizontal 3 modules frame IP20

Arteor Advance Legrand

Arteor Advance - 4x4 plate for 3x1 module slender switches midnight blue - Matt lacquered aluminum - Horizontal 3 modules frame IP20

REF. AA1141NB EAN. 3414973068412
This 4x4 plate for 3x1 module slender switches in midnight blue features refined Arteor Advance design and real plain aluminum construction. Its matt lacquered finish ensures long-term aesthetics.
Download product sheet
Finition :
Number of modules horizontal (module system) :
You can only compare 4 products, you must remove 1 to add this one

Description

This 4x4 plate for 3x1 module slender switches in midnight blue features refined Arteor Advance design and real plain aluminum construction. Its matt lacquered finish ensures long-term aesthetics.

Product characteristics
  • 4x4 cover frame for 3x1 horizontal module configuration, optimized for Arteor Advance domestic switching devices
  • Midnight blue lacquered matte finish providing a dark blue, pearlescent aesthetic for premium interior applications
  • Cover plate manufactured from real plain aluminum, halogen free, with metal robustness and long-term dimensional stability
  • Ultra-slender 8.5mm profile for a refined, low-projection wall appearance in flush-mounted installations
  • 127x127mm IP20 frame with snap fastening, suitable for flush-mounted boxes, wall ducts, and subfloor duct boxes, for indoor use only
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Usage
  • Ensures long-term aesthetic against daily wear and sunlight exposure.
Avantages
  • Dark blue with pearlescent gleam and cool sensation of metal
  • Refined design

Technical characteristics

Number of units 3
Mounting direction Horizontal
Number of units horizontal 3
Number of units vertical 1
Number of modules horizontal (module system) 3
Number of modules vertical (module system) 1
With mounting grid No
Flush-mounted installation Yes
Suitable for subfloor installation duct box Yes
Suitable for wall duct Yes
Suitable for built-in installation No
Label space/information surface Yes
Material Metal
Material quality Aluminium
Halogen free Yes
Antimicrobial treatment No
Surface protection Lacquered
Surface finishing Matt
Colour Blue
Transparent No
With hinged lid No
Degree of protection (IP) IP20
Type of fastening Engage (snap)
Width 127 mm
Height 127 mm
Depth 8.5 mm
Built-in width 10.5 mm
Built-in height 60.5 mm
Latin wood species Not applicable
Certification of wood (list) Not applicable
Wood Climate area Not applicable

Documentation

1 document
Technical Sheet
F04887EN-00.pdf pdf (0.51 Mo)
