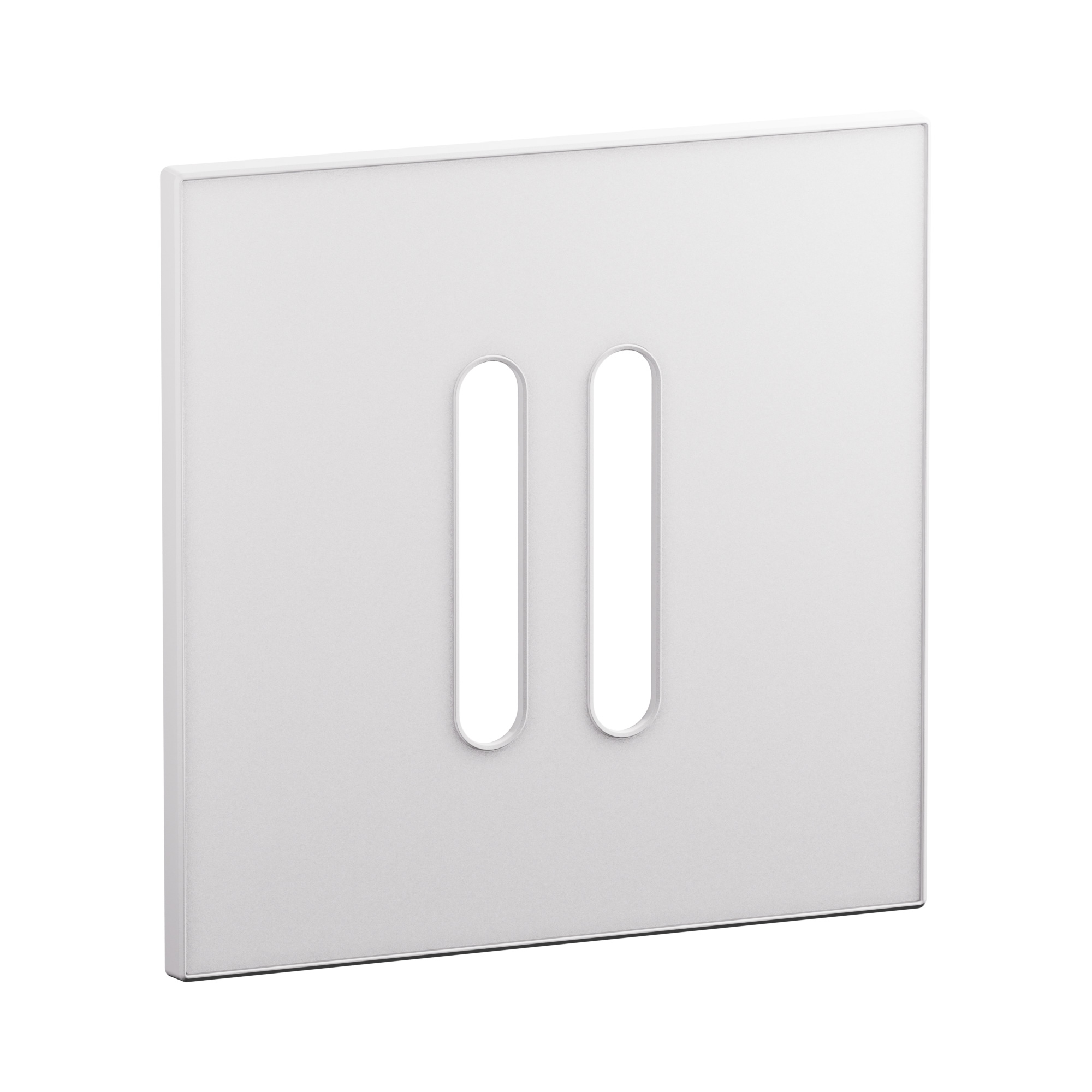

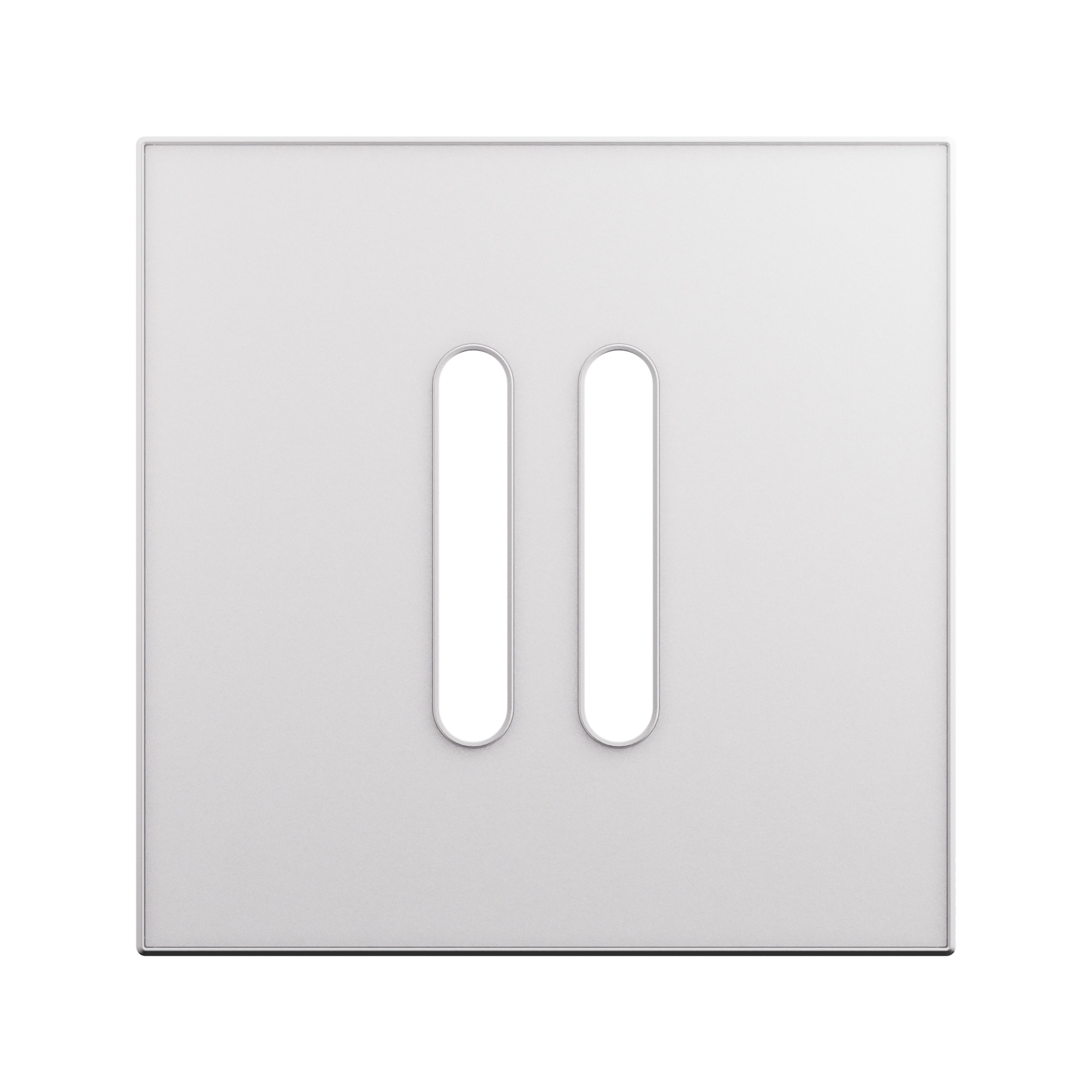

Arteor Advance - 4x4 plate for 2x1 module slender switches frosted white - Crystal polycarbonate matt finish - Flush mount IP20

Arteor Advance Legrand

Arteor Advance - 4x4 plate for 2x1 module slender switches frosted white - Crystal polycarbonate matt finish - Flush mount IP20

REF. AA1139FW EAN. 3414973068023
This 4x4 plate for 2x1 module slender switches in frosted white offers refined design and crystal polycarbonate durability. Its matt lacquered finish resists wear and sunlight. Snap fastening and flush-mounted compatibility ensure clean
Download product sheet
Finition :
Number of modules horizontal (module system) :
You can only compare 4 products, you must remove 1 to add this one

Description

This 4x4 plate for 2x1 module slender switches in frosted white offers refined design and crystal polycarbonate durability. Its matt lacquered finish resists wear and sunlight. Snap fastening and flush-mounted compatibility ensure clean

Product characteristics
  • 4x4 cover frame for 2x1 horizontal modules, optimized for 2M slender switches
  • Frosted white matte finish with lacquered surface for refined, low-glare aesthetics
  • Plate manufactured from high-quality thermoplastic crystal polycarbonate for enhanced durability and translucence
  • Slim 8.5mm profile for a slender, discreet appearance compatible with Arteor Advance range
  • Flush-mounted IP20 frame, 127mmx127mm, halogen-free, with snap fastening and label space for indoor installations
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Usage
  • Ensures long-term aesthetic against daily wear and sunlight exposure.
Avantages
  • Crystal PC, set in a cradle, providing both velvety touch and white translucence
  • Refined design

Technical characteristics

Number of units 2
Mounting direction Horizontal
Number of units horizontal 2
Number of units vertical 1
Number of modules horizontal (module system) 2
Number of modules vertical (module system) 1
With mounting grid No
Flush-mounted installation Yes
Suitable for subfloor installation duct box Yes
Suitable for wall duct Yes
Suitable for built-in installation No
Label space/information surface Yes
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Antimicrobial treatment No
Surface protection Lacquered
Surface finishing Matt
Colour White
Transparent No
With hinged lid No
Degree of protection (IP) IP20
Type of fastening Engage (snap)
Width 127 mm
Height 127 mm
Depth 8.5 mm
Built-in width 10.5 mm
Built-in height 60.5 mm
Latin wood species Not applicable
Certification of wood (list) Not applicable
Wood Climate area Not applicable

Documentation

1 document
Technical Sheet
F04886EN-00.pdf pdf (0.51 Mo)
