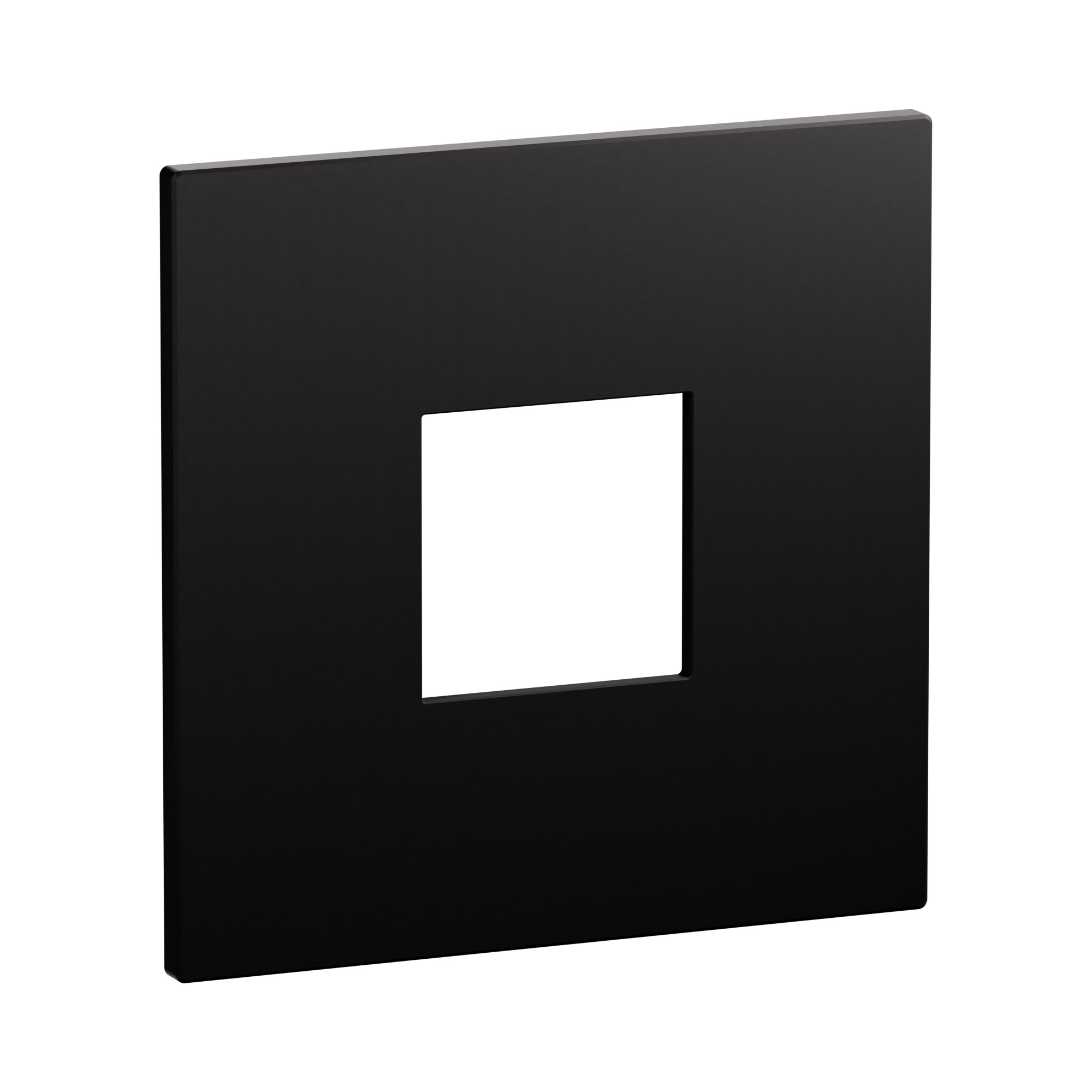

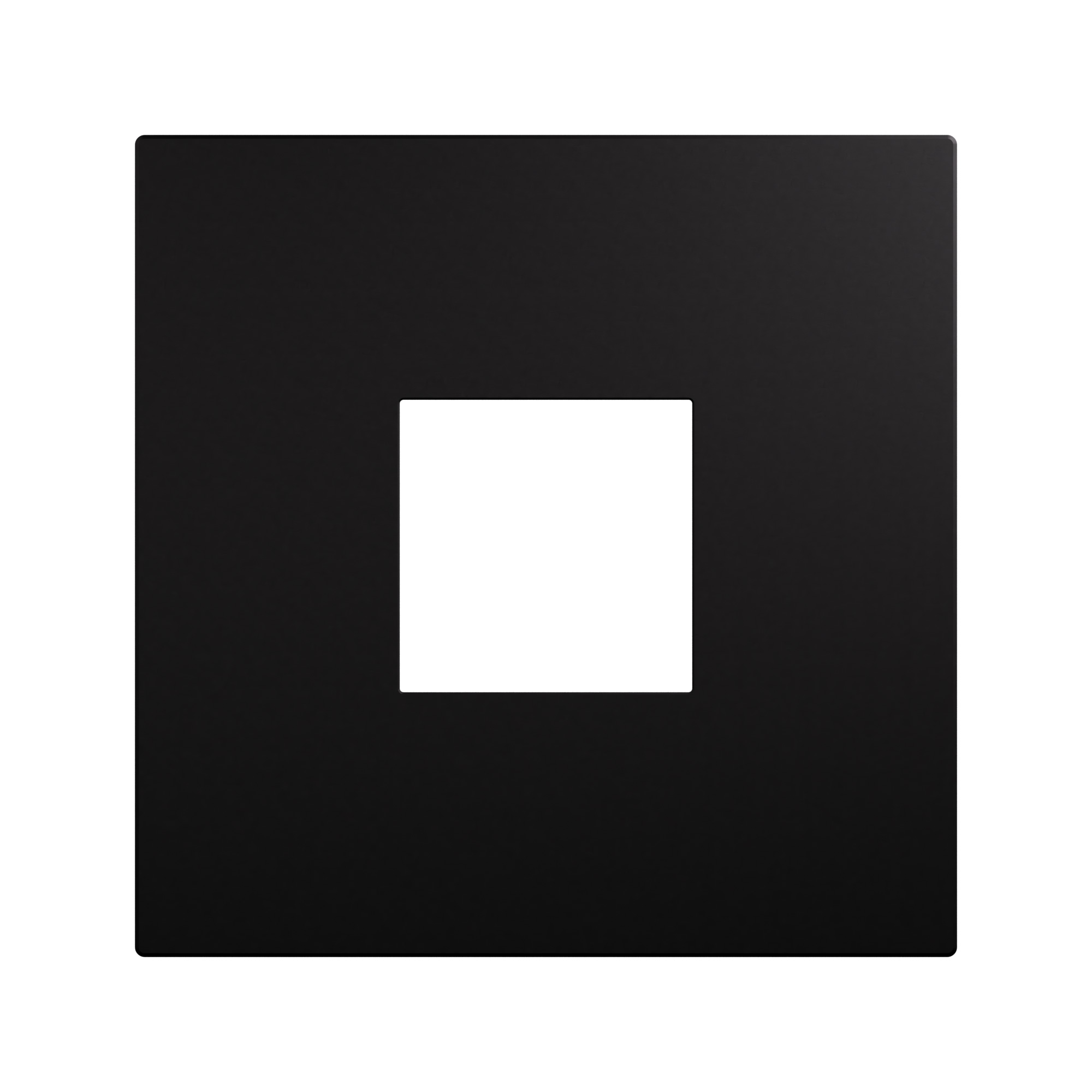

Arteor Advance - 4x4 plate for 2 modules matt black - 4x4 US cover frame, flush-mounted - Matt deep black thermoplastic, halogen free

Arteor Advance Legrand

Arteor Advance - 4x4 plate for 2 modules matt black - 4x4 US cover frame, flush-mounted - Matt deep black thermoplastic, halogen free

REF. AC1118MB EAN. 3414972737067
This 4x4 plate for 2 modules in matt black thermoplastic offers flush-mounted installation and snap fastening for quick, secure mounting. Its 127x127mm format ensures modular flexibility and a minimalist, high-end aesthetic for interiors.
Download product sheet
Finition :
You can only compare 4 products, you must remove 1 to add this one

Description

This 4x4 plate for 2 modules in matt black thermoplastic offers flush-mounted installation and snap fastening for quick, secure mounting. Its 127x127mm format ensures modular flexibility and a minimalist, high-end aesthetic for interiors.

Product characteristics
  • 4x4 cover plate for 2 horizontal modules, optimized for domestic switching devices
  • Deep matt black finish for a minimalist, high-contrast aesthetic in advanced installations
  • High-quality thermoplastic polycarbonate plate, halogen free for enhanced safety and durability
  • Square 127x127mm geometry with 45.2x45.2mm built-in opening for compact, modular configurations
  • Flush-mounted, snap-on installation with adjuster for precise wall alignment; recommended for indoor use at -5 to 35° C
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Usage
  • The plate contains an adjuster that ensures perfect installation on the wall
Avantages
  • Deep black with a smooth matte aspect
  • Minimalist design
  • Square design allows modularity and flexibility in a compact configuration

Technical characteristics

Number of units 1
Mounting direction Horizontal
Number of units horizontal 1
Number of units vertical 1
Number of modules horizontal (module system) 2
Number of modules vertical (module system) 1
With mounting grid No
Flush-mounted installation Yes
Suitable for subfloor installation duct box No
Suitable for wall duct No
Suitable for built-in installation Yes
Label space/information surface No
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Antimicrobial treatment No
Surface protection Untreated
Surface finishing Matt
Colour Black
Transparent No
With hinged lid No
Type of fastening Engage (snap)
Width 127 mm
Height 127 mm
Depth 8.5 mm
Built-in width 45.2 mm
Built-in height 45.2 mm
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
Latin wood species Not applicable
Certification of wood (list) Not applicable
Wood Climate area Not applicable

Documentation

1 document
Technical Sheet
F04885EN-00.pdf pdf (0.5 Mo)
