Arteor Advance - 4x4 hybrid plate for 2 modules + 2x1 module slender switches - Solid aluminum matt finish - Flush-mounted IP20 frame

Arteor Advance Legrand

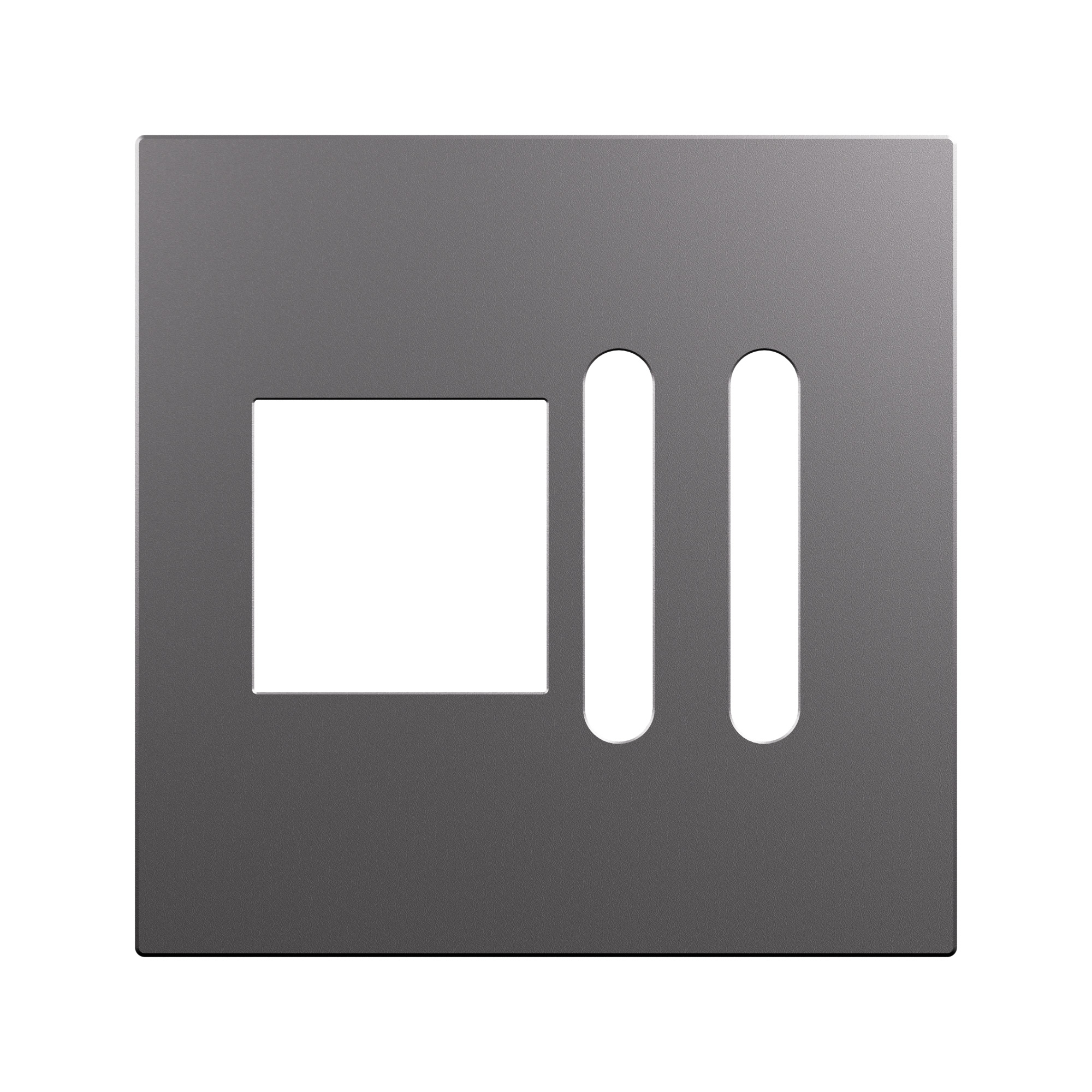

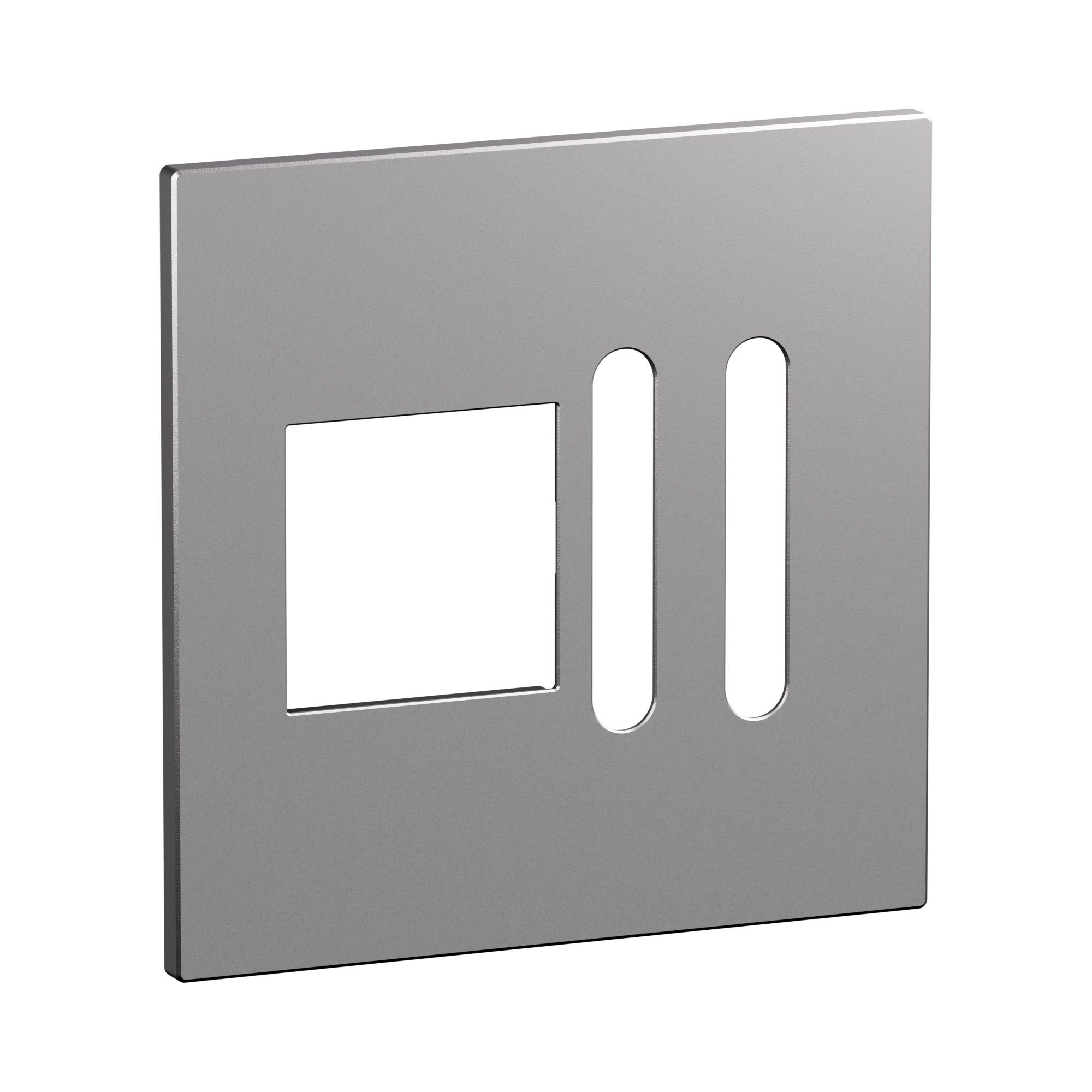

Arteor Advance - 4x4 hybrid plate for 2 modules + 2x1 module slender switches - Solid aluminum matt finish - Flush-mounted IP20 frame

REF. AB1143SA EAN. 3414973069266
This 4x4 hybrid plate in solid aluminum accommodates 2 modules plus 2x1 module slender switches in a refined, minimal design. Its lacquered matt finish ensures long-term aesthetics.
Download product sheet
Finition :
You can only compare 4 products, you must remove 1 to add this one

Description

This 4x4 hybrid plate in solid aluminum accommodates 2 modules plus 2x1 module slender switches in a refined, minimal design. Its lacquered matt finish ensures long-term aesthetics.

Product characteristics
  • 4x4 hybrid cover frame configuration for two modules + two modules, enabling mixed functions in a single 127mmx127mm plate
  • Solid aluminum metal construction with lacquered matt surface for enhanced mechanical robustness and long-term dimensional stability
  • Plate made of real plain aluminum with muted reflection, delivering a cool metal touch and refined, minimalist aesthetic
  • Hybrid design plate integrating multiple functions and module types in one frame, optimizing space and installation flexibility
  • Flush-mounted IP20 cover frame for domestic switching devices, halogen-free and suitable for wall duct and subfloor installation with snap fastening
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Usage
  • Ensures long-term aesthetic against daily wear and sunlight exposure.
Avantages
  • Aluminium with muted reflection and cool sensation of metal
  • Refined design
  • Hybrid design plates integrate multiple functions with refined minimalism, achieving a perfect balance of form and utility

Technical characteristics

Number of units 3
Mounting direction Horizontal
Number of units horizontal 3
Number of units vertical 1
Number of modules horizontal (module system) 4
Number of modules vertical (module system) 1
With mounting grid No
Flush-mounted installation Yes
Suitable for subfloor installation duct box Yes
Suitable for wall duct Yes
Suitable for built-in installation No
Label space/information surface Yes
Material Metal
Material quality Aluminium
Halogen free Yes
Antimicrobial treatment No
Surface protection Lacquered
Surface finishing Matt
Colour Aluminium
Transparent No
With hinged lid No
Degree of protection (IP) IP20
Type of fastening Engage (snap)
Width 127 mm
Height 127 mm
Depth 8.5 mm
Built-in width 45 mm
Built-in height 45 mm
Latin wood species Not applicable
Certification of wood (list) Not applicable
Wood Climate area Not applicable

Documentation

1 document
Technical Sheet
F04887EN-00.pdf pdf (0.51 Mo)
