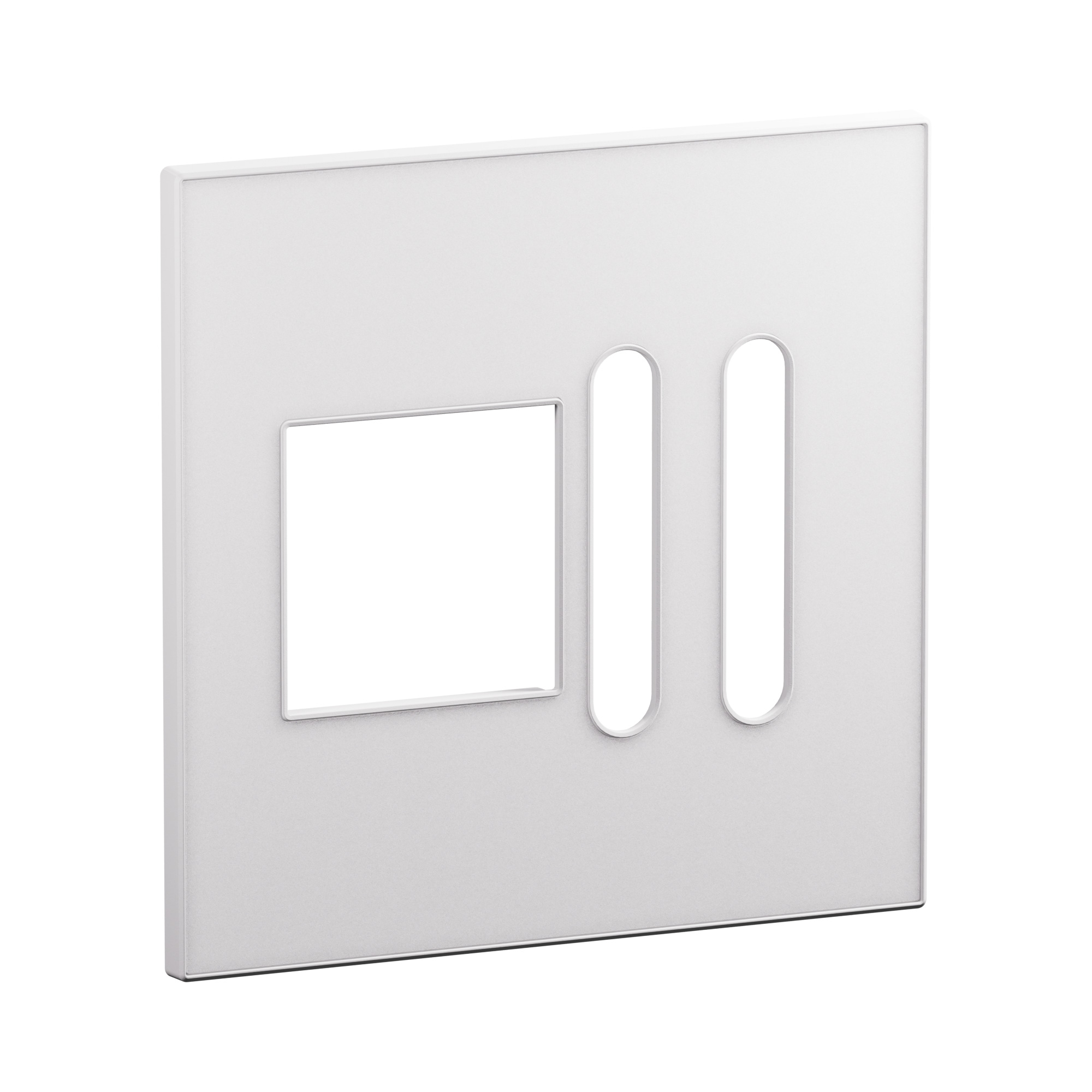

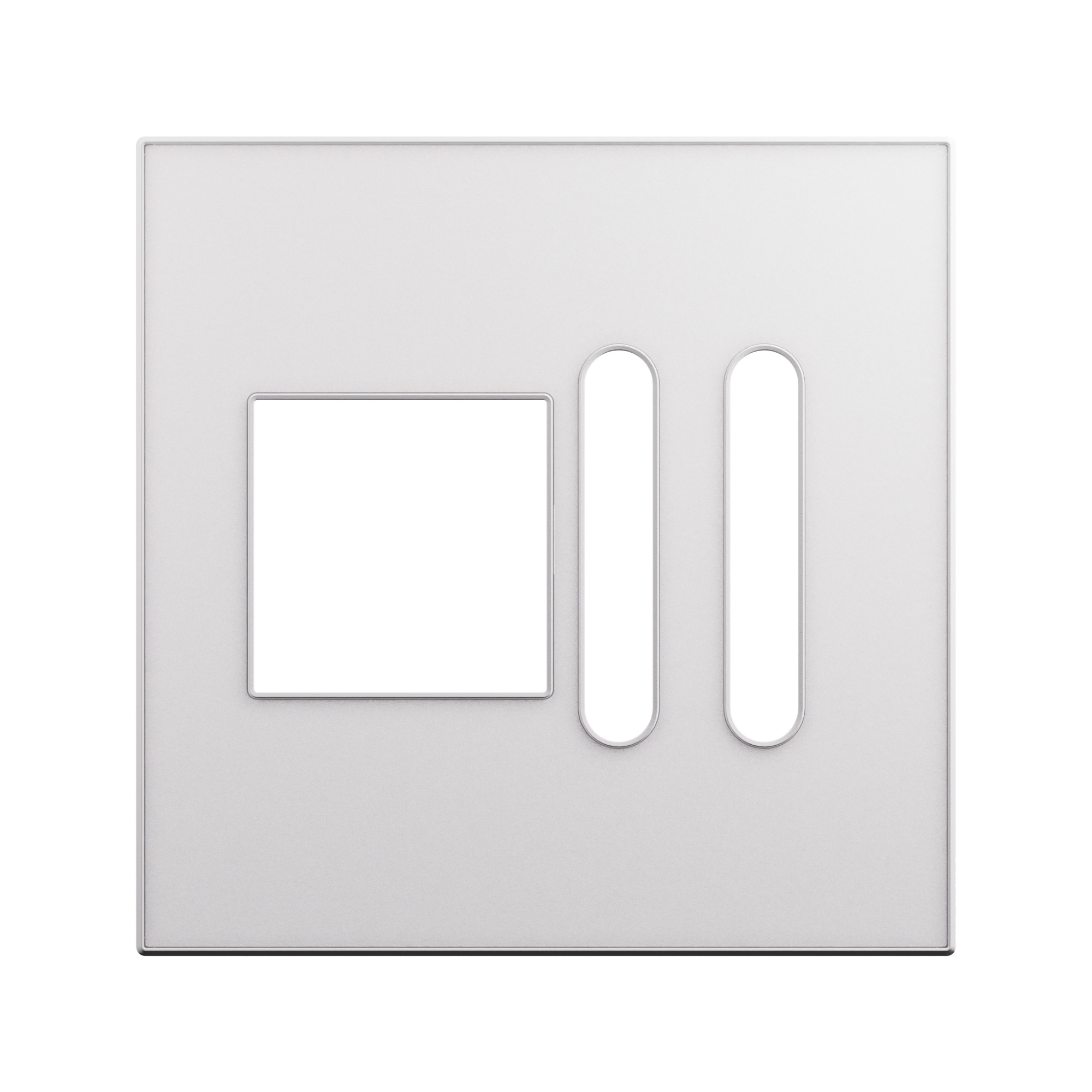

Arteor Advance - 4x4 hybrid plate for 2 modules + 2x1 module slender switches - Crystal polycarbonate - Matt frosted white finish

Arteor Advance Legrand

Arteor Advance - 4x4 hybrid plate for 2 modules + 2x1 module slender switches - Crystal polycarbonate - Matt frosted white finish

REF. AB1143FW EAN. 3414973069204
The 4x4 hybrid plate for 2 modules + 2x1 module slender switches frosted white offers hybrid 4x4 capacity with horizontal 4-module configuration. Its crystal polycarbonate construction and frosted white matt finish ensure durability
Download product sheet
Finition :
You can only compare 4 products, you must remove 1 to add this one

Description

The 4x4 hybrid plate for 2 modules + 2x1 module slender switches frosted white offers hybrid 4x4 capacity with horizontal 4-module configuration. Its crystal polycarbonate construction and frosted white matt finish ensure durability

Product characteristics
  • 4x4 hybrid cover frame for two modules + two slender-switch modules, horizontal 3-unit configuration
  • Frosted white matte lacquered finish for refined aesthetics and reduced glare in interior applications
  • Crystal polycarbonate thermoplastic plate offering high durability, halogen-free composition, and long-term color stability
  • Hybrid design plate integrating multiple functions with minimalistic geometry, suitable for flush-mounted and duct installations
  • IP20 snap-on plate, 127x127x8.5mm, with label space for clear circuit identification in domestic switching layouts
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Usage
  • Ensures long-term aesthetic against daily wear and sunlight exposure.
Avantages
  • Crystal PC, set in a cradle, providing both velvety touch and white translucence
  • Refined design
  • Hybrid design plates integrate multiple functions with refined minimalism, achieving a perfect balance of form and utility

Technical characteristics

Number of units 3
Mounting direction Horizontal
Number of units horizontal 3
Number of units vertical 1
Number of modules horizontal (module system) 4
Number of modules vertical (module system) 1
With mounting grid No
Flush-mounted installation Yes
Suitable for subfloor installation duct box Yes
Suitable for wall duct Yes
Suitable for built-in installation No
Label space/information surface Yes
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Antimicrobial treatment No
Surface protection Lacquered
Surface finishing Matt
Colour White
Transparent No
With hinged lid No
Degree of protection (IP) IP20
Type of fastening Engage (snap)
Width 127 mm
Height 127 mm
Depth 8.5 mm
Built-in width 45 mm
Built-in height 45 mm
Latin wood species Not applicable
Certification of wood (list) Not applicable
Wood Climate area Not applicable

Documentation

1 document
Technical Sheet
F04886EN-00.pdf pdf (0.51 Mo)
