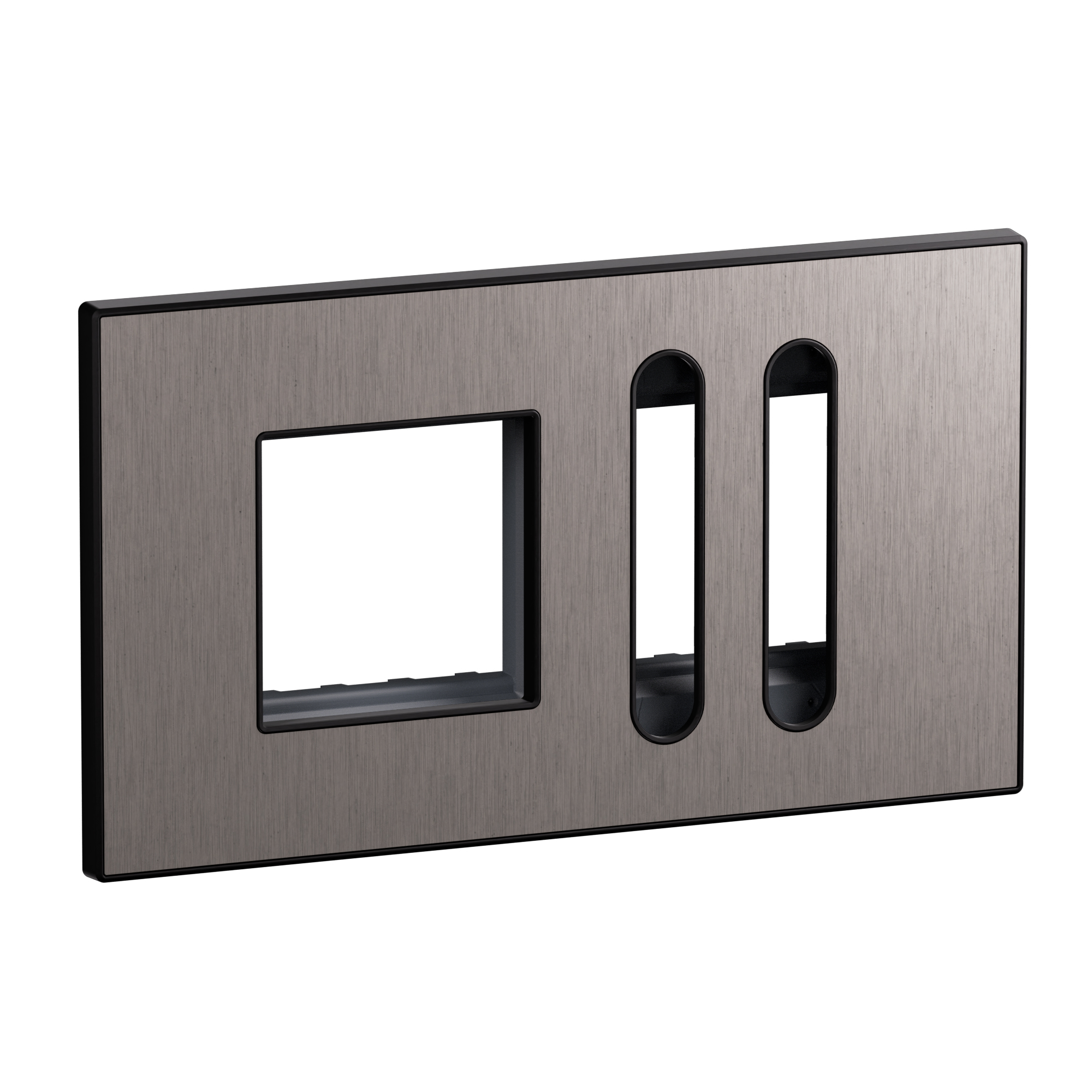

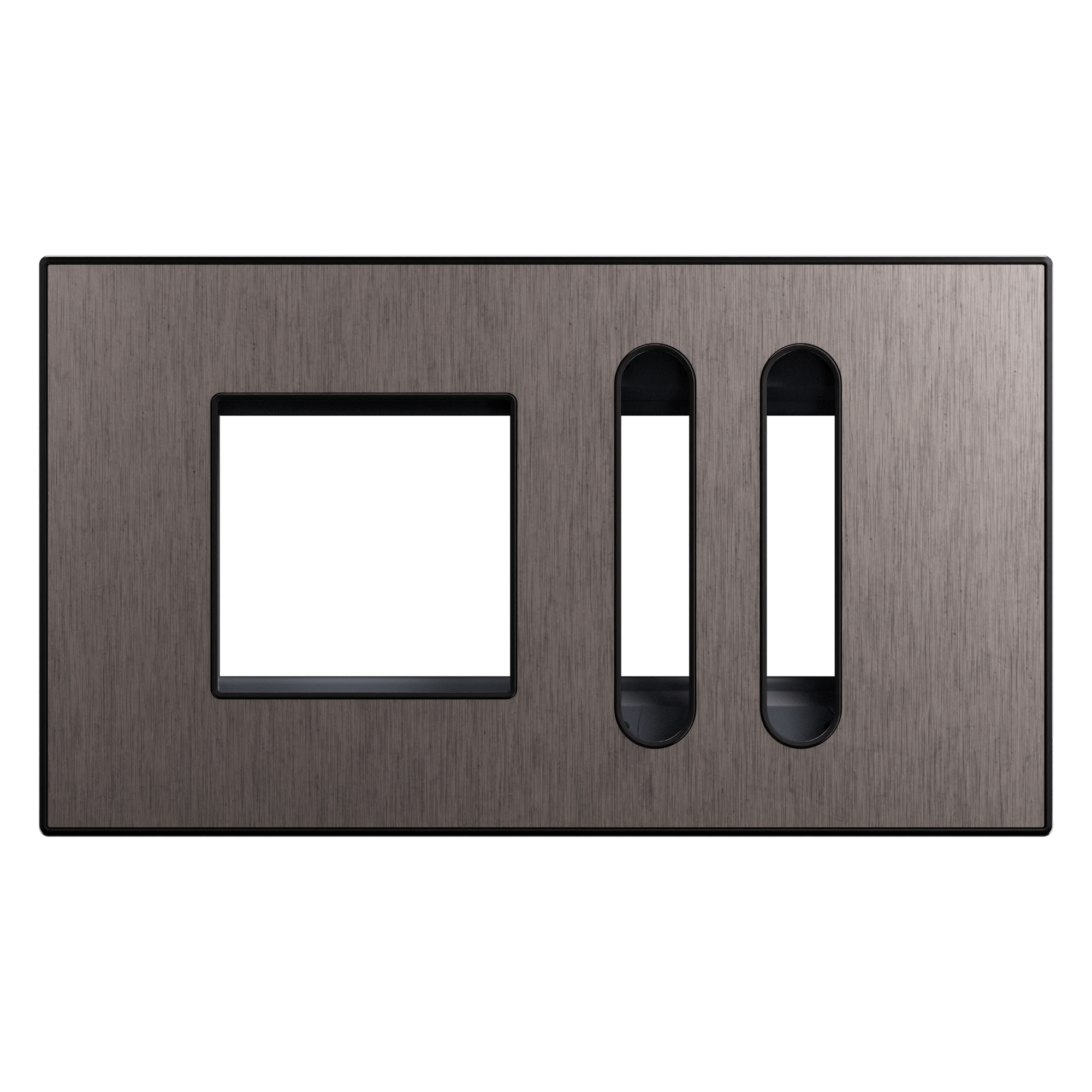

Arteor Advance - 4M hybrid plate+frame for 2 modules + 2x1 module slender switches dark aluminium - Real brushed matt dark aluminum

Arteor Advance Legrand

Arteor Advance - 4M hybrid plate+frame for 2 modules + 2x1 module slender switches dark aluminium - Real brushed matt dark aluminum

REF. AB1208DA EAN. 3414972733489
This 4M hybrid plate and frame in dark brushed aluminum delivers refined, minimalist design with modular 2M+2x1M switch capacity and precise wall-adjuster for perfect flush-mounted alignment in high-end interior electrical installations.
Download product sheet
Finition :
You can only compare 4 products, you must remove 1 to add this one

Description

This 4M hybrid plate and frame in dark brushed aluminum delivers refined, minimalist design with modular 2M+2x1M switch capacity and precise wall-adjuster for perfect flush-mounted alignment in high-end interior electrical installations.

Product characteristics
  • Dark aluminum hybrid cover frame for domestic switching devices, 4 modules horizontal configuration for 2 modules + 2x1-module slender switches
  • Dark aluminum finish with matt warm gray reflection for a refined, contemporary appearance in technical interiors
  • Front plates made of real brushed aluminum set in a cradle for premium material quality and durable surface aesthetics
  • Hybrid design integrating modular functions with refined minimalism, balancing form and utility in advanced switching layouts
  • Flush-mounted, snap-engage frame (157x90x8.5mm), halogen free, for indoor use within -5° C to 35° C operating temperature range
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Usage
  • The plate contains an adjuster that ensures perfect installation on the wall
Avantages
  • Real brushed aluminium set in a cradle, with a matt warm grey reflection
  • Refined design
  • Hybrid design integrates modular functions with refined minimalism, achieving a perfect balance of form and utility

Technical characteristics

Number of units 3
Mounting direction Horizontal
Number of units horizontal 3
Number of units vertical 1
Number of modules horizontal (module system) 4
Number of modules vertical (module system) 1
With mounting grid Yes
Flush-mounted installation Yes
Suitable for subfloor installation duct box No
Suitable for wall duct No
Label space/information surface No
Material Other
Material quality Other
Halogen free Yes
Antimicrobial treatment No
Surface protection Untreated
Surface finishing Matt
Colour Grey
Transparent No
With hinged lid No
Type of fastening Engage (snap)
Width 157 mm
Height 90 mm
Depth 8.5 mm
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
Latin wood species Not applicable
Certification of wood (list) Not applicable
Wood Climate area Not applicable
