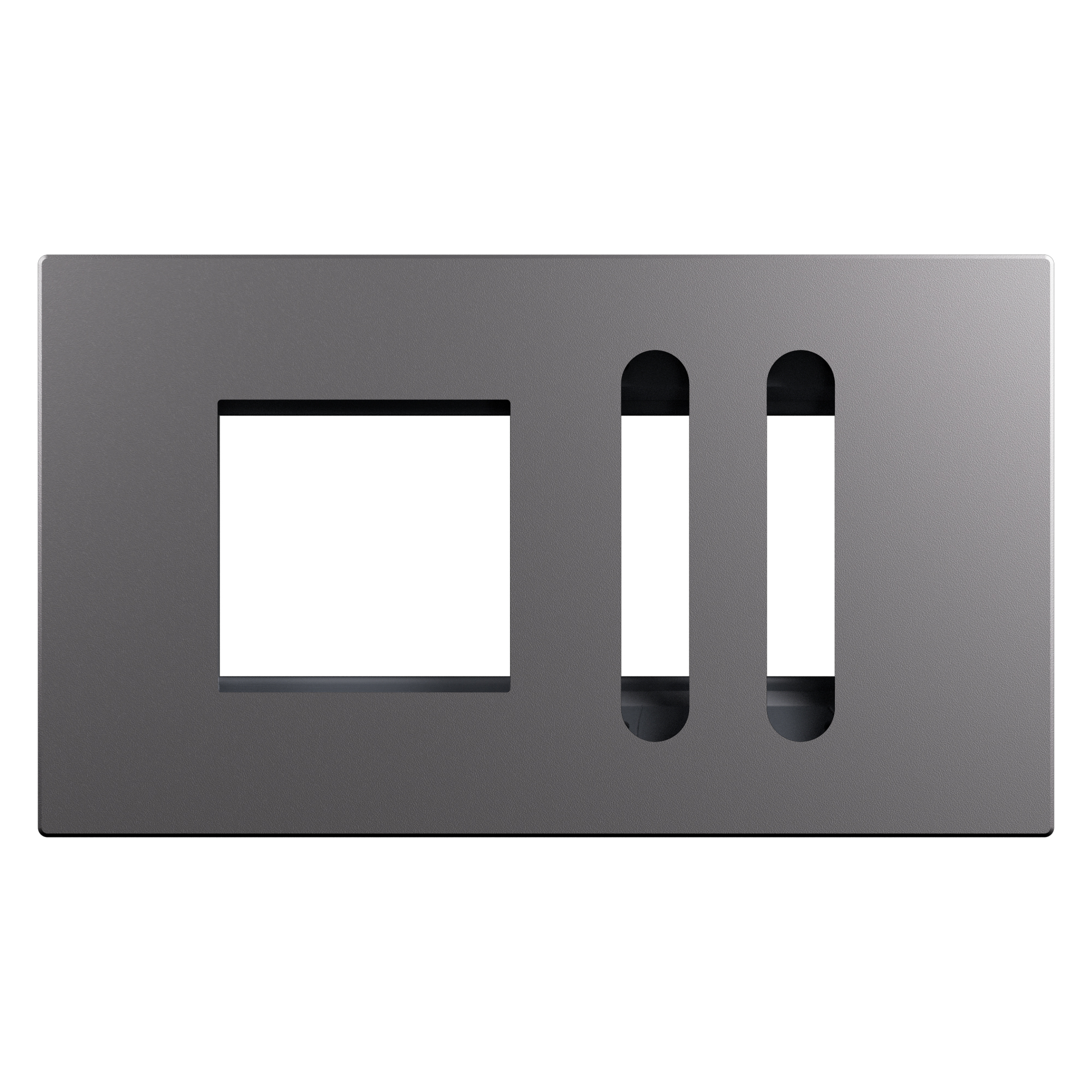

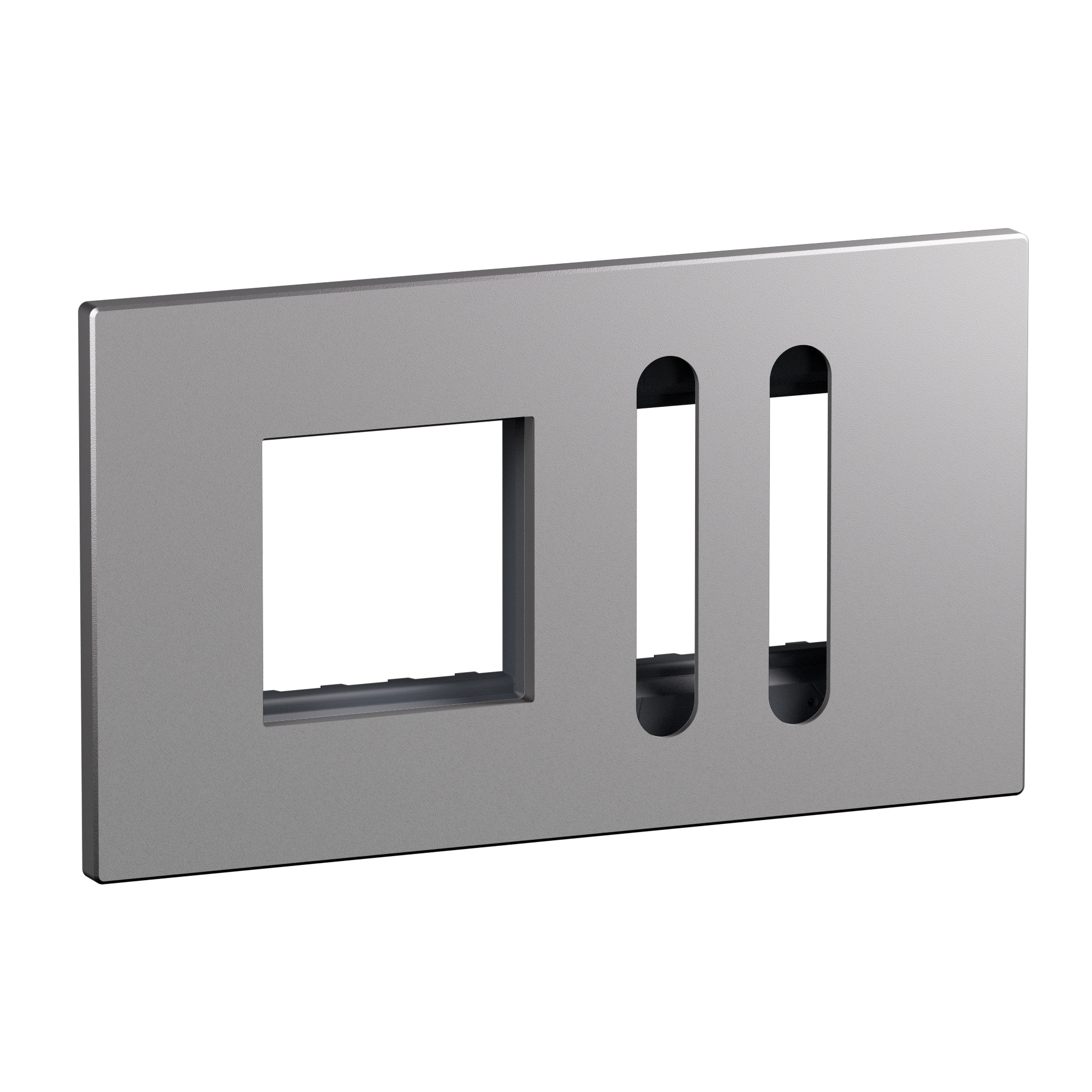

Arteor Advance - 4M hybrid plate+frame 2 modules + 2x1 module slender switches - Solid aluminum matt finish - Horizontal flush-mounted

Arteor Advance Legrand

Arteor Advance - 4M hybrid plate+frame 2 modules + 2x1 module slender switches - Solid aluminum matt finish - Horizontal flush-mounted

REF. AB1208SA EAN. 3414972733595
The 4m hybrid plate+frame 2 modules + 2x1 module slender switches solid aluminium offers hybrid modular flexibility with solid brass construction and matt aluminium finish.
Download product sheet
Finition :
You can only compare 4 products, you must remove 1 to add this one

Description

The 4m hybrid plate+frame 2 modules + 2x1 module slender switches solid aluminium offers hybrid modular flexibility with solid brass construction and matt aluminium finish.

Product characteristics
  • Solid aluminum cover frame for domestic switching devices, providing high mechanical robustness and dimensional stability for demanding residential and commercial applications.
  • Constructed from solid, lacquered aluminum with a matt finish, delivering a cool metal touch and muted reflection suitable for premium interior environments.
  • Plates are made of real plain aluminum (brass base material), ensuring consistent surface quality, halogen-free composition, and long-term durability.
  • Hybrid 4 modules plate and frame configuration (2 modules + 2x1 slender switches) enabling flexible modular integration while maintaining a refined, minimalist design.
  • Horizontal flush-mounted installation with snap fastening, 157mm width and 8.5mm depth, featuring an internal adjuster for precise wall alignment; recommended for indoor use at -5 to 35° C operating temperature.
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Usage
  • The plate contains an adjuster that ensures perfect installation on the wall
Avantages
  • Aluminium with muted reflection and cool sensation of metal
  • Refined design
  • Hybrid design integrates modular functions with refined minimalism, achieving a perfect balance of form and utility

Technical characteristics

Number of units 3
Mounting direction Horizontal
Number of units horizontal 3
Number of units vertical 1
Number of modules horizontal (module system) 4
Number of modules vertical (module system) 1
With mounting grid Yes
Flush-mounted installation Yes
Suitable for subfloor installation duct box No
Suitable for wall duct No
Label space/information surface No
Material Metal
Material quality Aluminium
Halogen free Yes
Antimicrobial treatment No
Surface protection Lacquered
Surface finishing Matt
Colour Aluminium
Transparent No
With hinged lid No
Type of fastening Engage (snap)
Width 157 mm
Height 90 mm
Depth 8.5 mm
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
Latin wood species Not applicable
Certification of wood (list) Not applicable
Wood Climate area Not applicable
